Instrument Panel Fuse Block

Instrument Panel Fuse Block

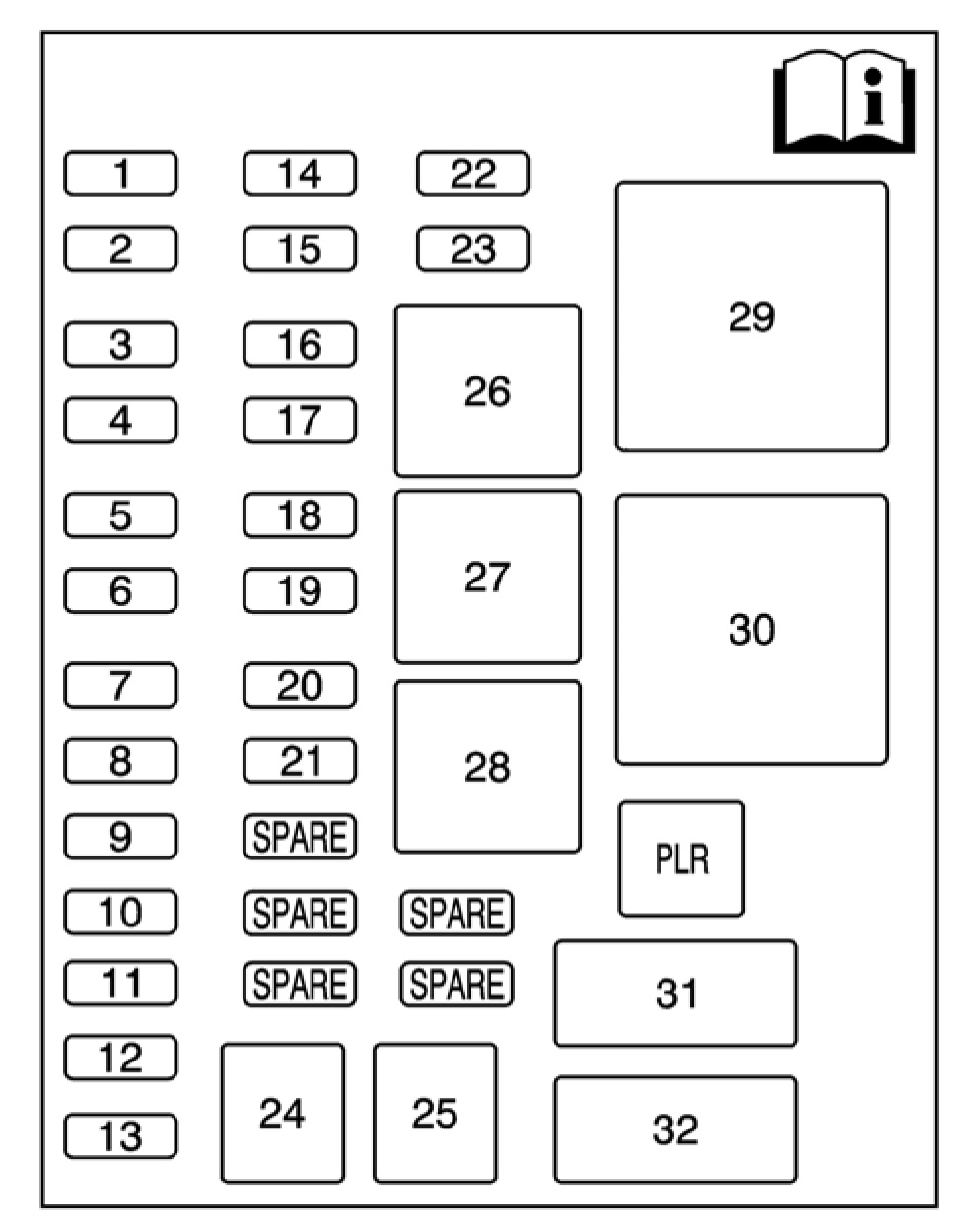

The instrument panel fuse block is located at the right end of the instrument panel, on the passenger side of the vehicle. Open the front passenger door, and remove the cover, to access the fuse block.

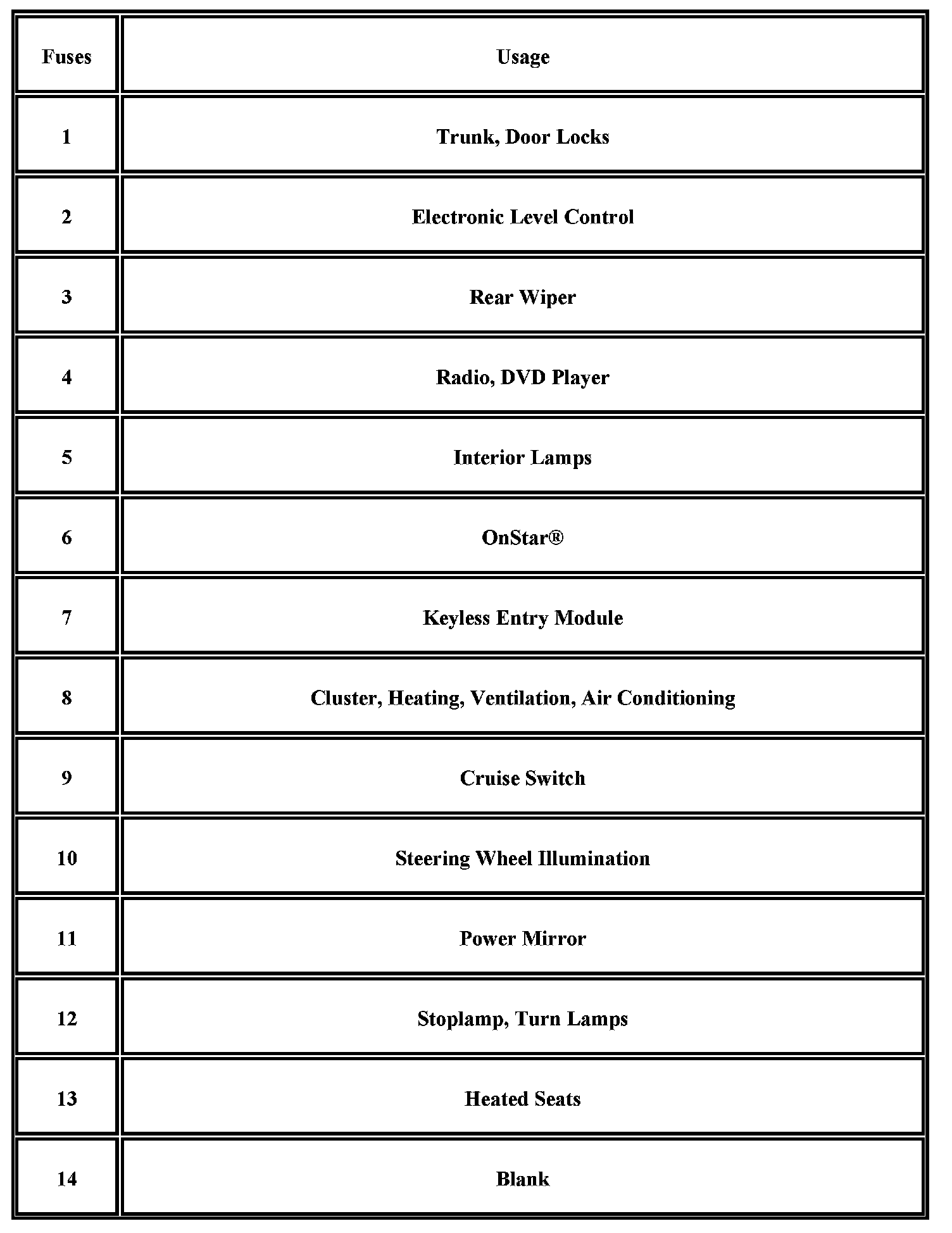

Your vehicle may not have all of the fuses listed.
