Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

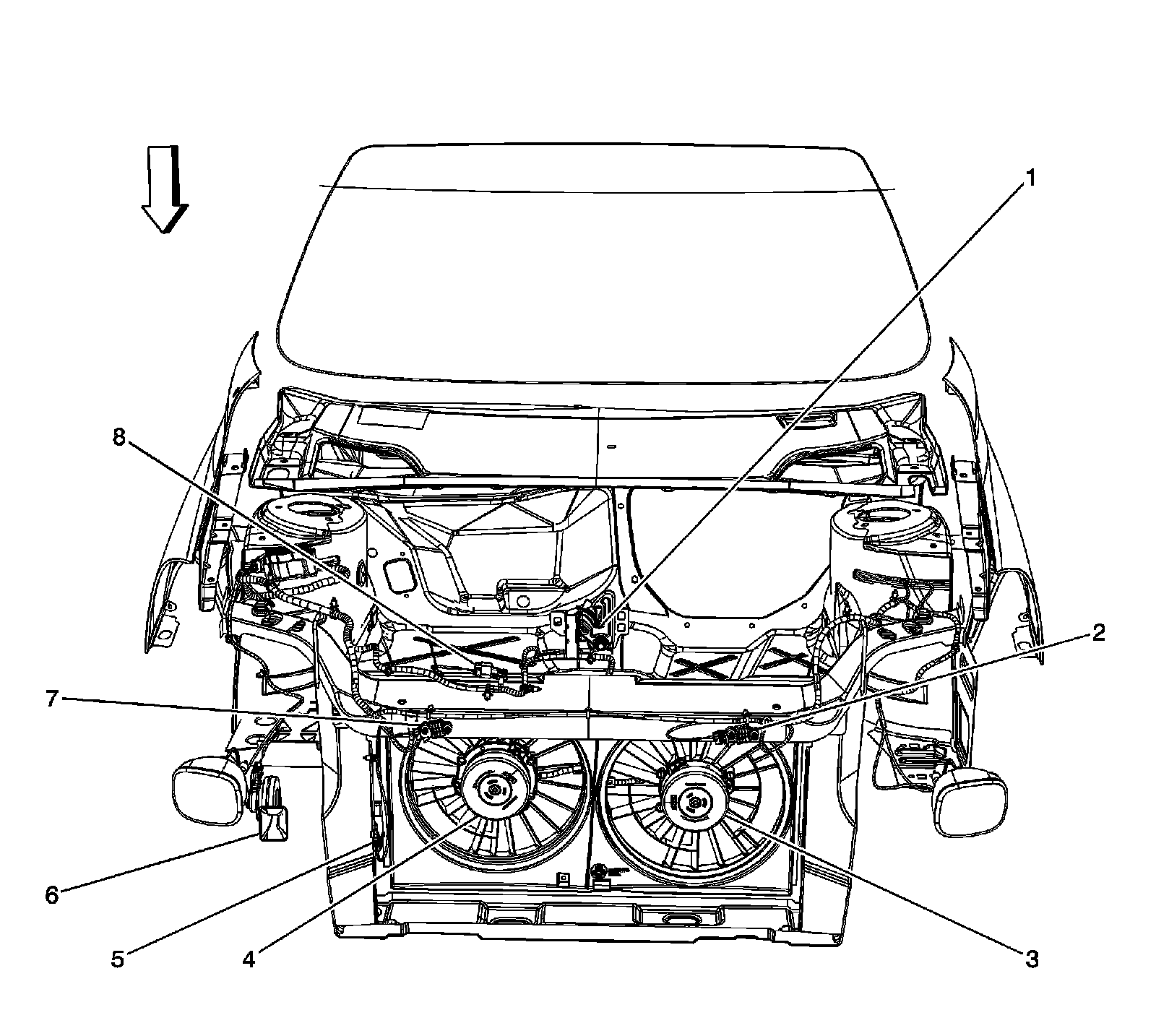

Front of Engine Compartment Components




1 - Hood Ajar Switch (AP3/AP8)
2 - Inflatable Restraint Front End Sensor - Left
3 - Engine Cooling Fan - Left
4 - Engine Cooling Fan - Right
5 - Ambient Air Temperature Sensor (UH8/UH9)
6 - Horn Assembly
7 - Inflatable Restraint Front End Sensor - Right
8 - Hood Ajar Switch Connector (AP3/AP8)
