Malfunction Indicator Lamp: Diagrams

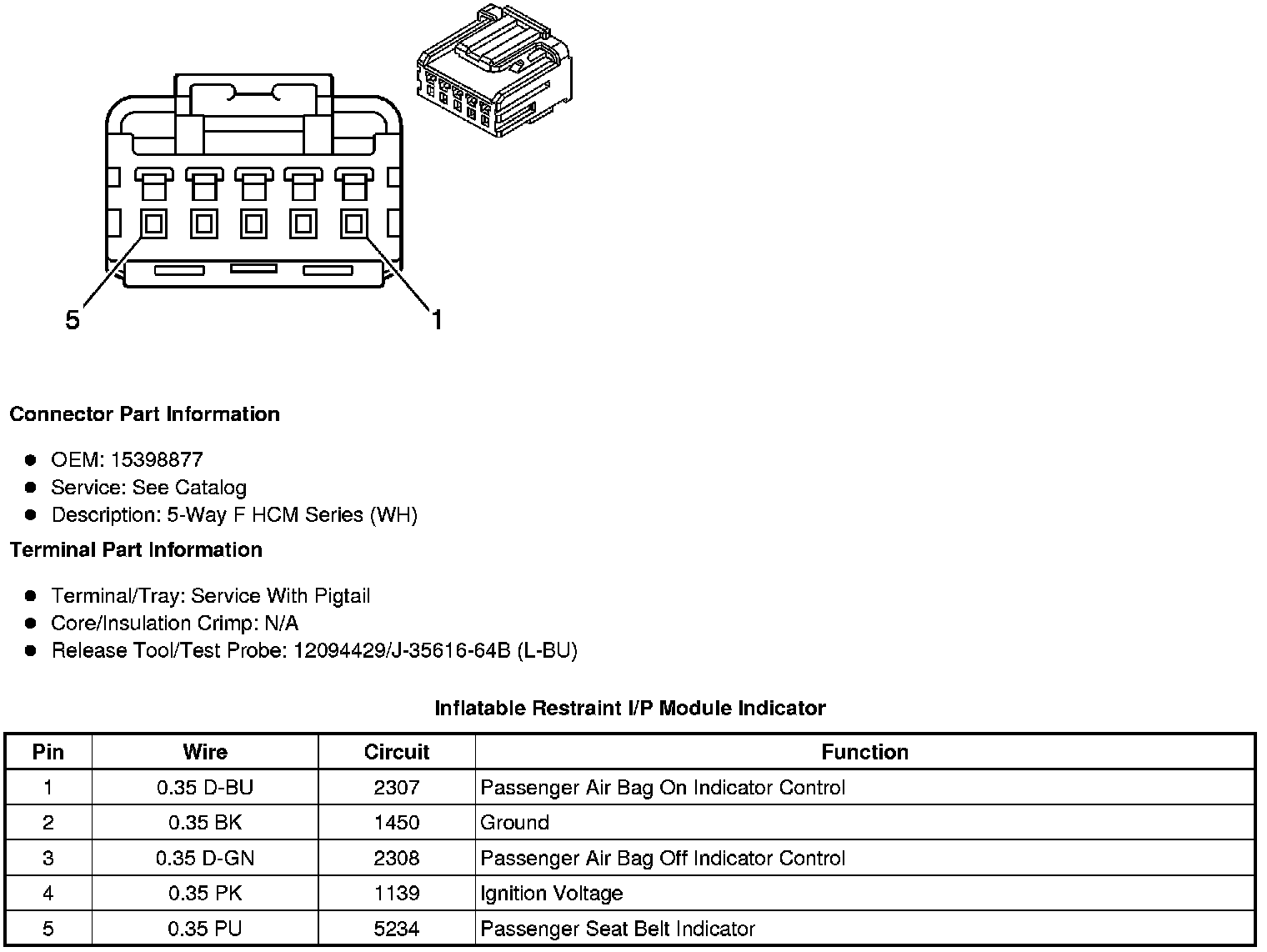

Component Connector End Views

Inflatable Restraint I/P Module Indicator
