Wiper Motor




Component Connector End Views

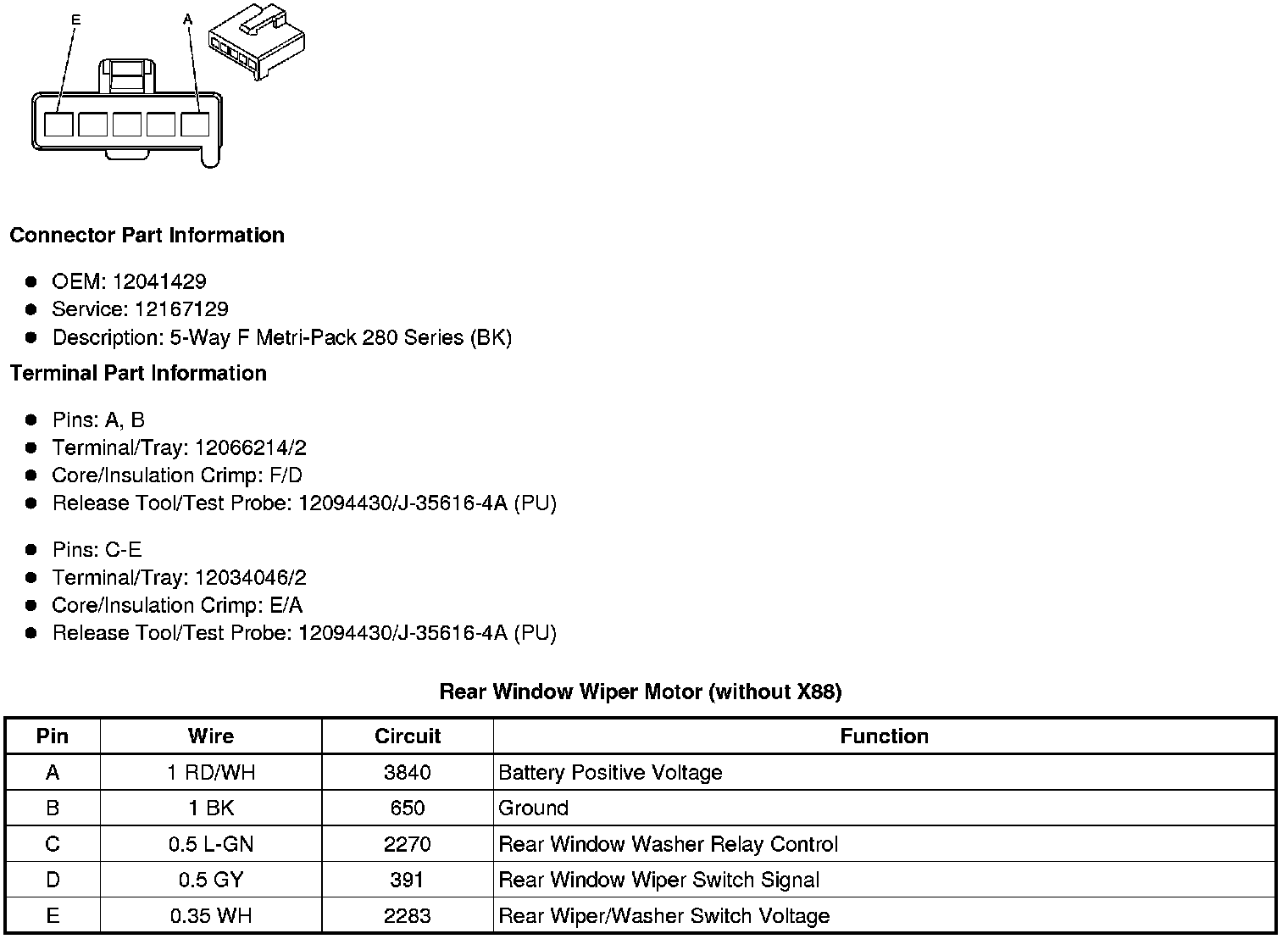

Rear Window Wiper Motor (without X88)

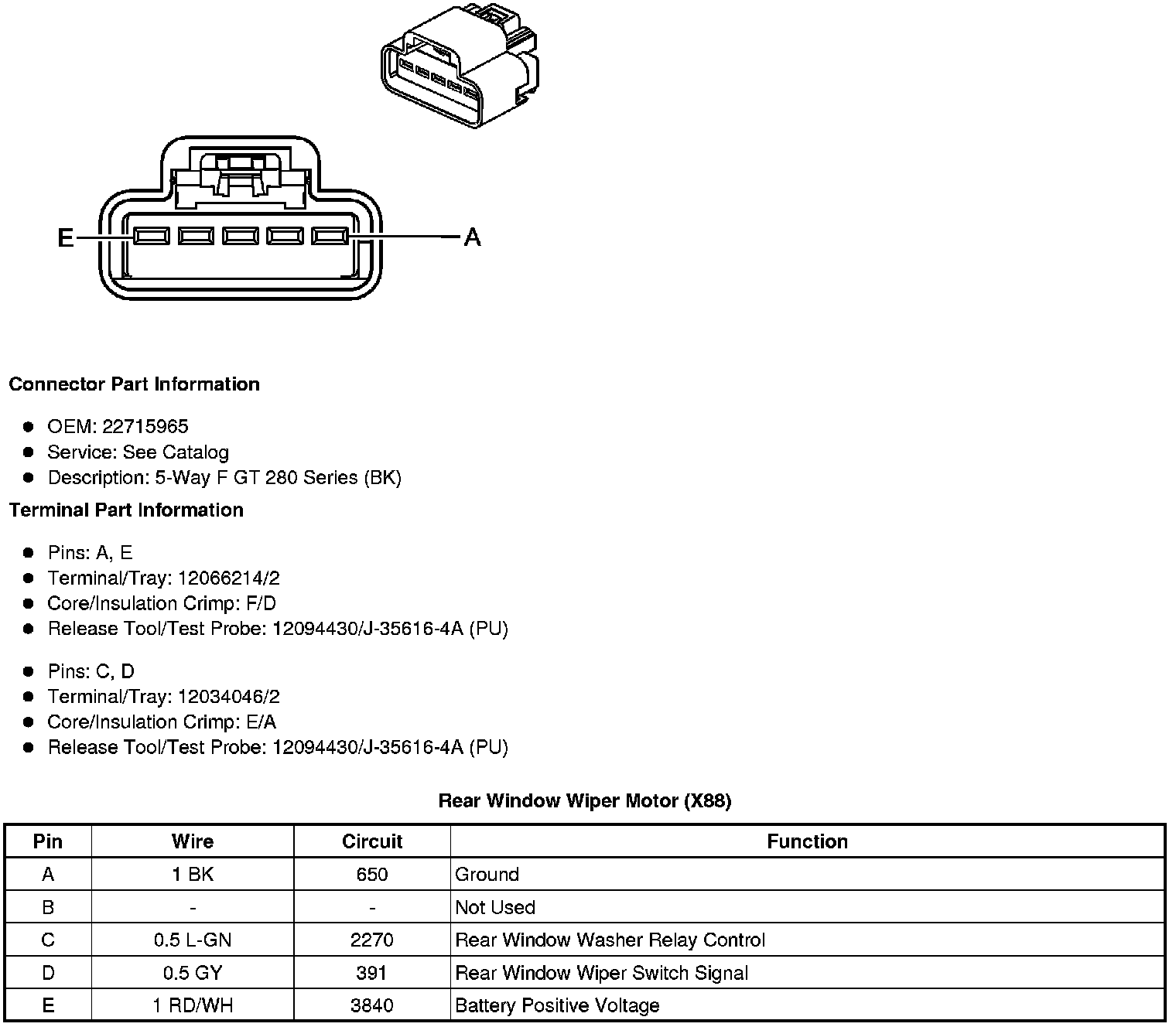

Rear Window Wiper Motor (X88)

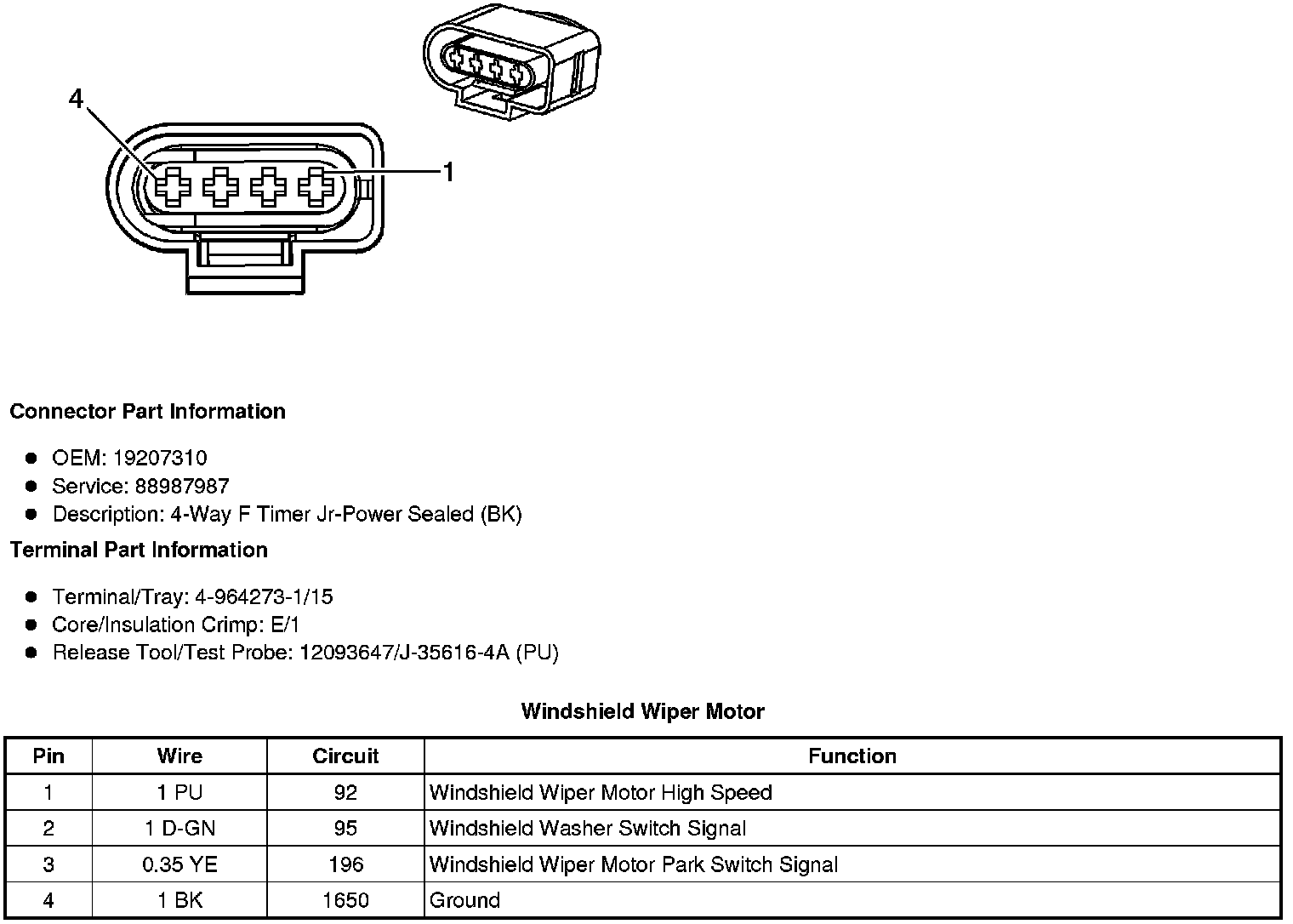

Windshield Wiper Motor
