LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2009
>>
Traverse FWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rear Vision Camera
Rear Vision Camera

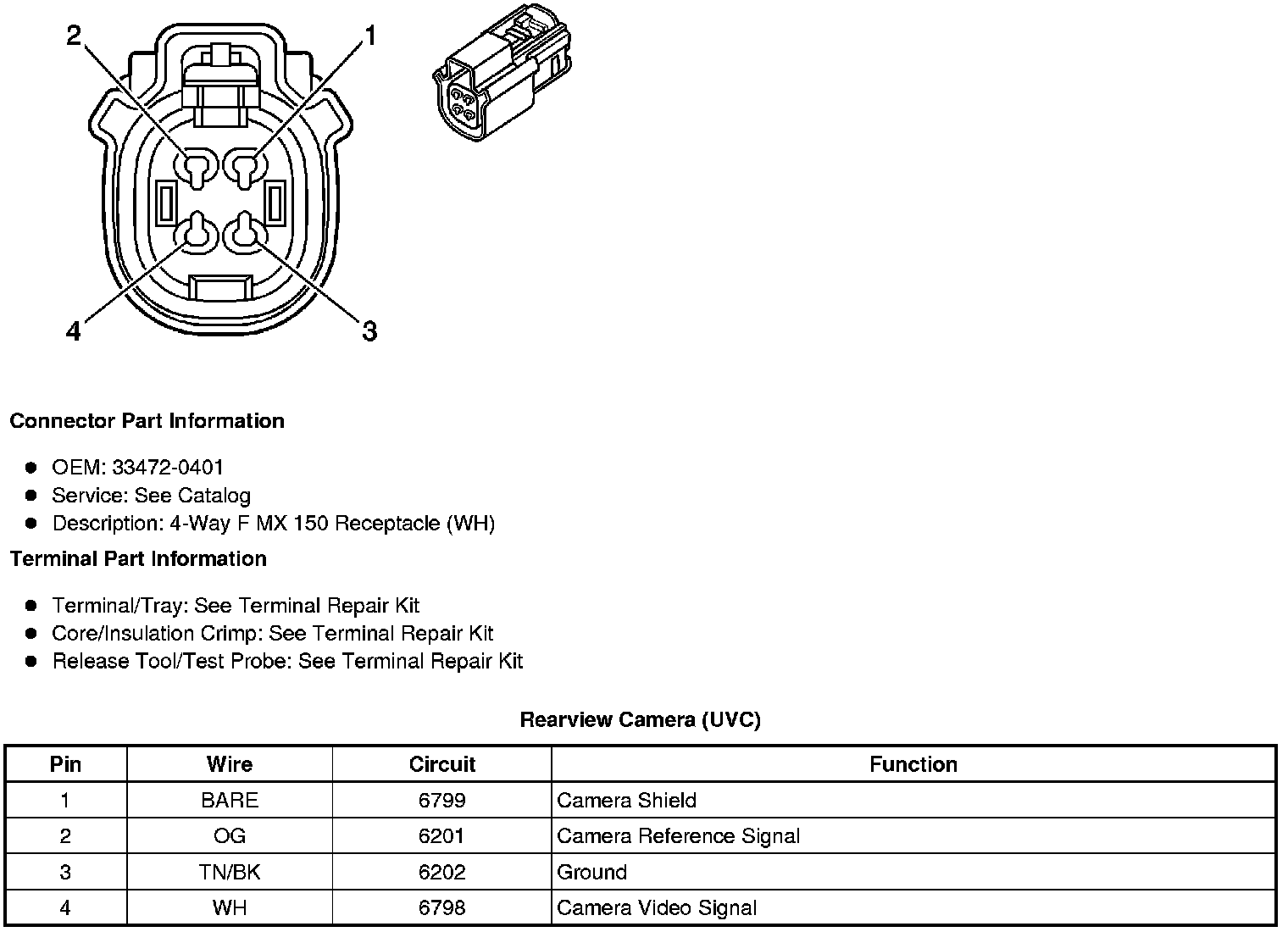

Component Connector End Views
Rearview
Camera
(UVC)
