System Diagram




Component Connector End Views

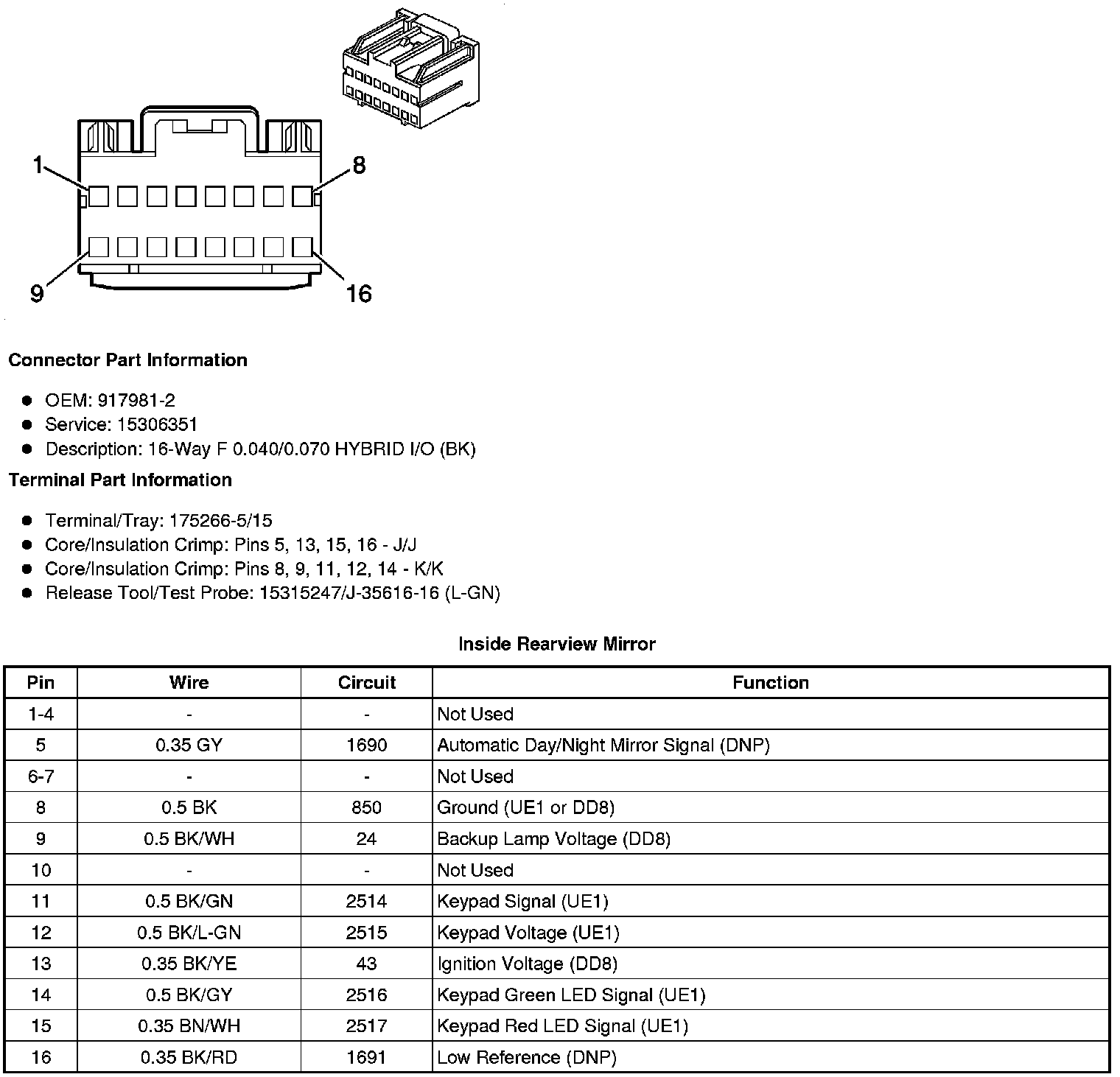

Inside Rearview Mirror

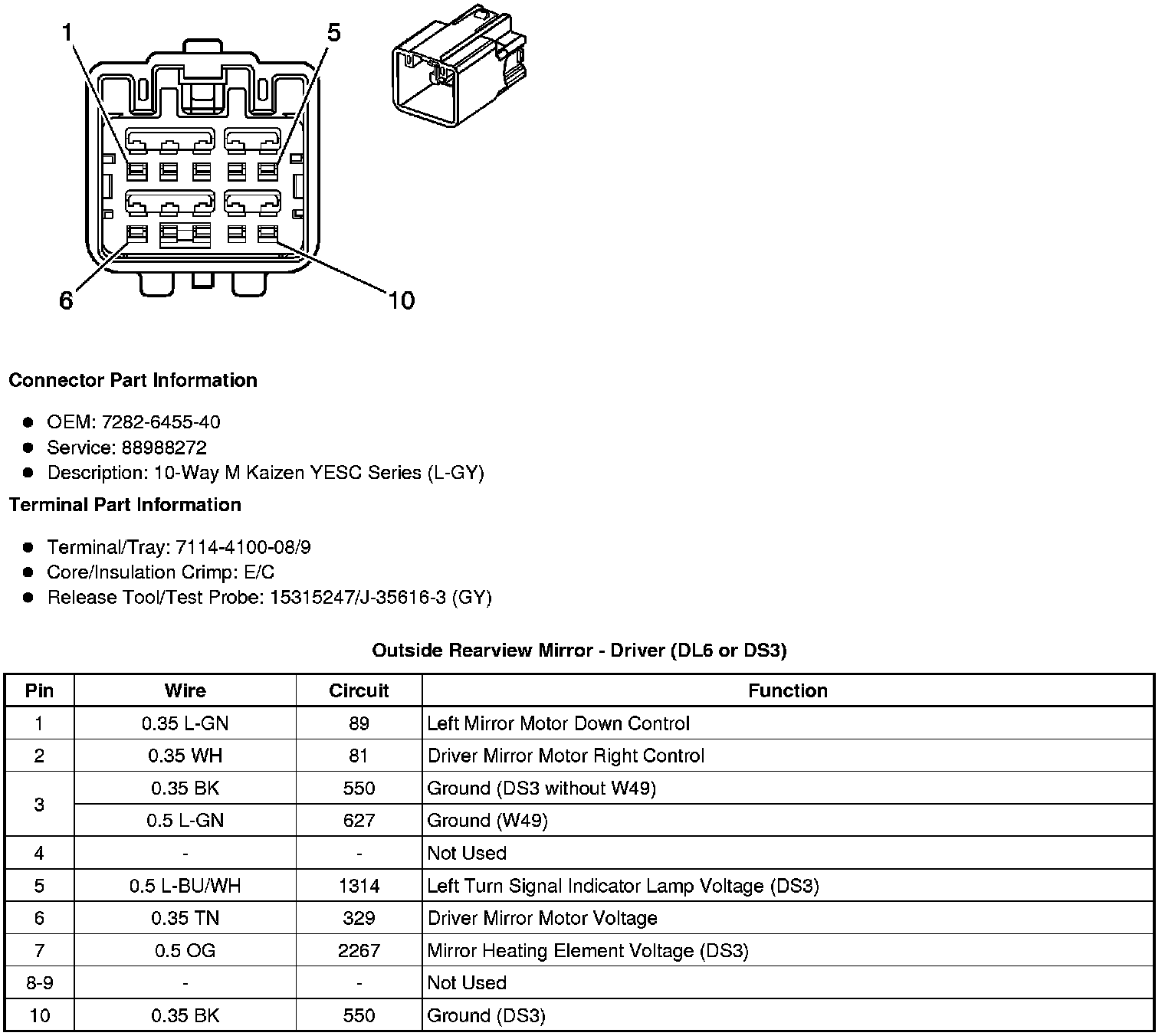

Outside Rearview Mirror - Driver (DL6 or DS3)

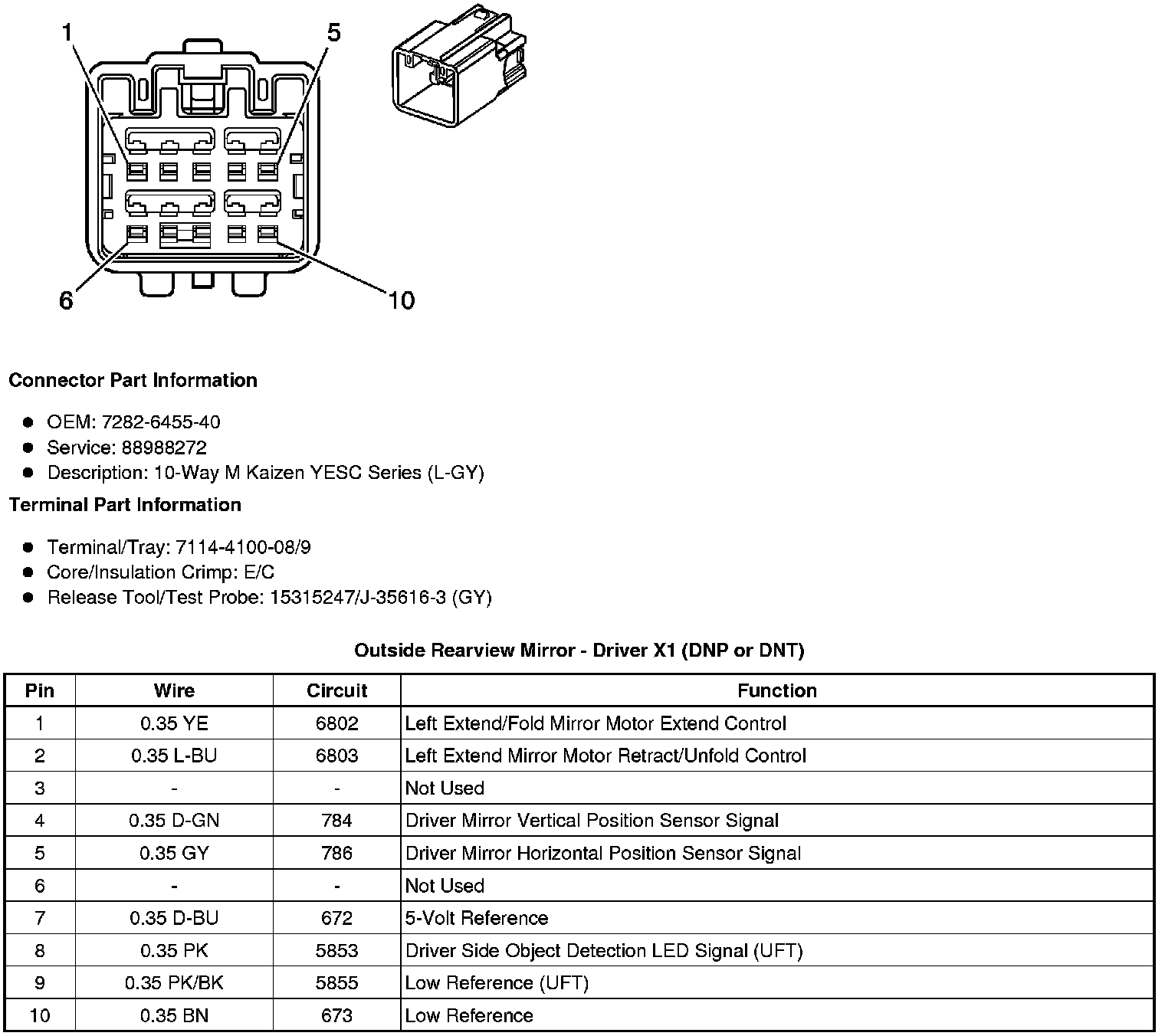

Outside Rearview Mirror - Driver X1 (DNP or DNT)

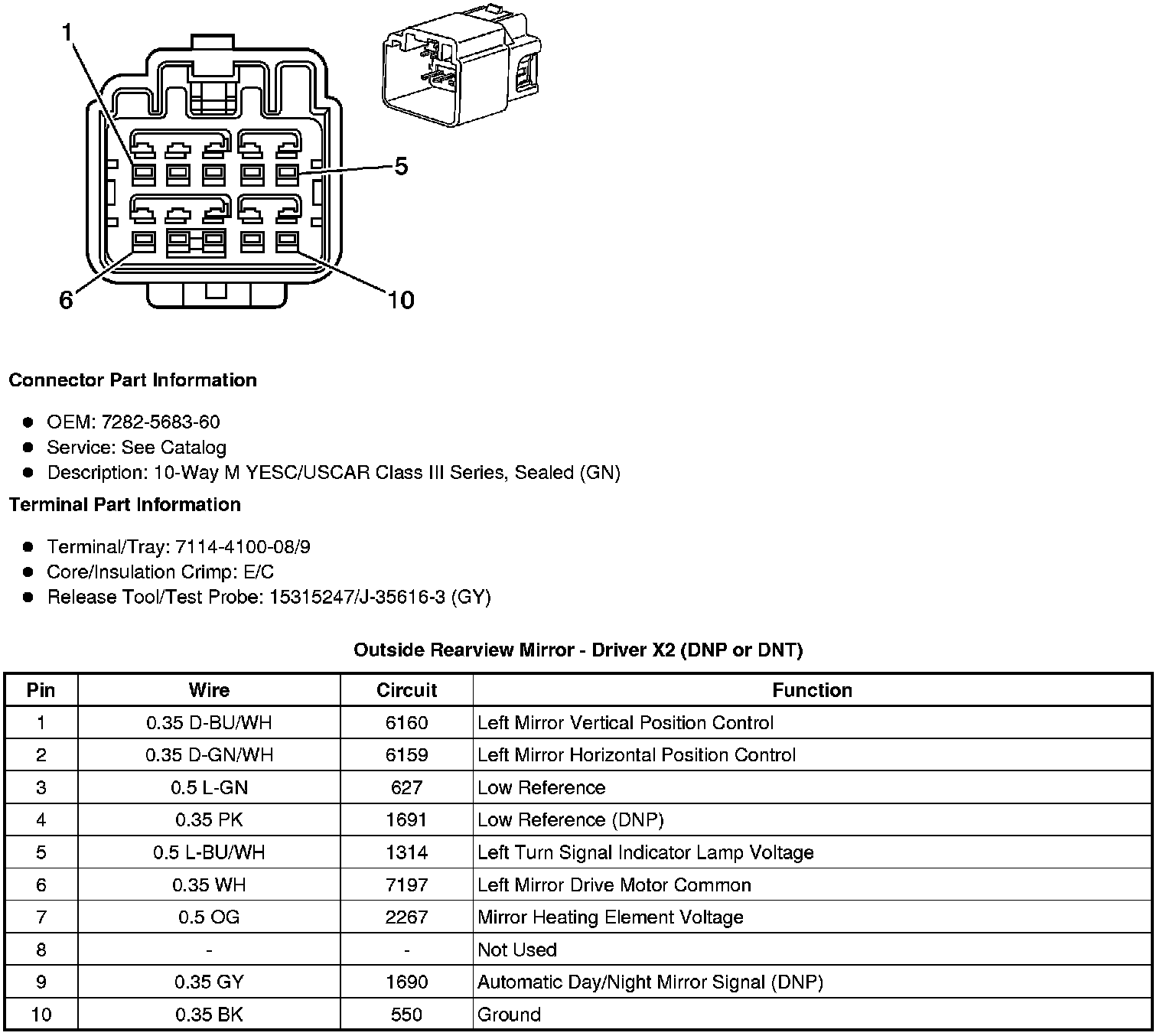

Outside Rearview Mirror - Driver X2 (DNP or DNT)

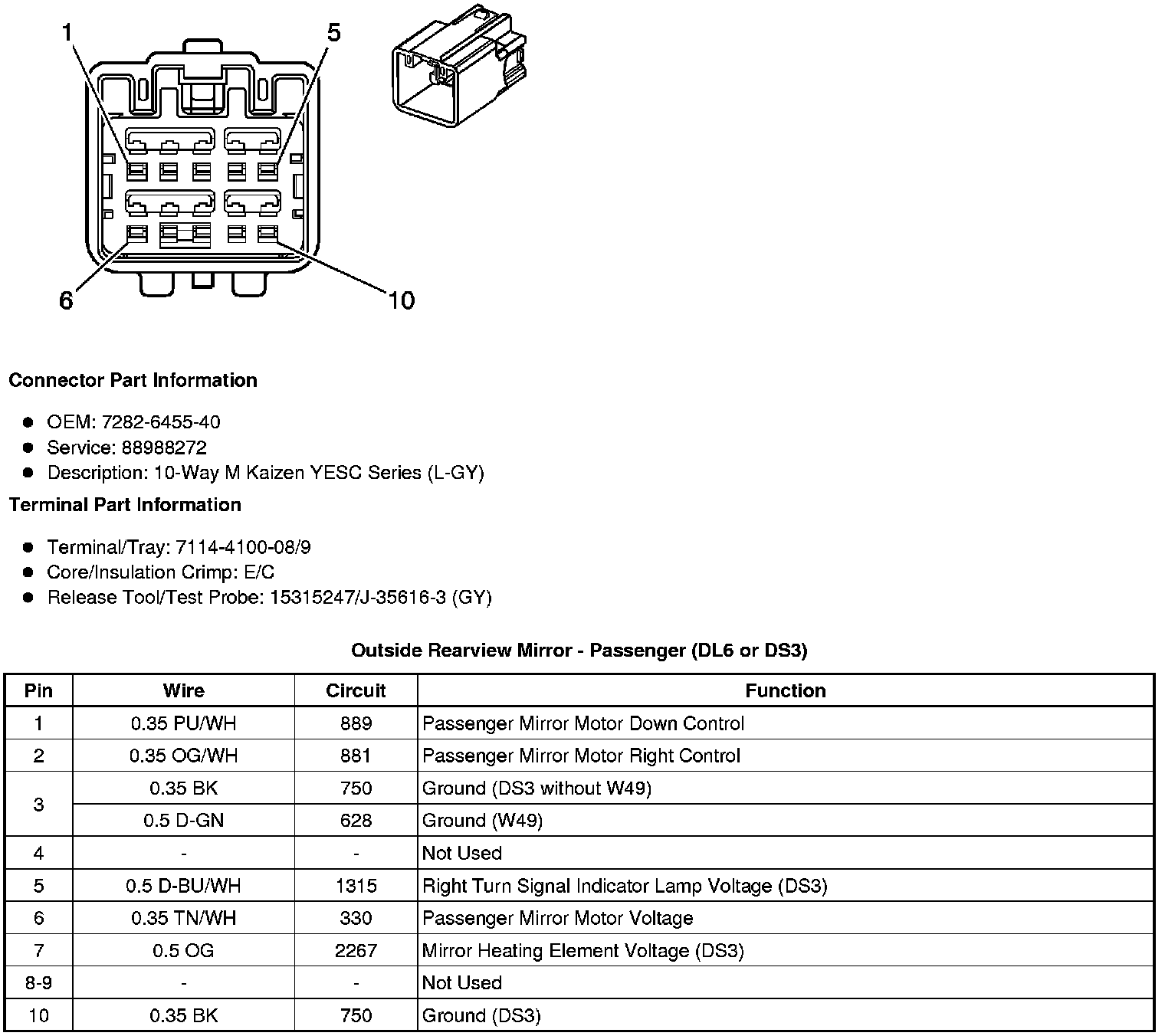

Outside Rearview Mirror - Passenger (DL6 or DS3)






Outside Rearview Mirror - Passenger X1 (DNP or DNT)

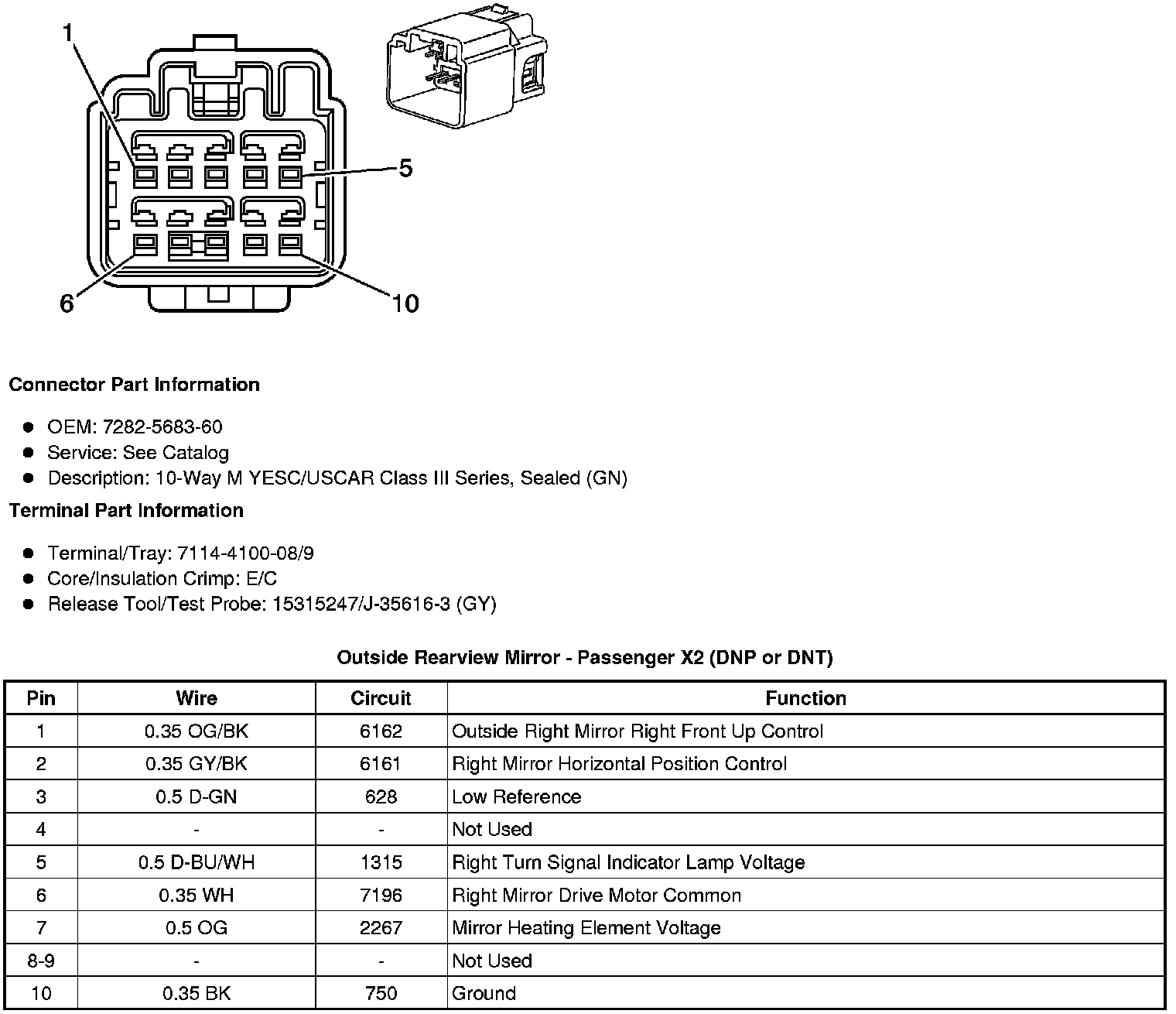

Outside Rearview Mirror - Passenger X2 (DNP or DNT)
