Headlamp Control Module




Component Connector End Views

Headlamp Control Module - Left High Beam (W49)






Headlamp Control Module - Right High Beam (W49)

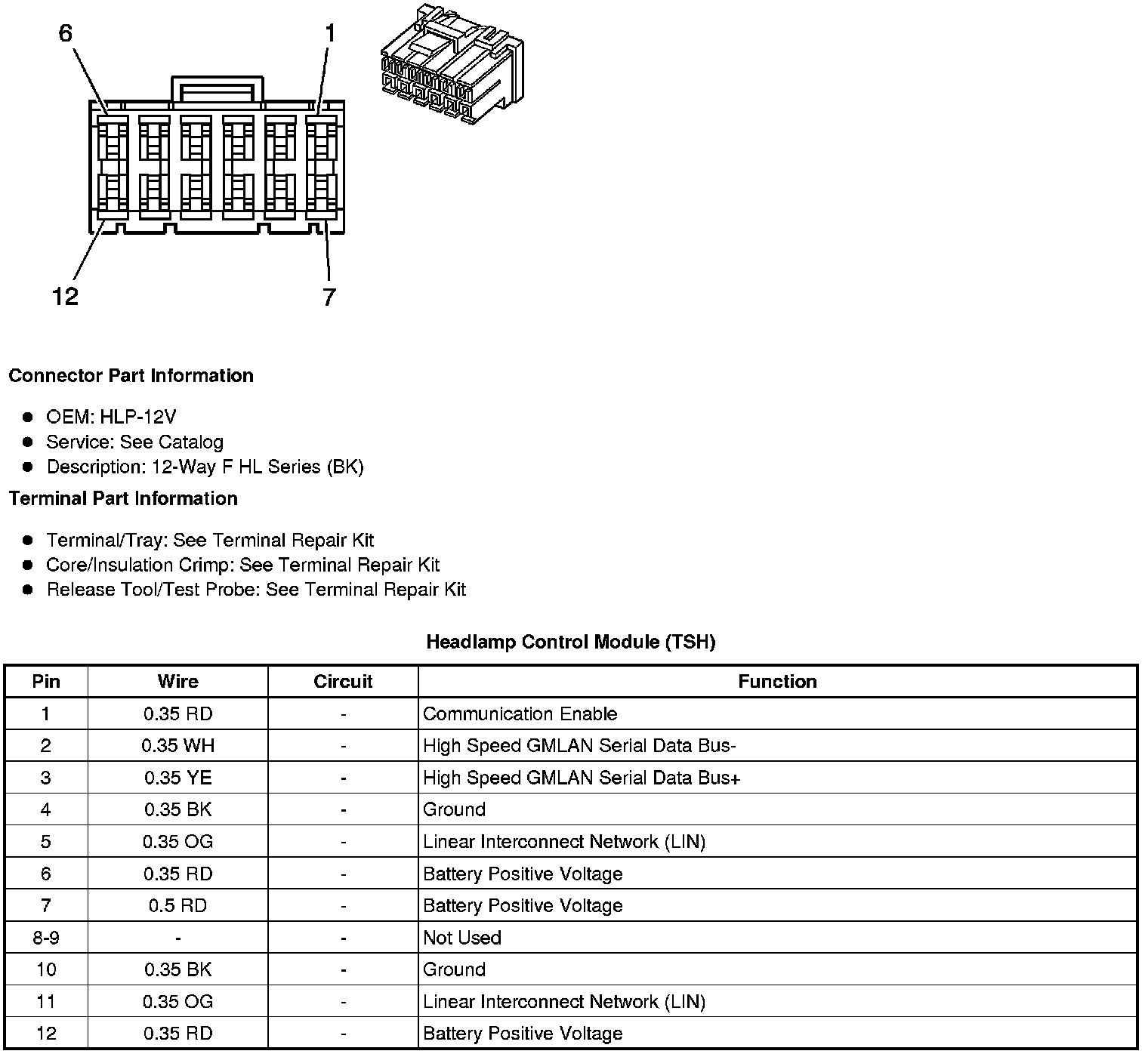

Headlamp Control Module (TSH)
