Home >> Chevrolet >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Service and Repair >> Instrument Panel Electrical Center or Junction Block Replacement

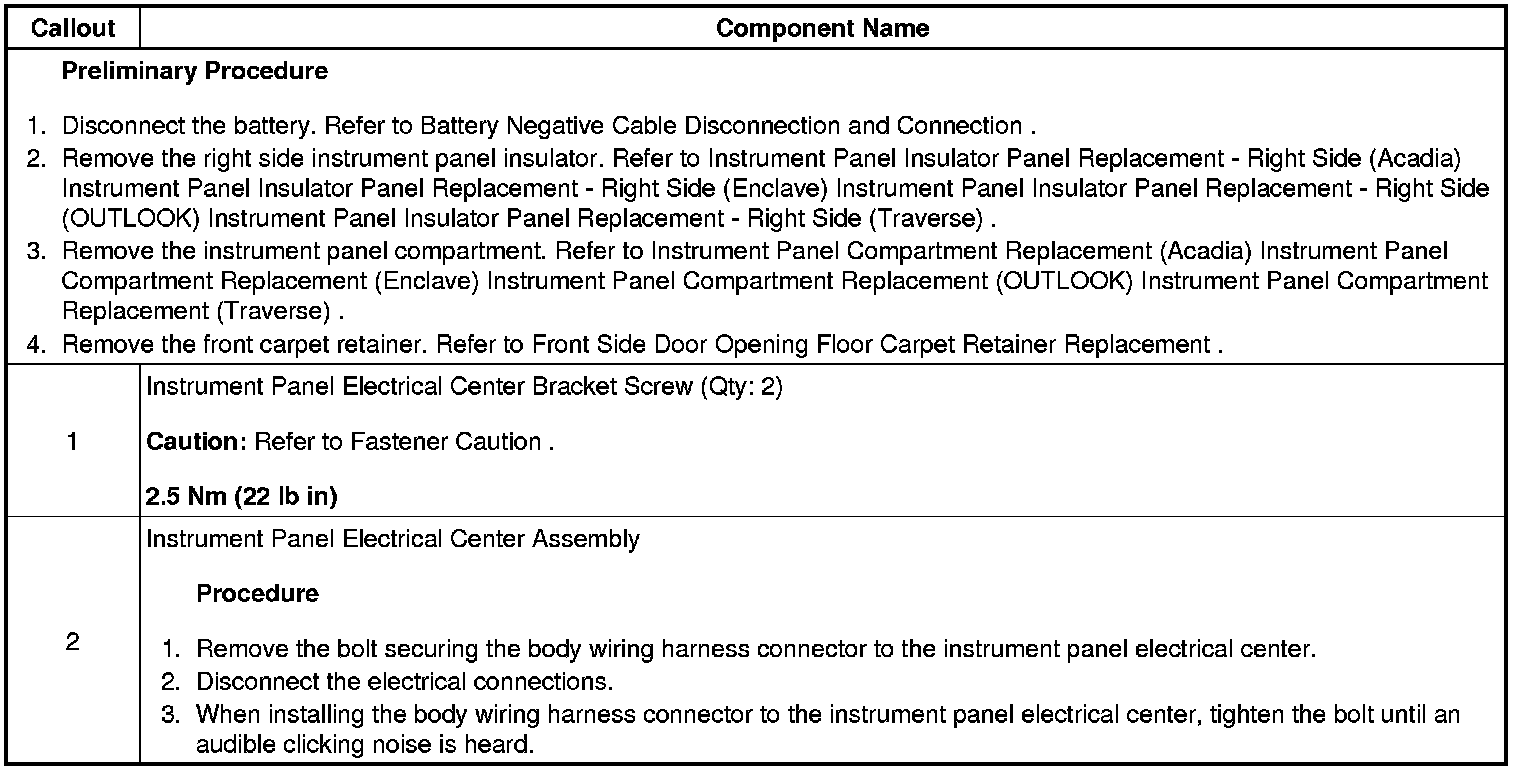

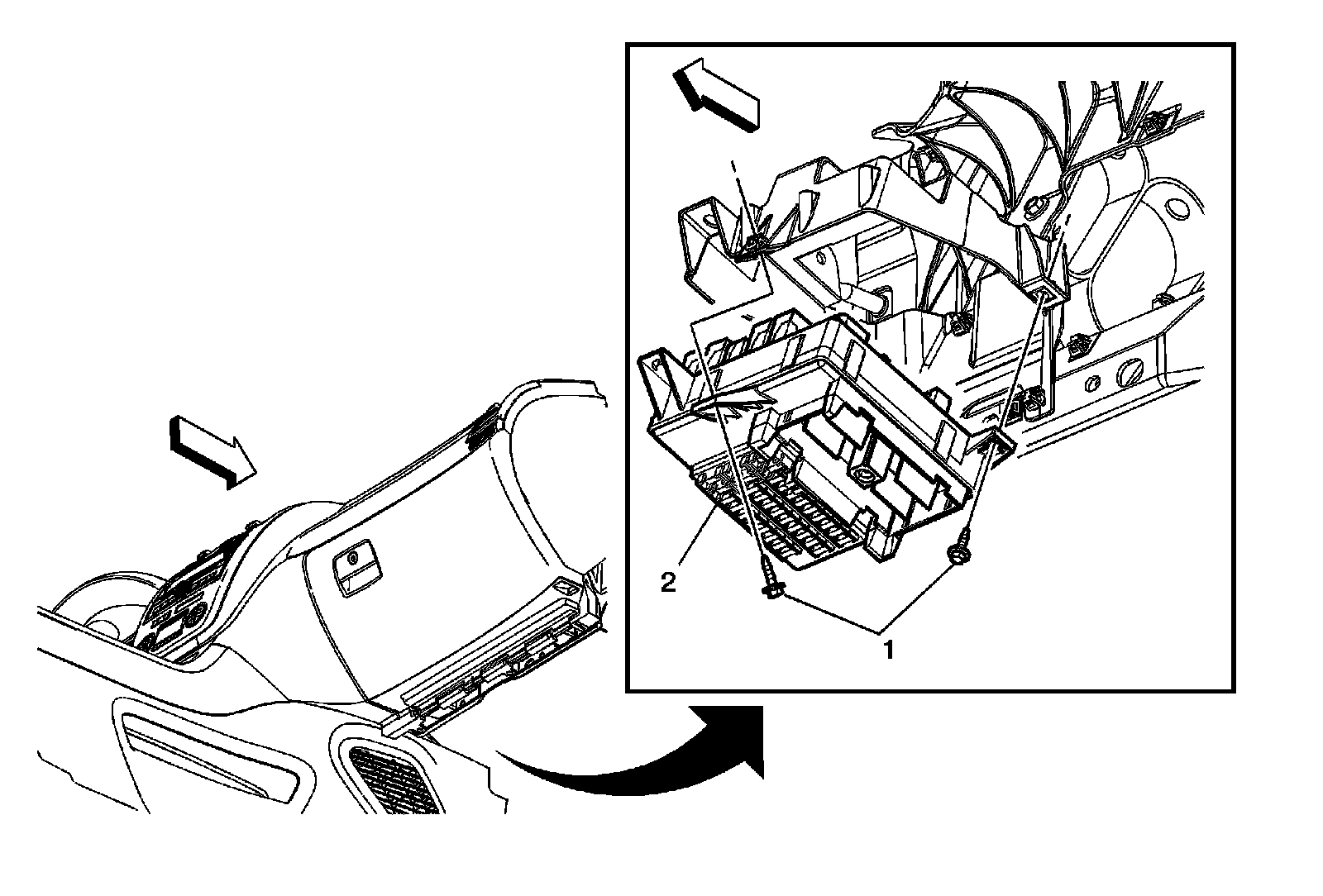

Instrument Panel Electrical Center or Junction Block Replacement




Instrument Panel Electrical Center or Junction Block Replacement
