Master Splice List




Master Electrical Component List

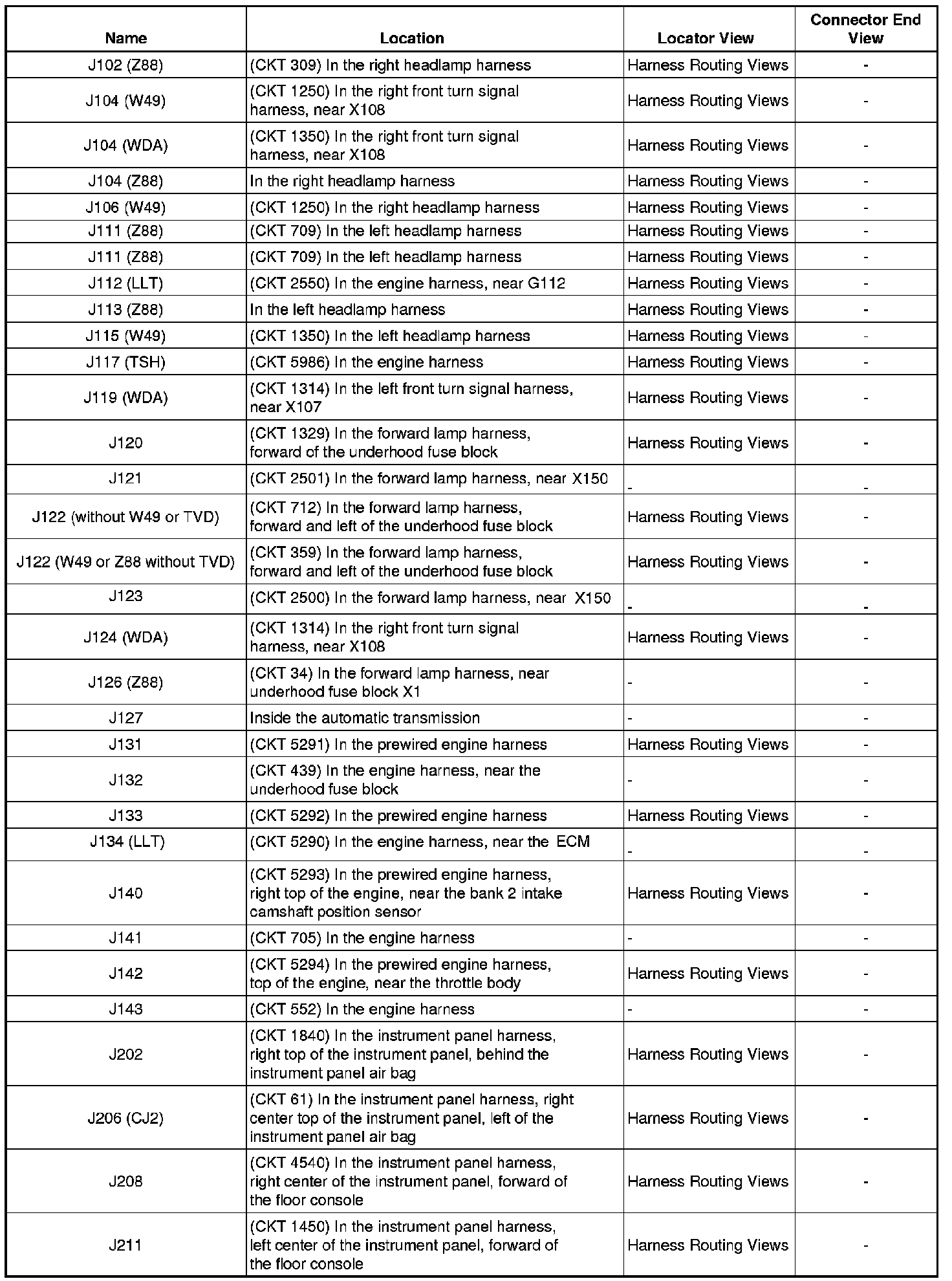

J102 - J211:

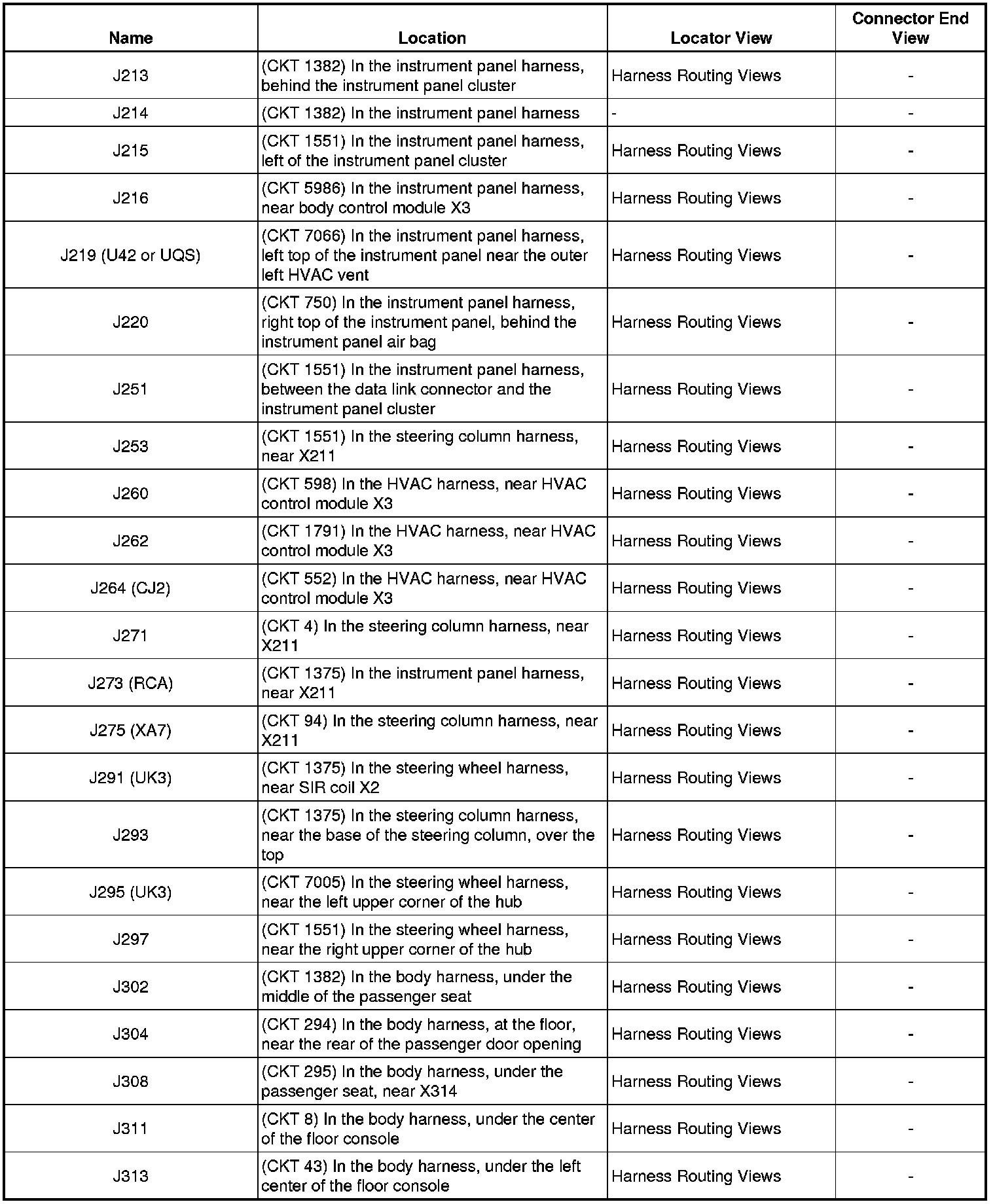

J213 - J313:

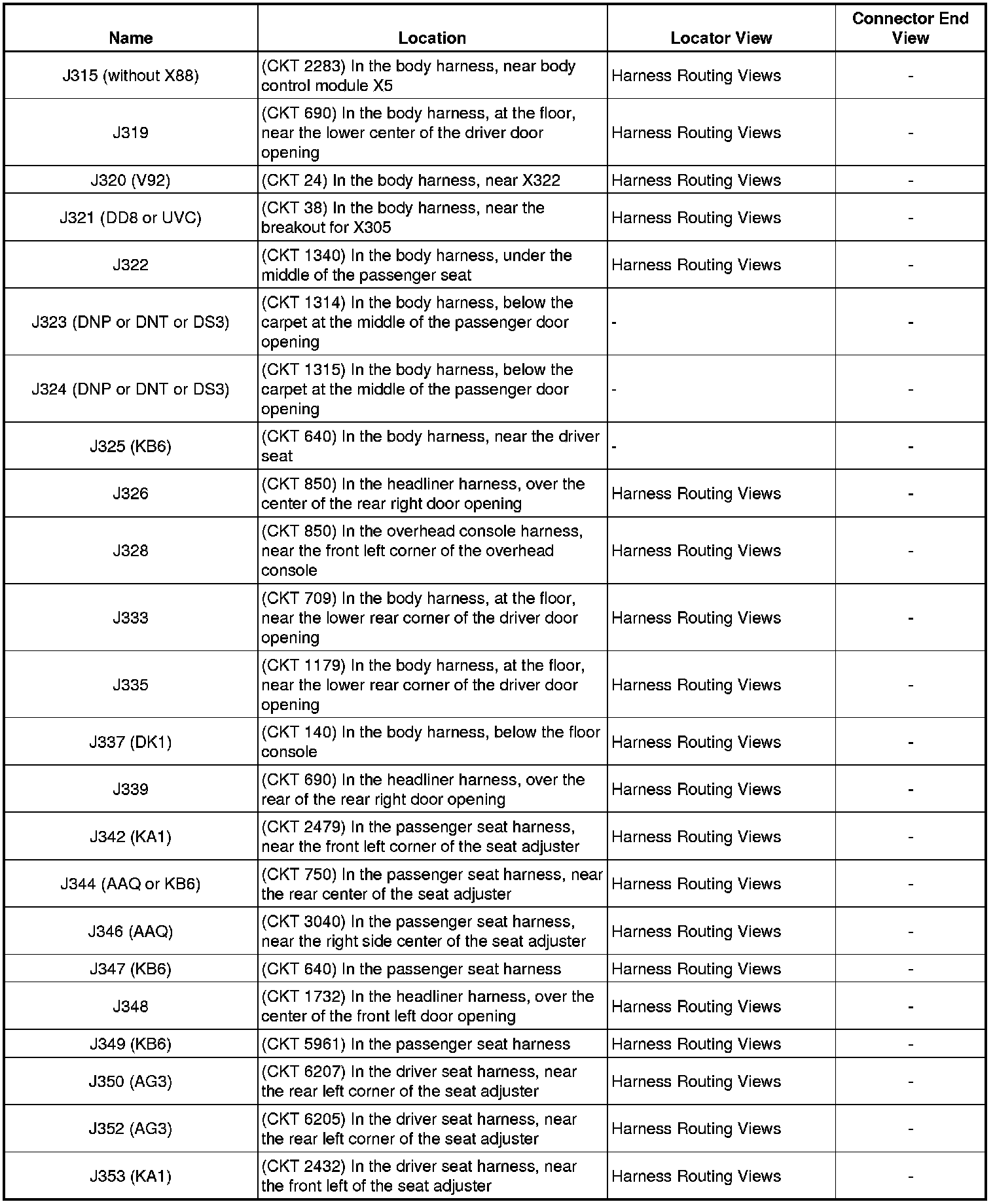

J315 - J353:

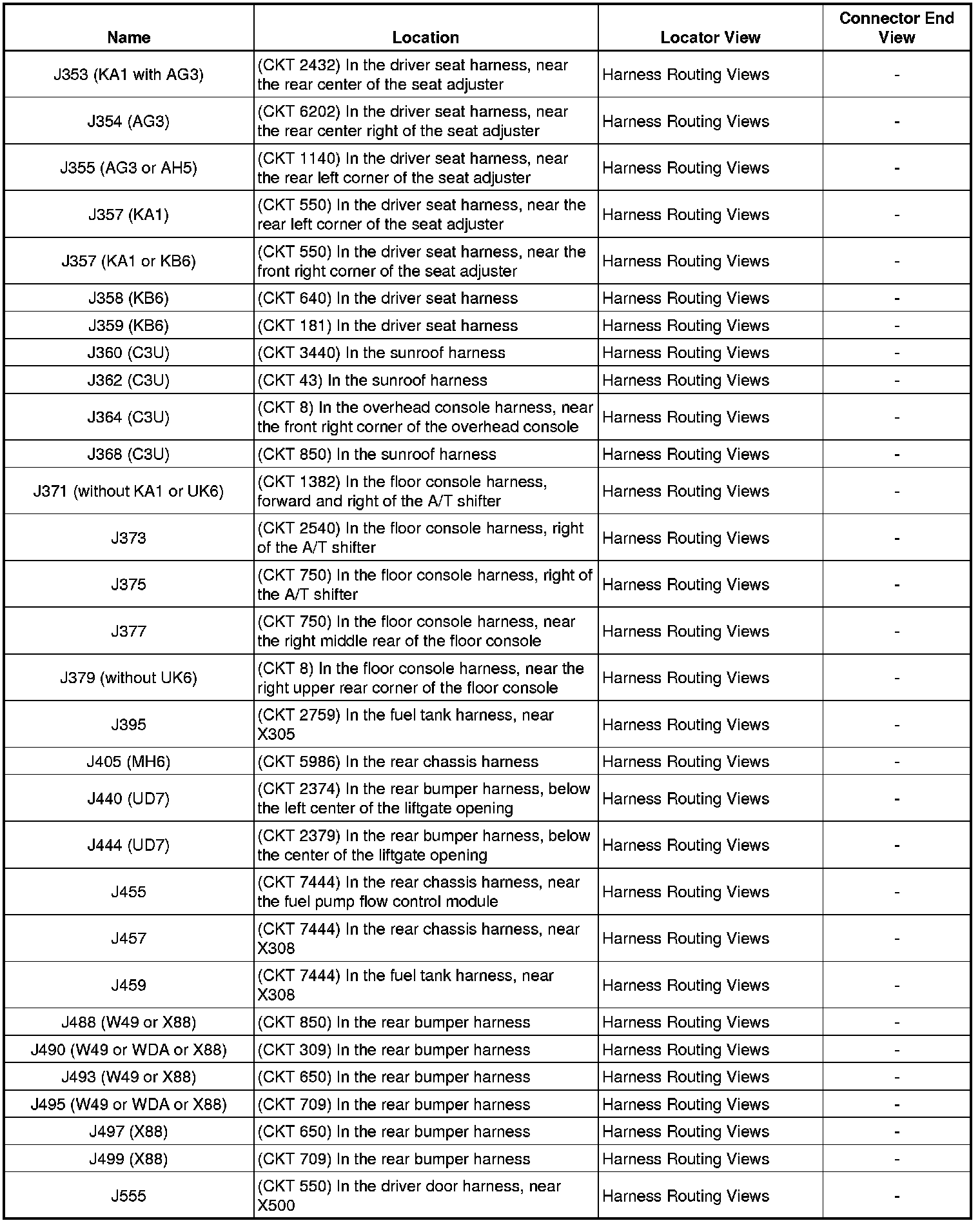

J353 - J555:

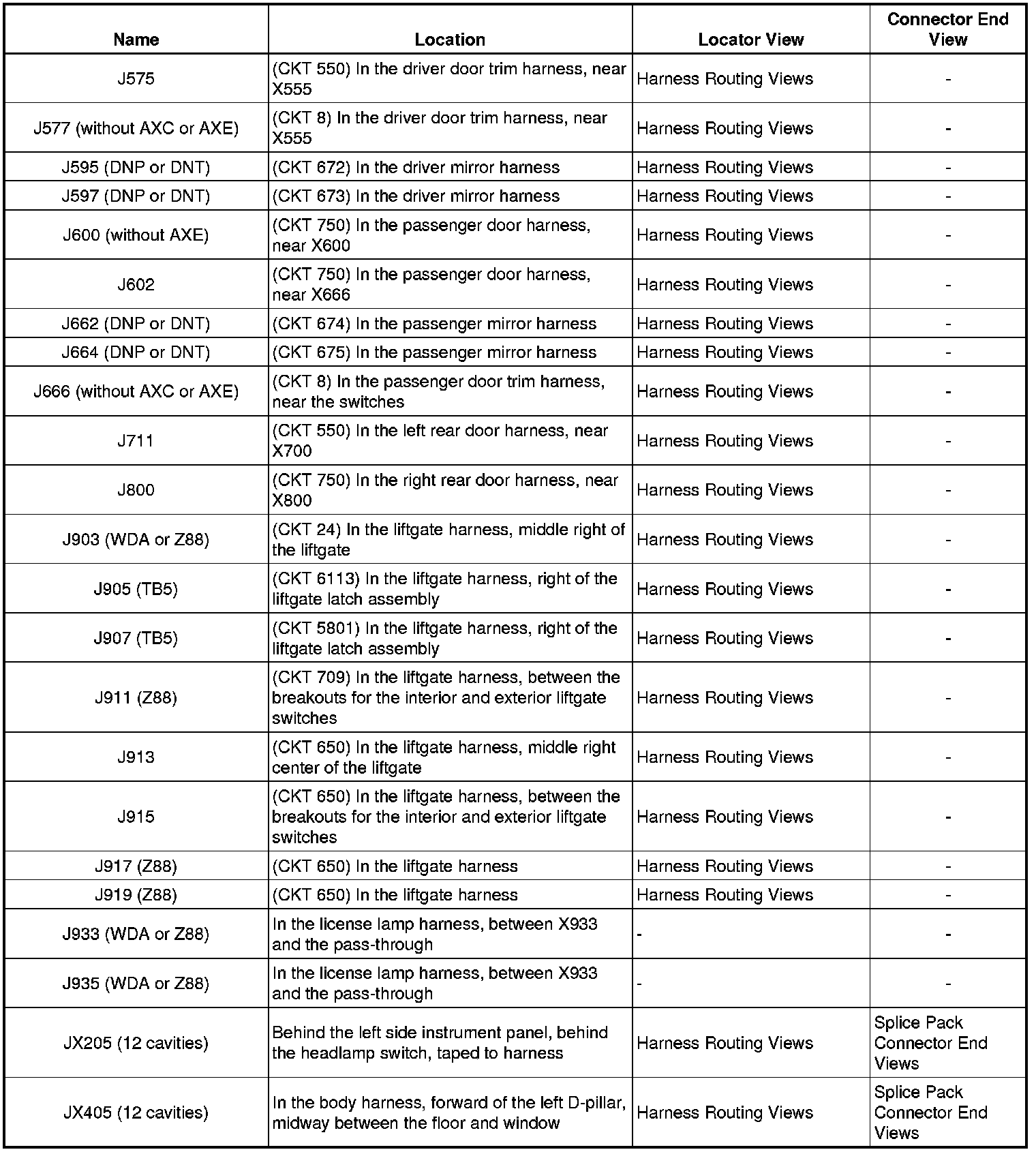

J575 - JX405:
