Home
>>
Chevrolet
>>
2009
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Master Connector List
Master Connector List
Master Electrical Component List

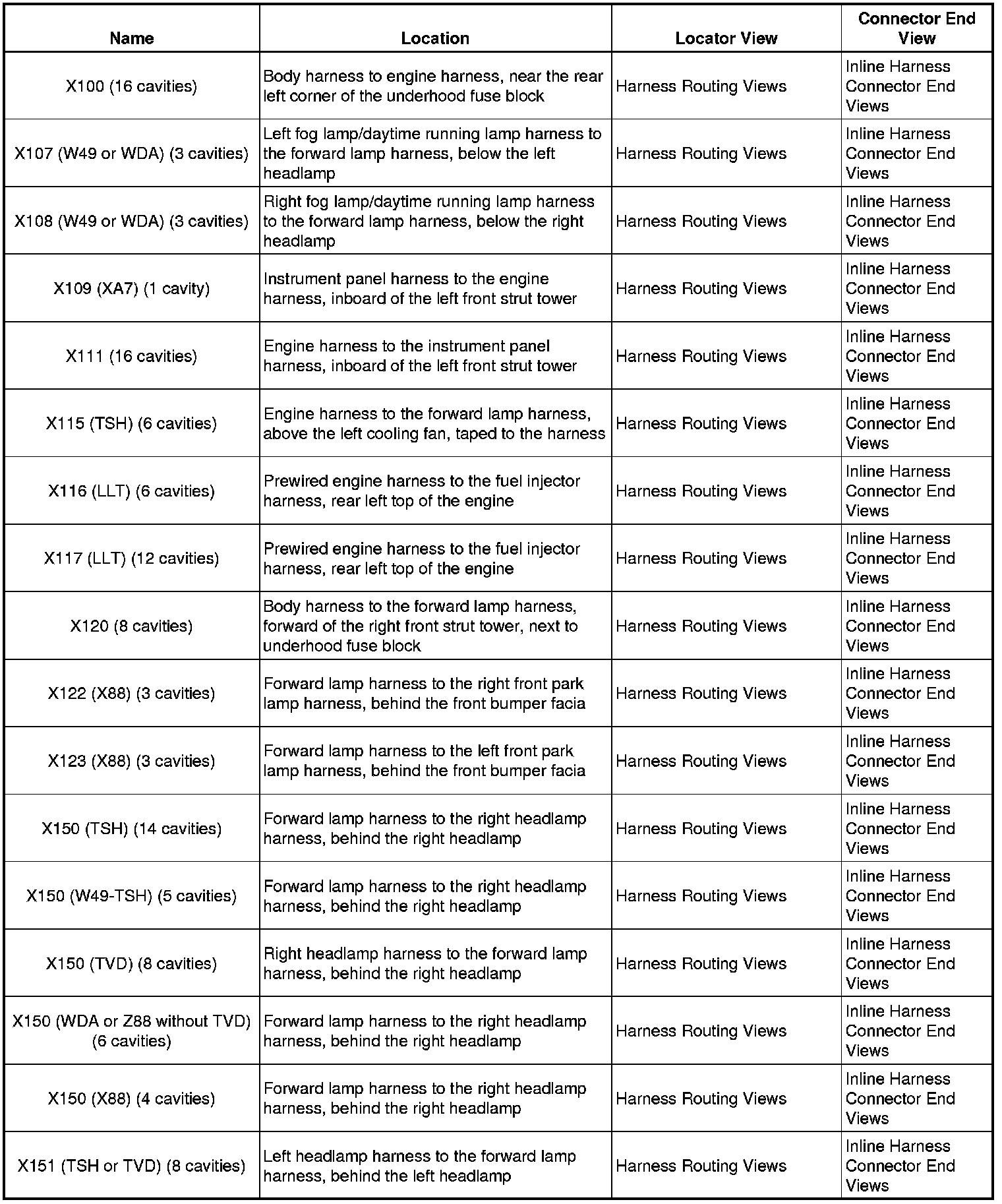

X100 - X151:

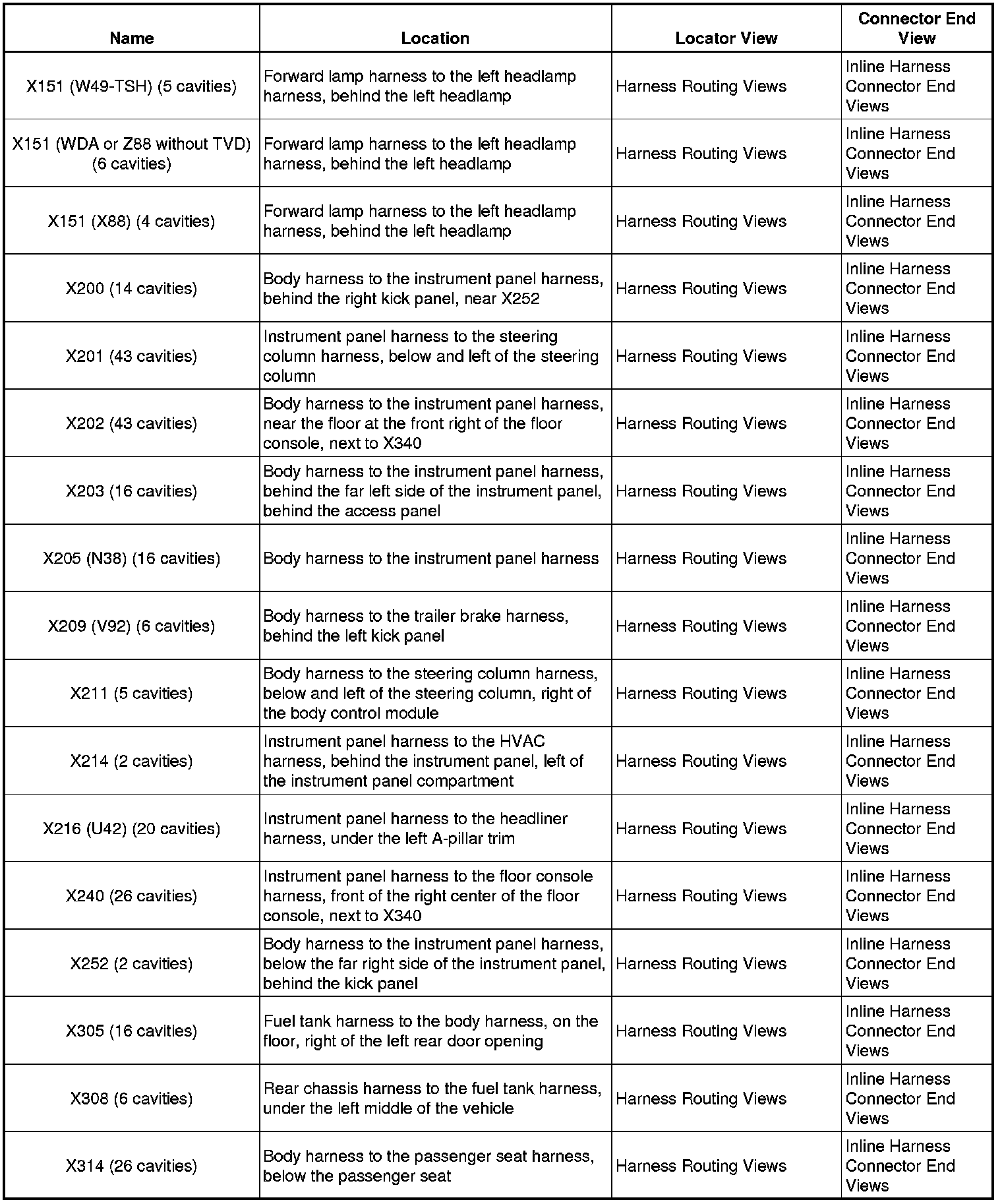

X151 - X314:

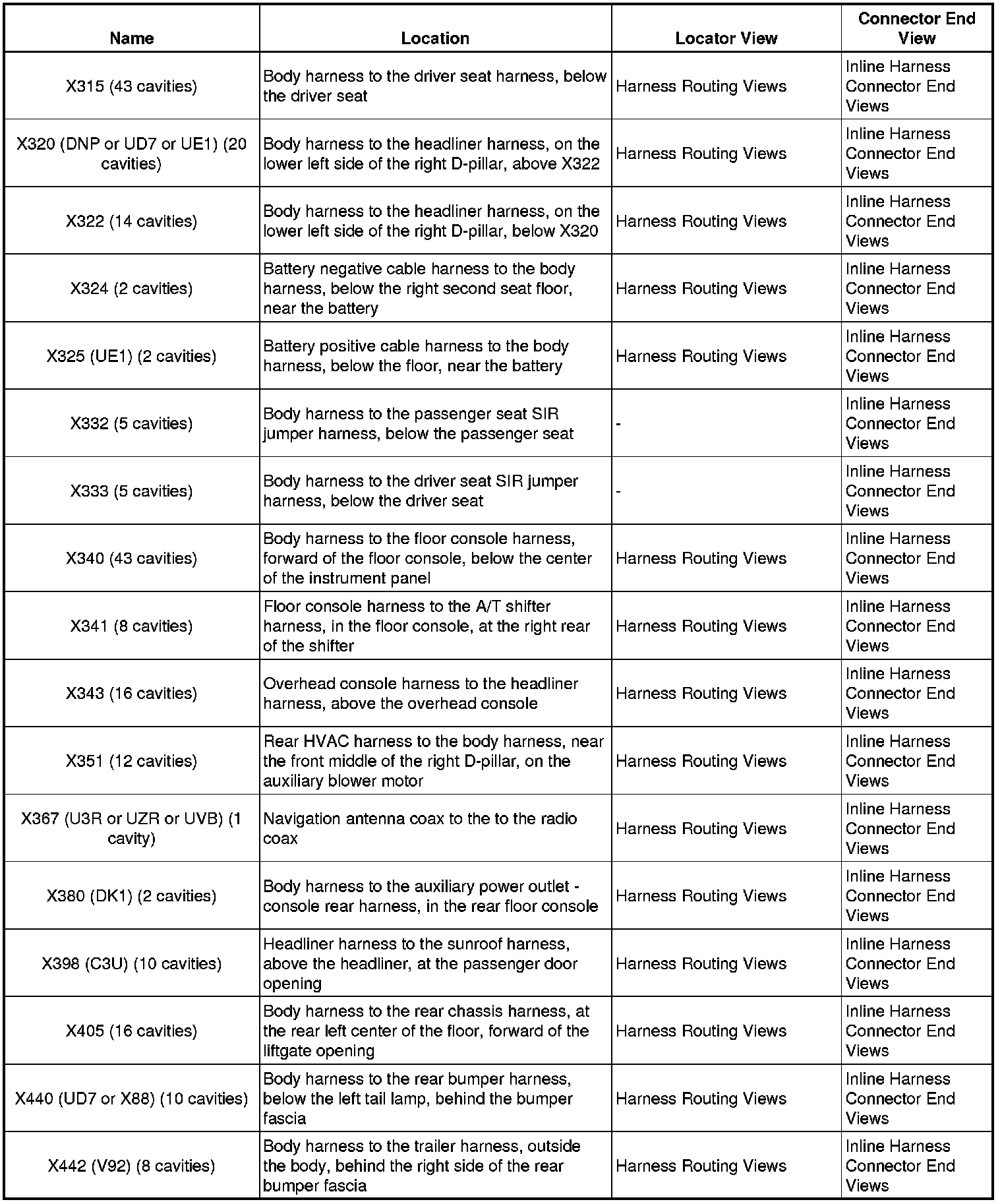

X315 - X442:

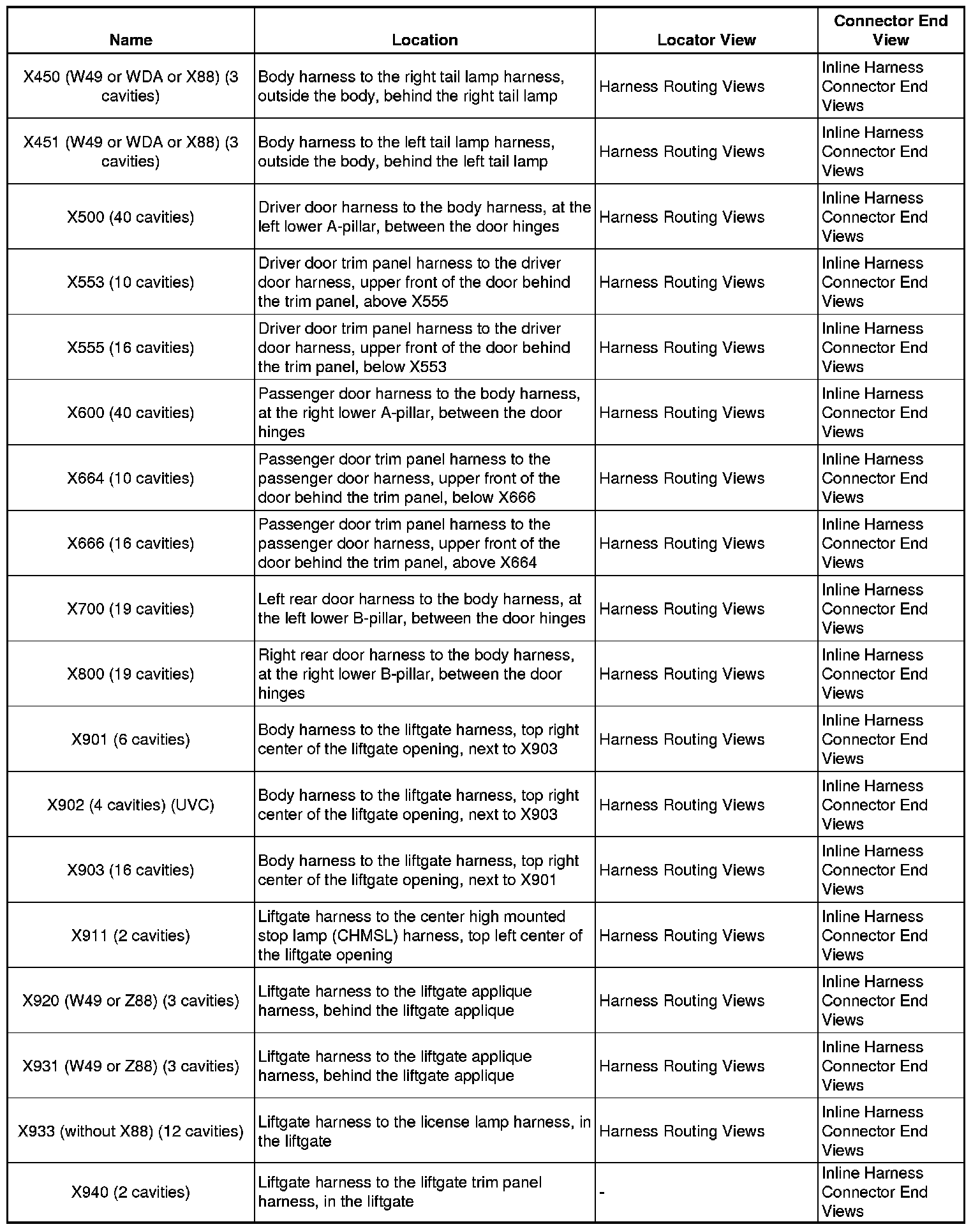

X450 - X940:
