Home >> Chevrolet >> 2009 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Heater

Washer Fluid Heater




Component Connector End Views

Windshield Washer Solvent Heater X1 (XA7)

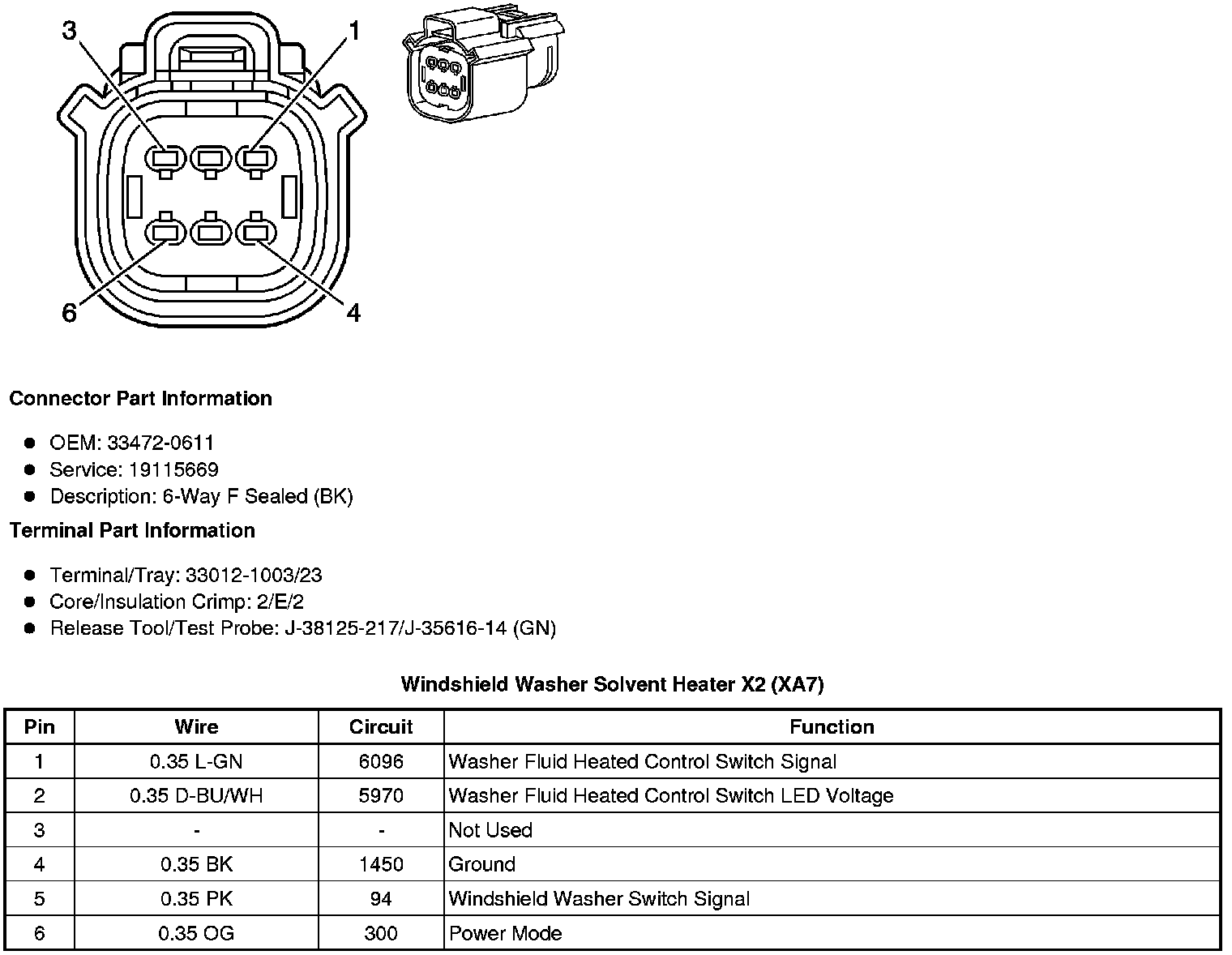

Windshield Washer Solvent Heater X2 (XA7)
