System Diagram




Component Connector End Views

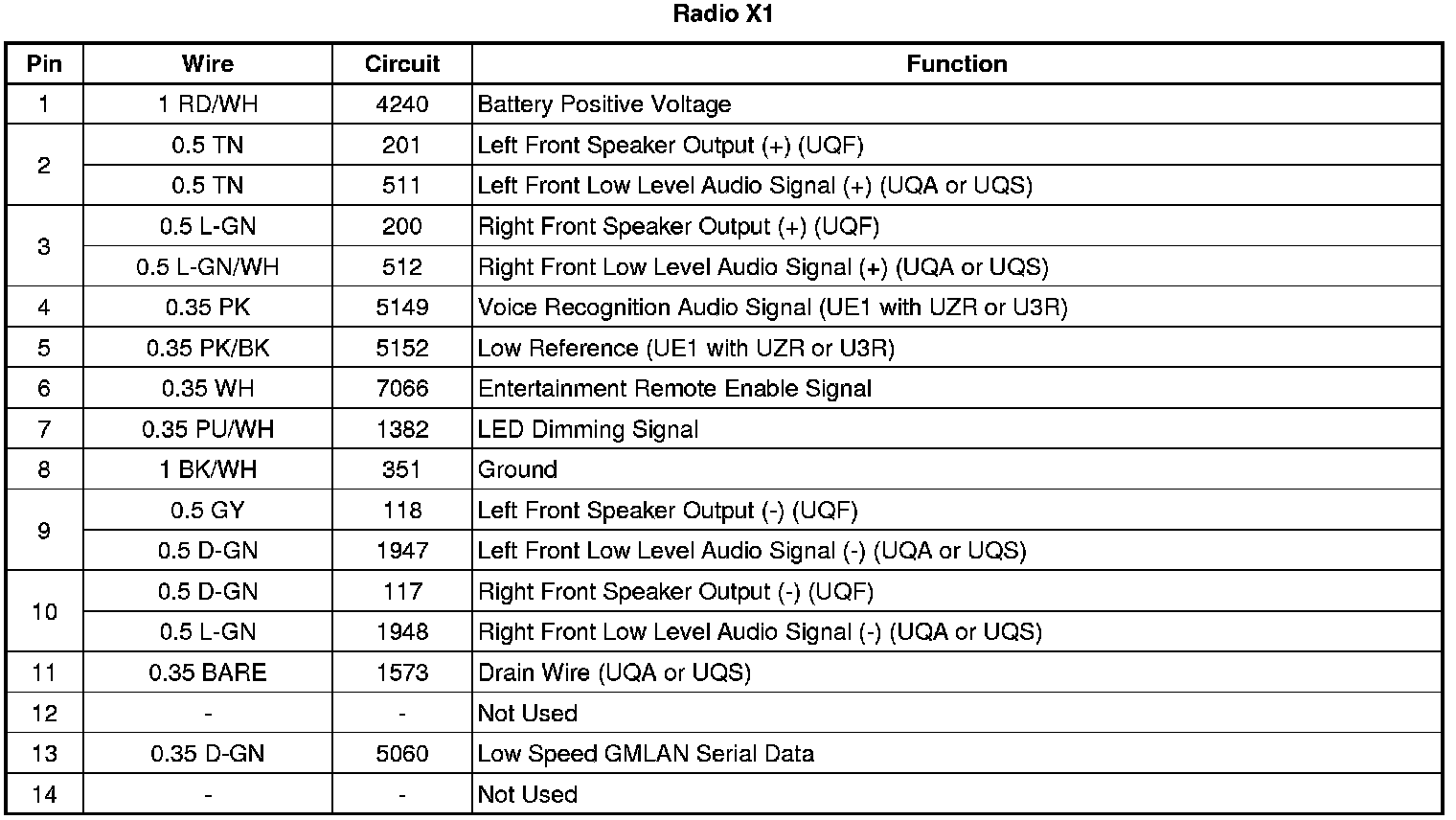

Radio X1

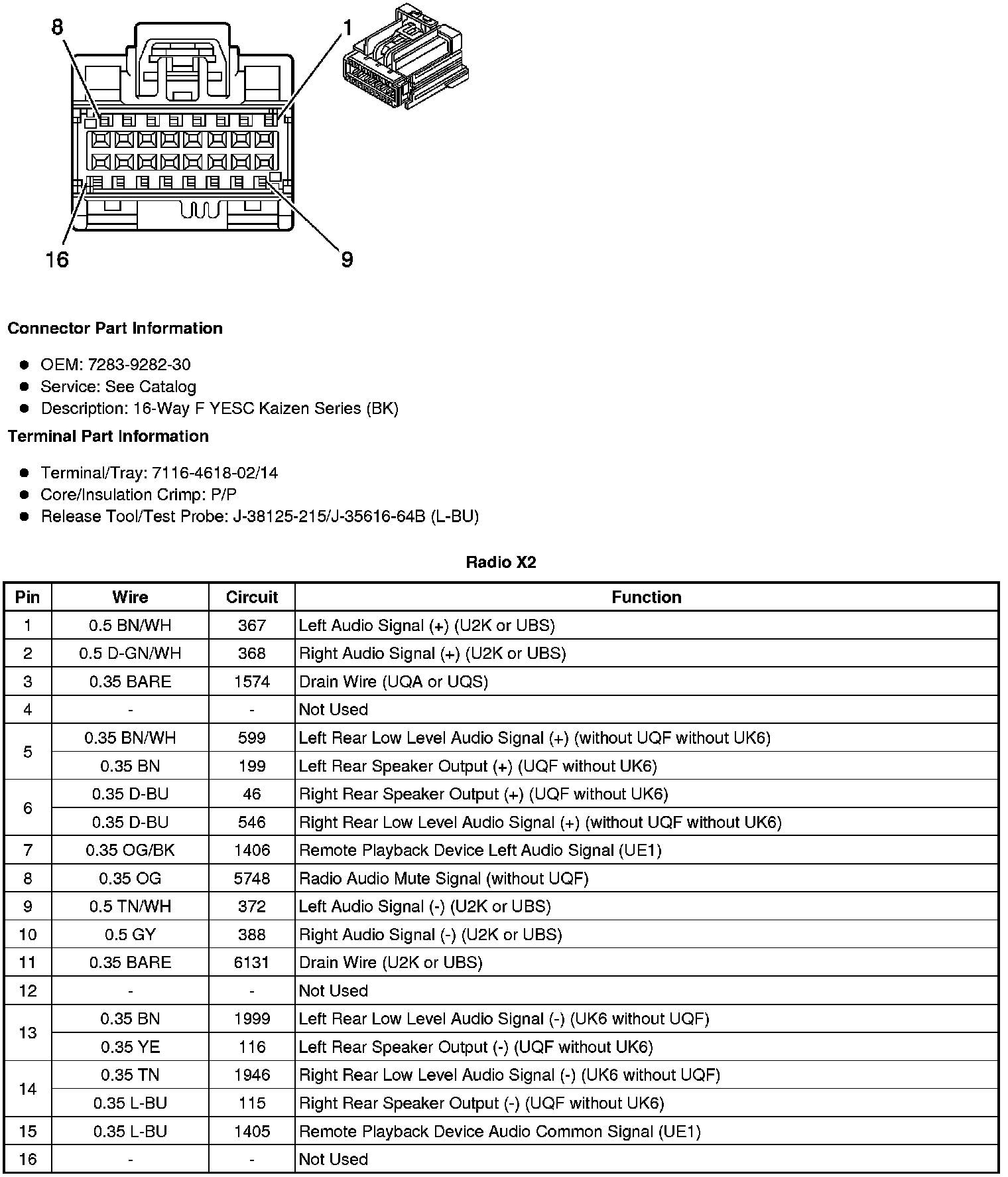

Radio X2

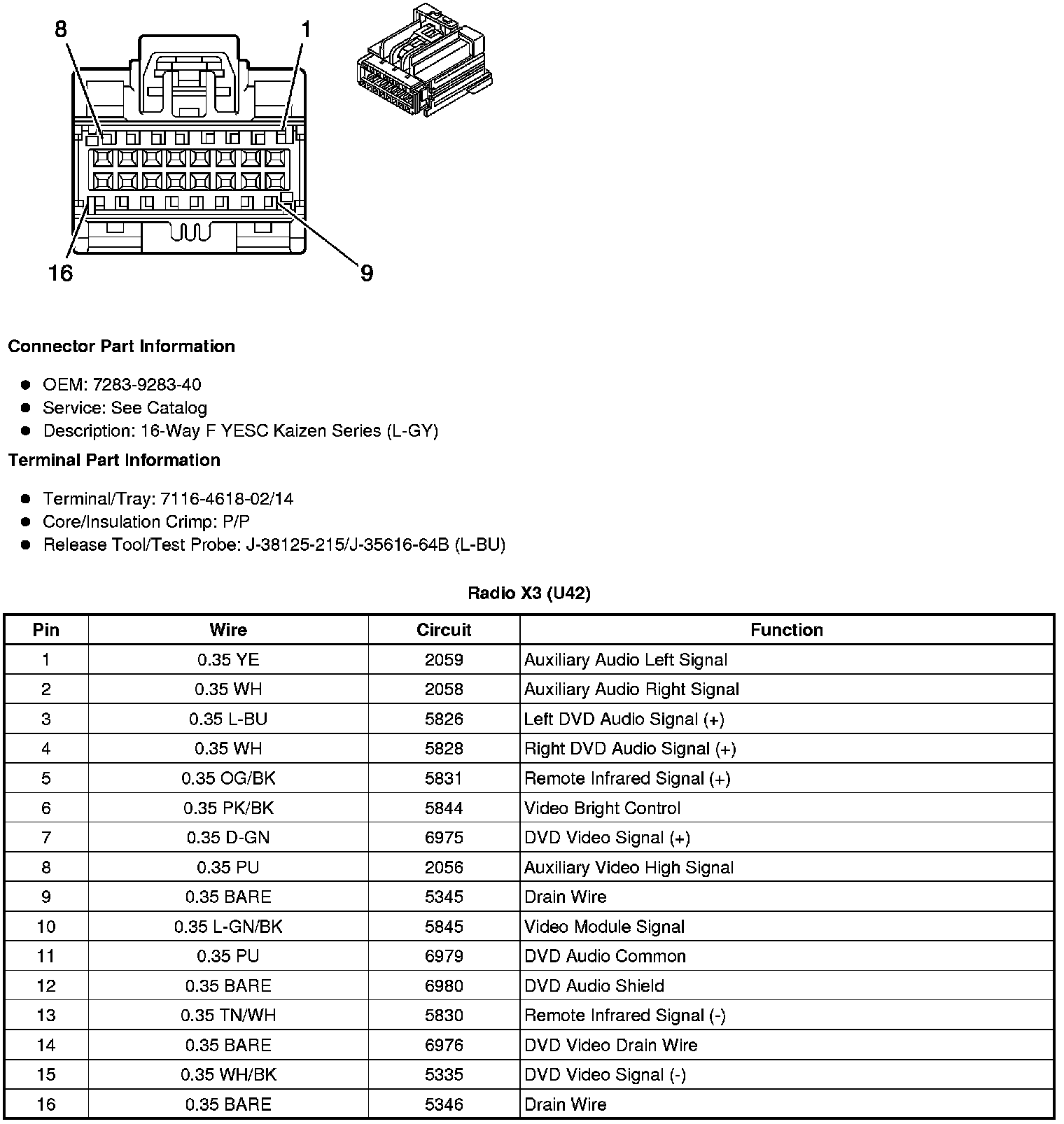

Radio X3 (U42)

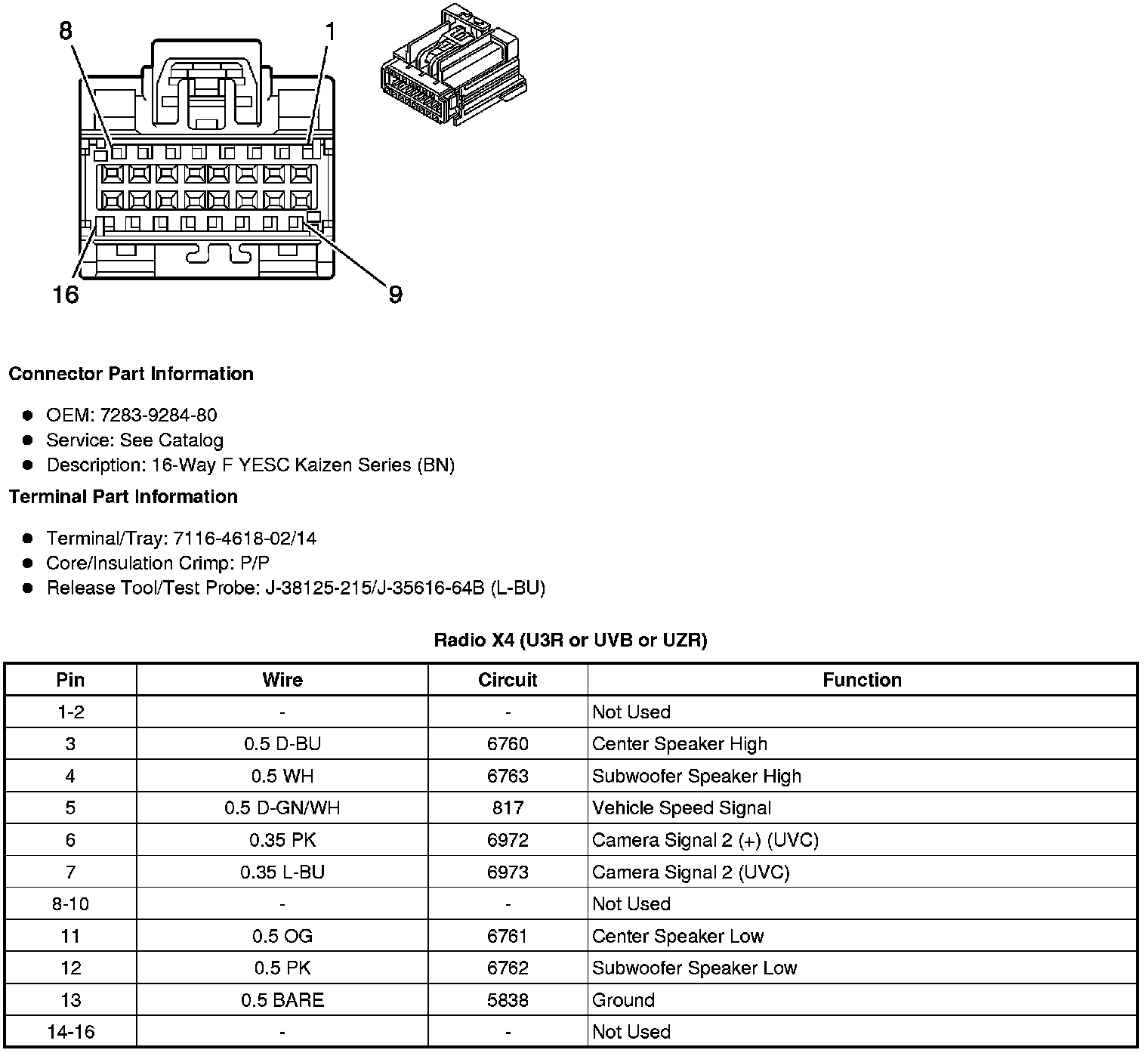

Radio X4 (U3R or UVB or UZR)






Radio/HVAC Control - Auxiliary X1 (UK6)






Radio/HVAC Control - Auxiliary X2 (UK6)
