Power Seat Switch




Component Connector End Views

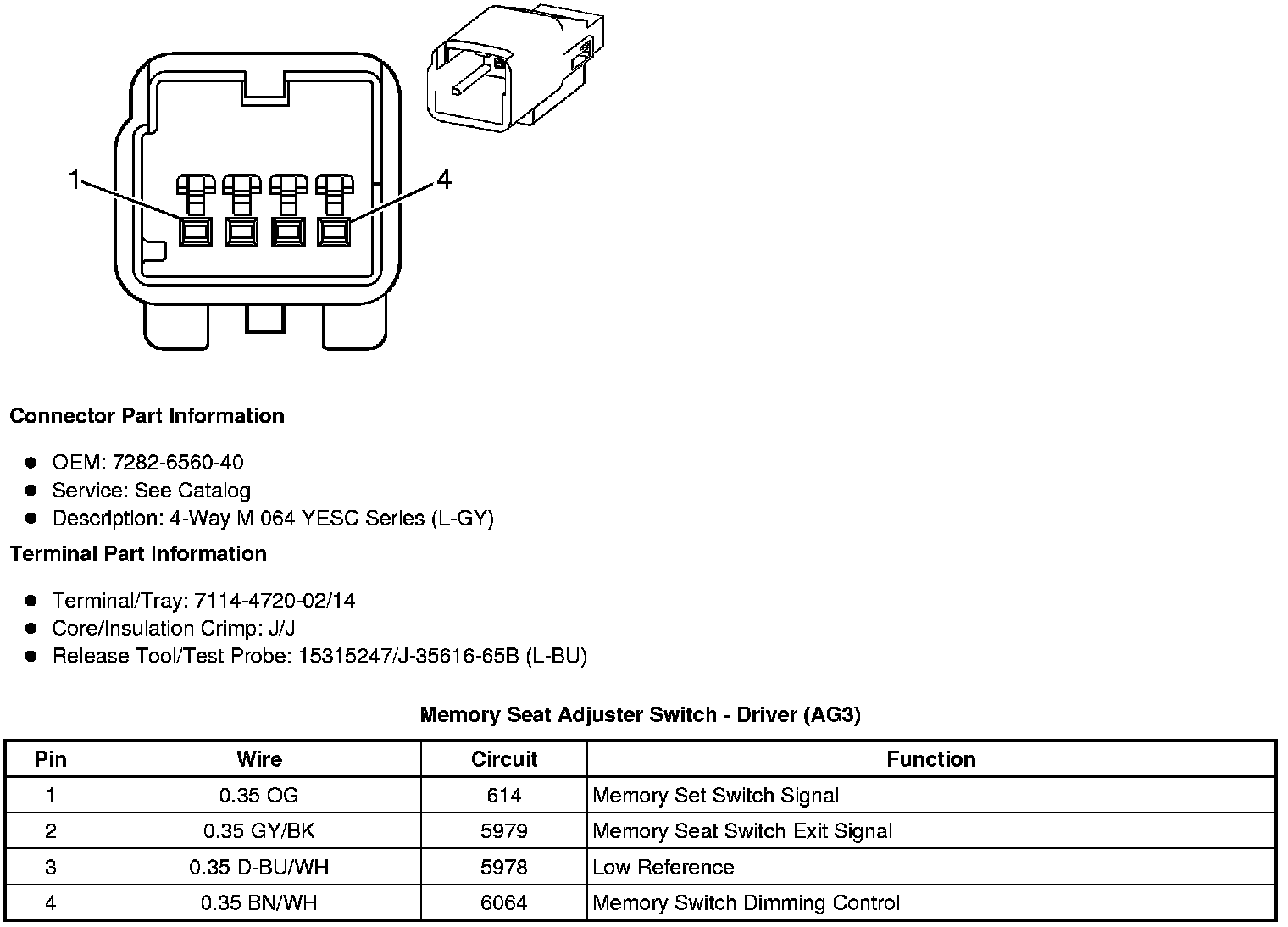

Memory Seat Adjuster Switch - Driver (AG3)

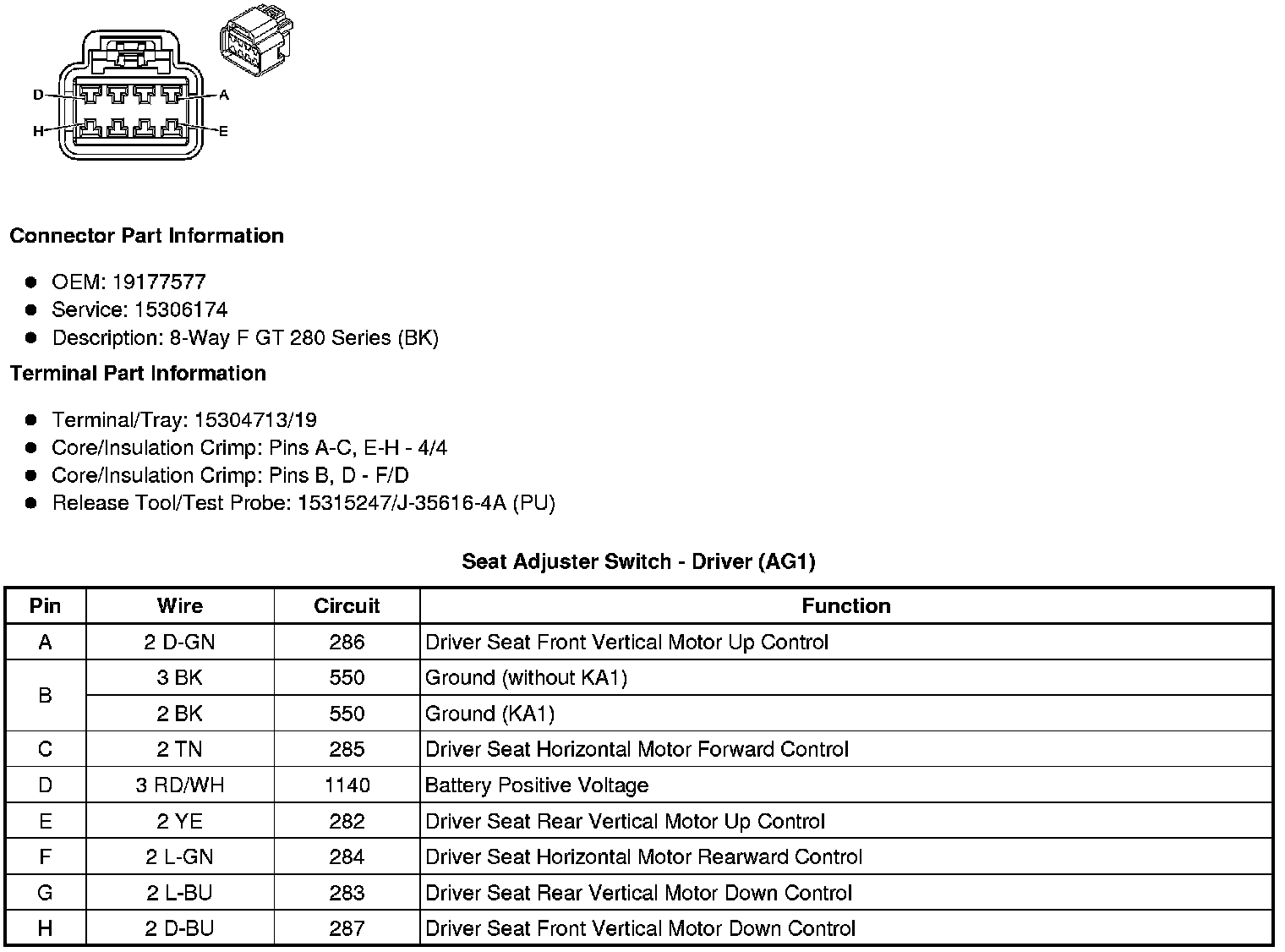

Seat Adjuster Switch - Driver (AG1)

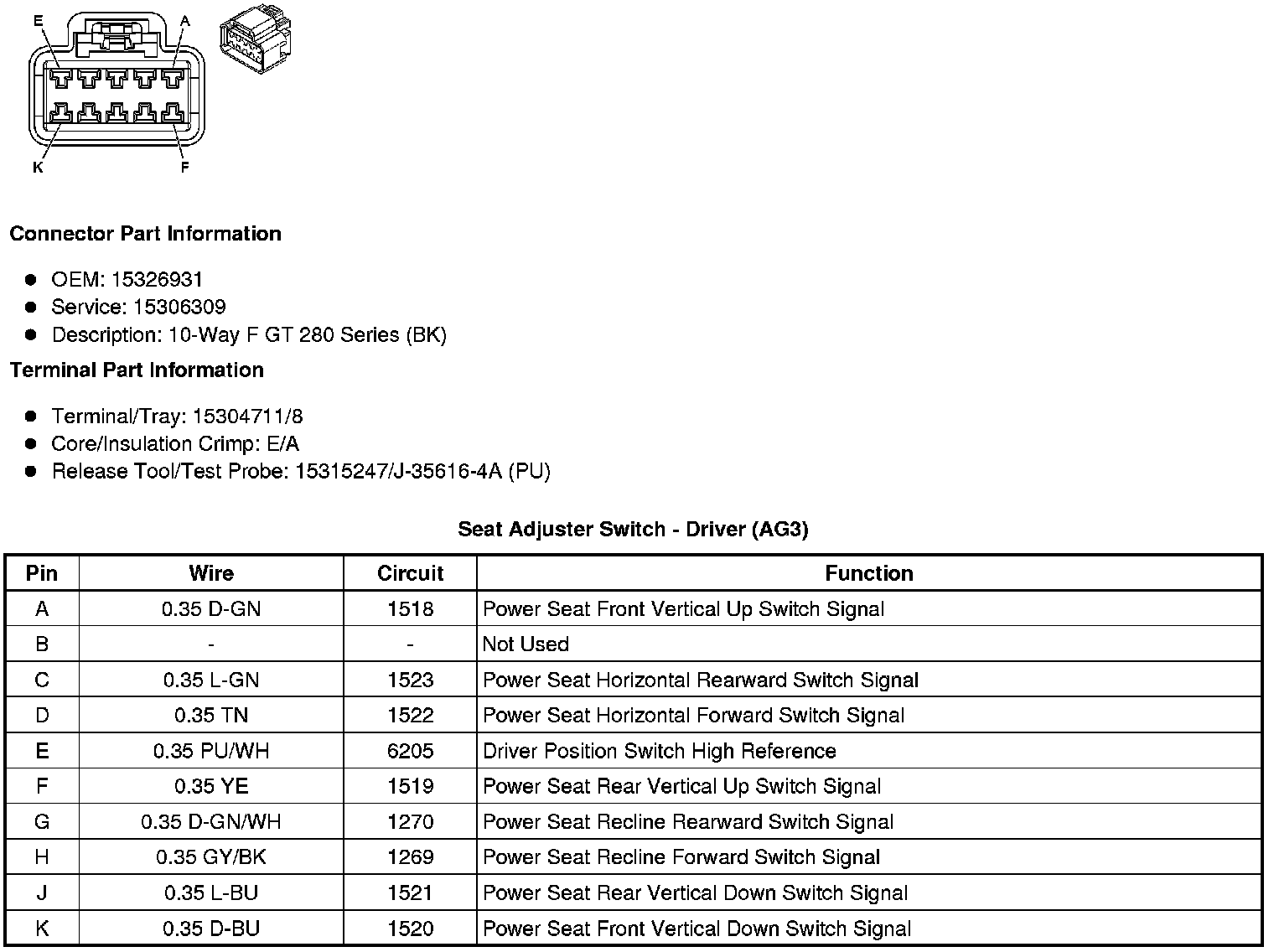

Seat Adjuster Switch - Driver (AG3)

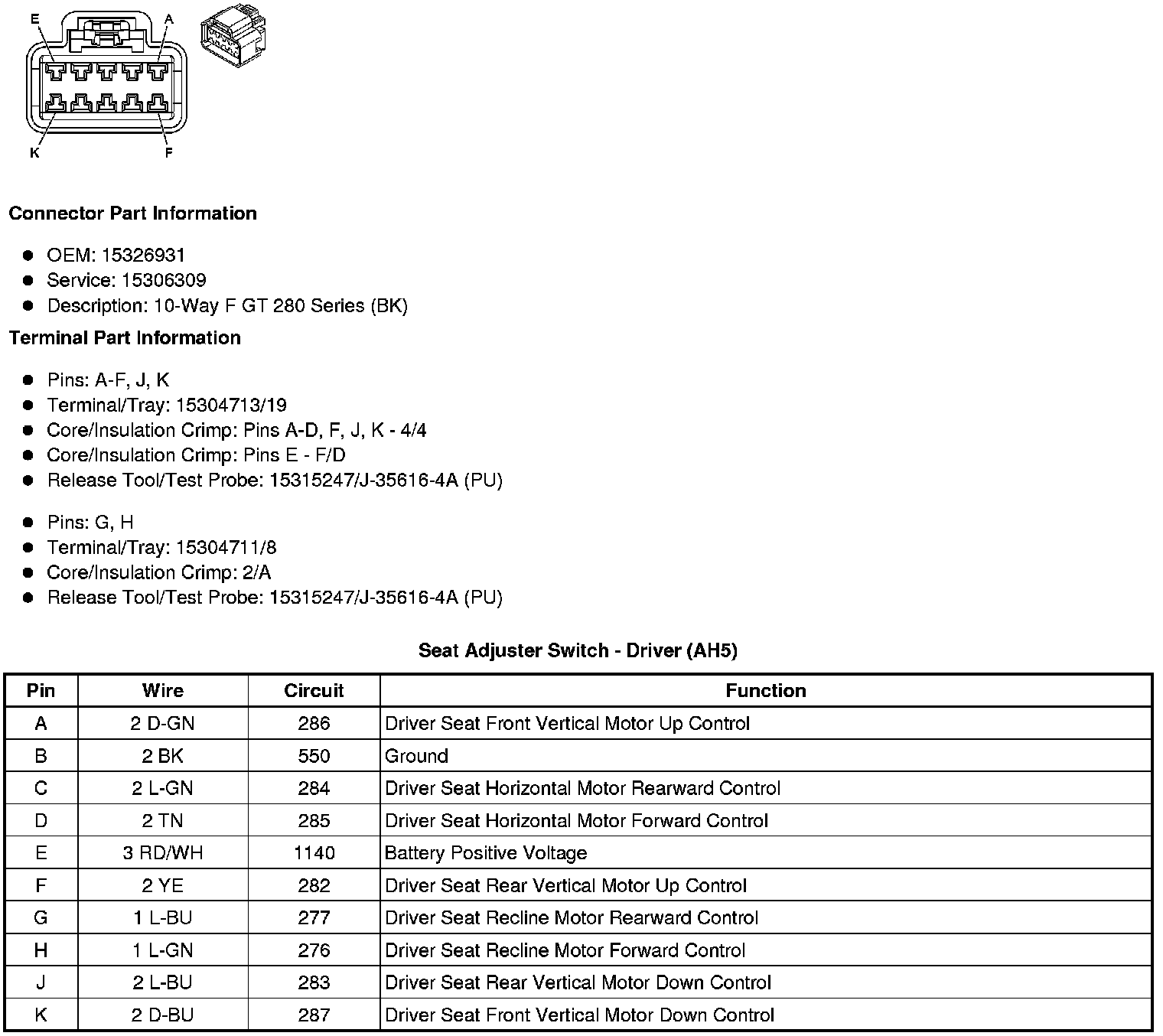

Seat Adjuster Switch - Driver (AH5)

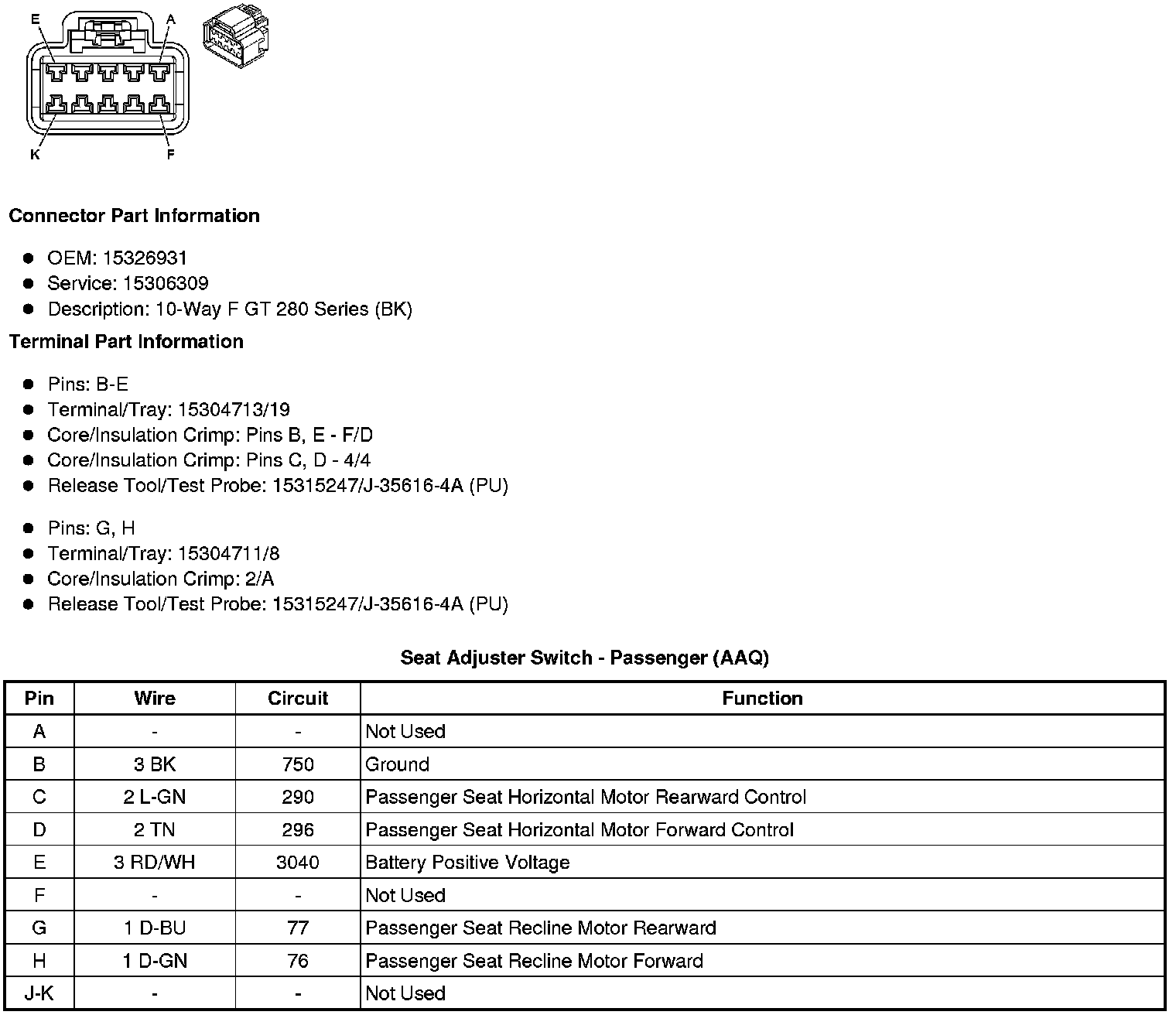

Seat Adjuster Switch - Passenger (AAQ)

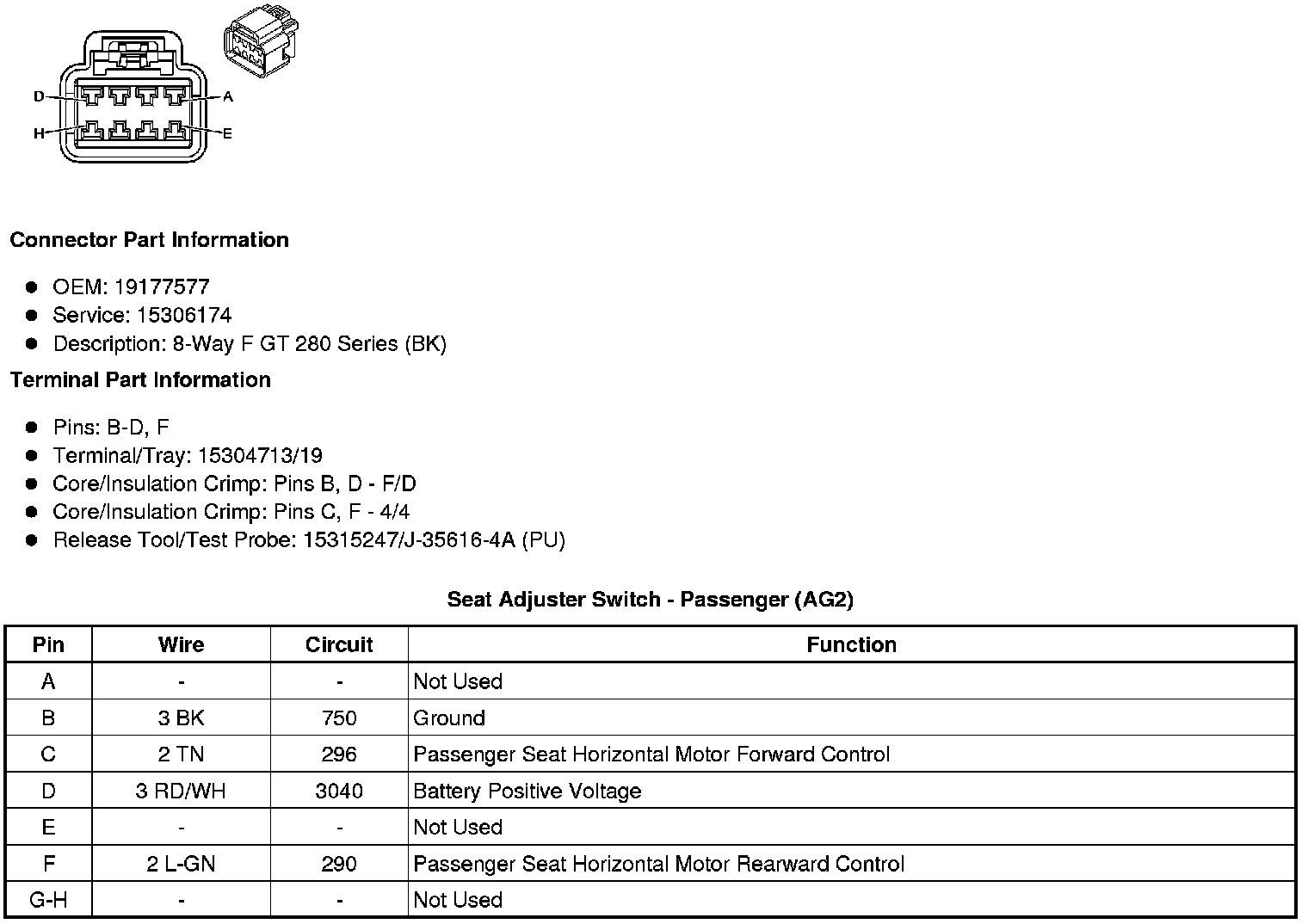

Seat Adjuster Switch - Passenger (AG2)






Seat Lumbar Switch - Driver (AG3 or AH5)






Seat Lumbar Switch - Passenger (AAQ)
