Power Seat Motor




Component Connector End Views

Seat Front Vertical Motor - Driver (AG1 or AG3 or AH5)






Seat Horizontal Motor - Driver (AG1 or AG3 or AH5)






Seat Horizontal Motor - Passenger (AAQ or AG2)






Seat Lumbar Horizontal Motor - Driver (AG3 or AH5)






Seat Lumbar Horizontal Motor - Passenger (AAQ)

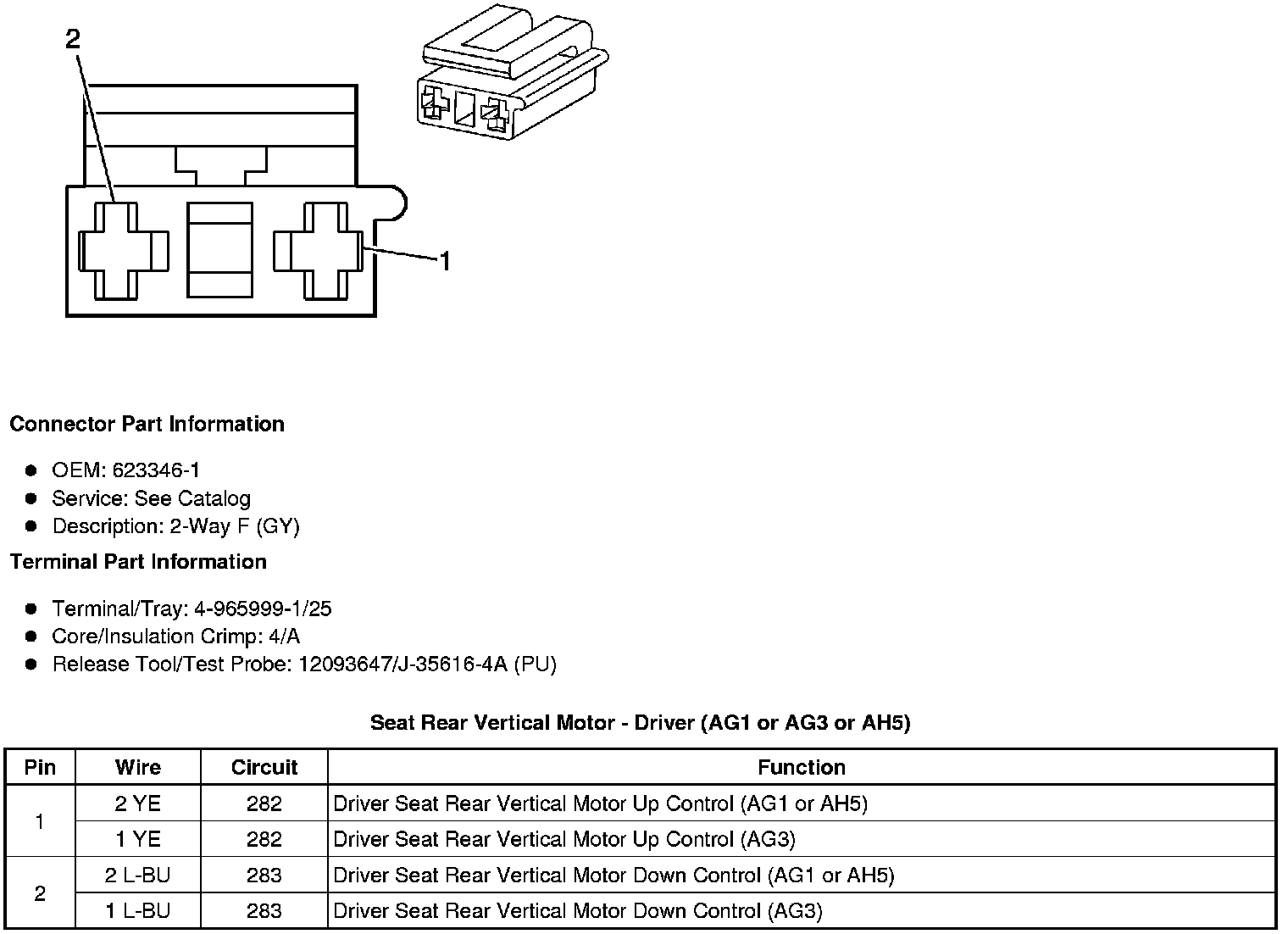

Seat Rear Vertical Motor - Driver (AG1 or AG3 or AH5)

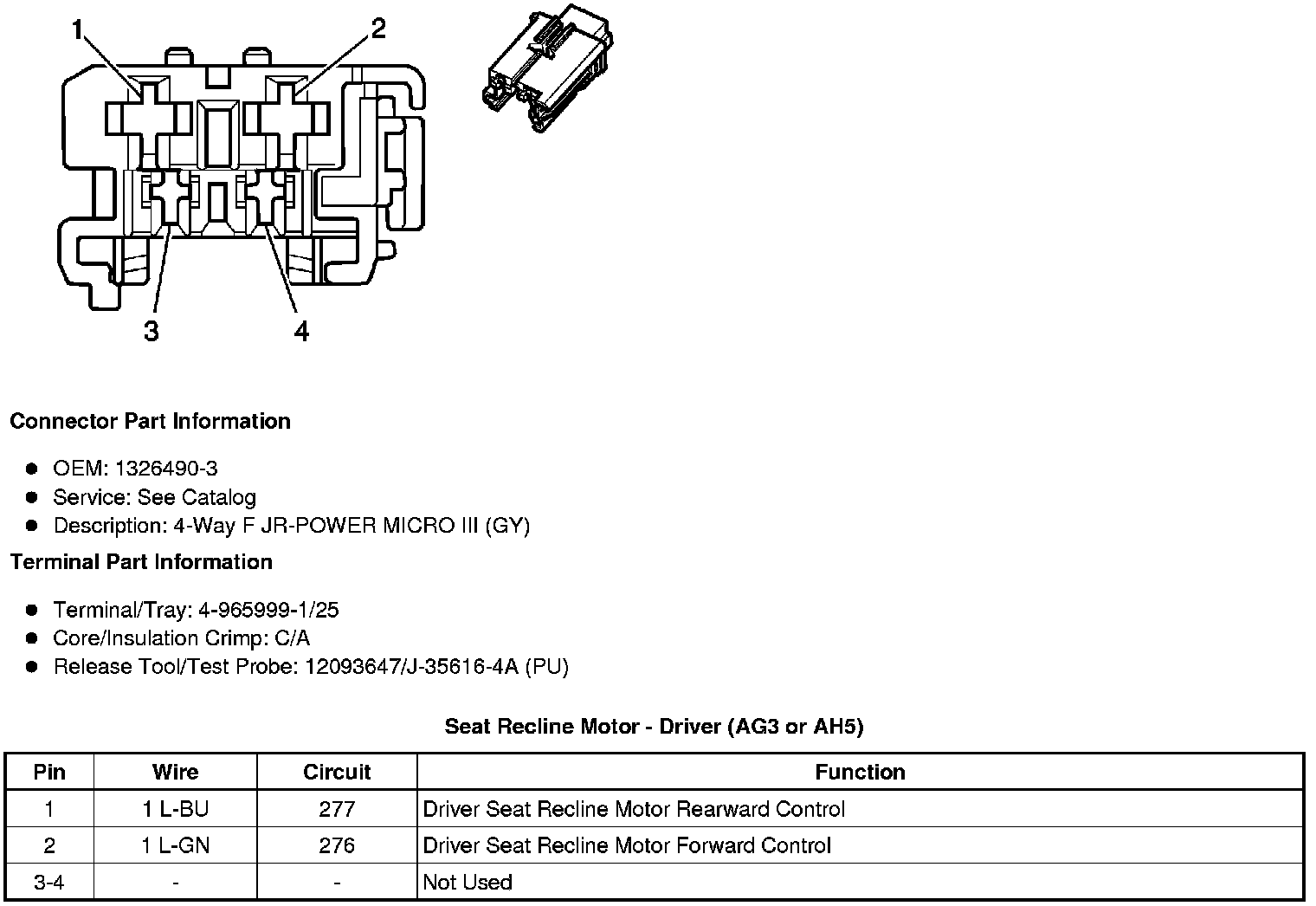

Seat Recline Motor - Driver (AG3 or AH5)

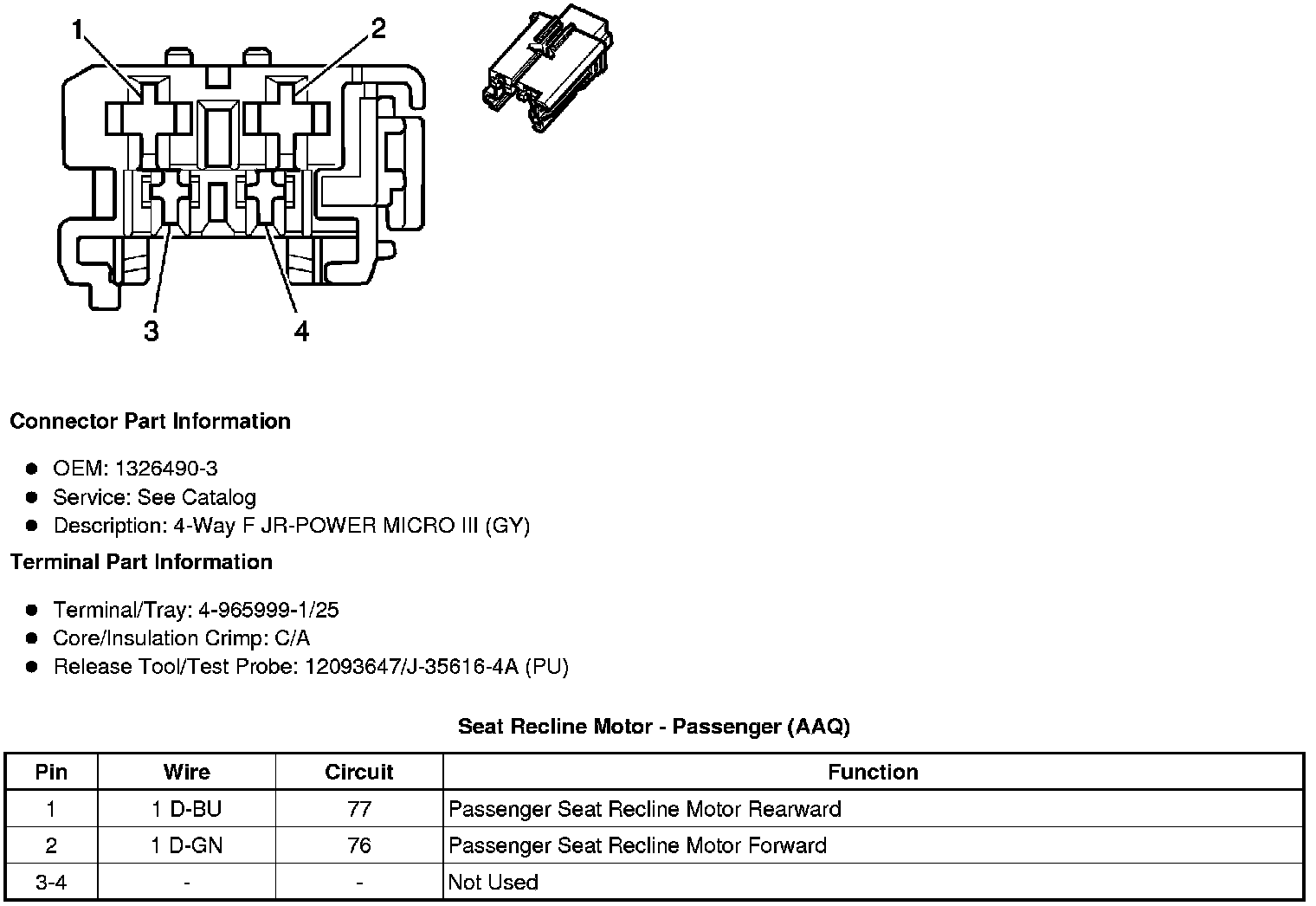

Seat Recline Motor - Passenger (AAQ)
