Compressor/Pump, Suspension Control

Component Connector End Views

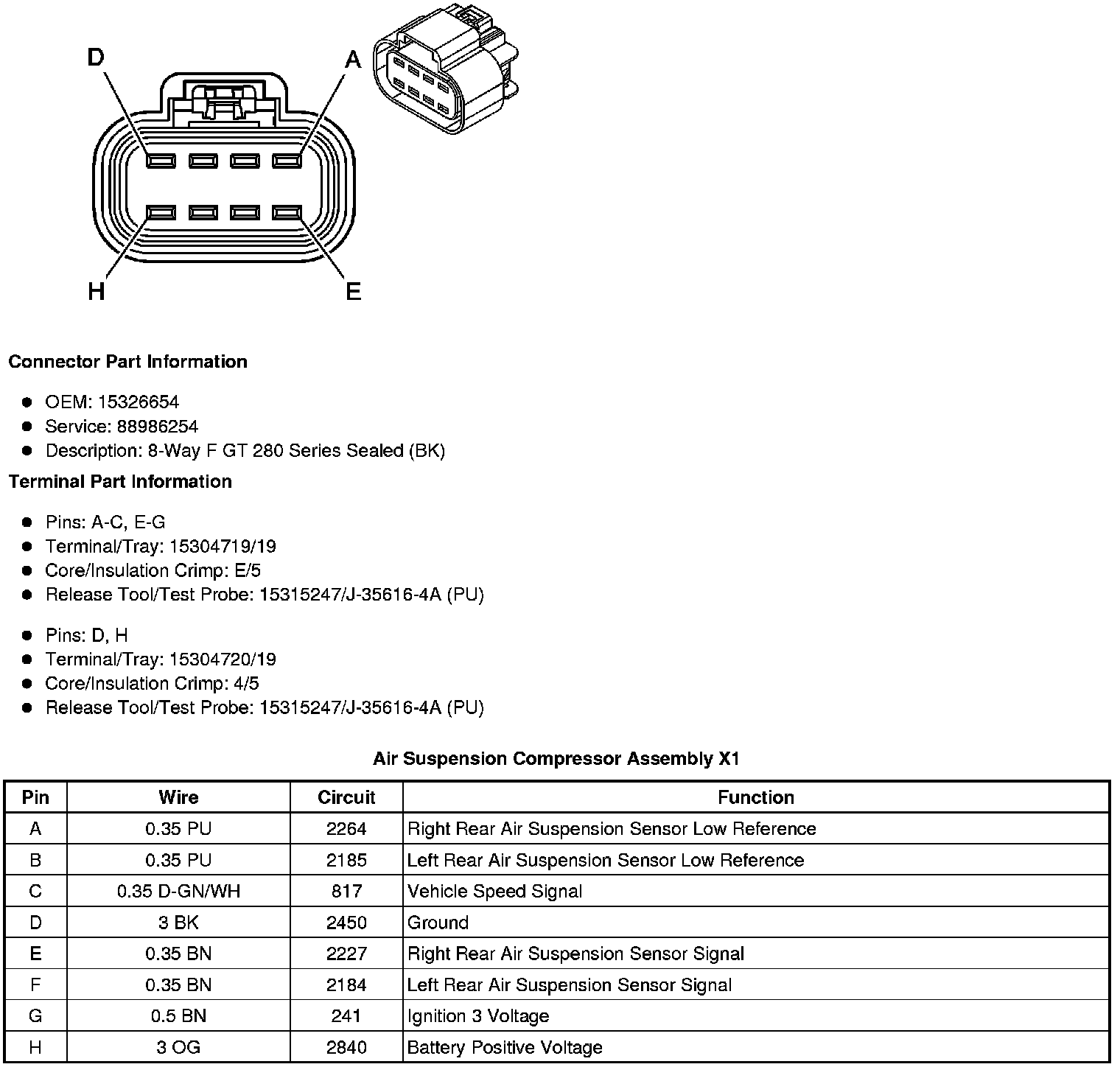

Air Suspension Compressor Assembly X1

Air Suspension Compressor Assembly X2 (Air Suspension Inflator Switch)
