Combination Switch




Component Connector End Views

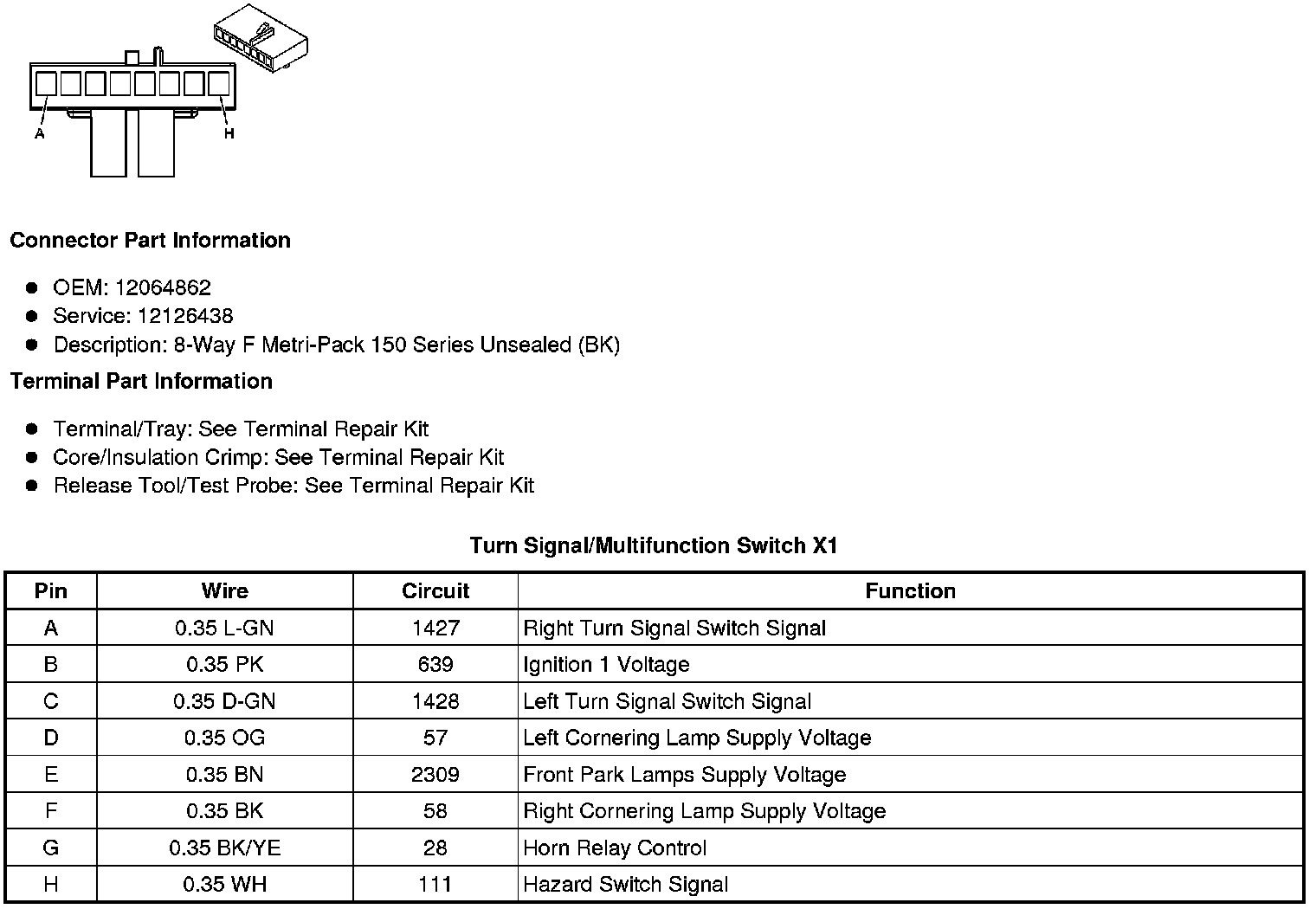

Turn Signal/Multifunction Switch X1






Turn Signal/Multifunction Switch X2

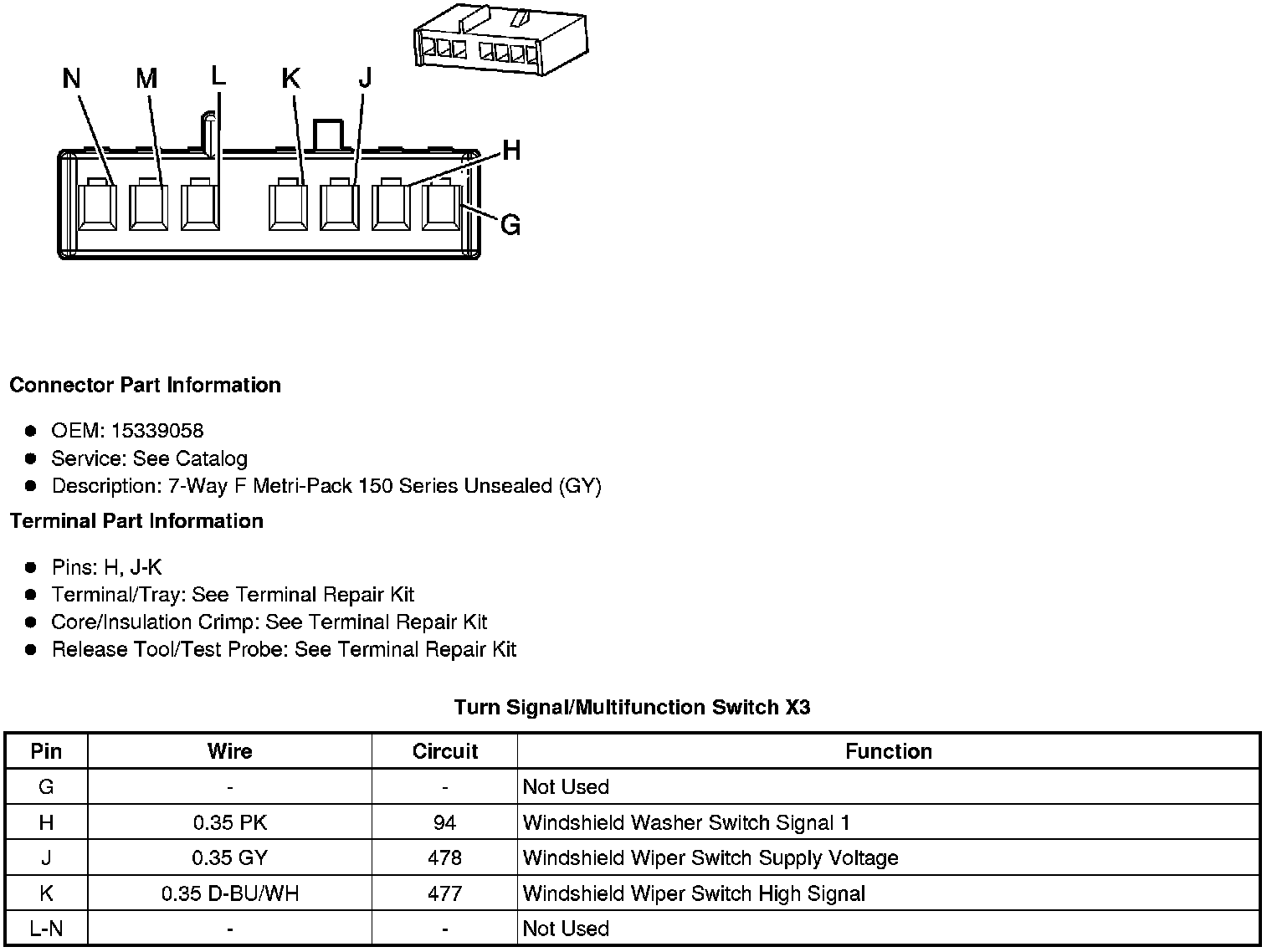

Turn Signal/Multifunction Switch X3






Turn Signal/Multifunction Switch X4 (K34)
