Power Window Switch: Diagrams




Component Connector End Views

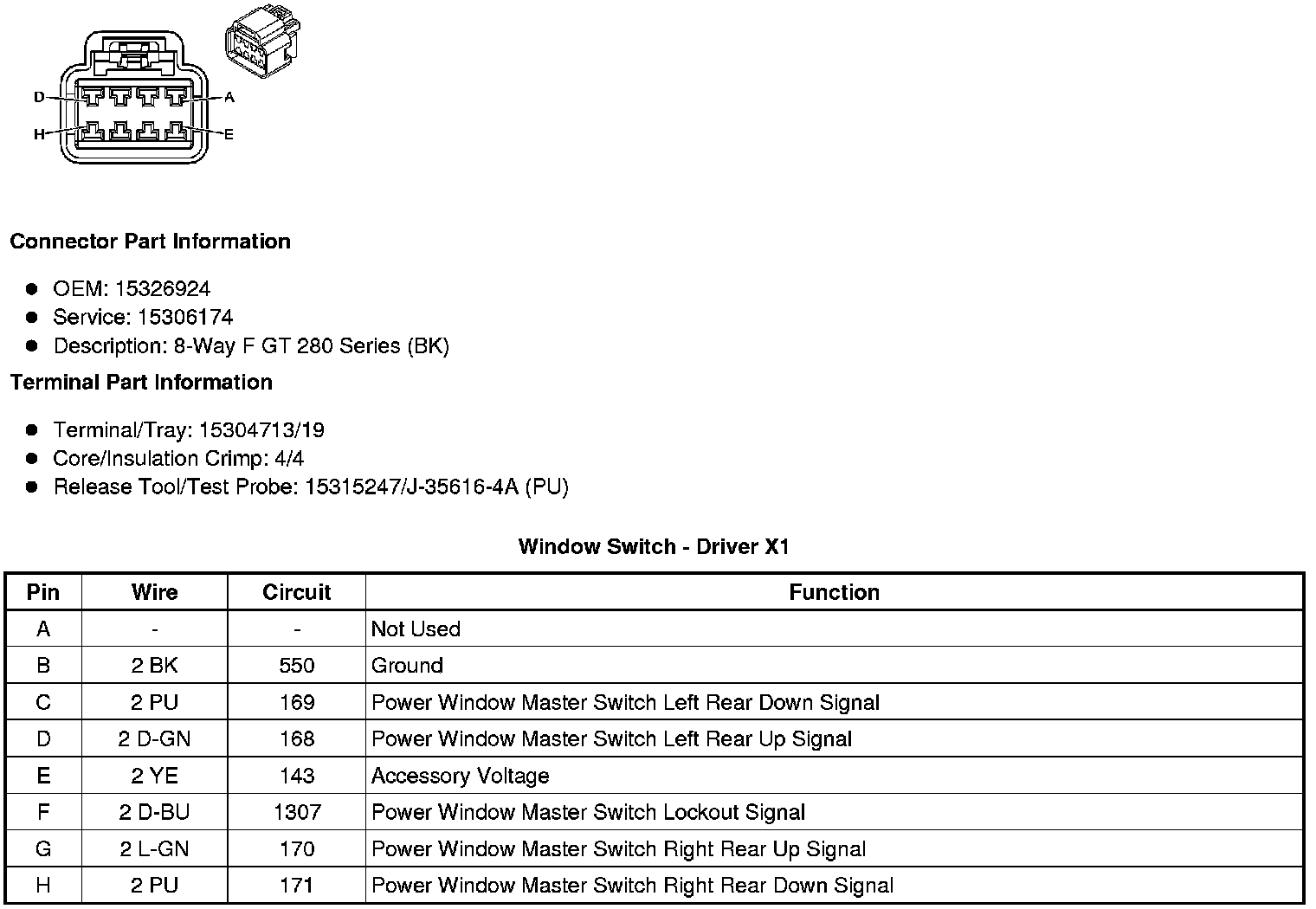

Window Switch - Driver X1

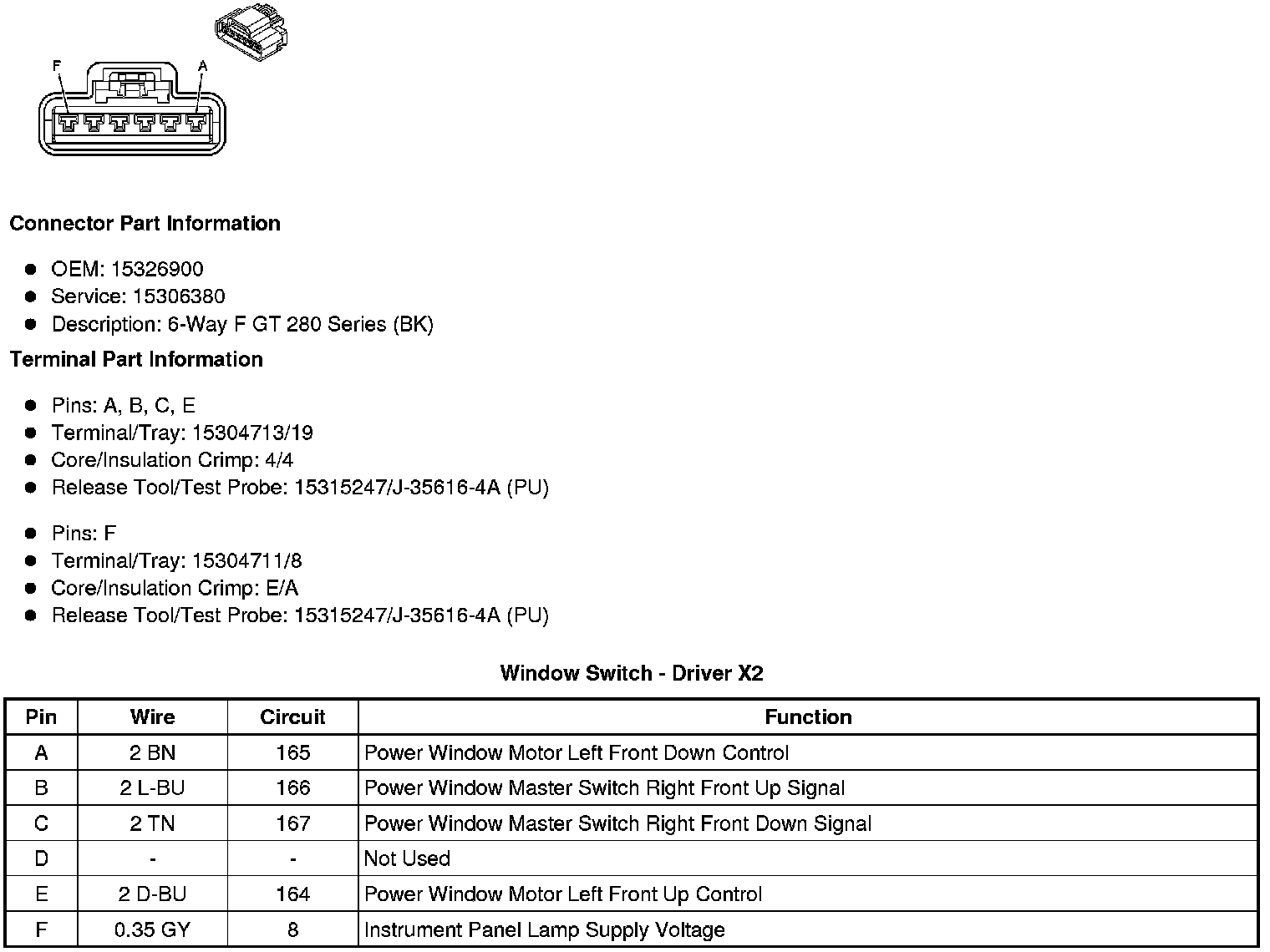

Window Switch - Driver X2

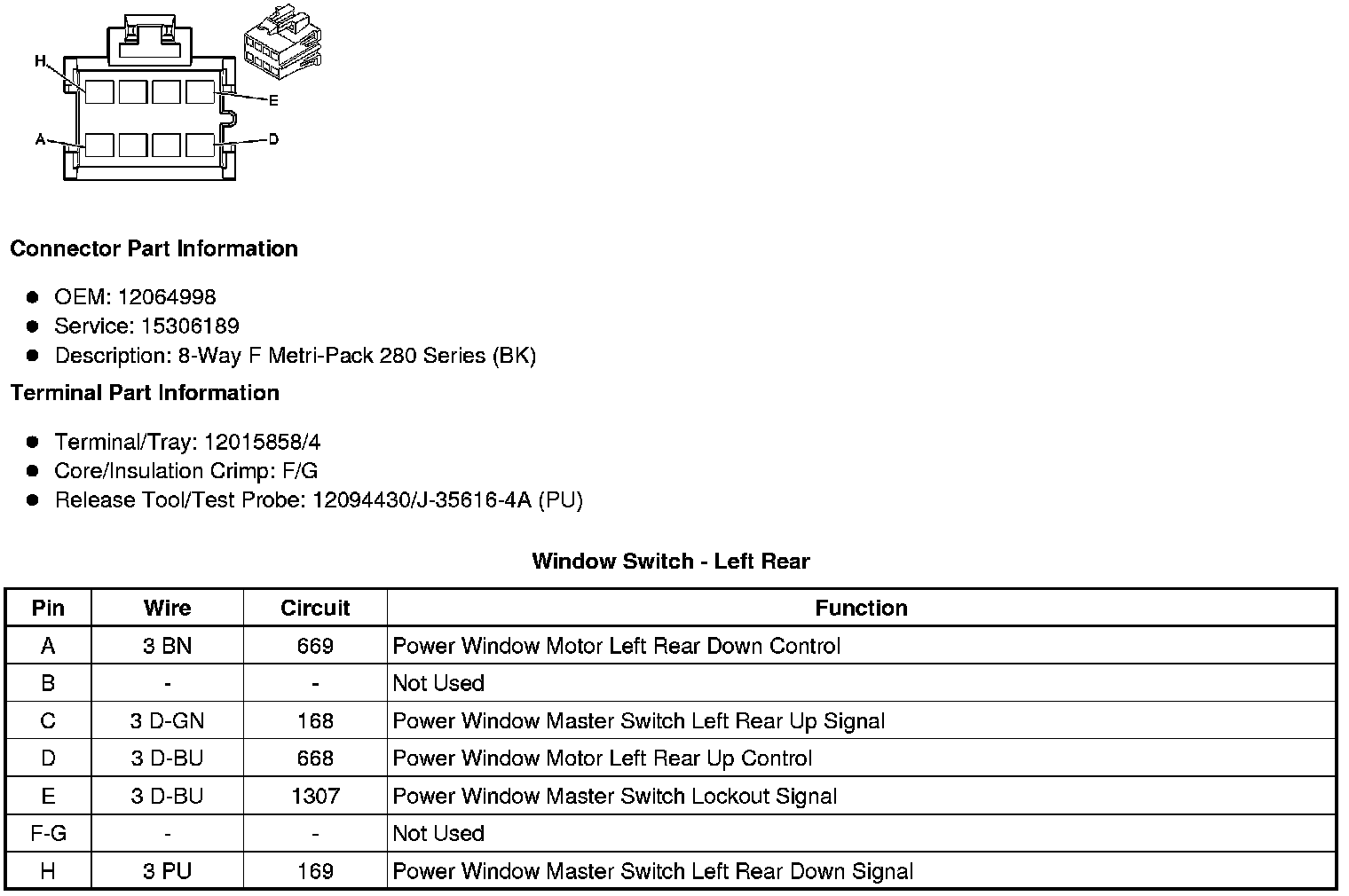

Window Switch - Left Rear

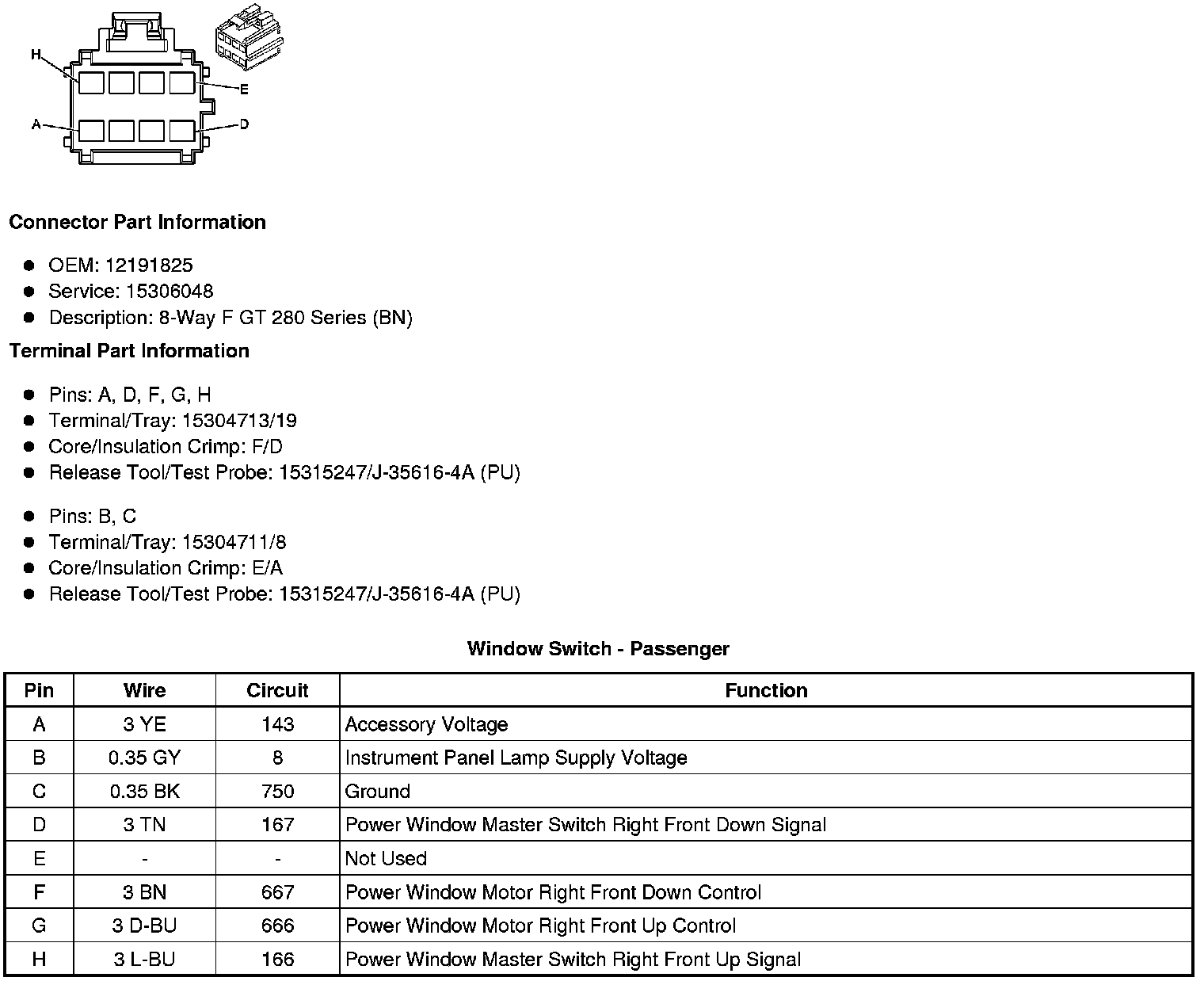

Window Switch - Passenger






Window Switch - Right Rear
