Fuel Injector




Component Connector End Views

Fuel Injector 1 (LS4-5.3L)






Fuel Injector 2 (LS4-5.3L)






Fuel Injector 3 (LS4-5.3L)

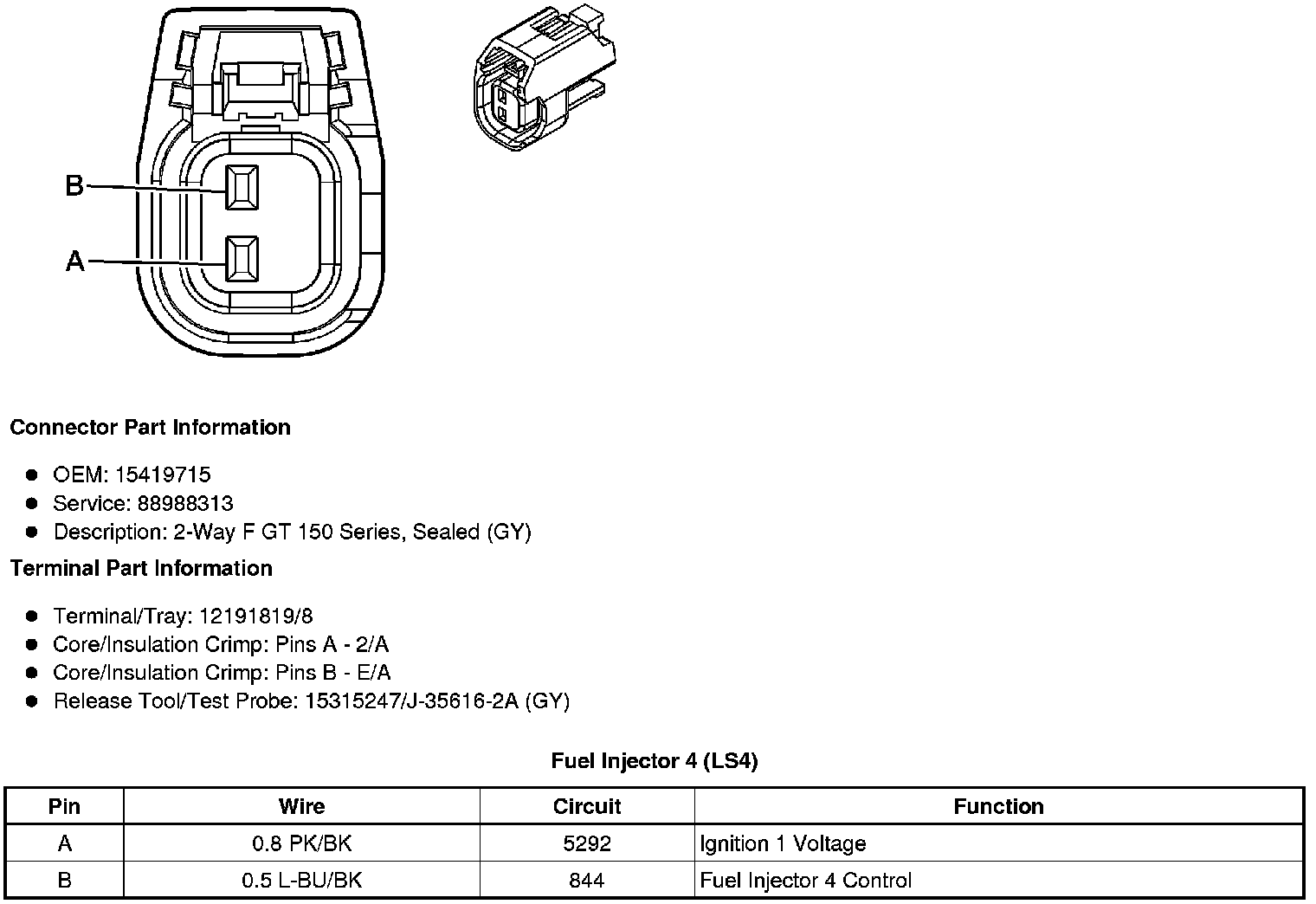

Fuel Injector 4 (LS4-5.3L)






Fuel Injector 5 (LS4-5.3L)






Fuel Injector 6 (LS4-5.3L)

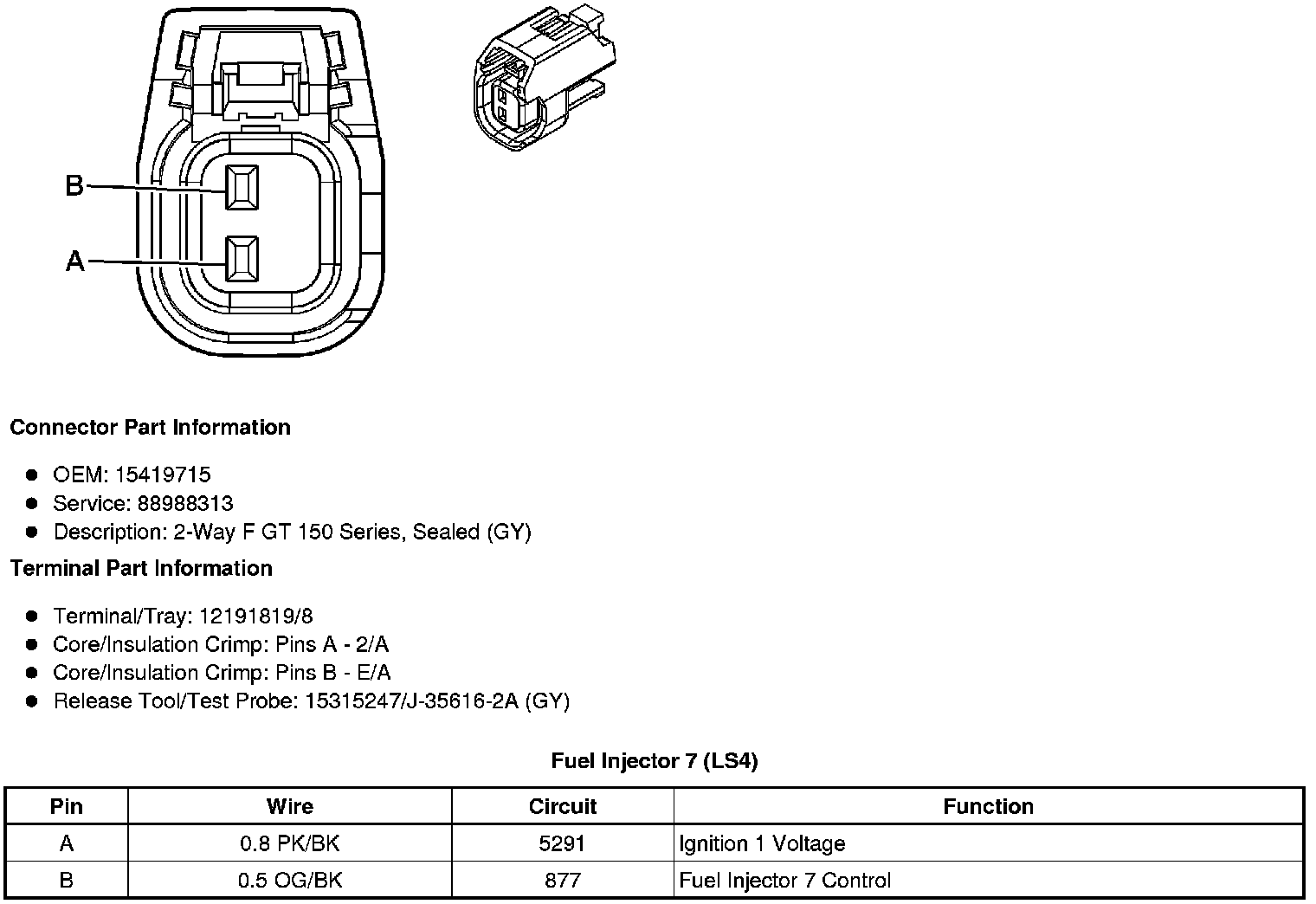

Fuel Injector 7 (LS4-5.3L)

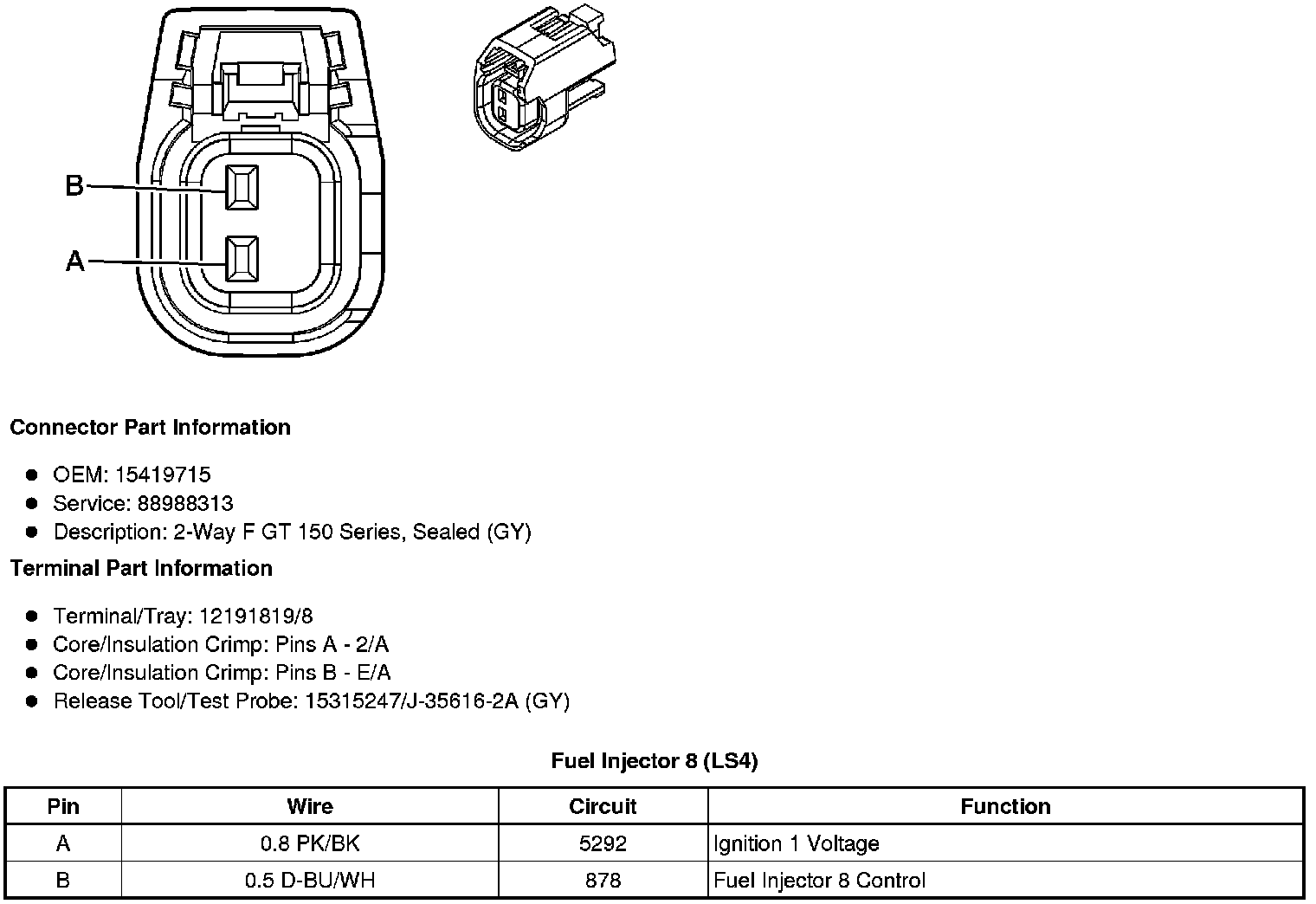

Fuel Injector 8 (LS4-5.3L)
