Body Control Systems
Body Control System Schematics

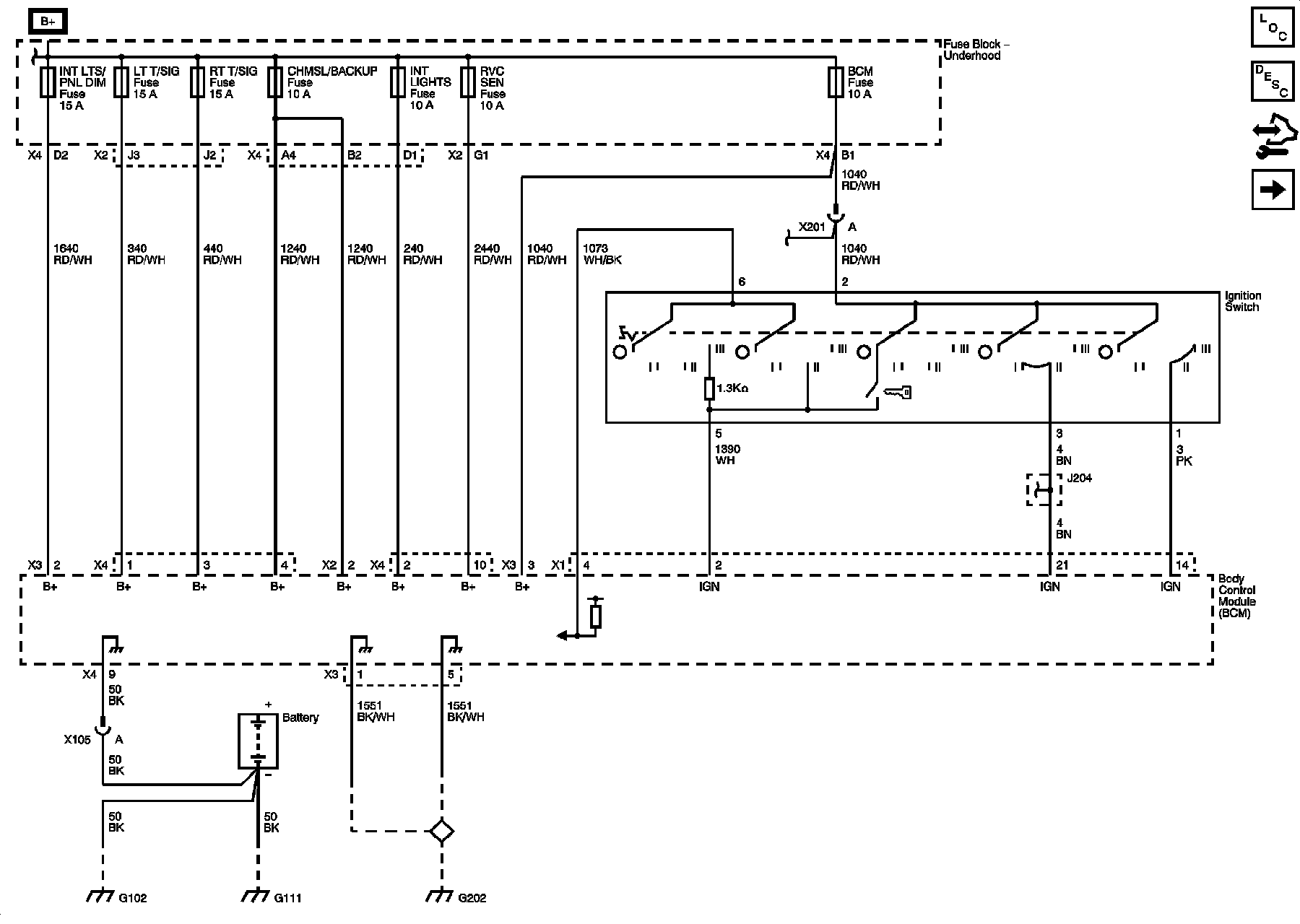

Power and Ground

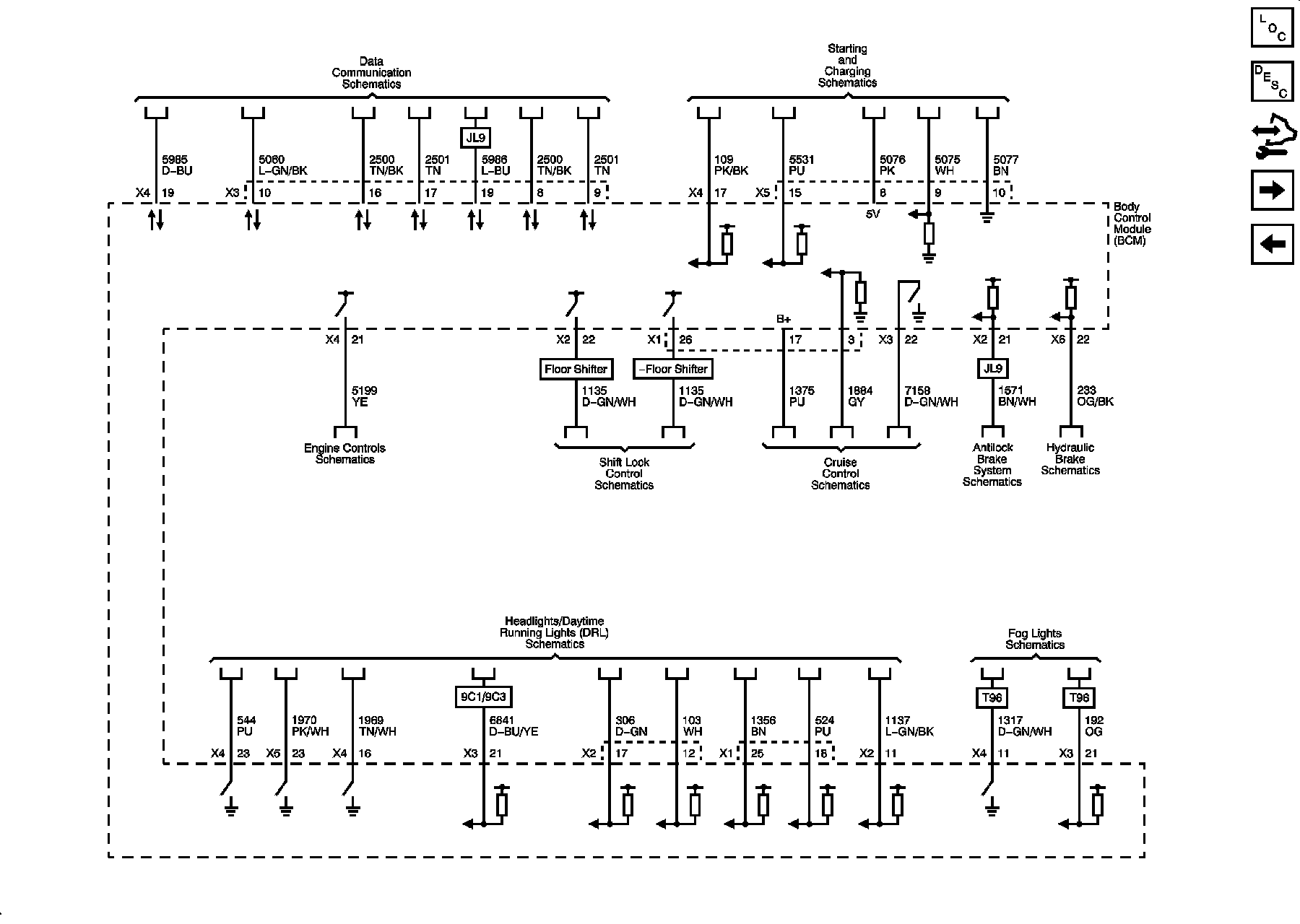

Data Link, Starting and Charging, Engine Controls, Shift Lock Control, Cruise Control, ABS, Brake Warning, Headlights/DRL, and Fog Lights References

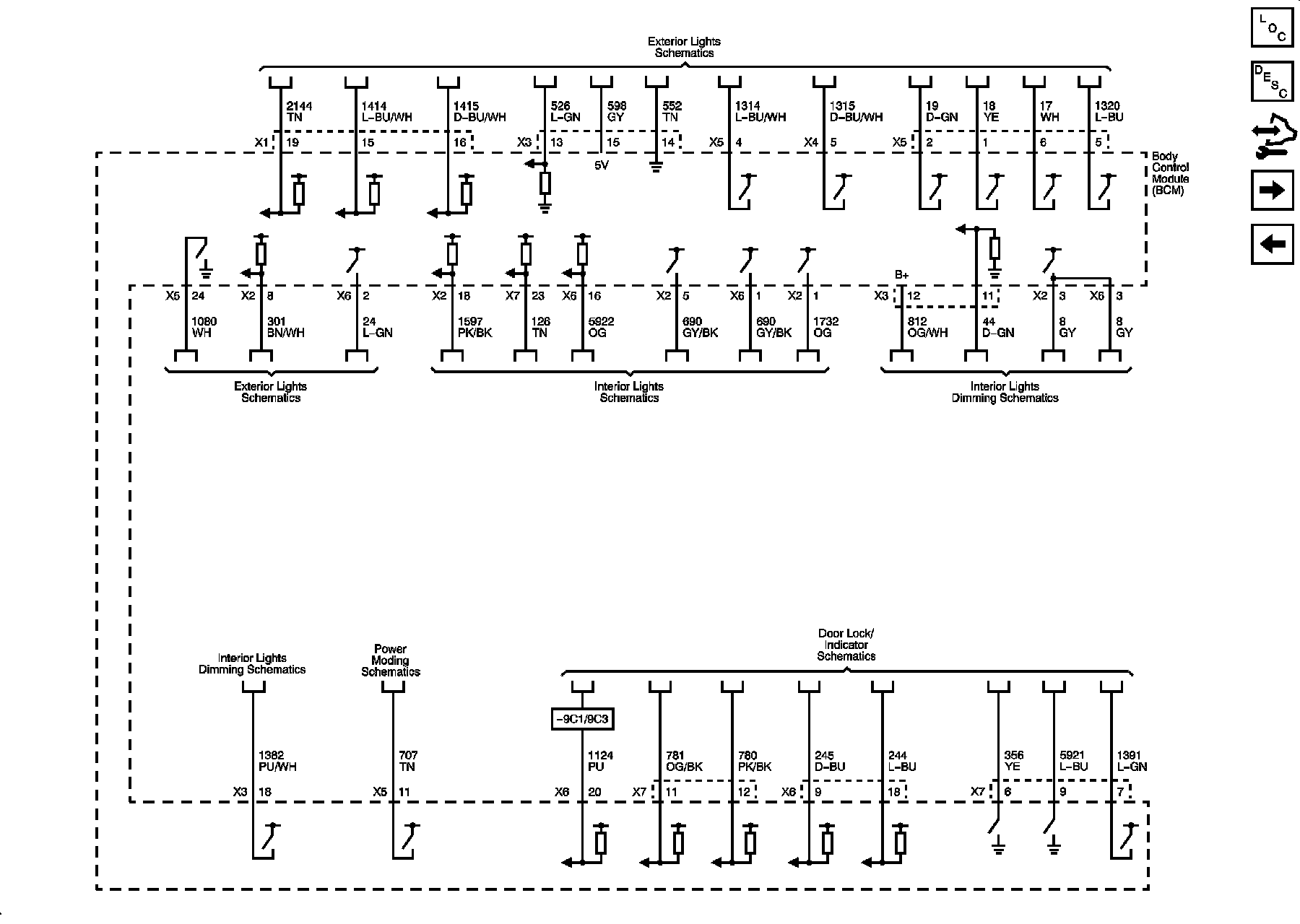

Exterior Lights, Interior Lights, Interior Lights Dimming, Power Moding, and Door Lock/Indicator References
Door Lock/Indicator Continued, Theft Deterrent, Horns, Steering Wheel, Upfitter Provisions, Wiper/Washer, and Release System References
