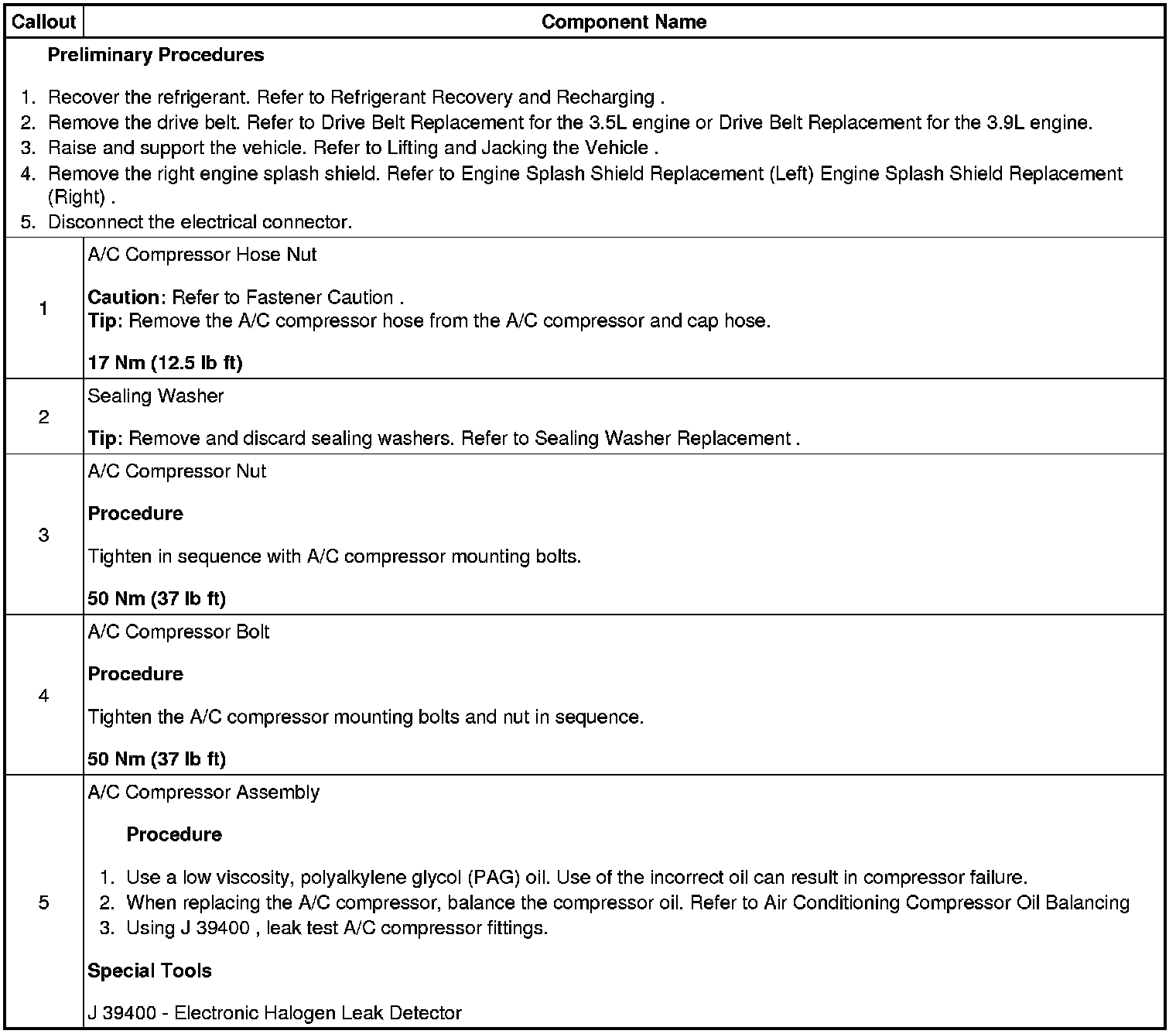

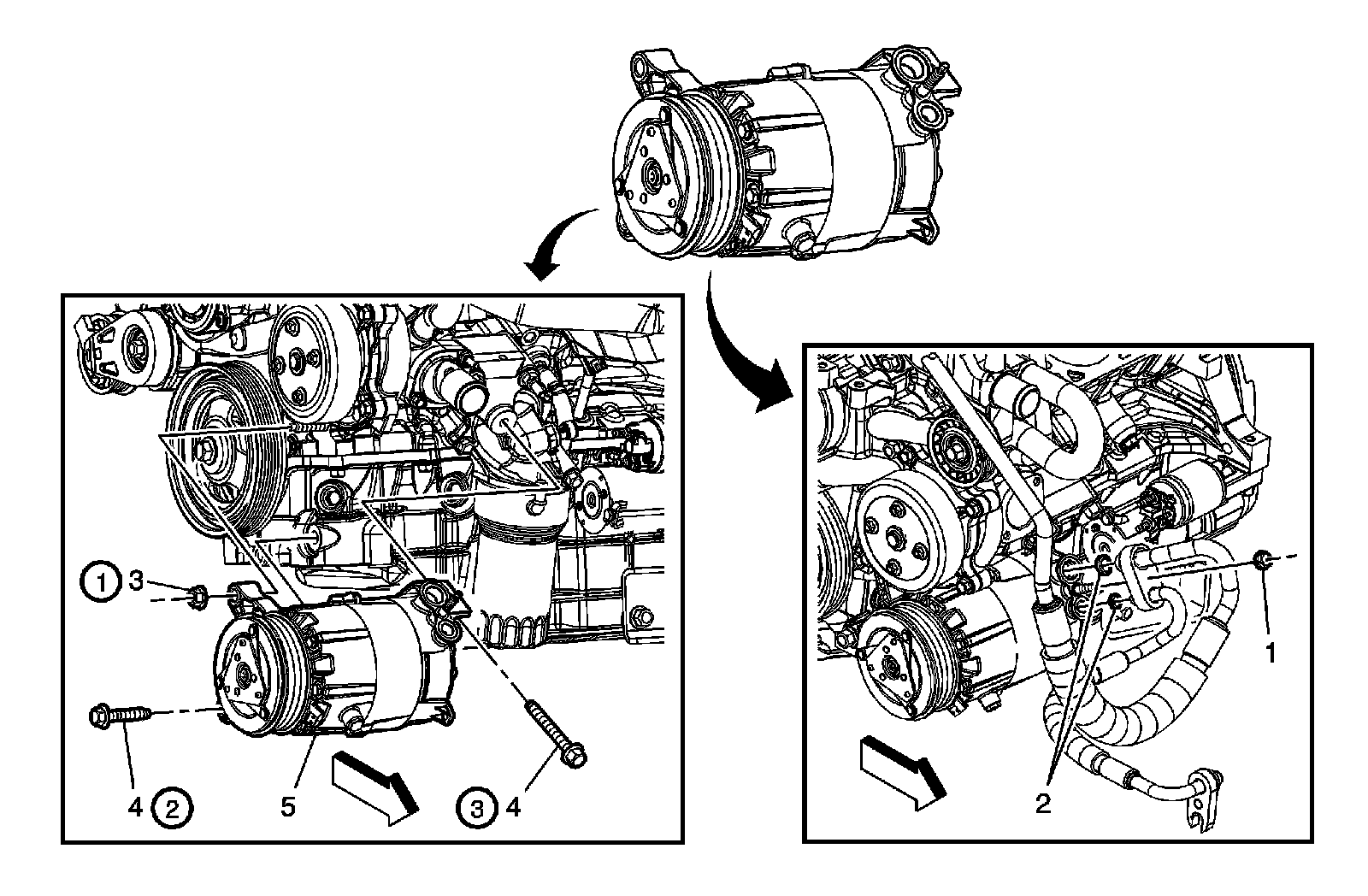

Air Conditioning Compressor Replacement
Air Conditioning Compressor Replacement (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LGD-3.9L Flex Fuel)
