Crankshaft Position Sensor
Crankshaft Position Sensor

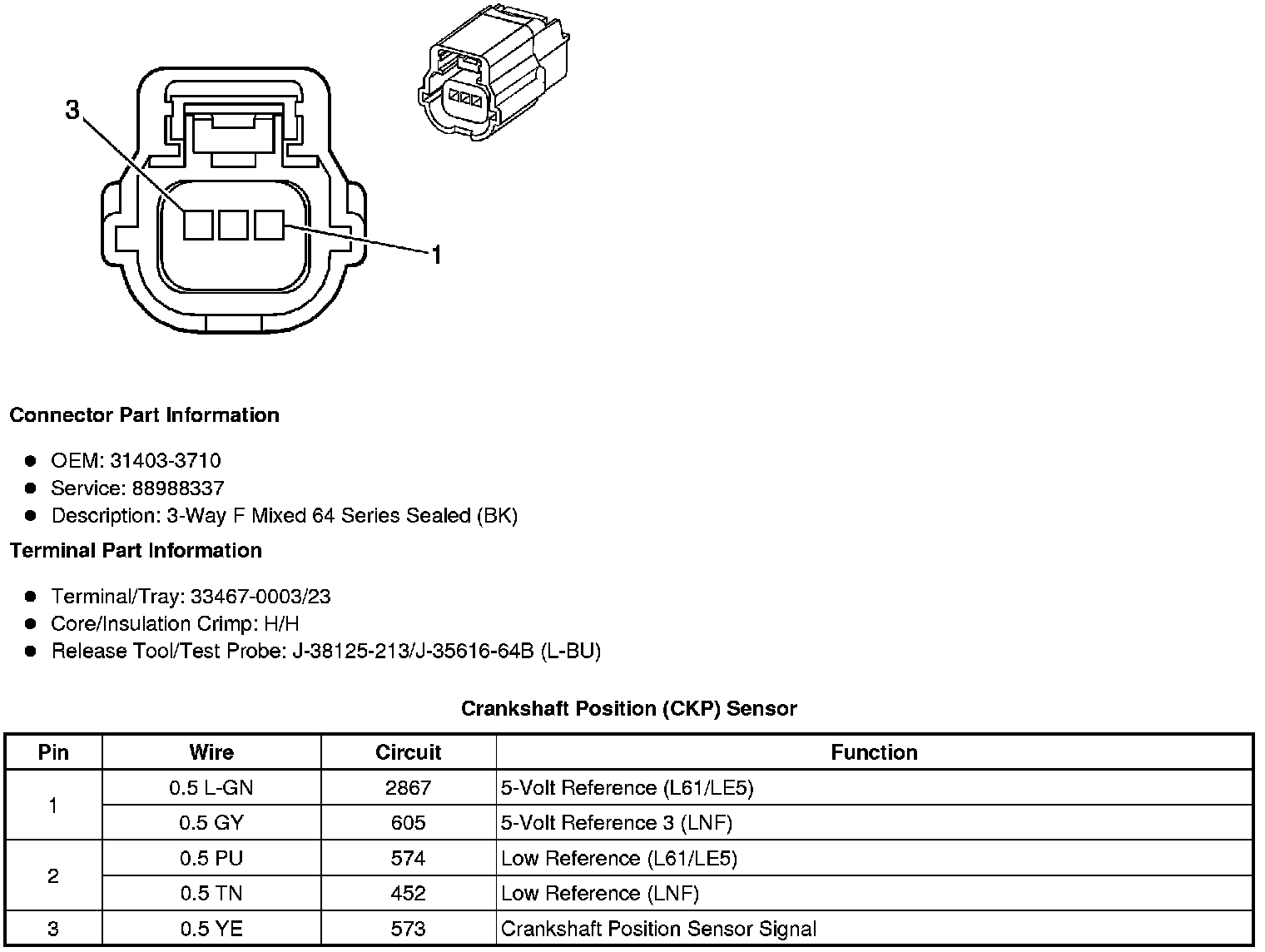

Component Connector End Views
Crankshaft Position (CKP) Sensor
