Harness Routing Views

Harness Routing Views

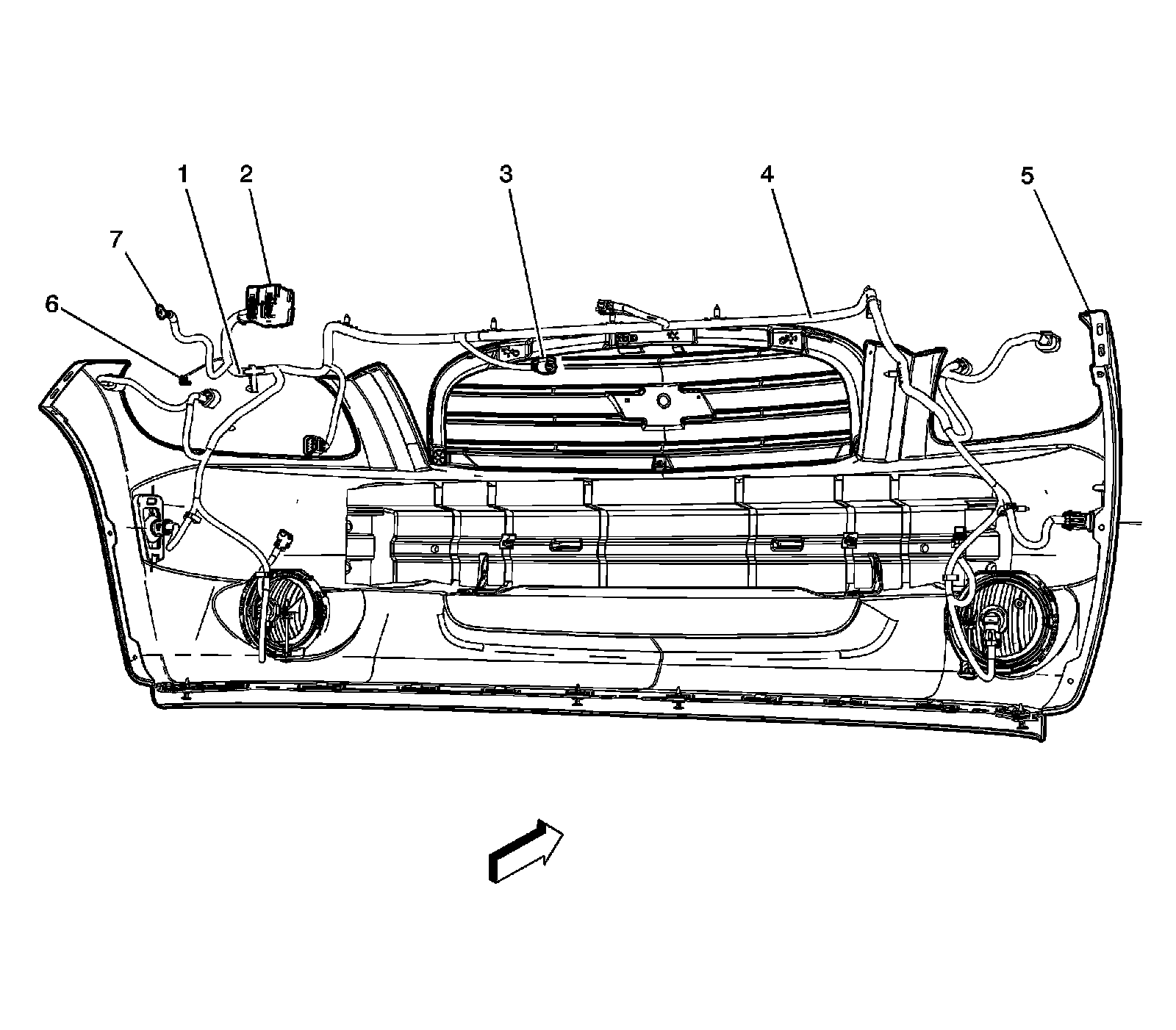

Forward Lamp Harness




1 - J101
2 - Fuse Block - Underhood X3
3 - Hood Ajar Switch
4 - J102
5 - Fascia
6 - G111
7 - G109

X105




1 - X105
2 - Fuse Block - Underhood Bracket
3 - Transmission Control Module (TCM)
