Home >> Chevrolet >> 2009 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Locks >> Release Systems Schematics

Release Systems Schematics




Release Systems Schematics

Liftgate (Except Panel Van)

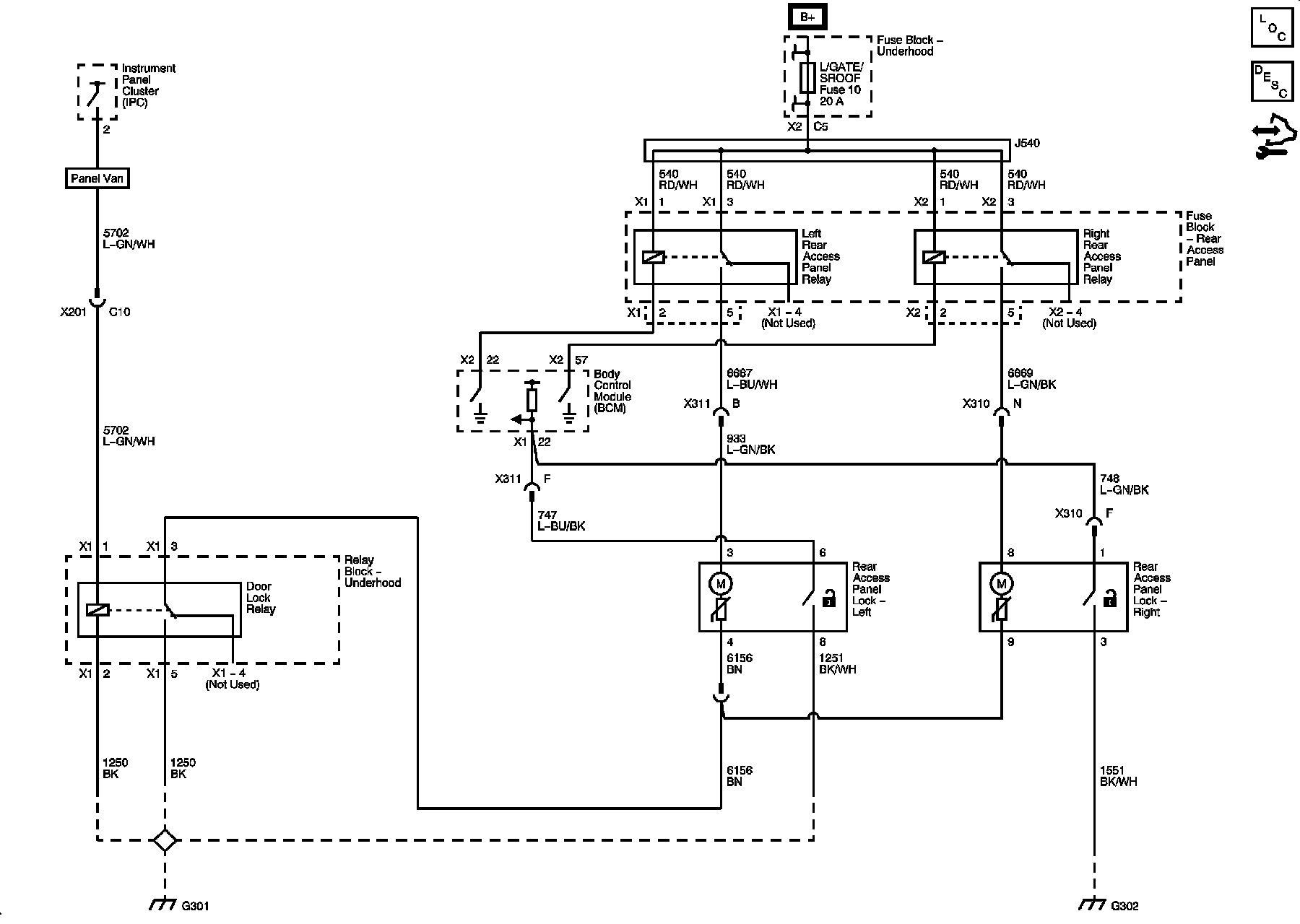

Liftgate/Rear Access Panel Schematics (Panel Van) 1 of 2





Liftgate/Rear Access Panel Schematics (Panel Van) 2 of 2
