Home >> Chevrolet >> 2009 >> HHR L4-2.0L Turbo >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Power Steering >> Steering Control Module >> Diagrams

Steering Control Module: Diagrams




Component Connector End Views

Power Steering Control Module (PSCM) X1 (LNF)






Power Steering Control Module (PSCM) X2 (LNF)

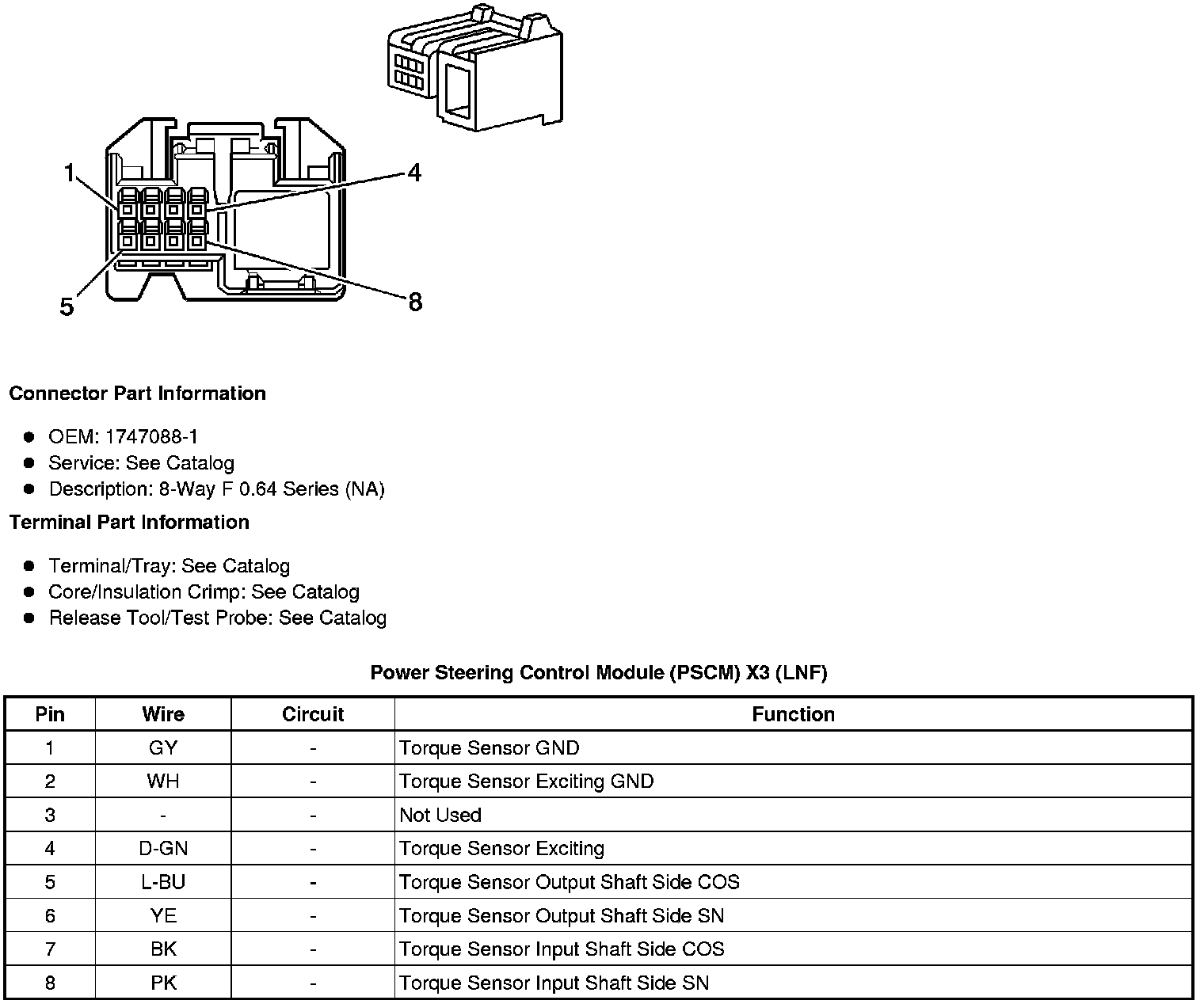

Power Steering Control Module (PSCM) X3 (LNF)

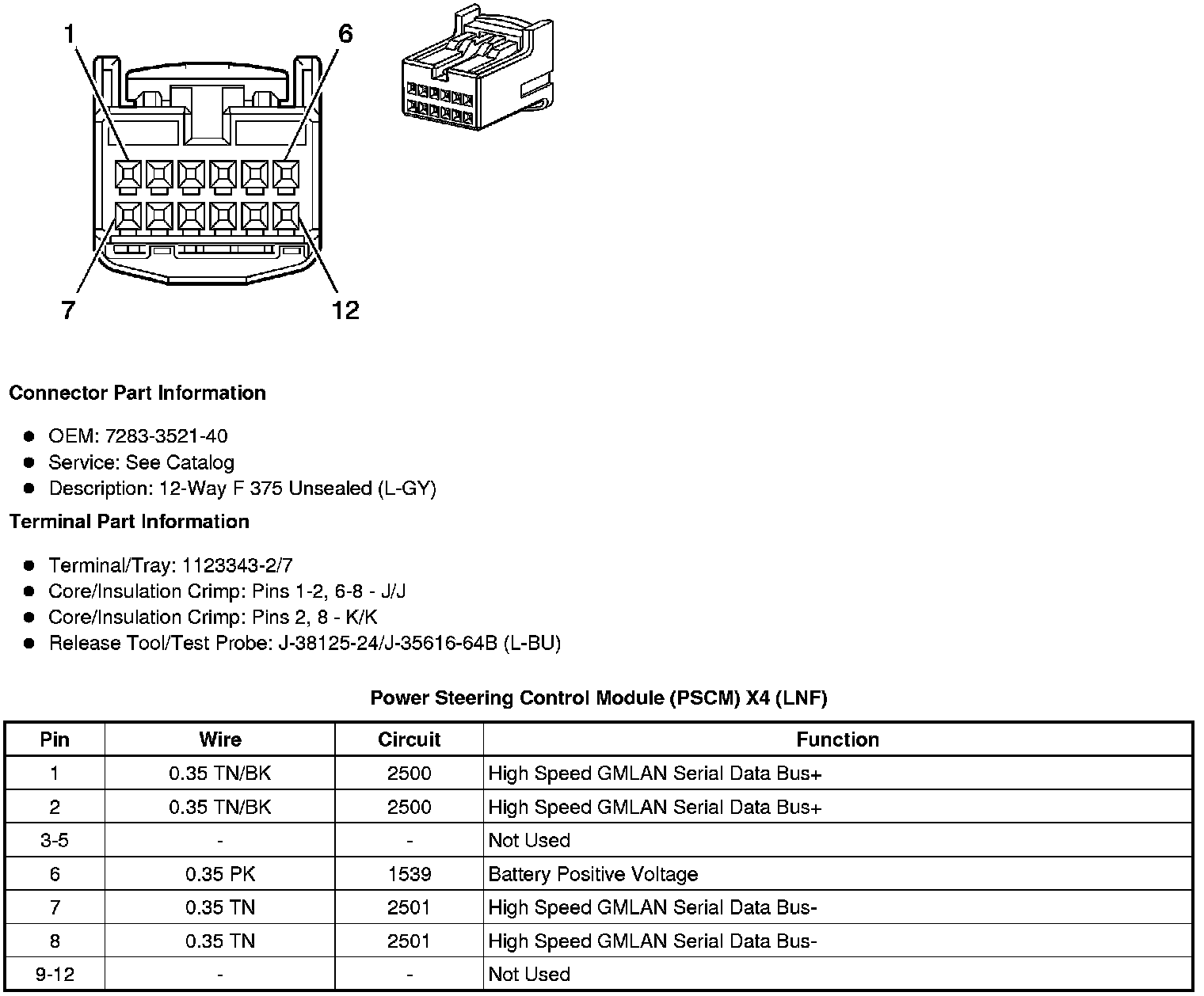

Power Steering Control Module (PSCM) X4 (LNF)






Power Steering Control Module (PSCM) X5 (LNF)
