Engine - Left Rear




Harness Routing Views

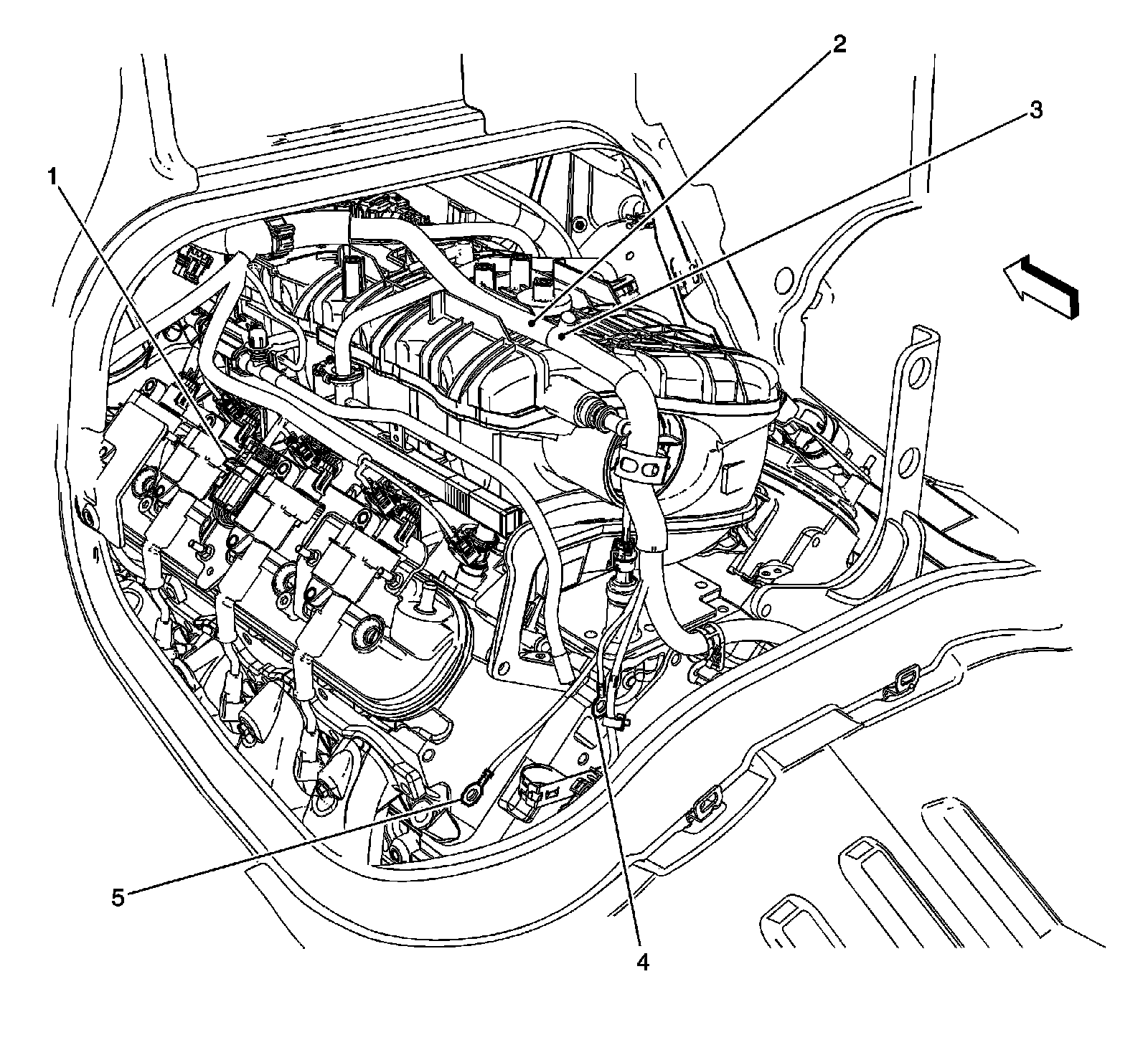

Engine-Left Rear (4.8L/6.0L)




1 - X126
2 - J101
3 - J102
4 - G103
5 - G102
