Refrigerant Pressure Sensor / Switch, HVAC
Refrigerant Pressure Sensor / Switch, HVAC
Component Connector End Views

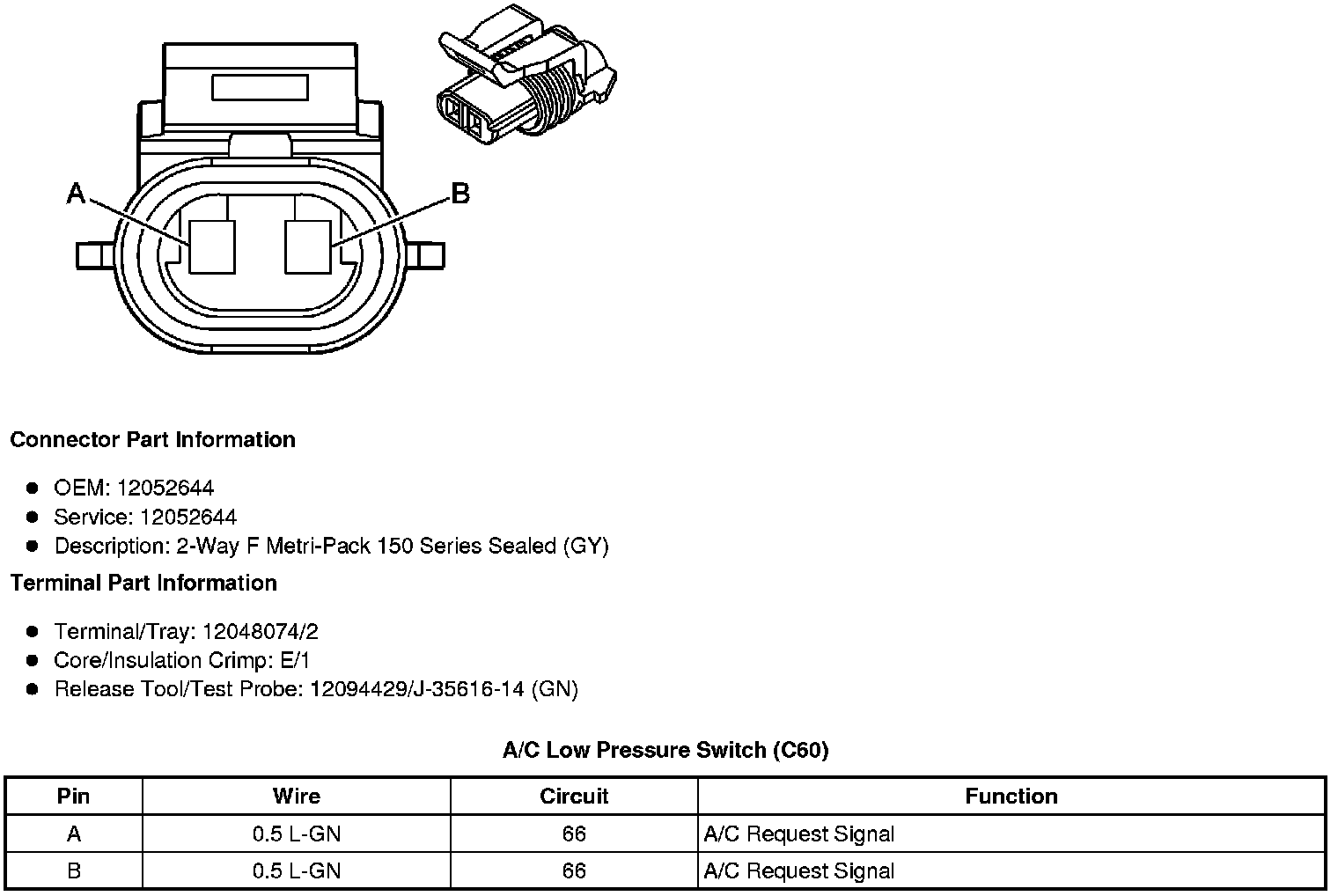

A/C Low Pressure Switch (C60)

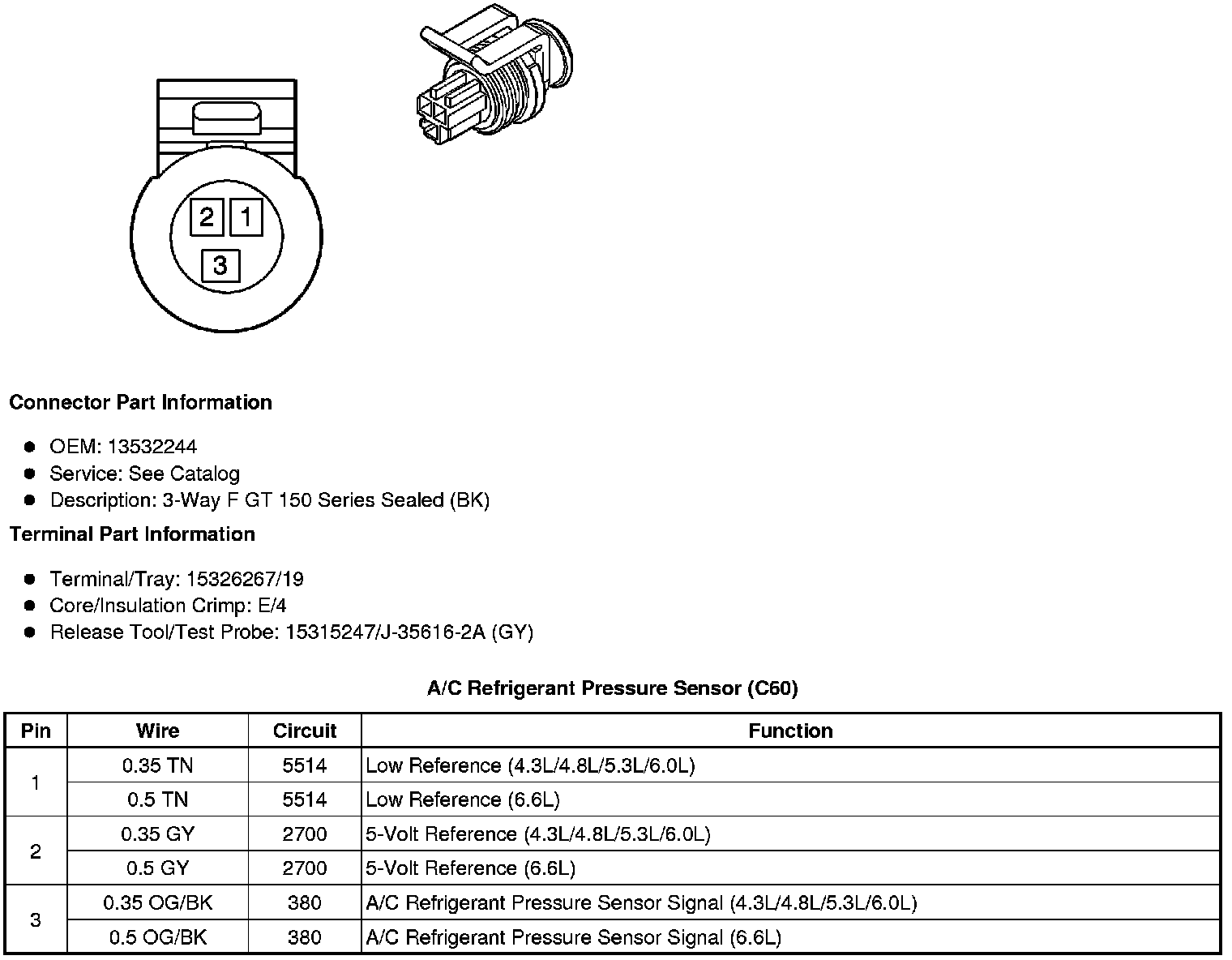

A/C Refrigerant Pressure Sensor (C60)
