Power Seat Motor




Component Connector End Views

Seat Adjuster Motor Assembly - Driver (AG1)

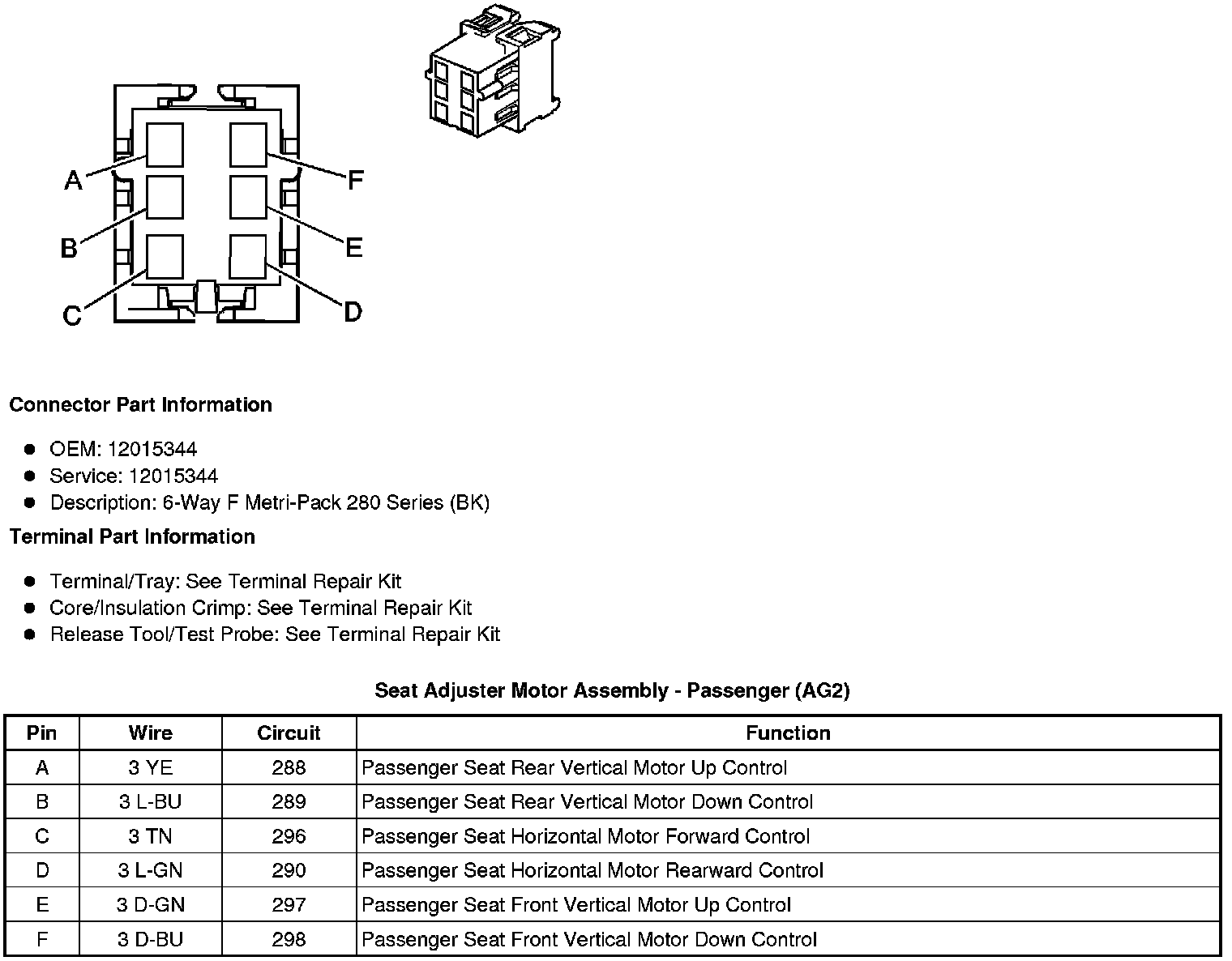

Seat Adjuster Motor Assembly - Passenger (AG2)
