System Diagram

Component Connector End Views

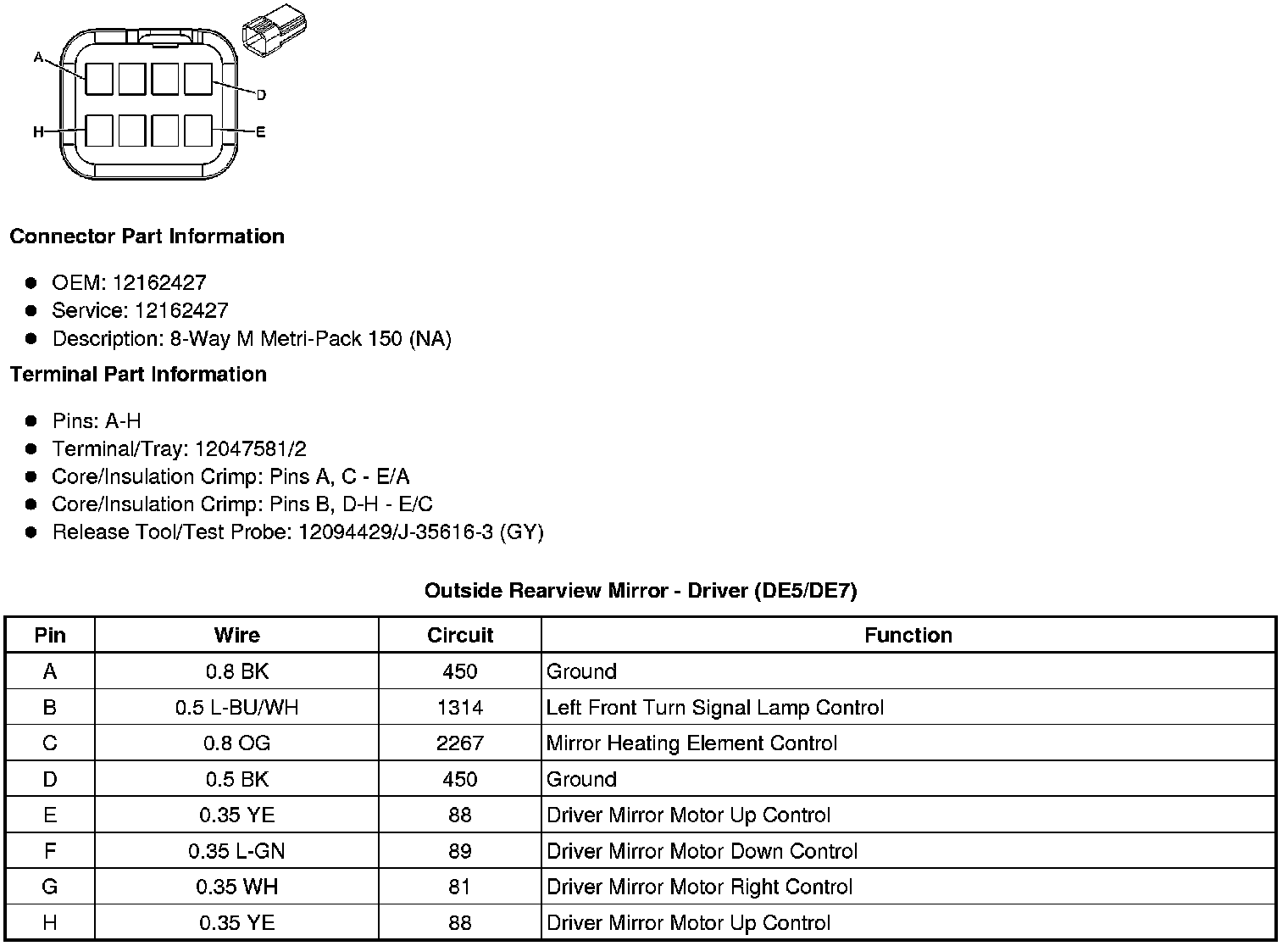

Outside Rearview Mirror - Driver (DE5/DE7)

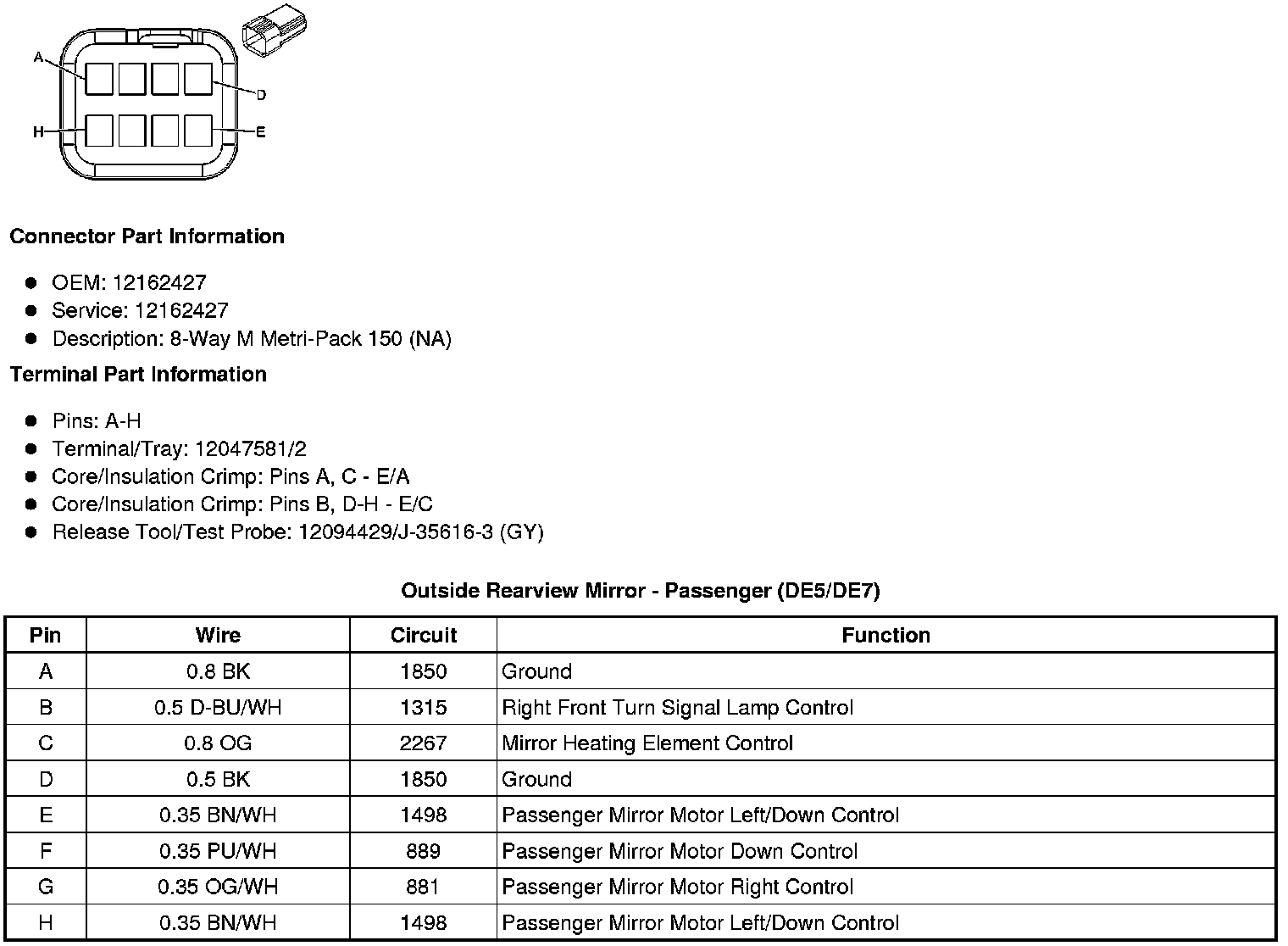

Outside Rearview Mirror - Passenger (DE5/DE7)
