Fluid Pressure Sensor/Switch, A/T

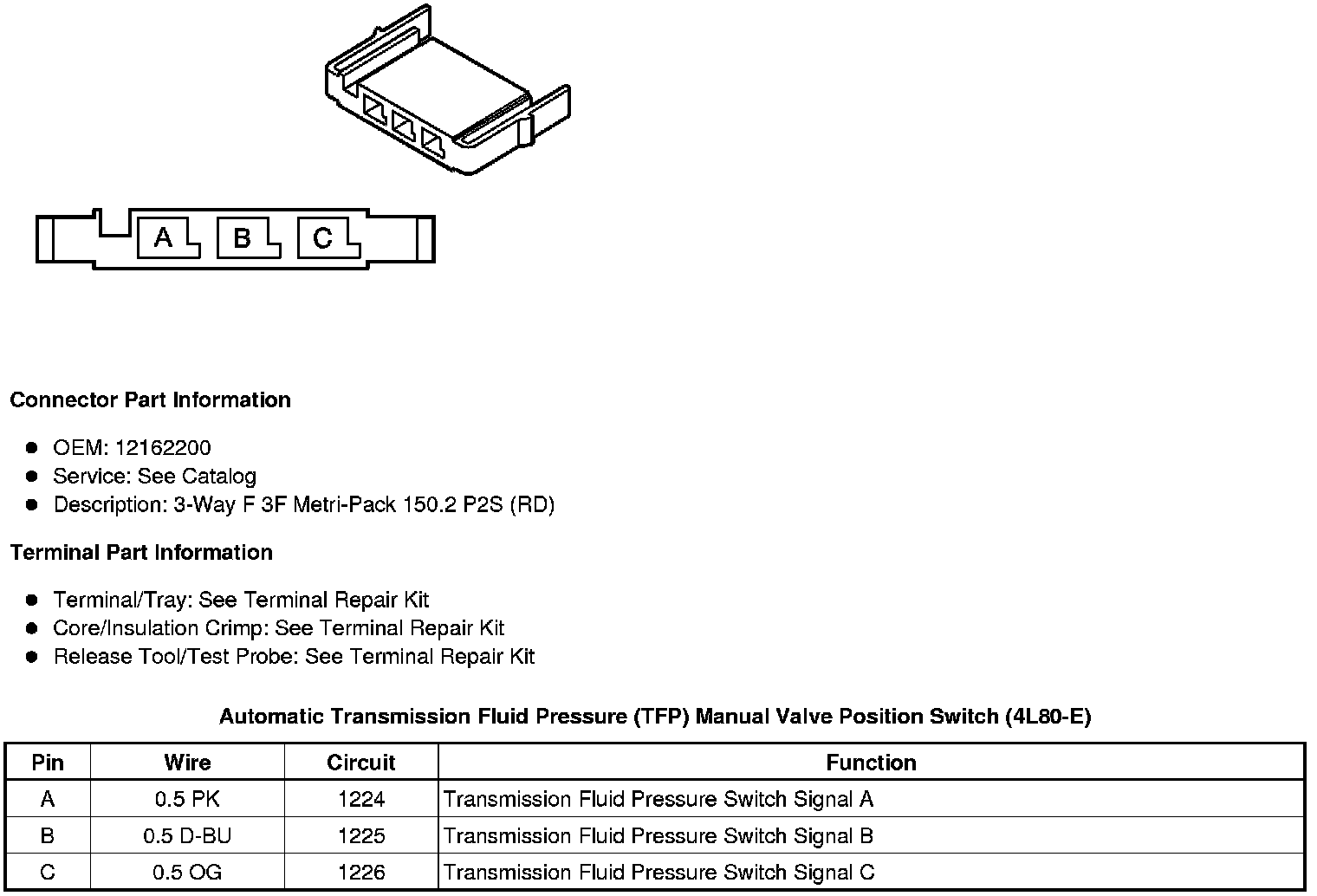

Component Connector End Views

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch (4L80-E)
