Blower Motor Resistor
Blower Motor Resistor
Component Connector End Views

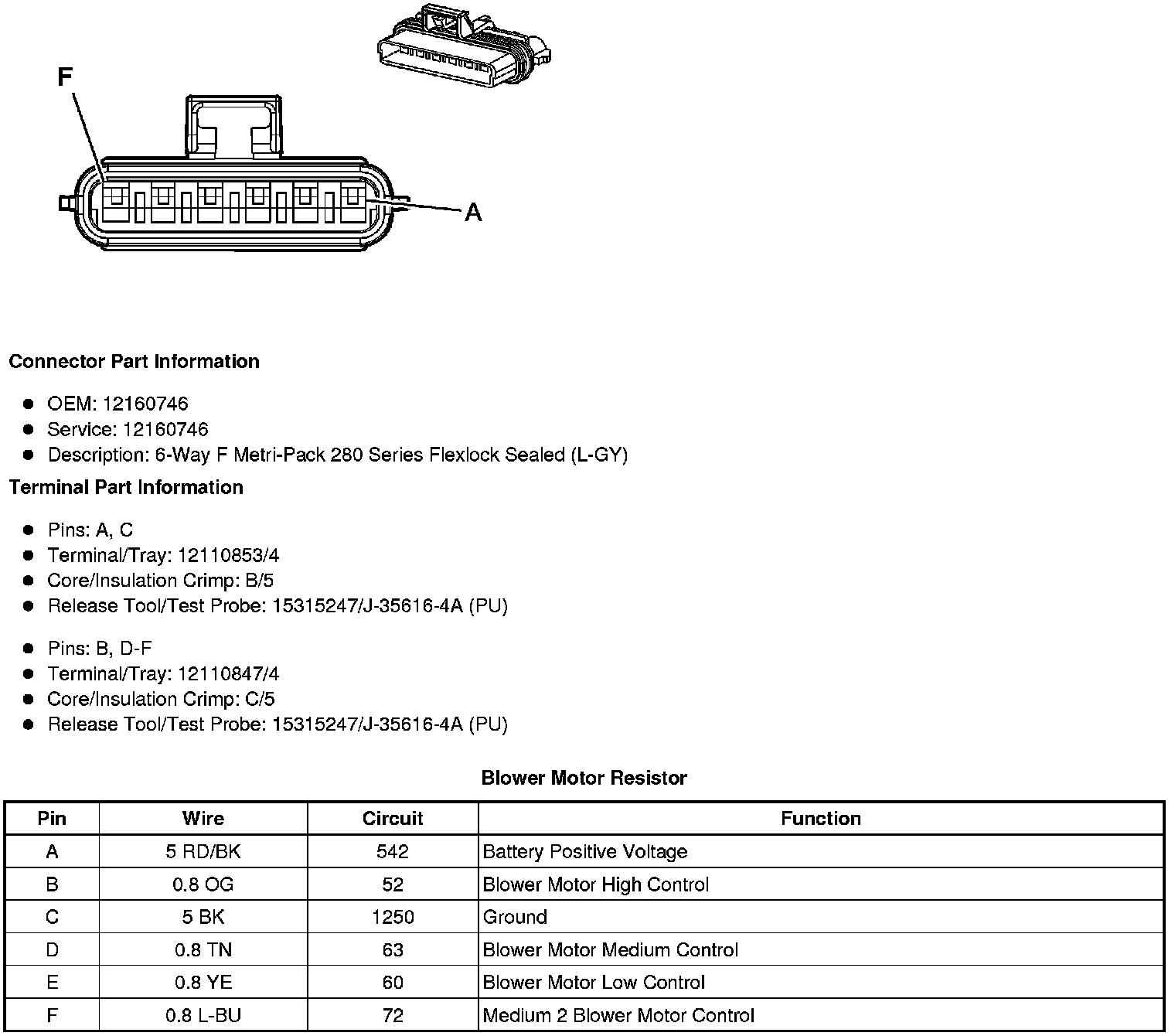

Blower Motor Resistor
Blower Motor Resistor
- Auxiliary (C36/C69)
