Alternator




Component Connector End Views

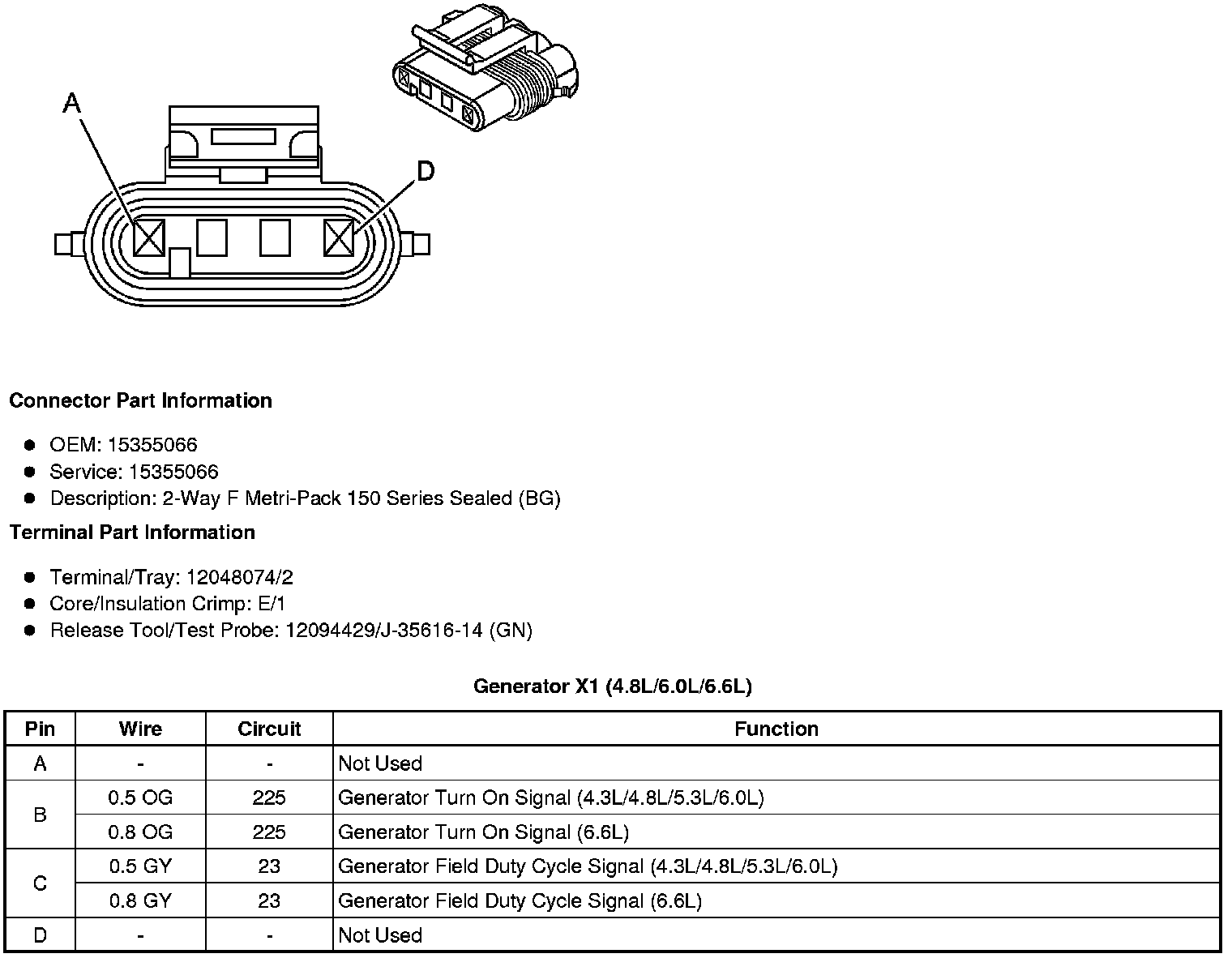

Generator X1 (4.8L/6.0L/6.6L)






Generator X2

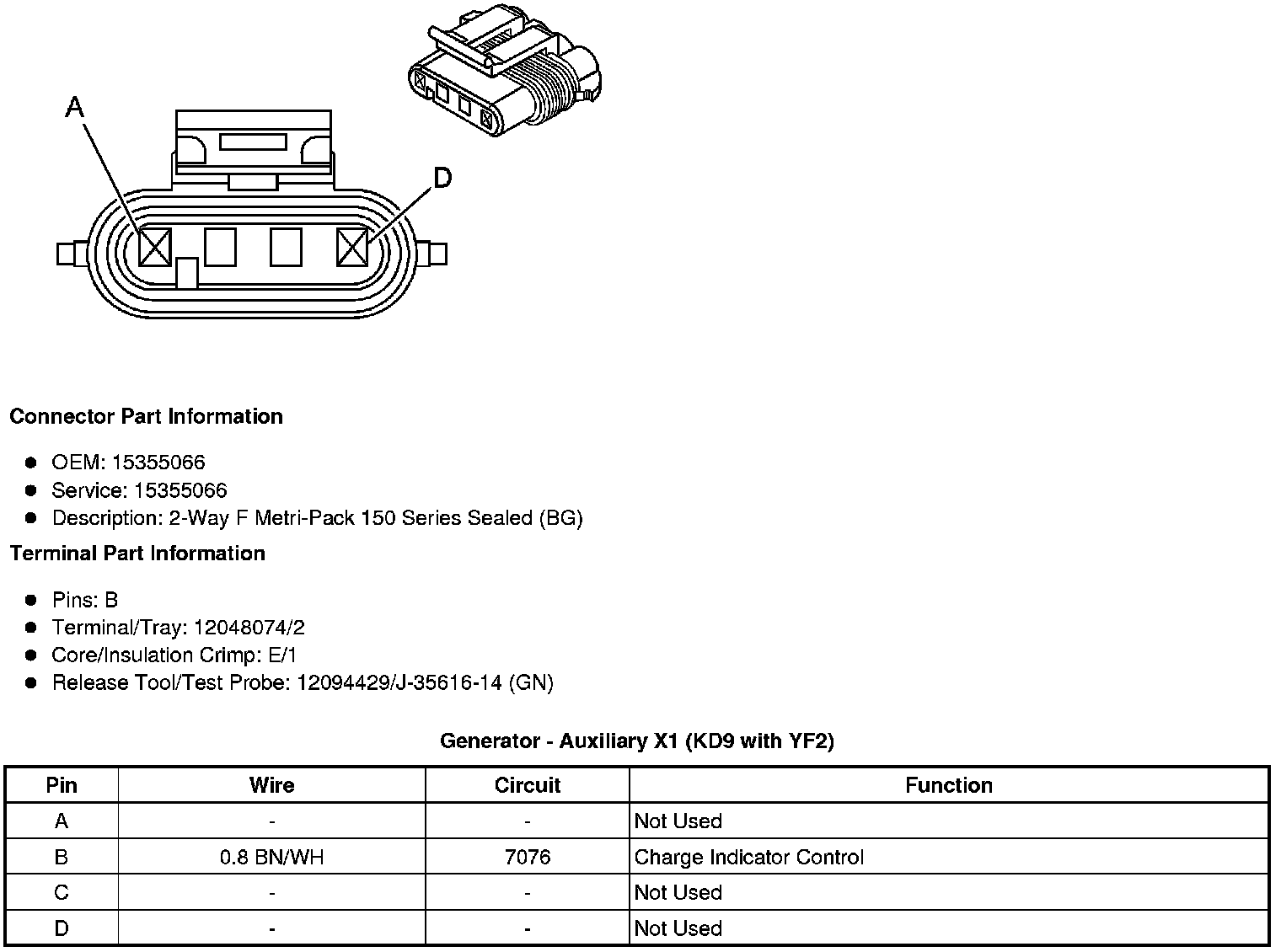

Generator - Auxiliary X1 (KD9 with YF2)






Generator - Auxiliary X2 (KD9 with YF2)
