Steering Column Lock




Component Connector End Views

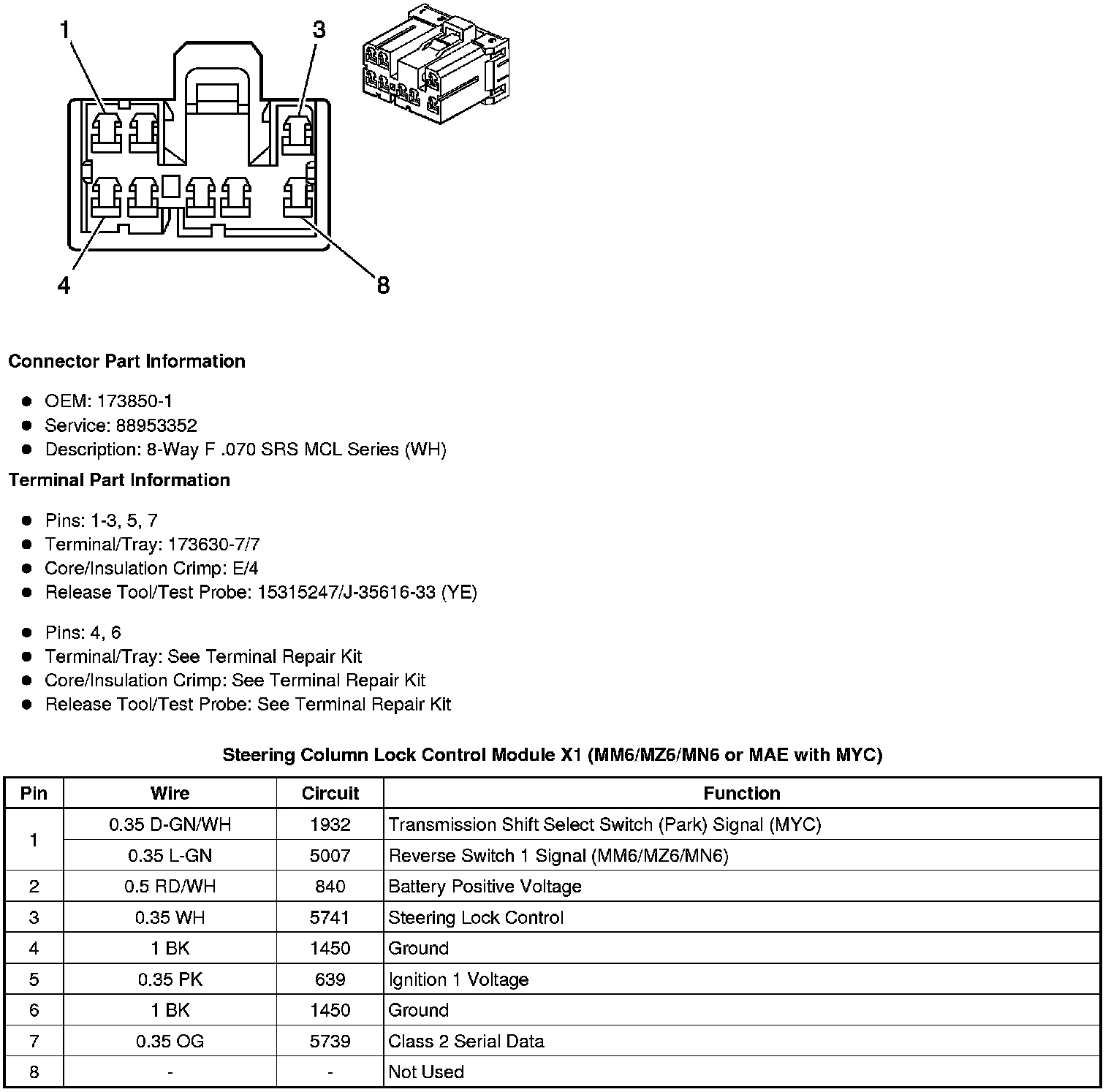

Steering Column Lock Control Module X1 (MM6/MZ6/MN6 or MAE with MYC)






Steering Column Lock Control Module X2 (MM6/MZ6/MN6 or MAE with MYC)
