Master Splice List
Master Splice List
Master Electrical Component List

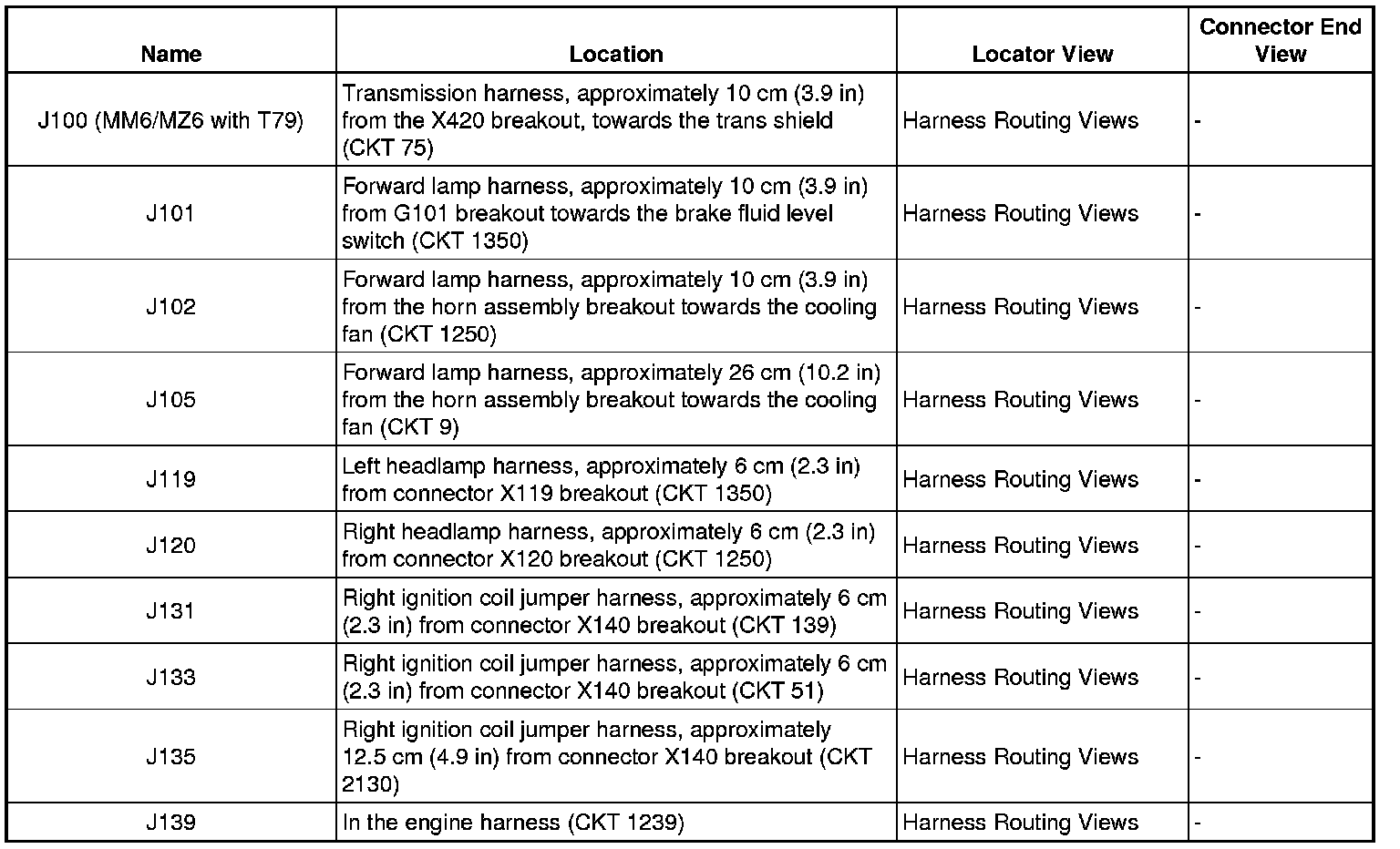

J100 - J139:

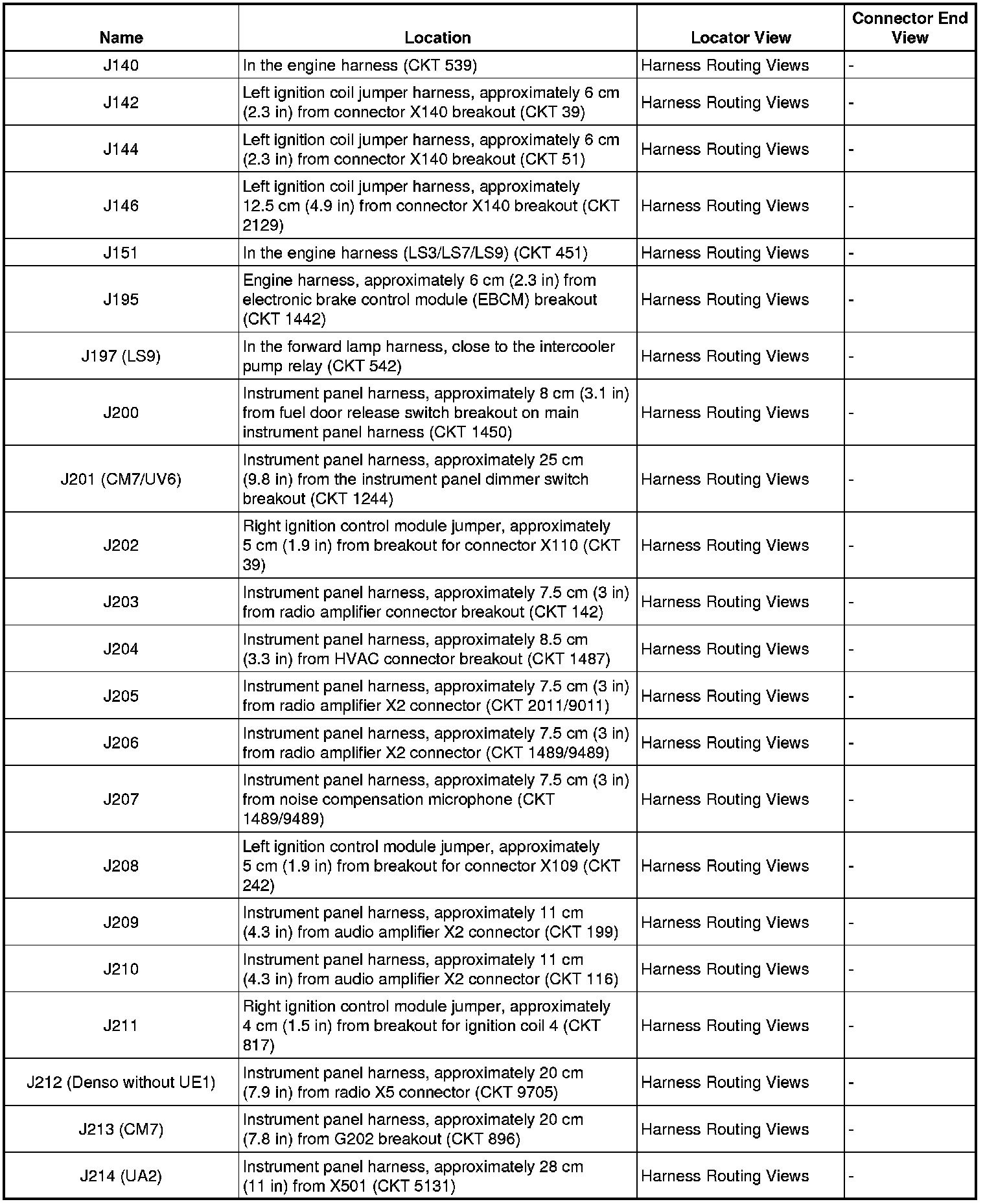

J140 - J214:

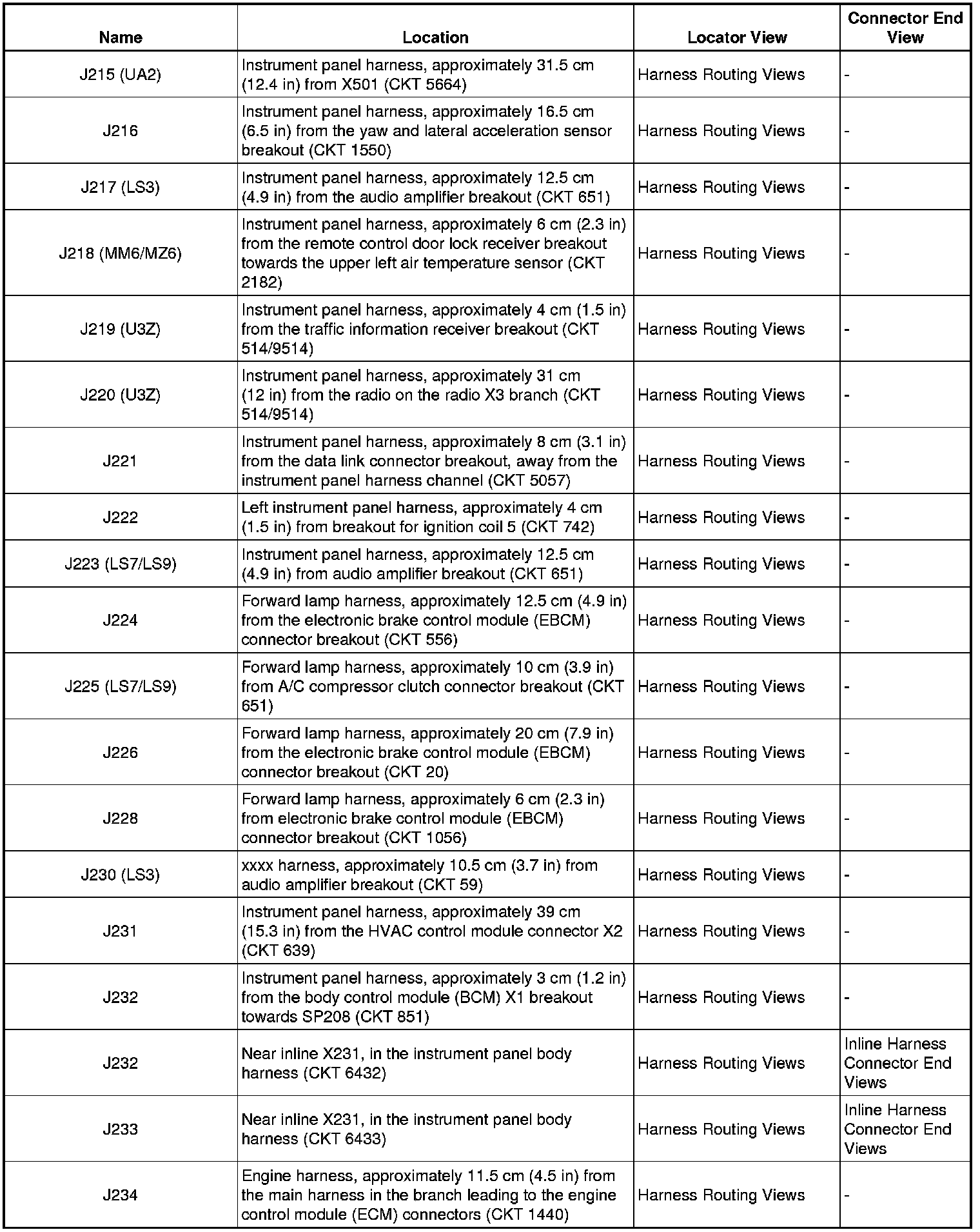

J215 - J234:

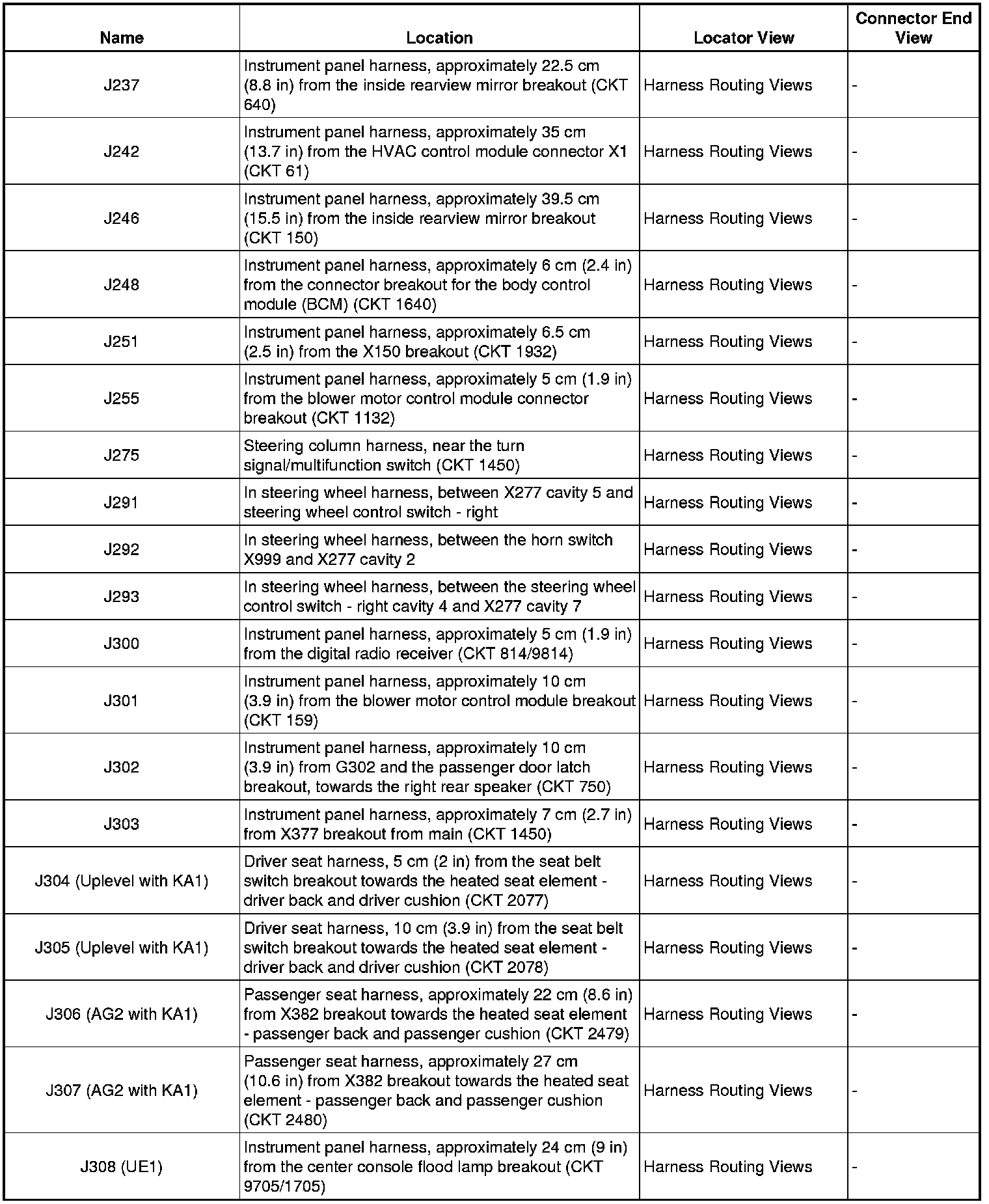

J237 - J308:

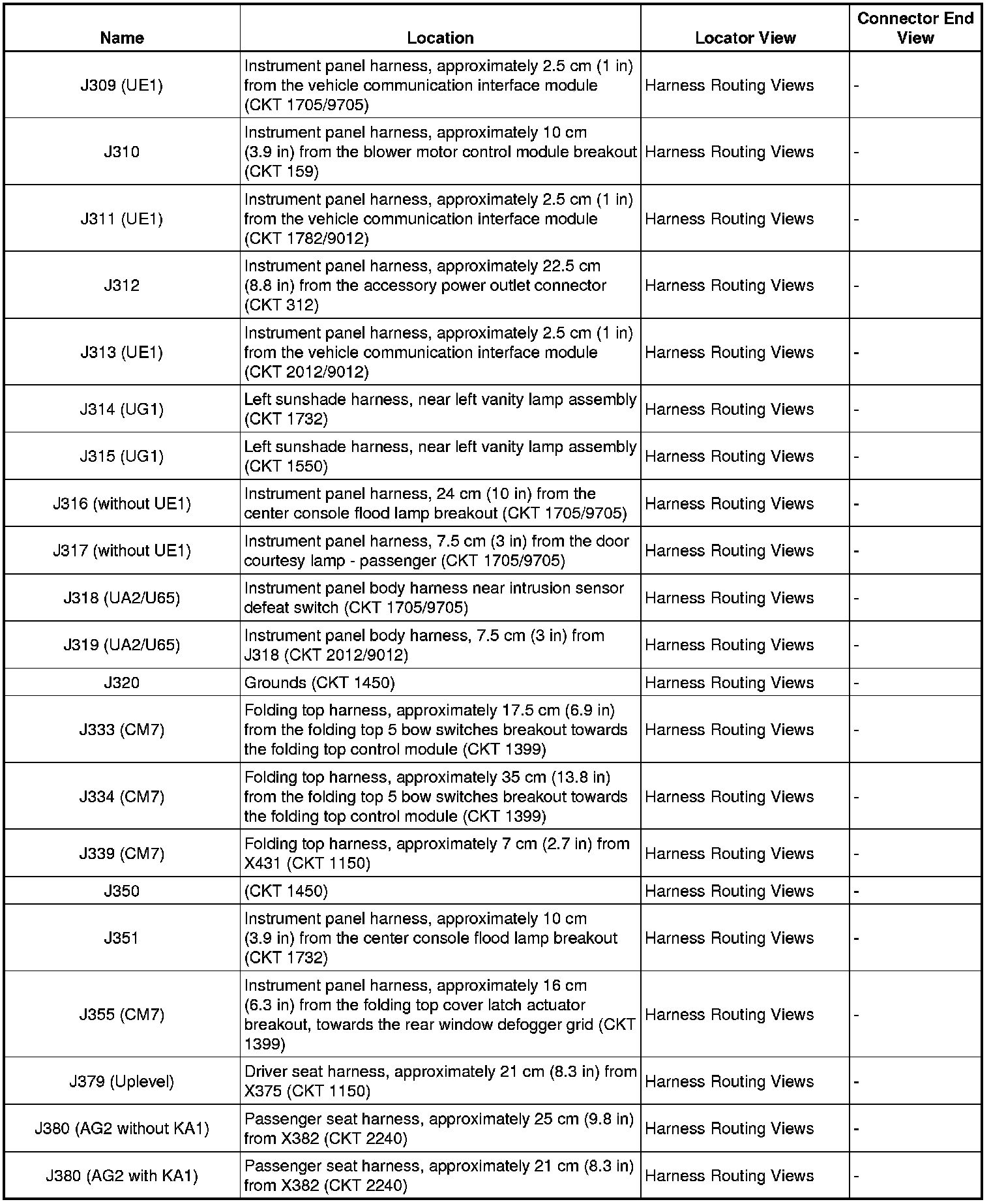

J309 - J380:

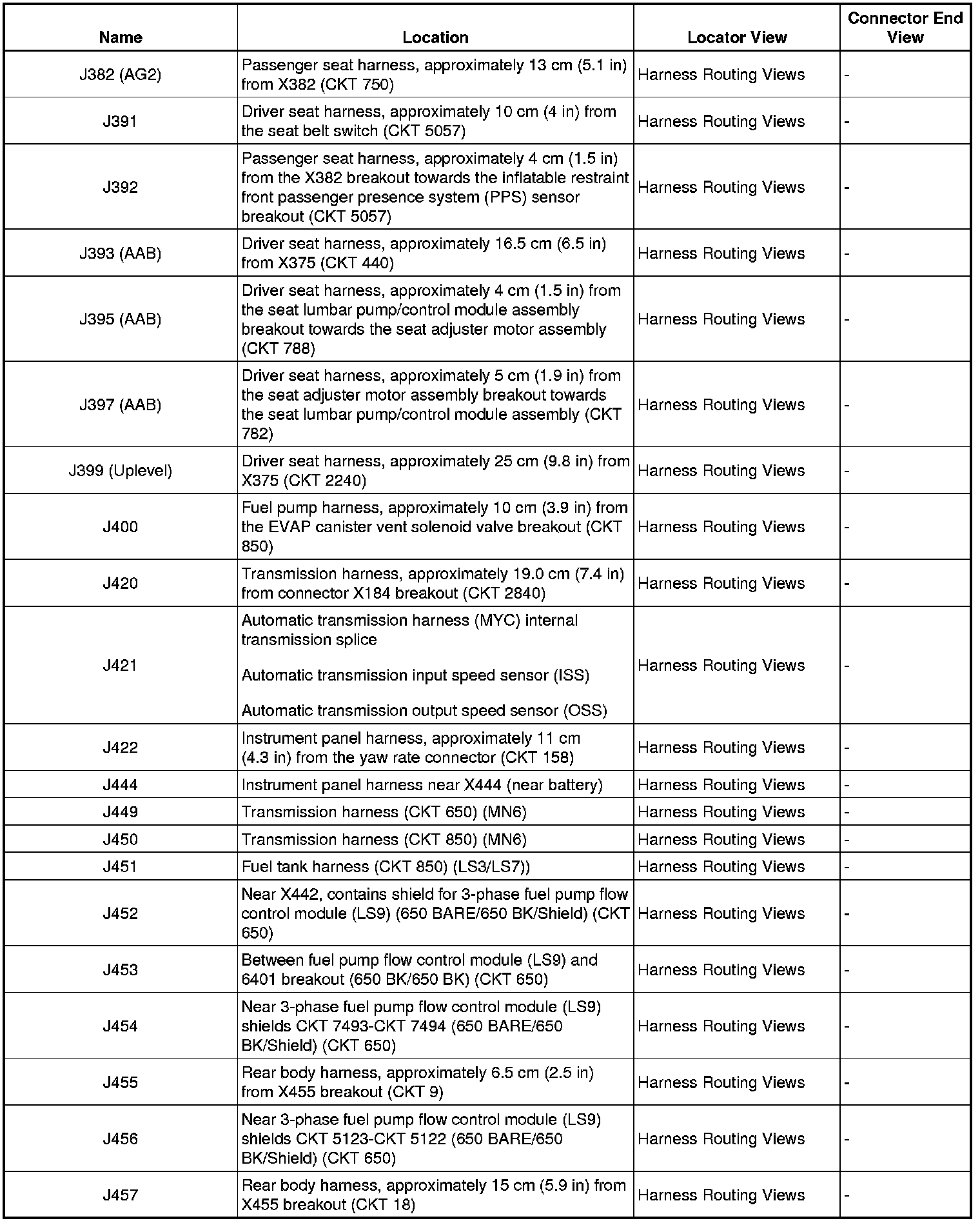

J382 - J457:

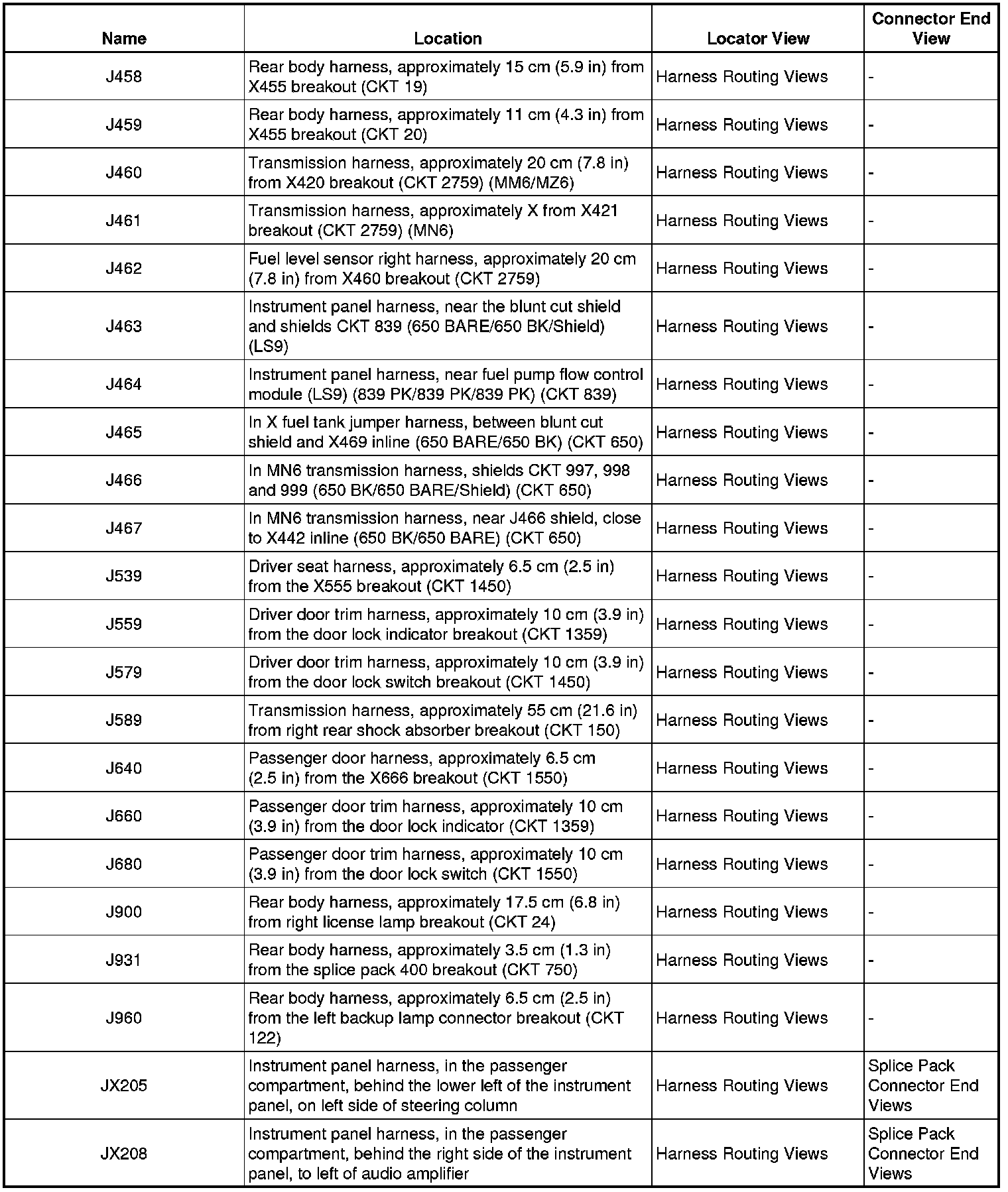

J458 - JX208:
