Home >> Chevrolet >> 2009 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shifter A/T

Shifter A/T

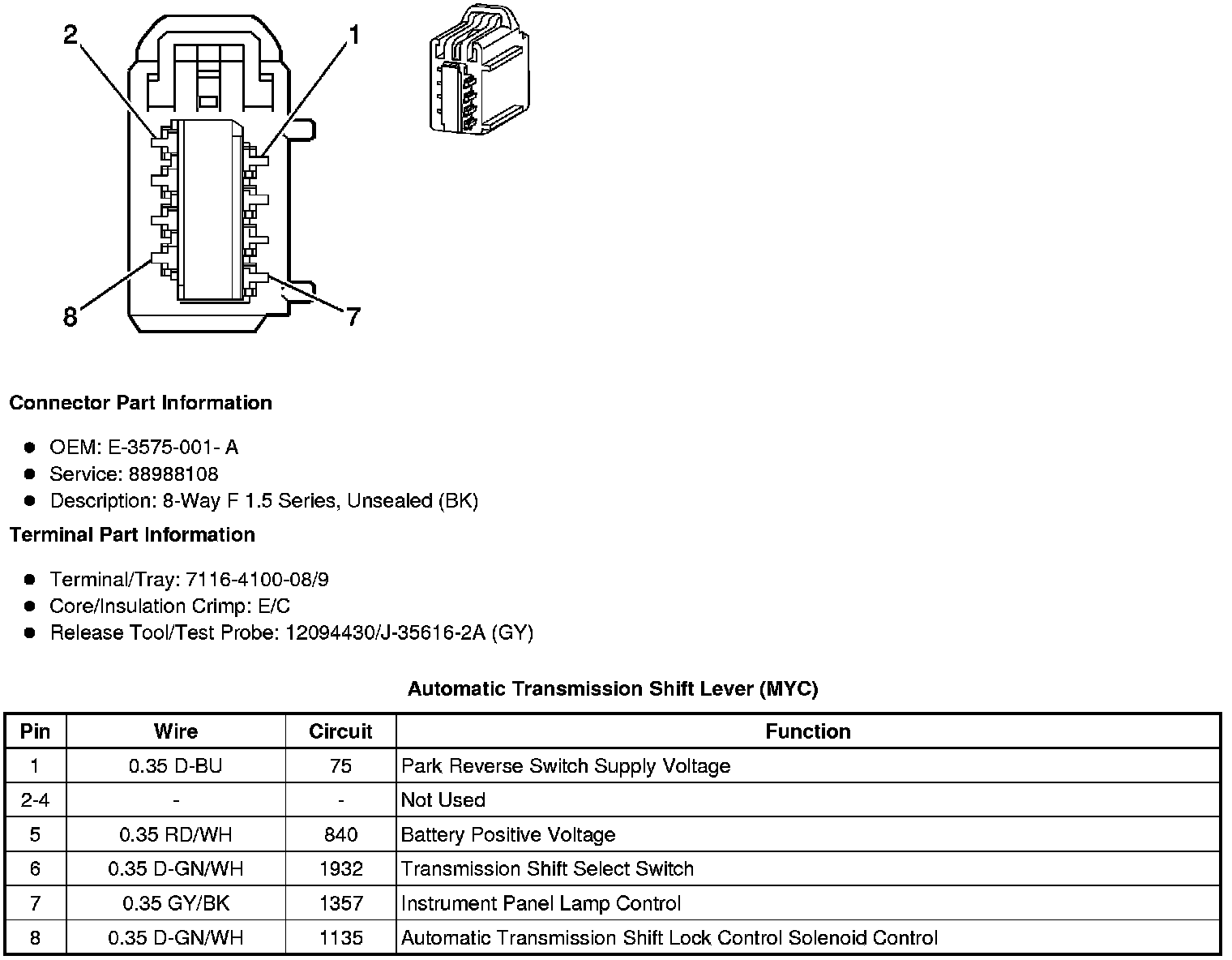

Component Connector End Views

Automatic Transmission Shift Lever (MYC)
