Home >> Chevrolet >> 2009 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Garage Door Opener Transmitter

Garage Door Opener Transmitter

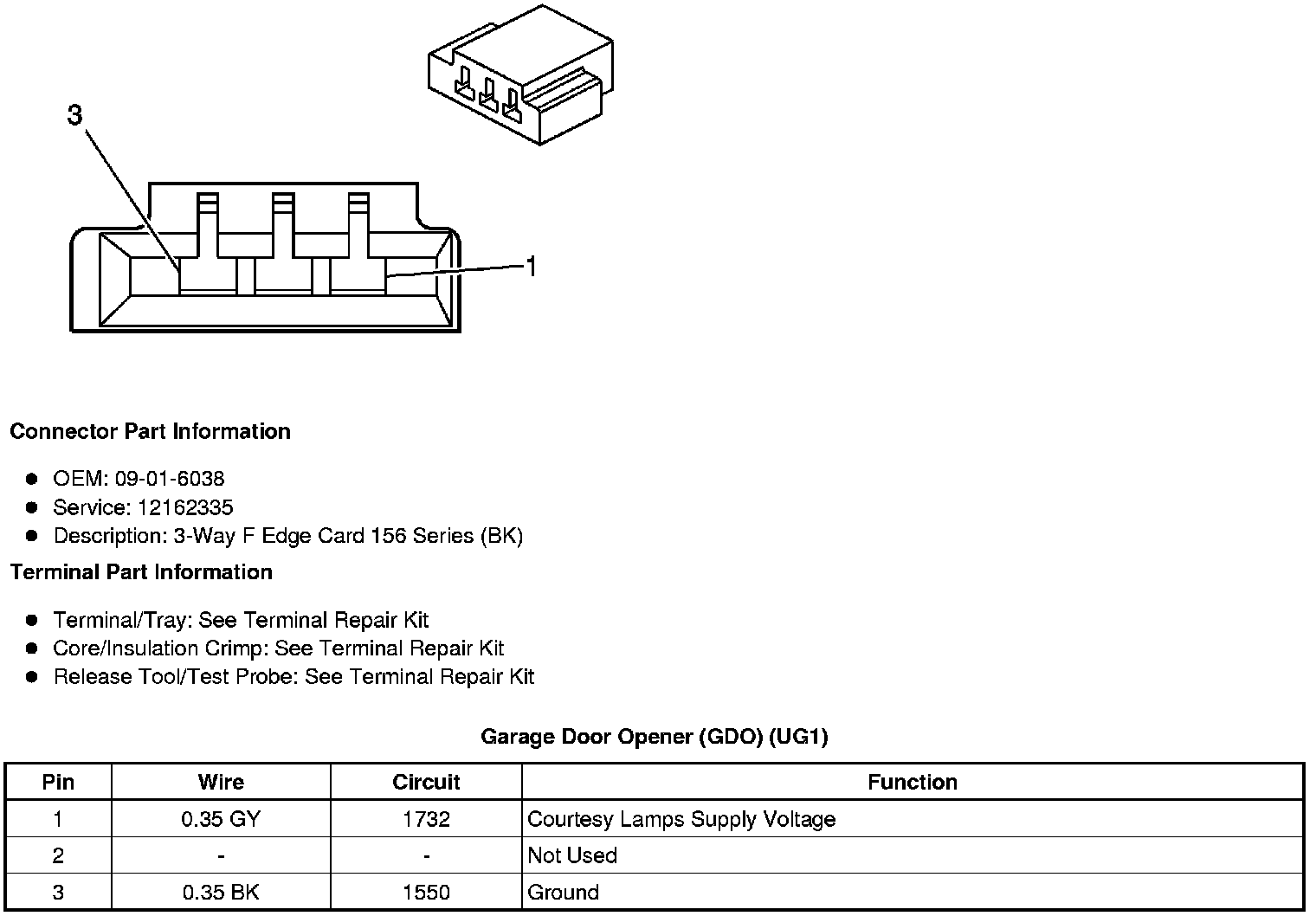

Component Connector End Views

Garage Door Opener (GDO) (UG1)
