Cellular Phone Microphone
Cellular Phone Microphone

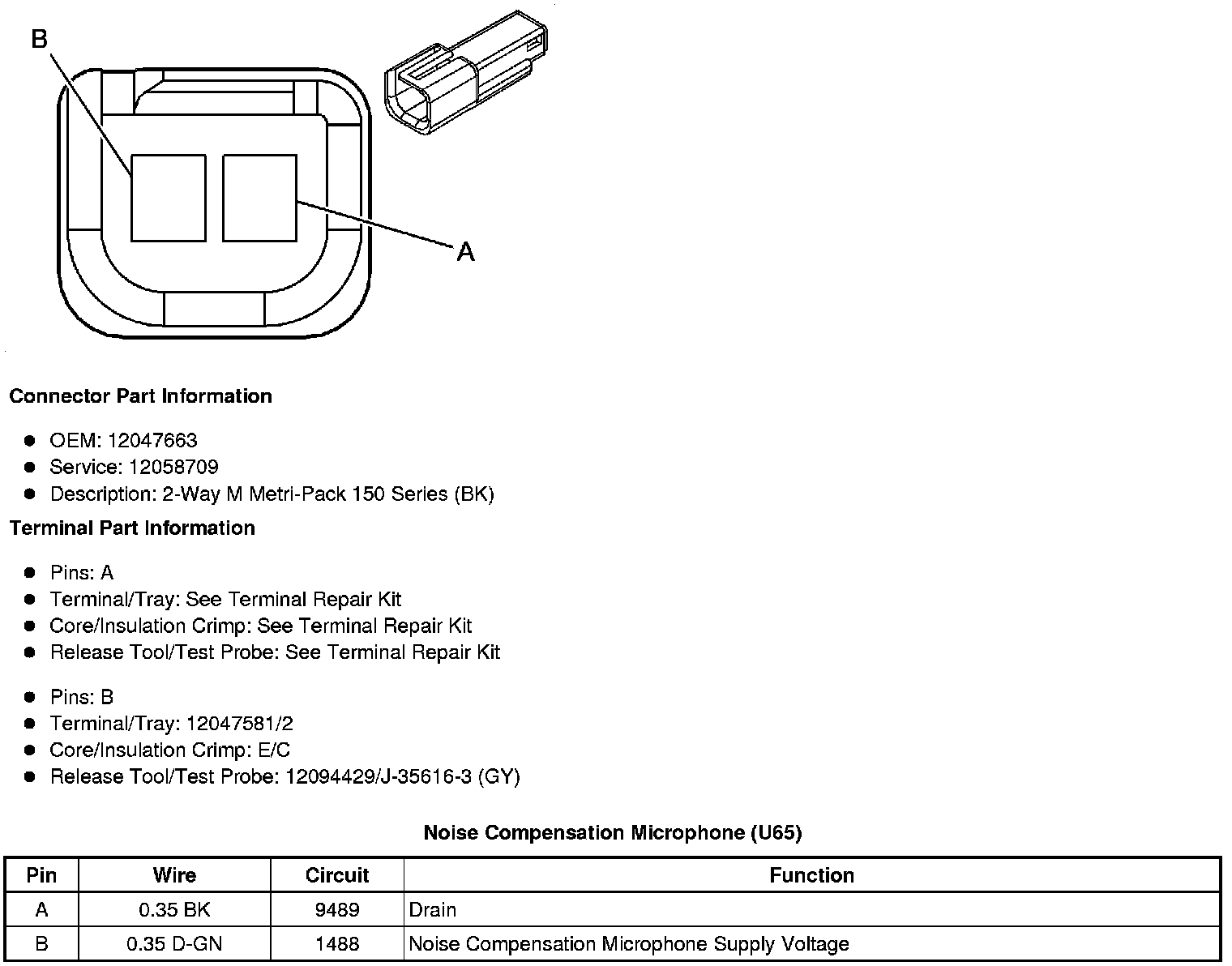

Component Connector End Views
Cellular Telephone Microphone
Noise Compensation Microphone (U65)
