Backup Lamp
>>
Backup Lamp Switch
Backup Lamp Switch
Component Connector End Views

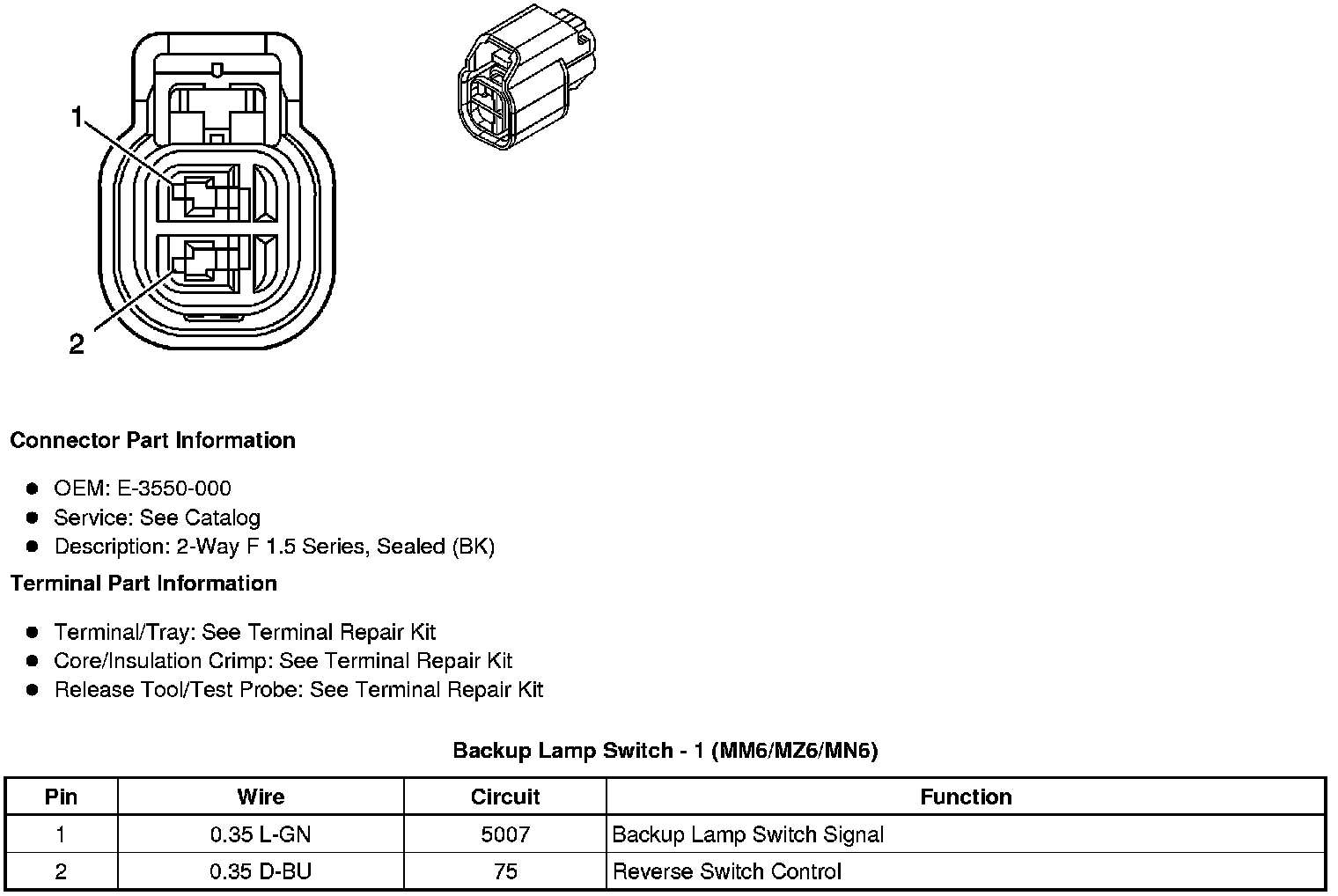

Backup Lamp Switch
- 1 (MM6/MZ6/MN6)
Backup Lamp Switch
- 2 (MM6/MZ6/MN6)
