Amplifier, Sound System




Component Connector End Views

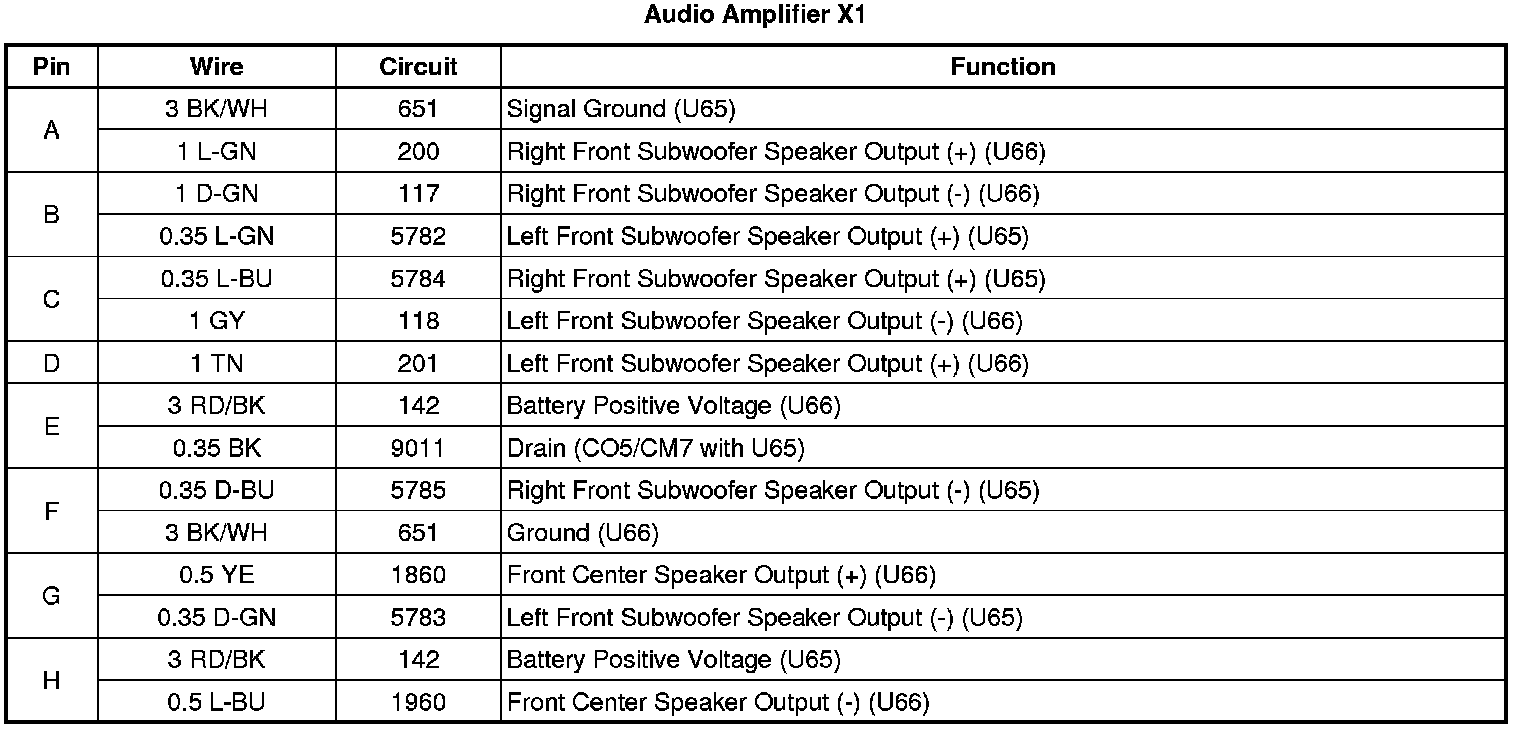

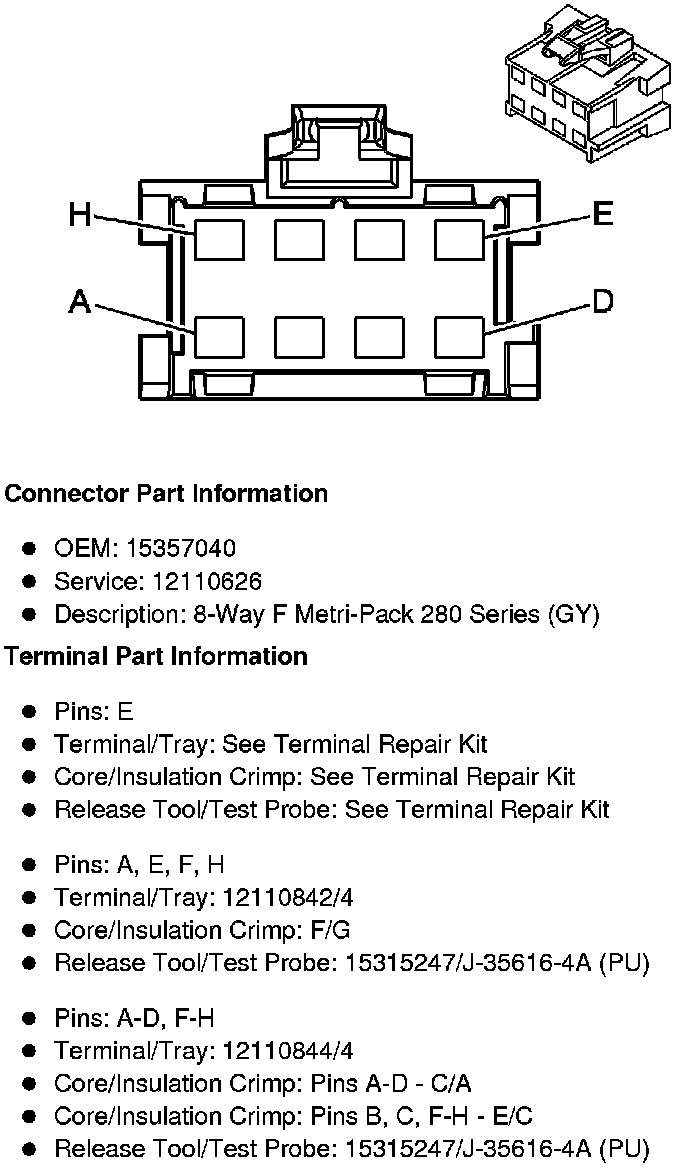

Audio Amplifier X1

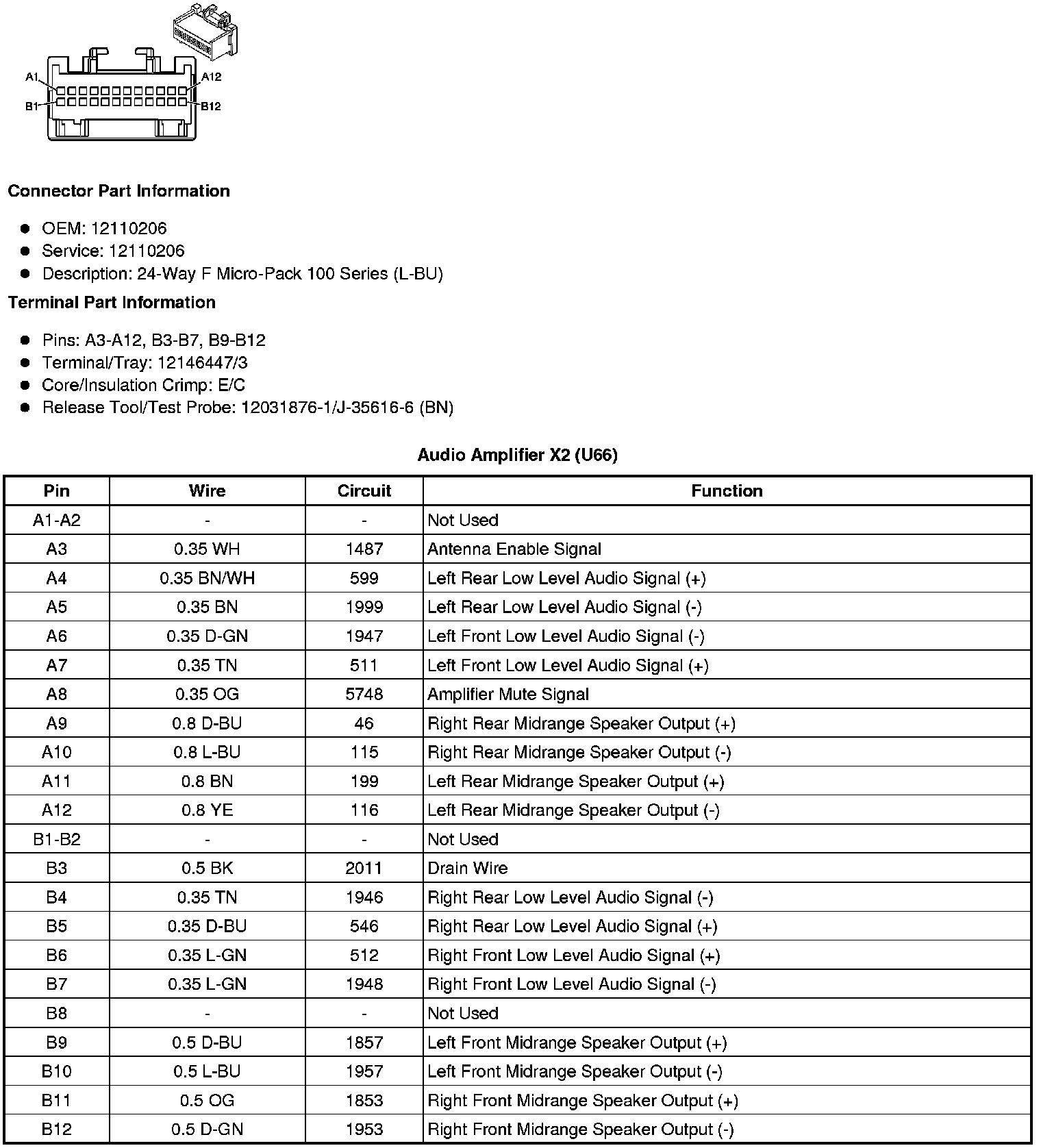

Audio Amplifier X2 (U66)

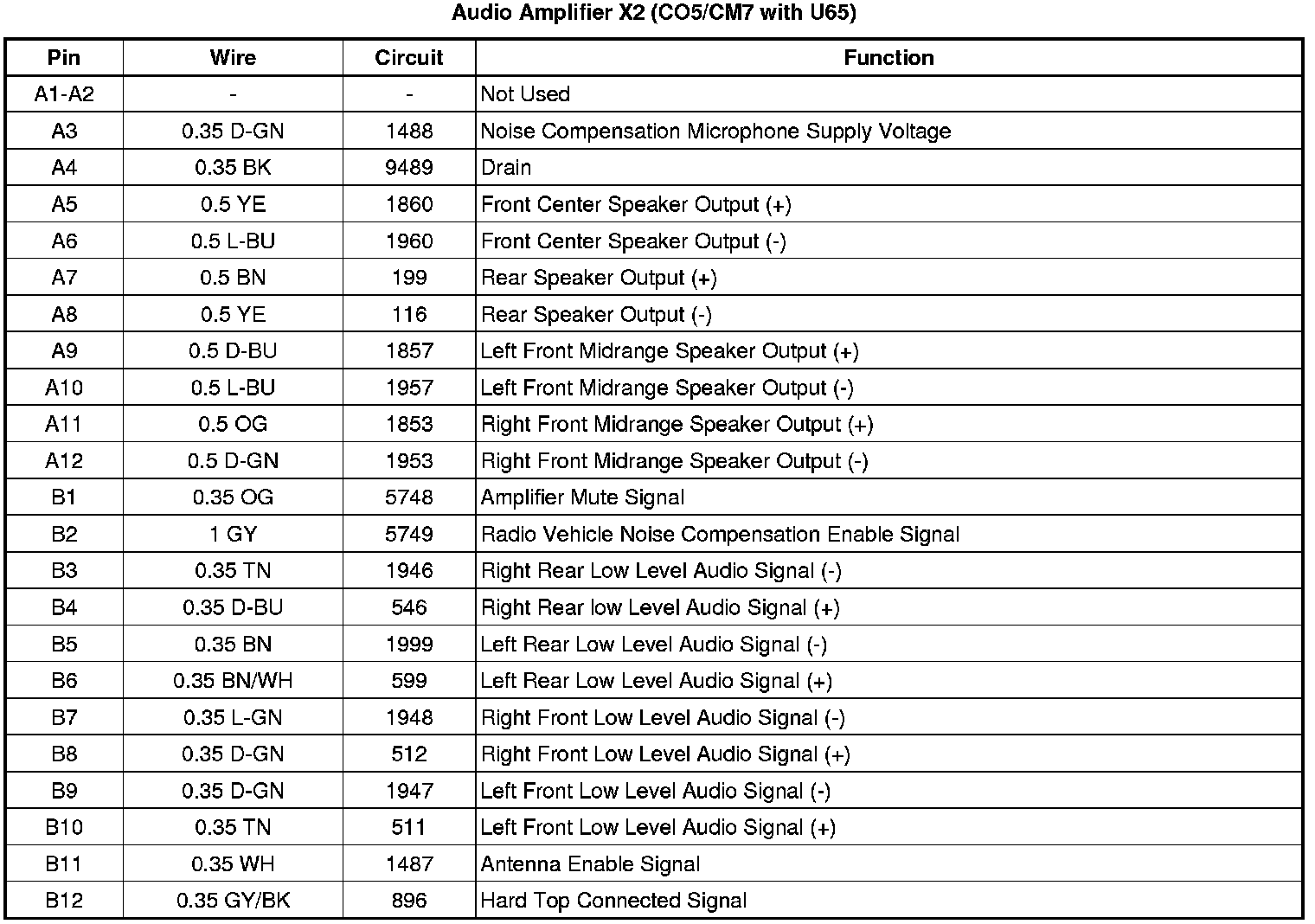

Audio Amplifier X2 (CO5/CM7 with U65)

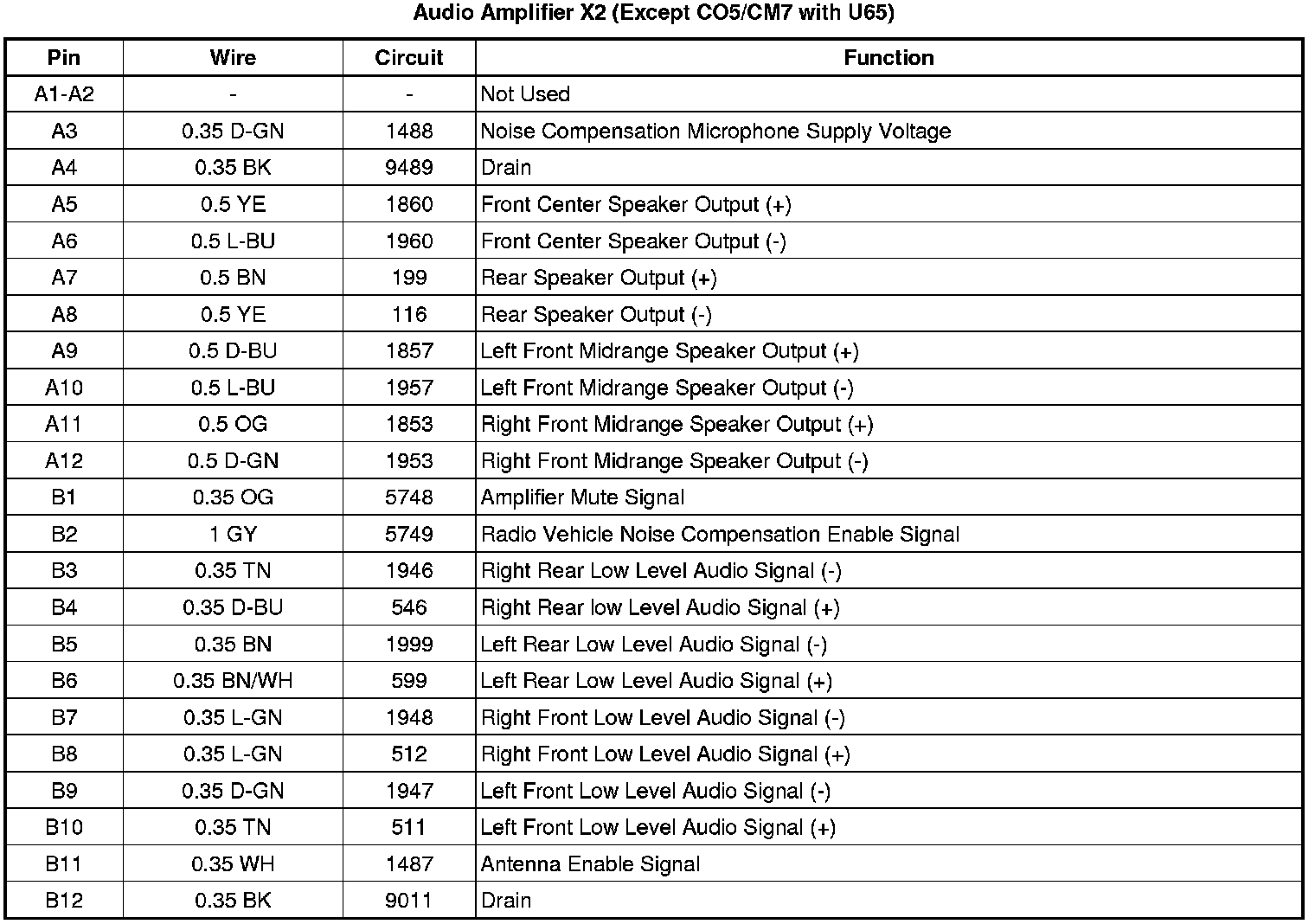

Audio Amplifier X2 (Except CO5/CM7 with U65)
