Oxygen Sensor: Diagrams
Component Connector End Views

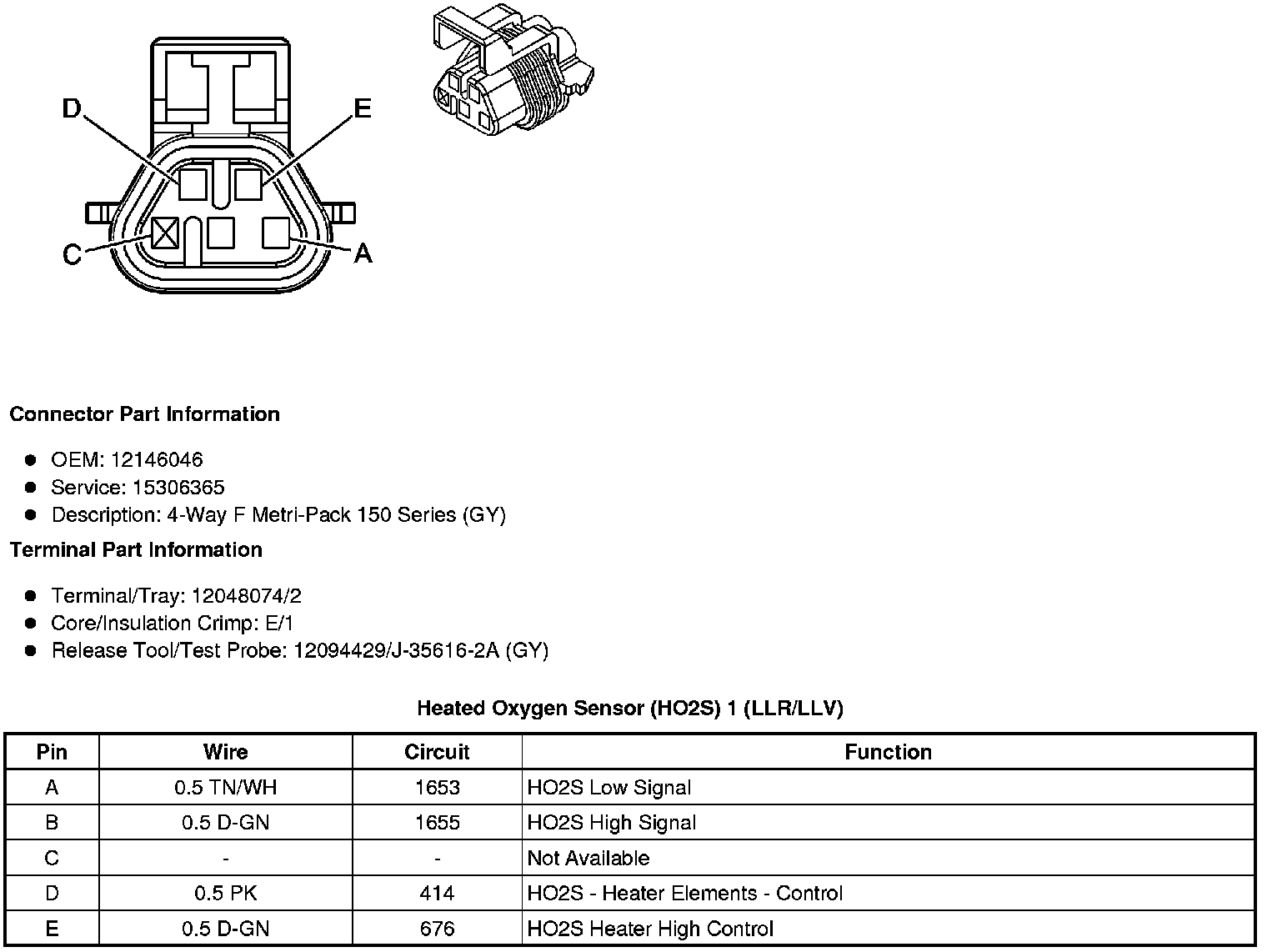

Heated Oxygen Sensor (HO2S) 1 (LLR/LLV)

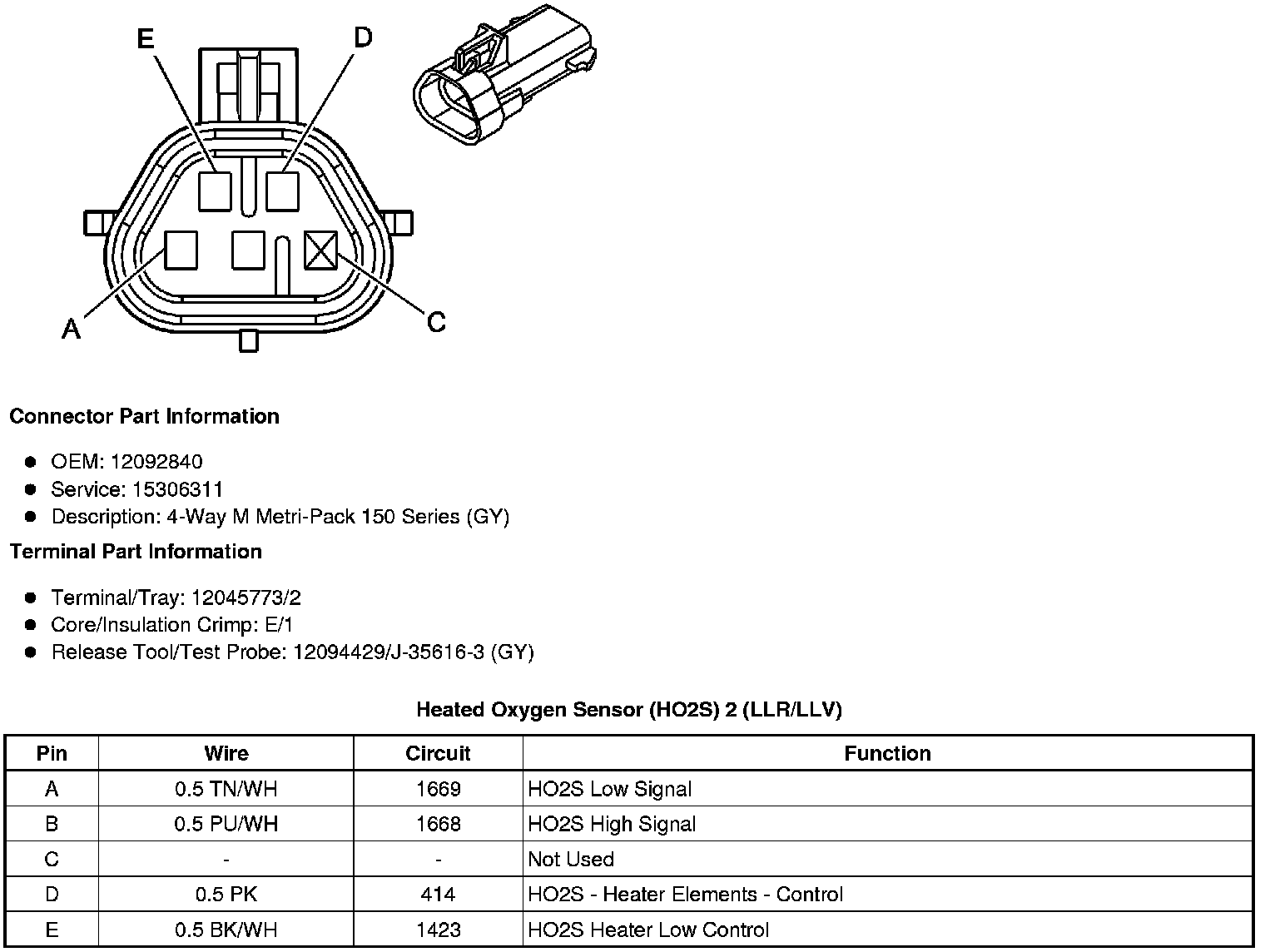

Heated Oxygen Sensor (HO2S) 2 (LLR/LLV)
