Windows




Moveable Window Schematics

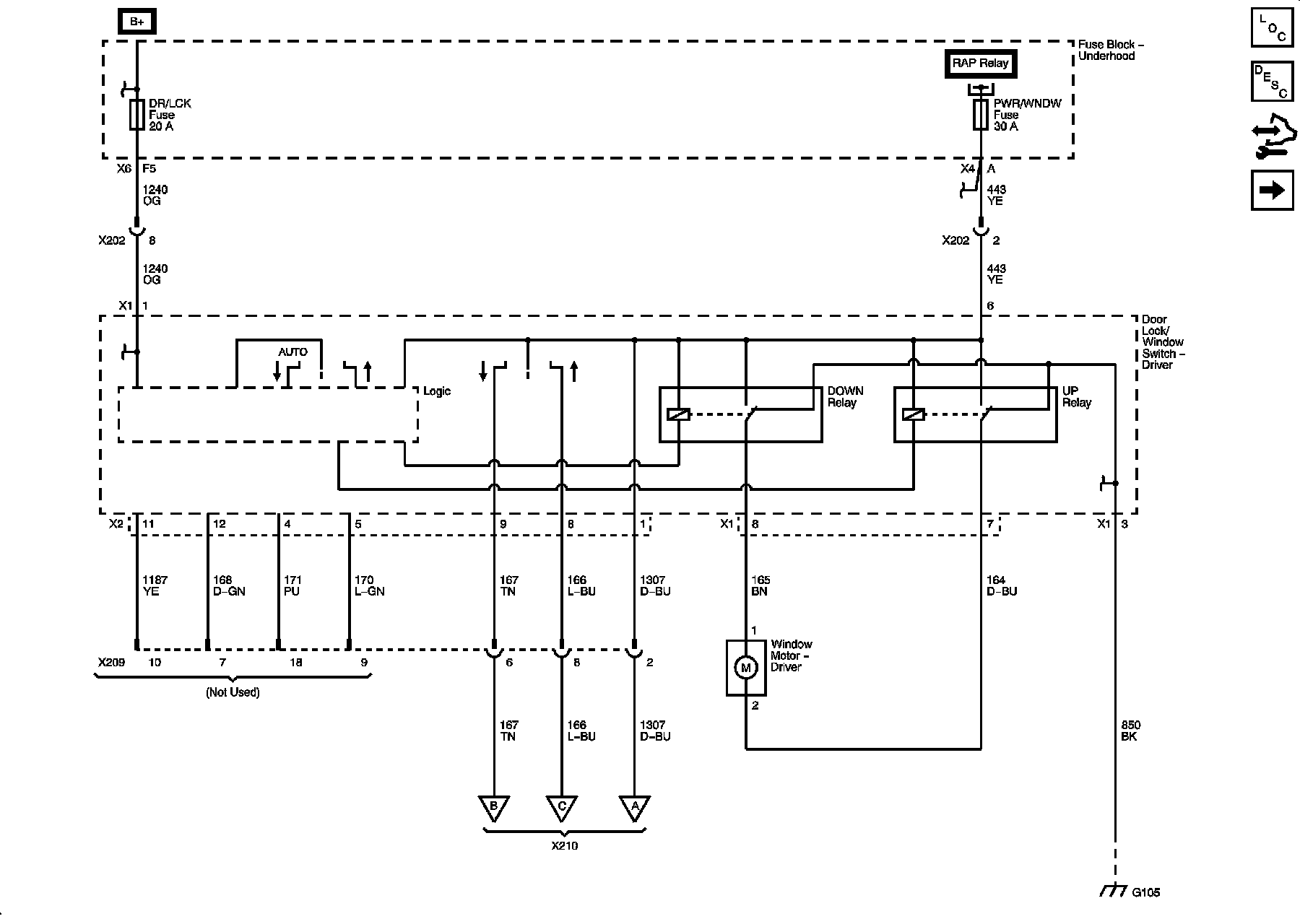

Left - Except Crew Cab

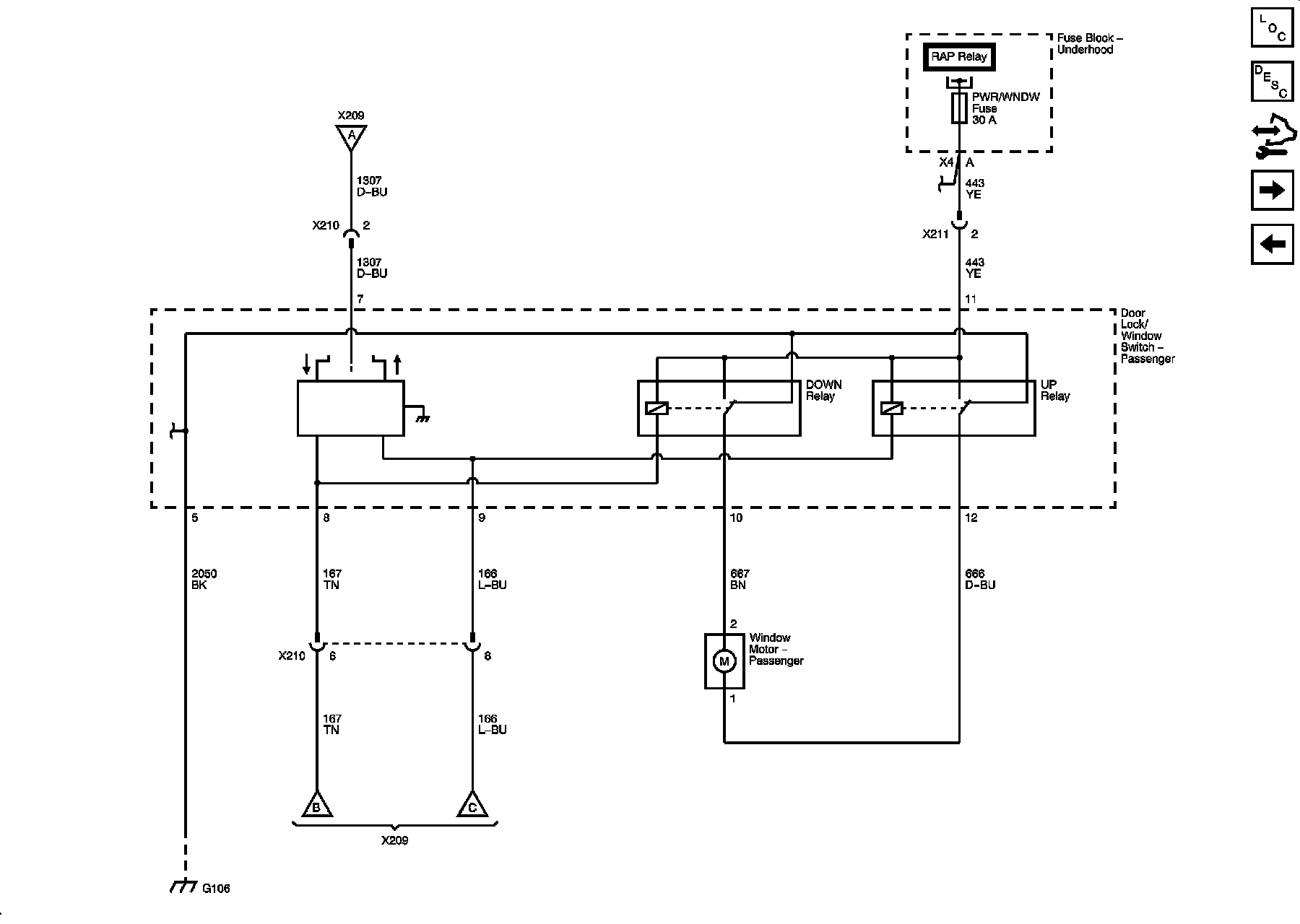

Right - Except Crew Cab

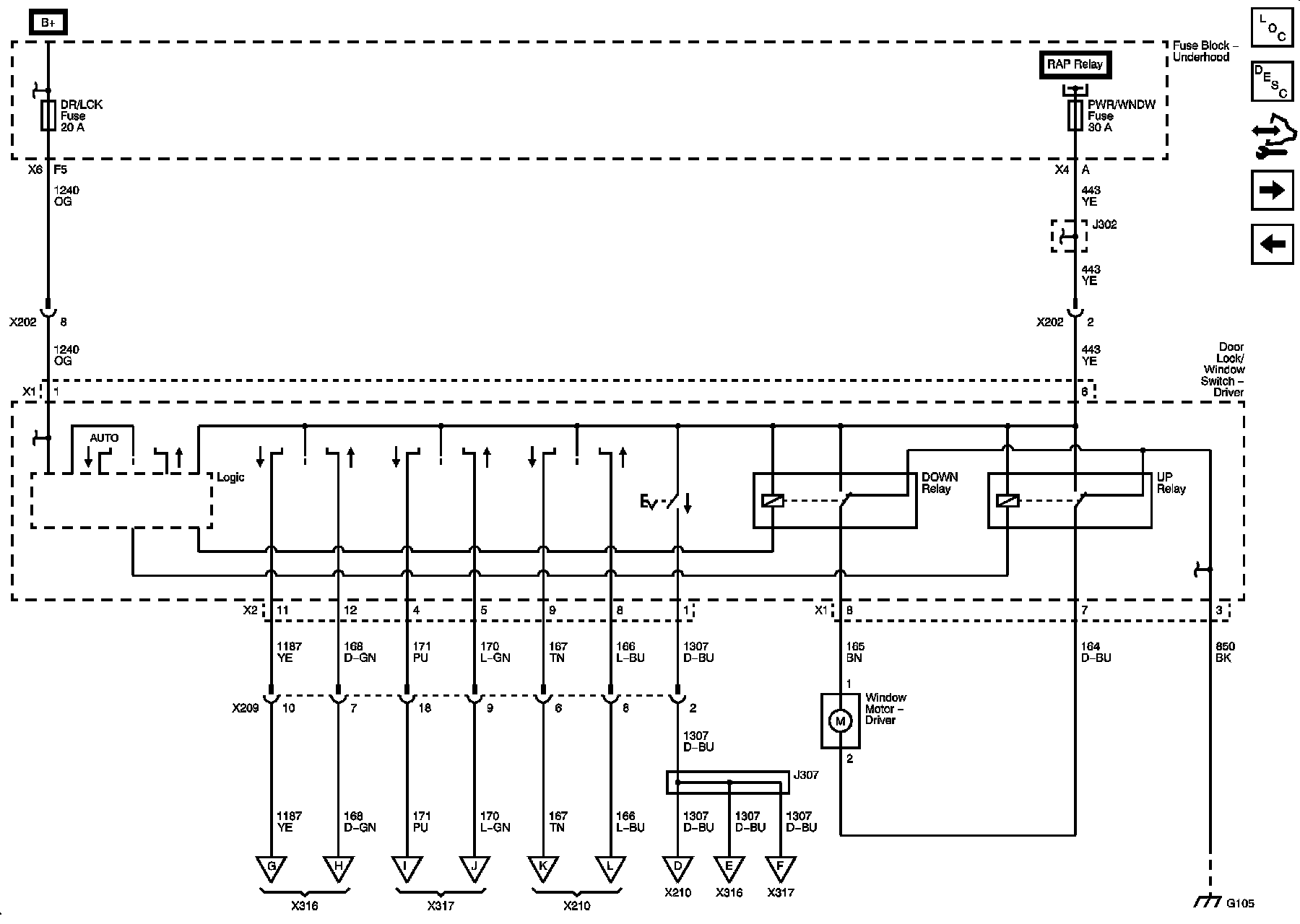

Left Front - Crew Cab

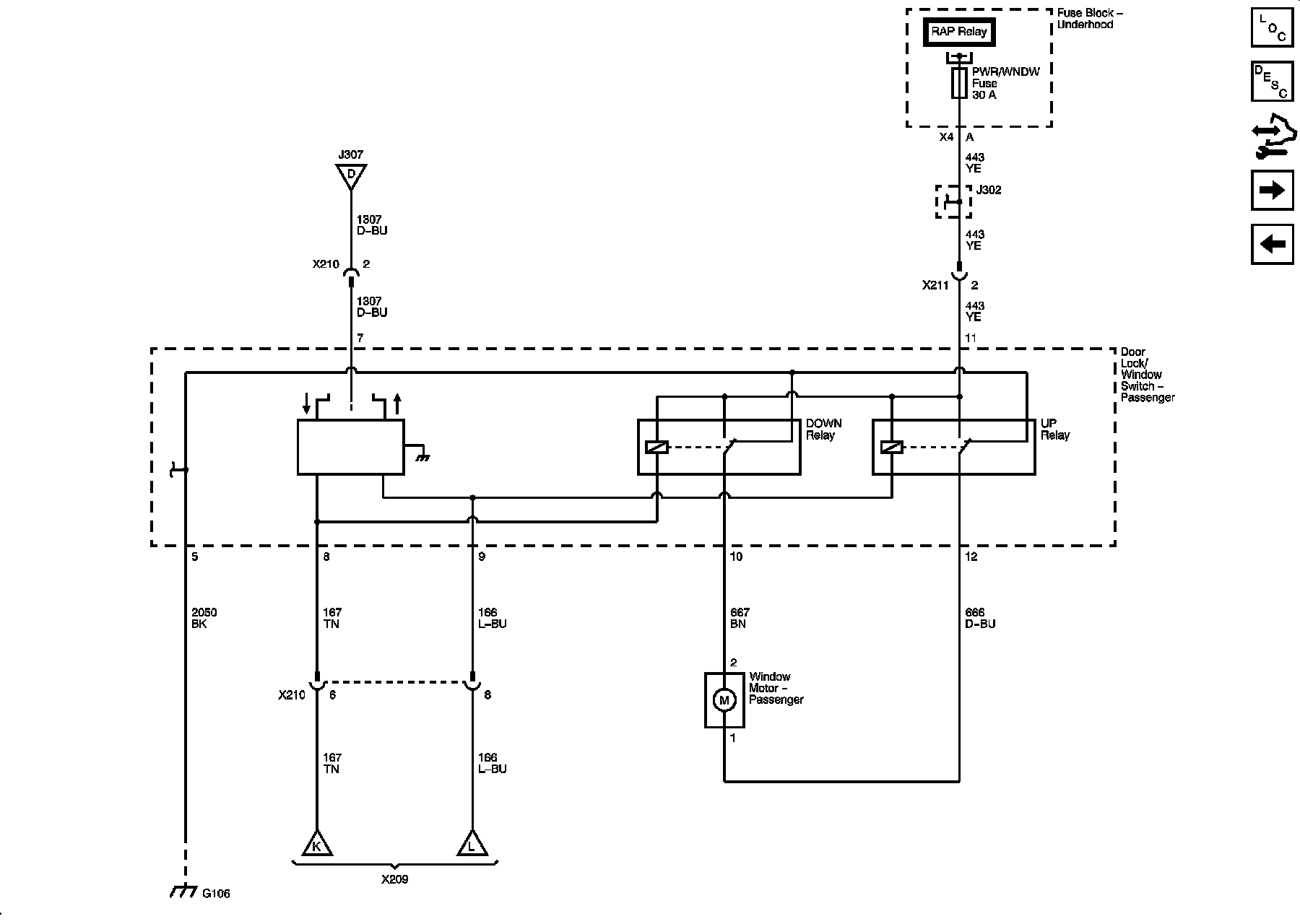

Right Front - Crew Cab

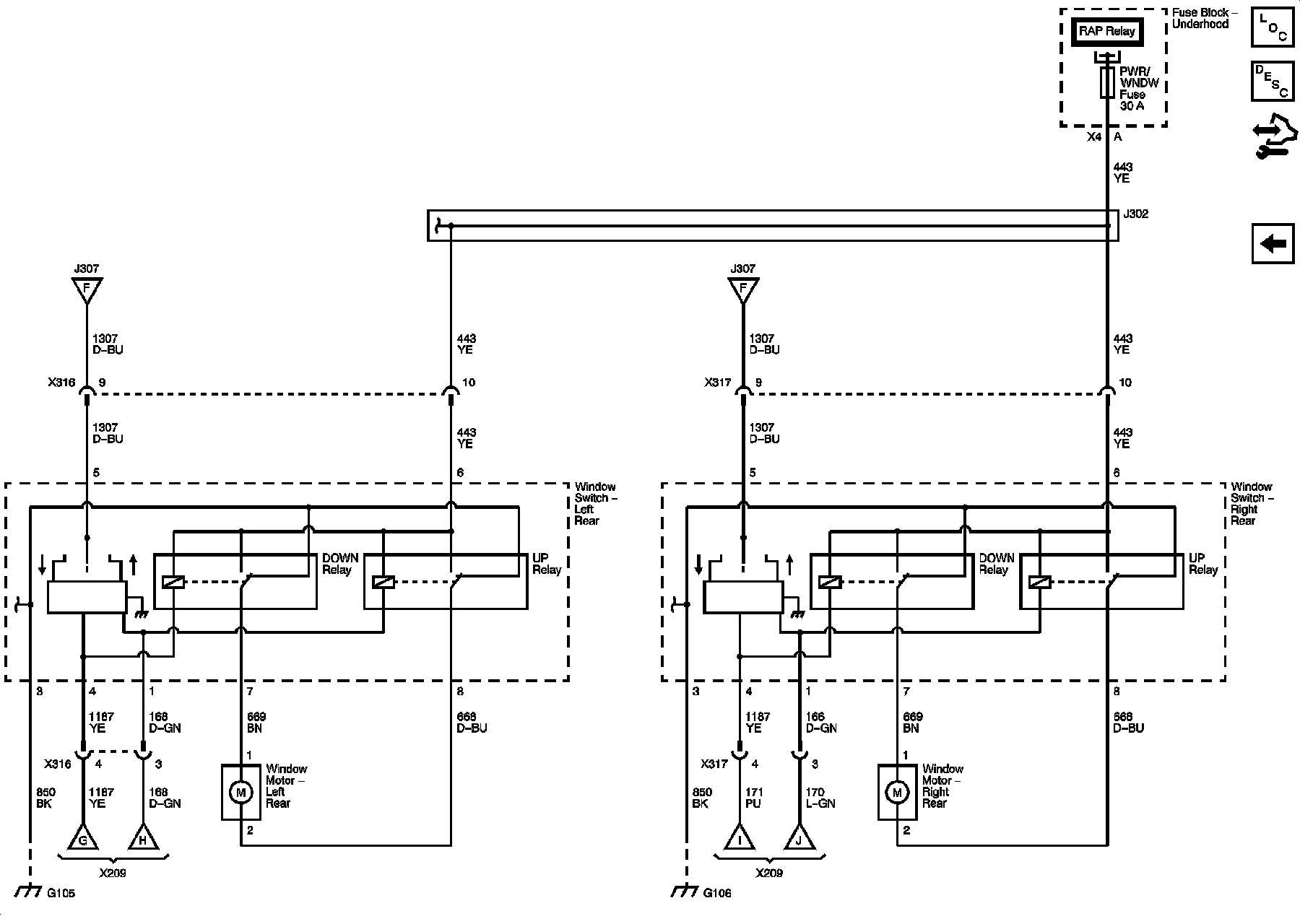

Rear Doors - Crew Cab
