Power Seat Switch




Component Connector End Views

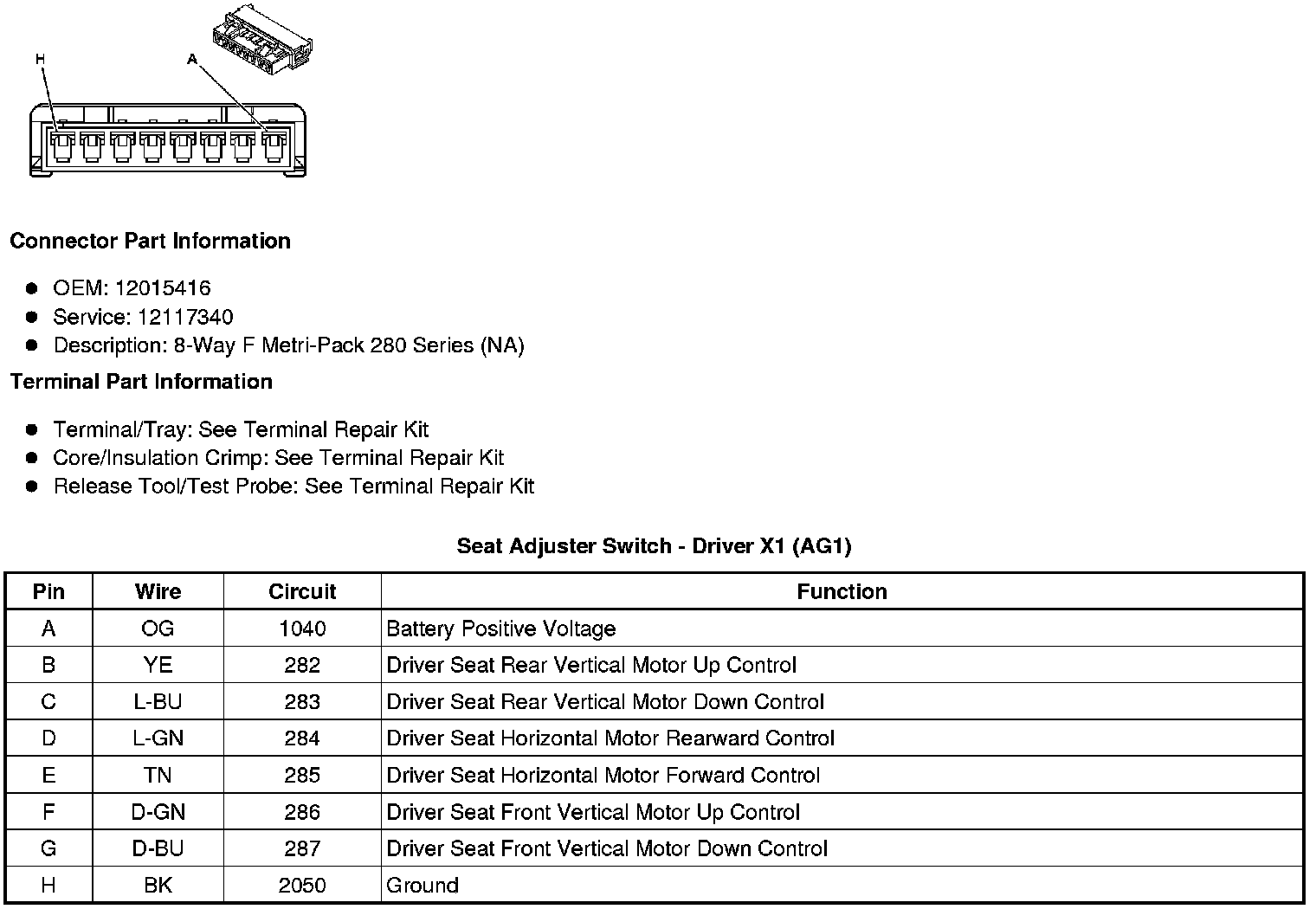

Seat Adjuster Switch - Driver X1 (AG1)






Seat Adjuster Switch - Driver X2 (AG1)

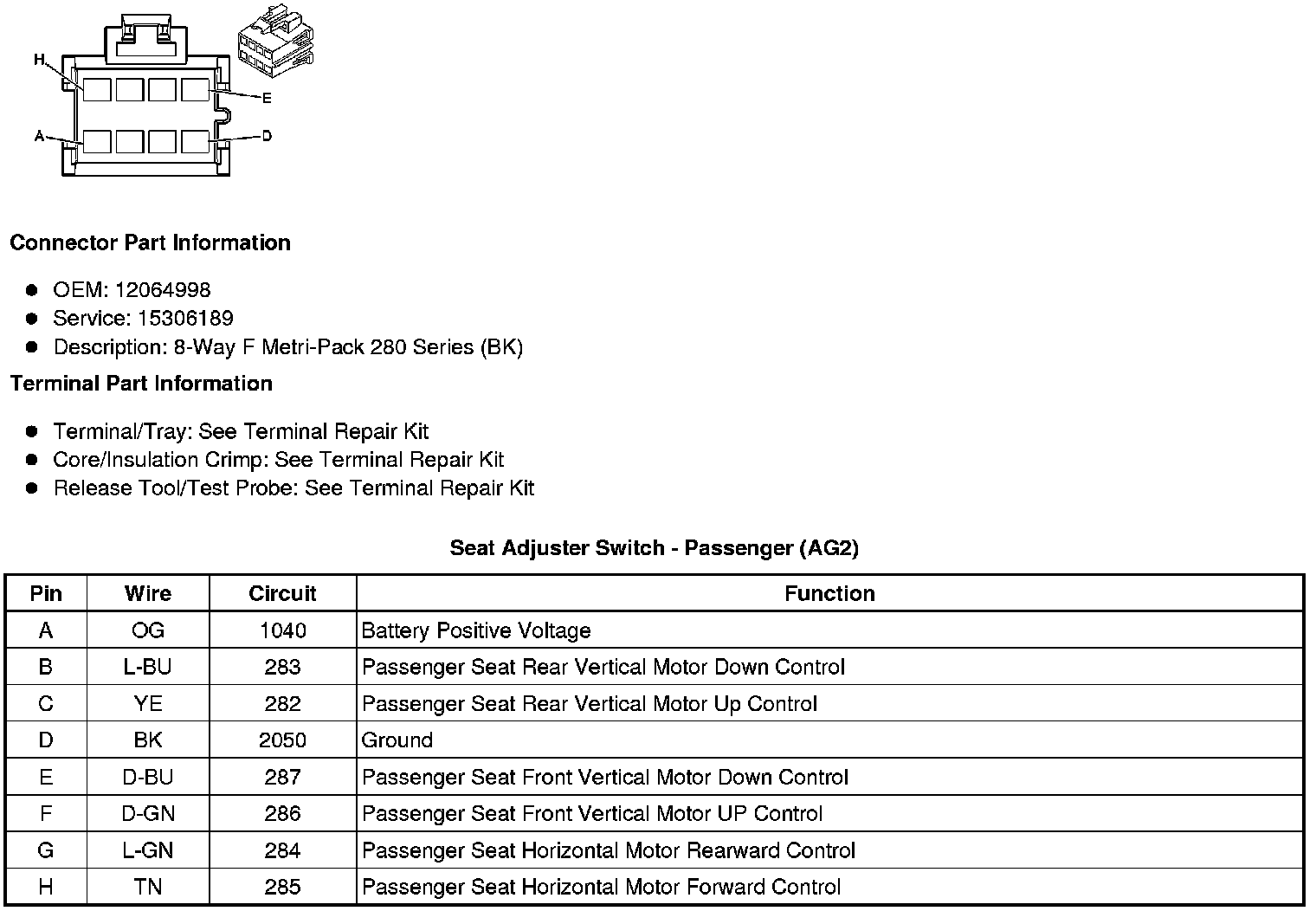

Seat Adjuster Switch - Passenger (AG2)

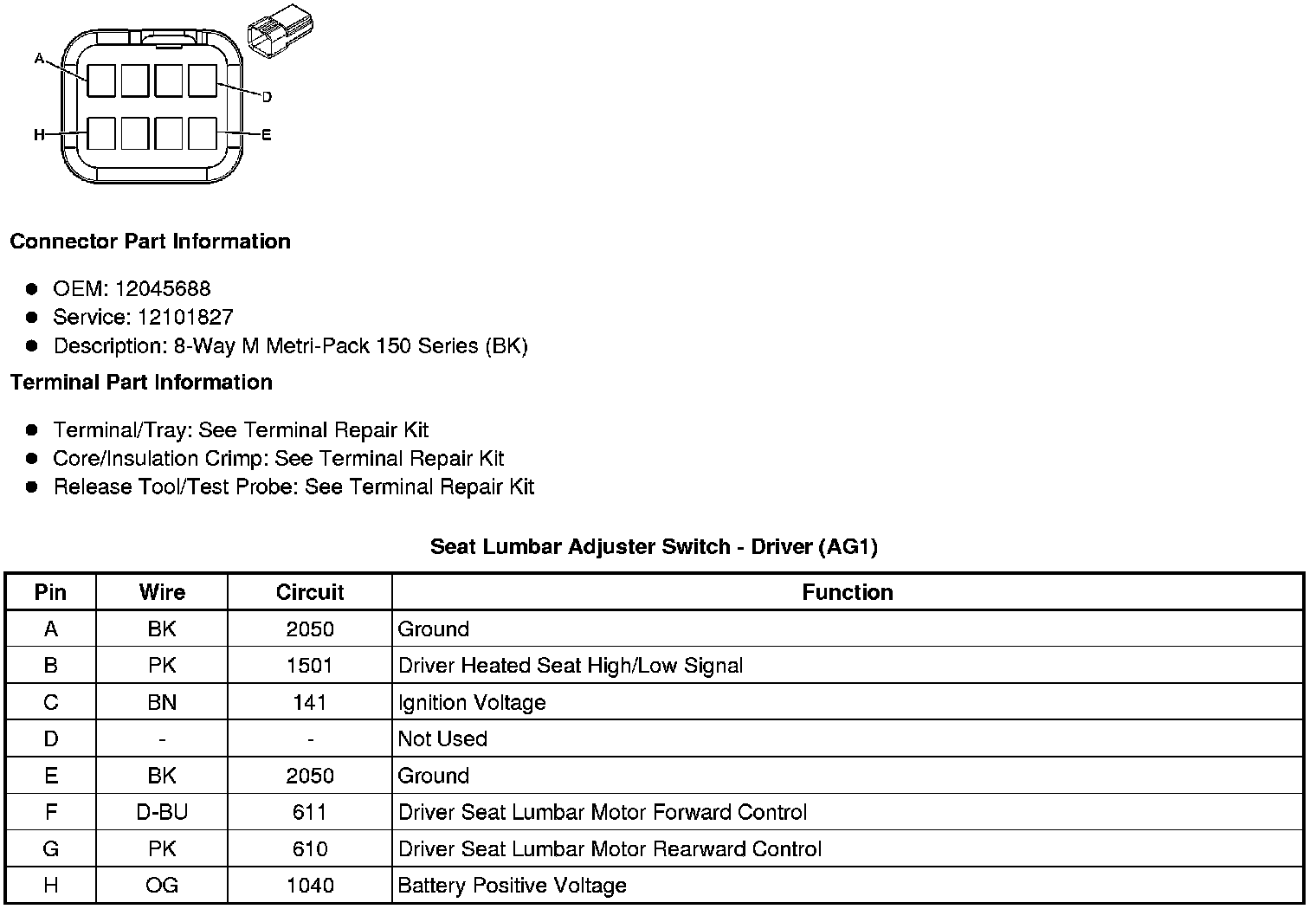

Seat Lumbar Adjuster Switch - Driver (AG1)

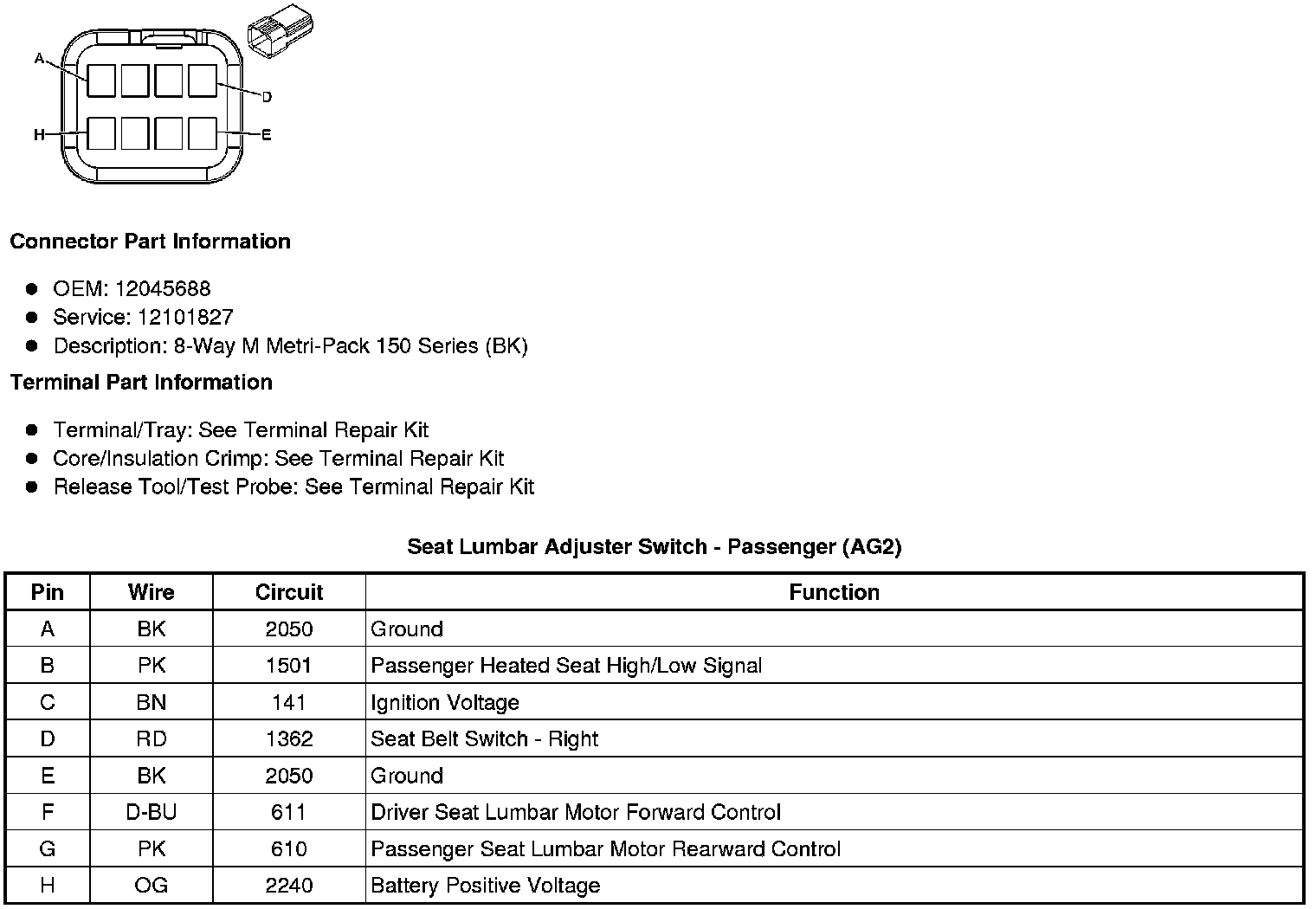

Seat Lumbar Adjuster Switch - Passenger (AG2)
