System Diagram




Component Connector End Views

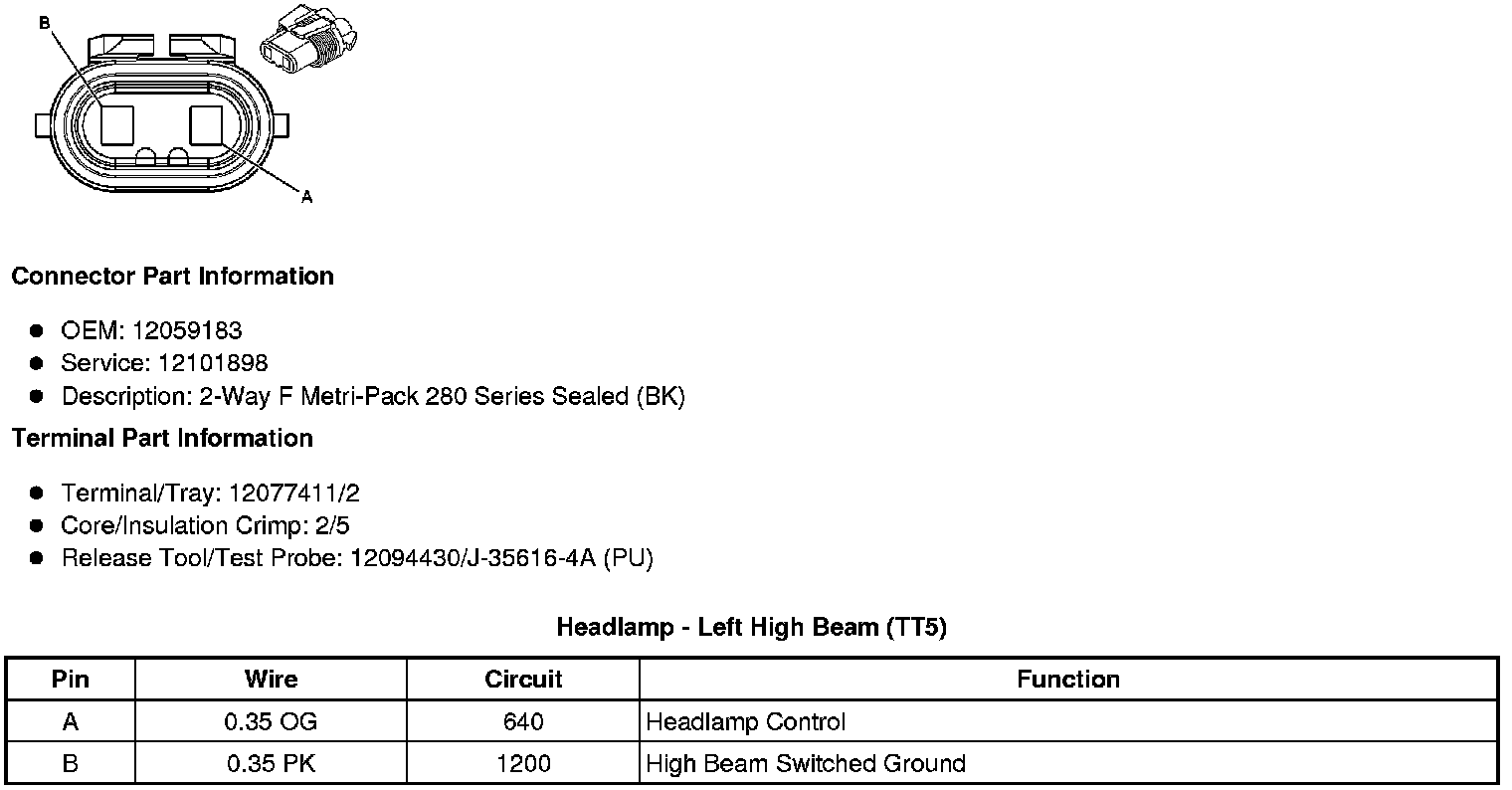

Headlamp - Left High Beam (TT5)






Headlamp - Right High Beam (TT5)

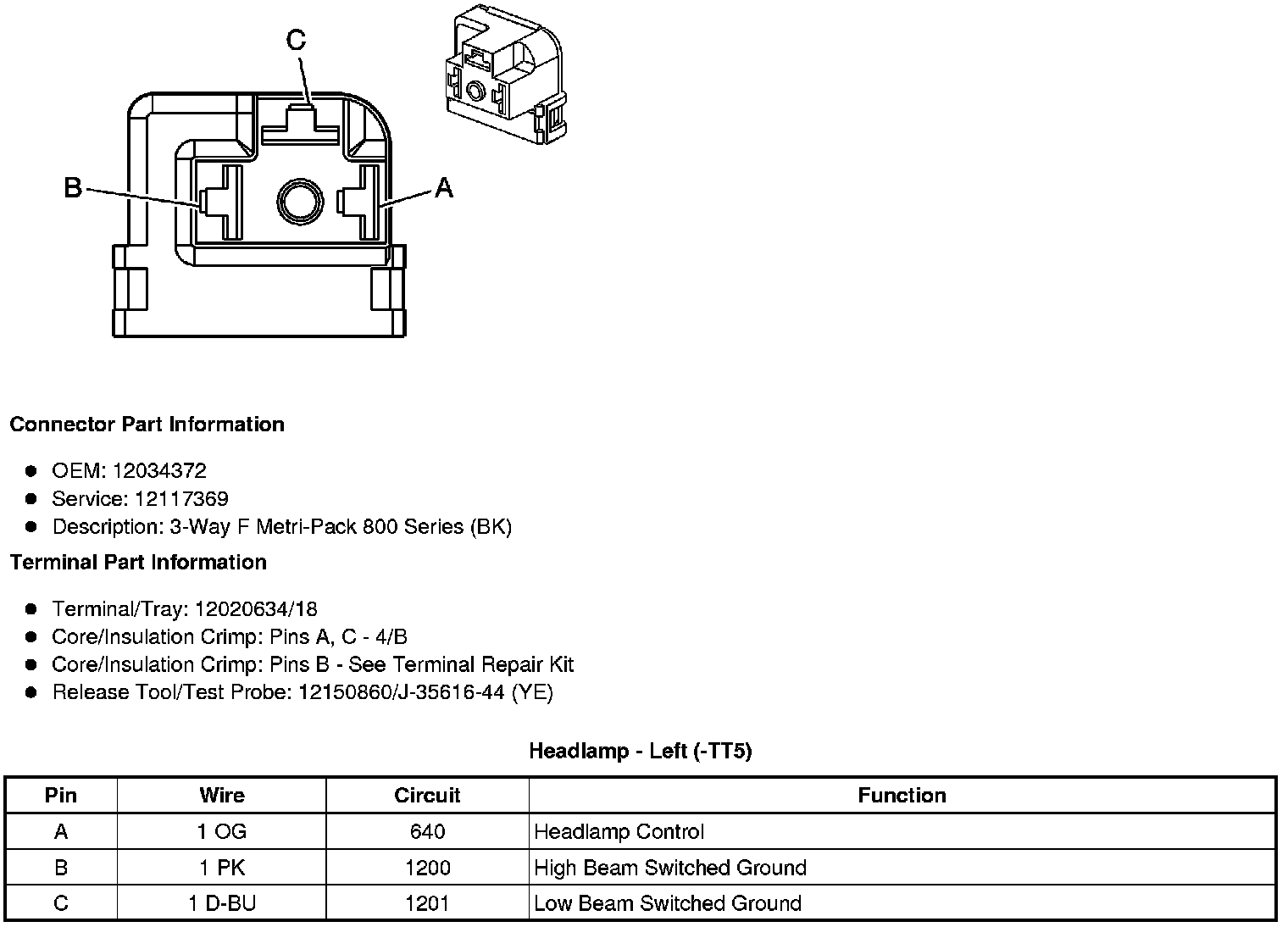

Headlamp - Left (-TT5)

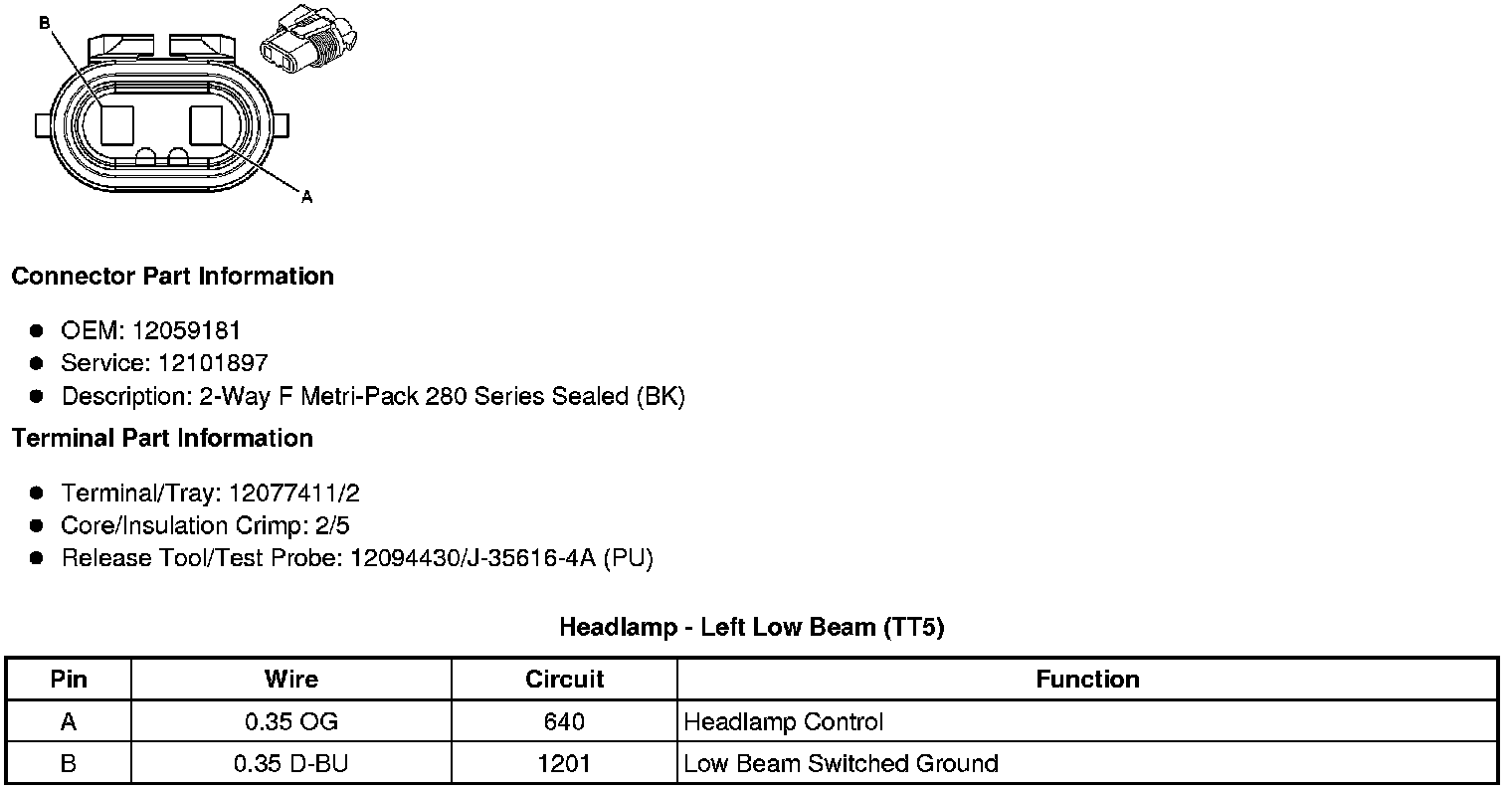

Headlamp - Left Low Beam (TT5)

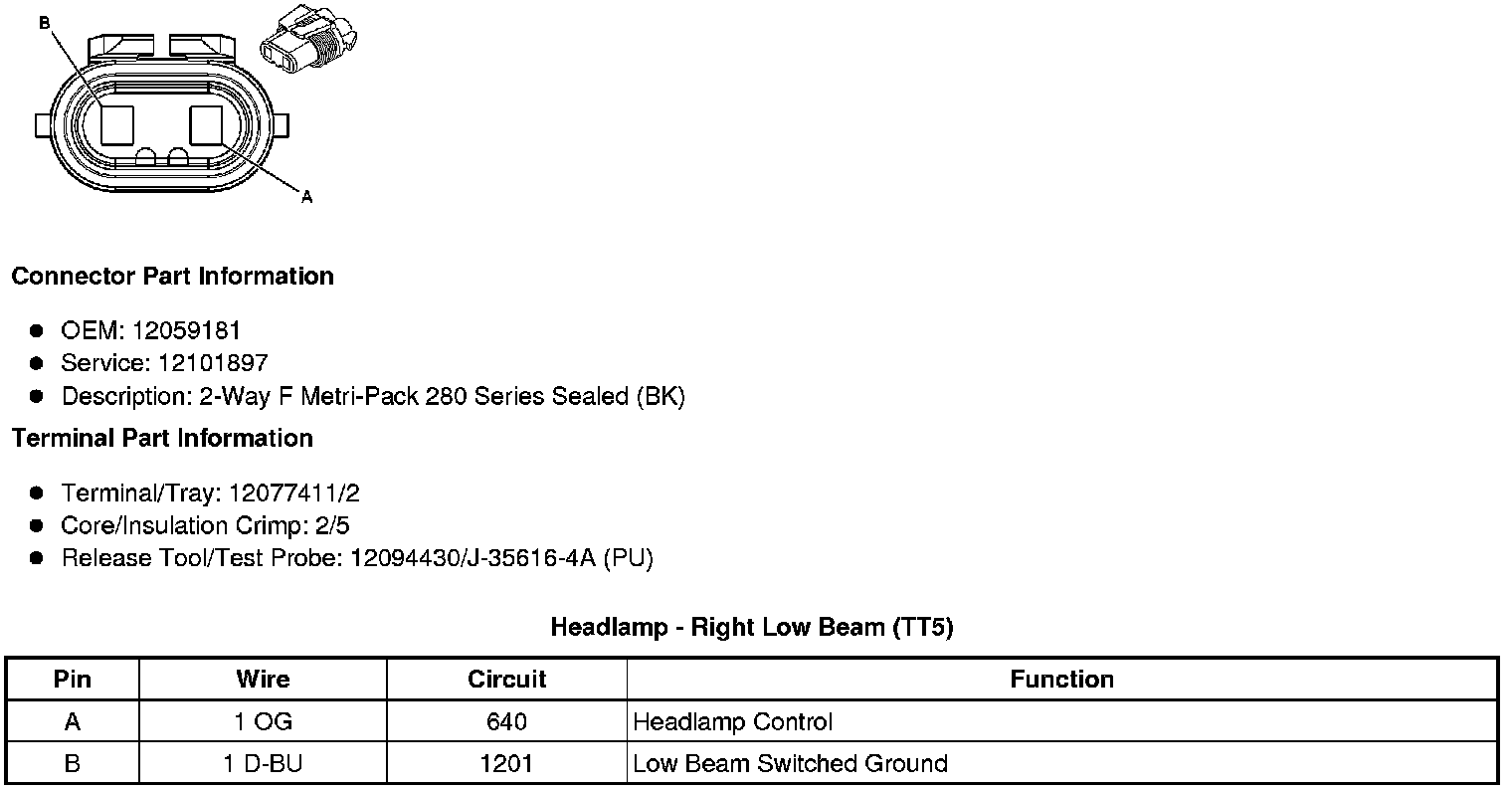

Headlamp - Right Low Beam (TT5)






Headlamp - Right (-TT5)
