Auxiliary Power Outlet
Auxiliary Power Outlet
Component Connector End Views

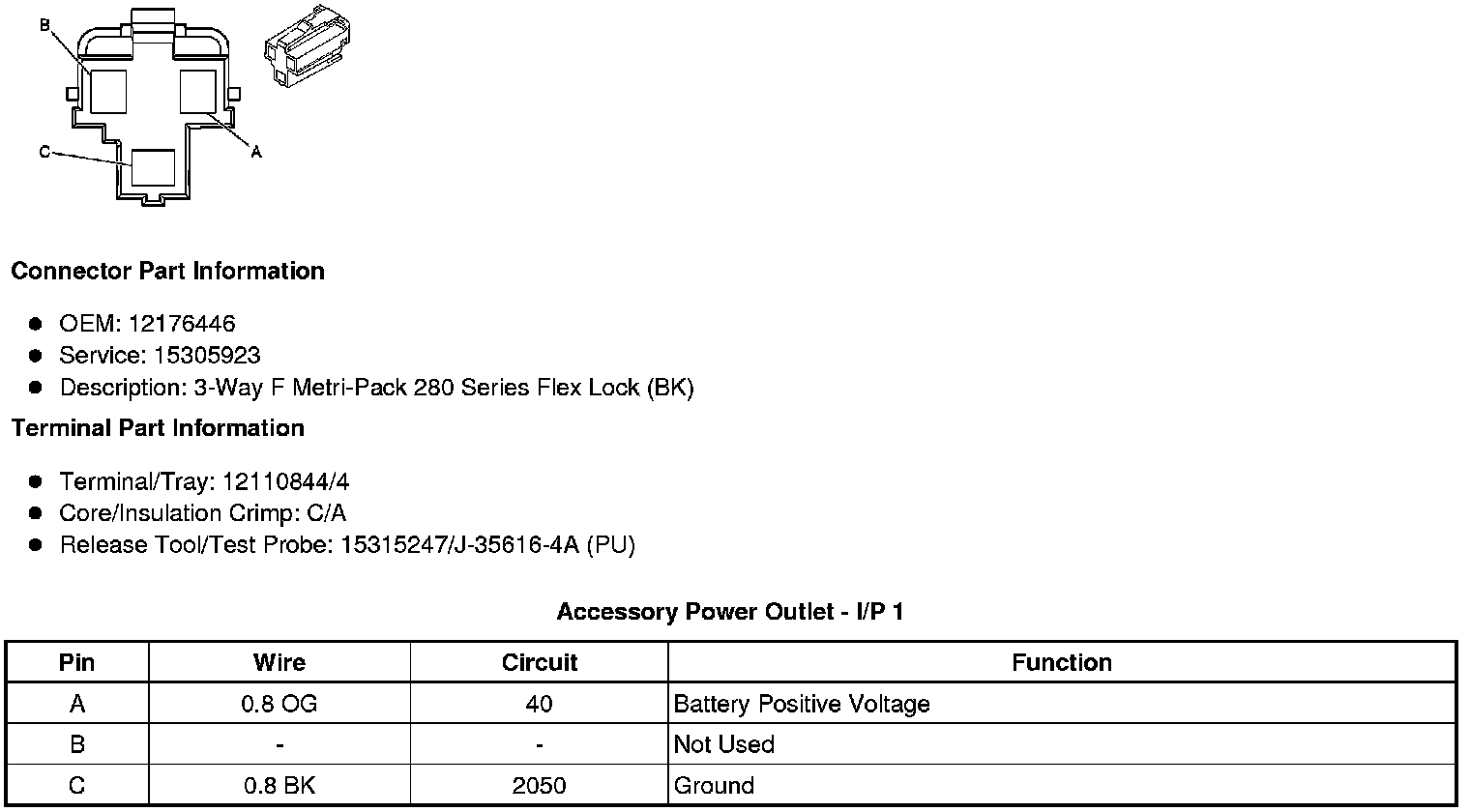

Accessory Power Outlet - I/P 1

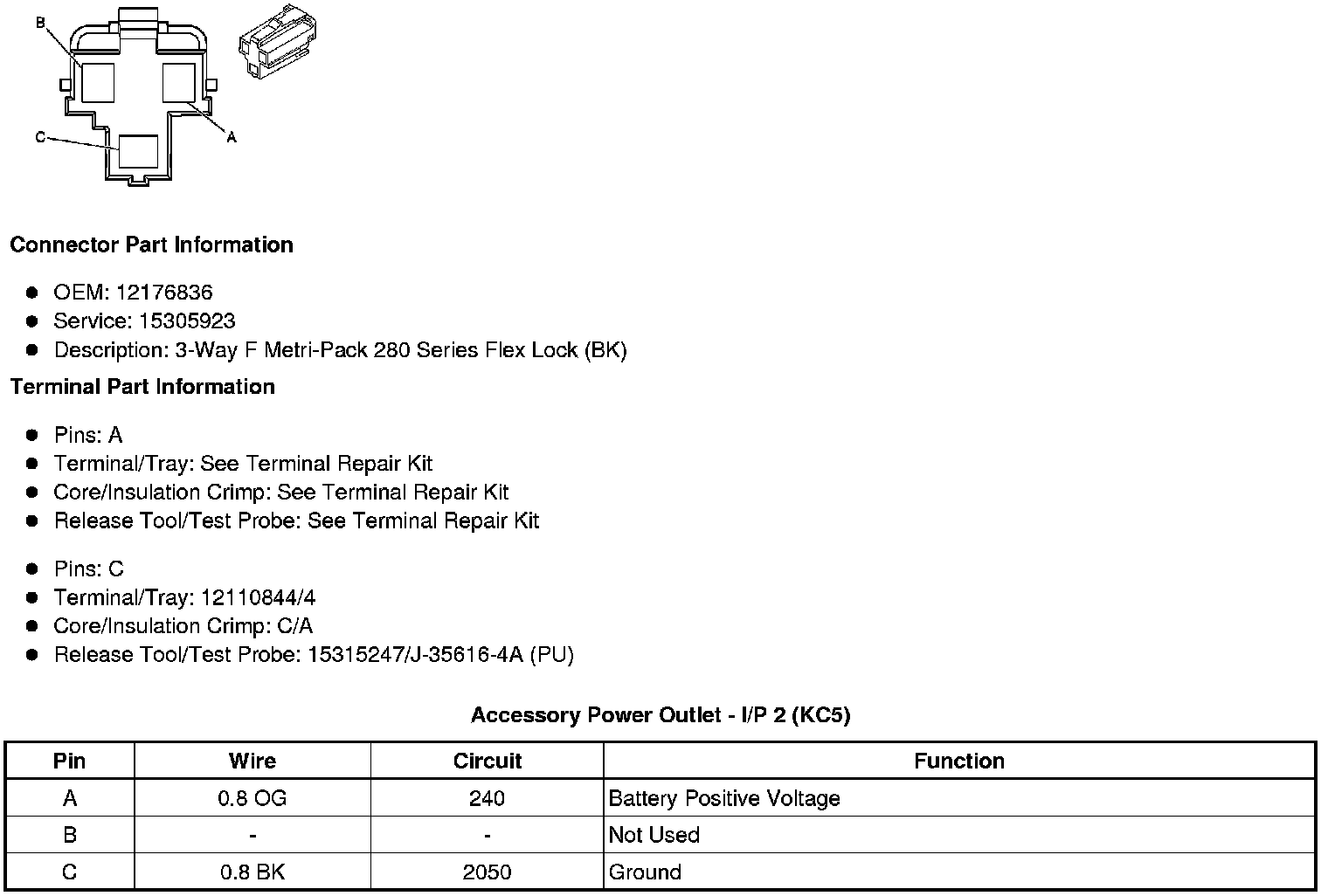

Accessory Power Outlet - I/P 2 (KC5)
