Air Injection Pump




Component Connector End Views

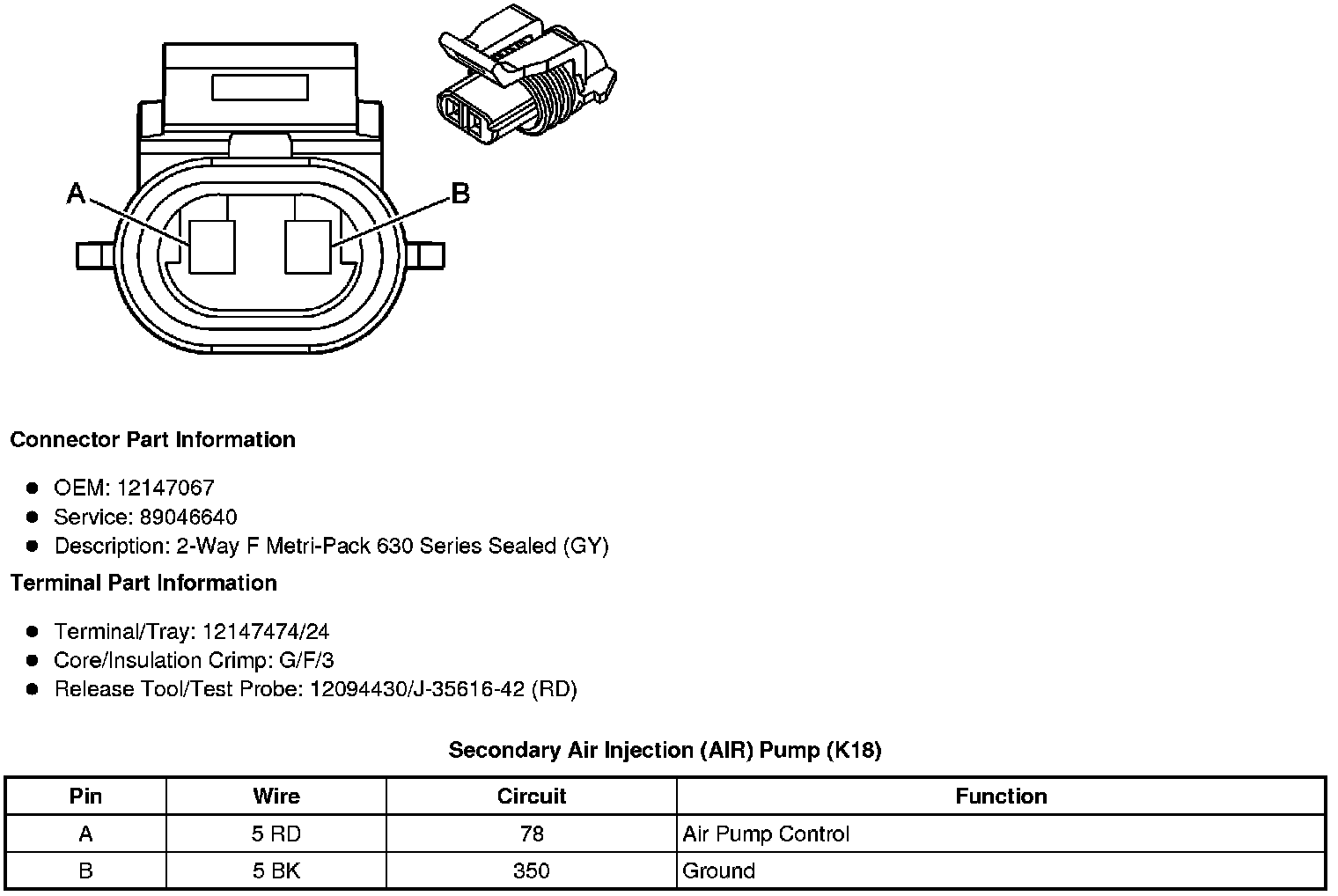

Secondary Air Injection (AIR) Pump (K18)

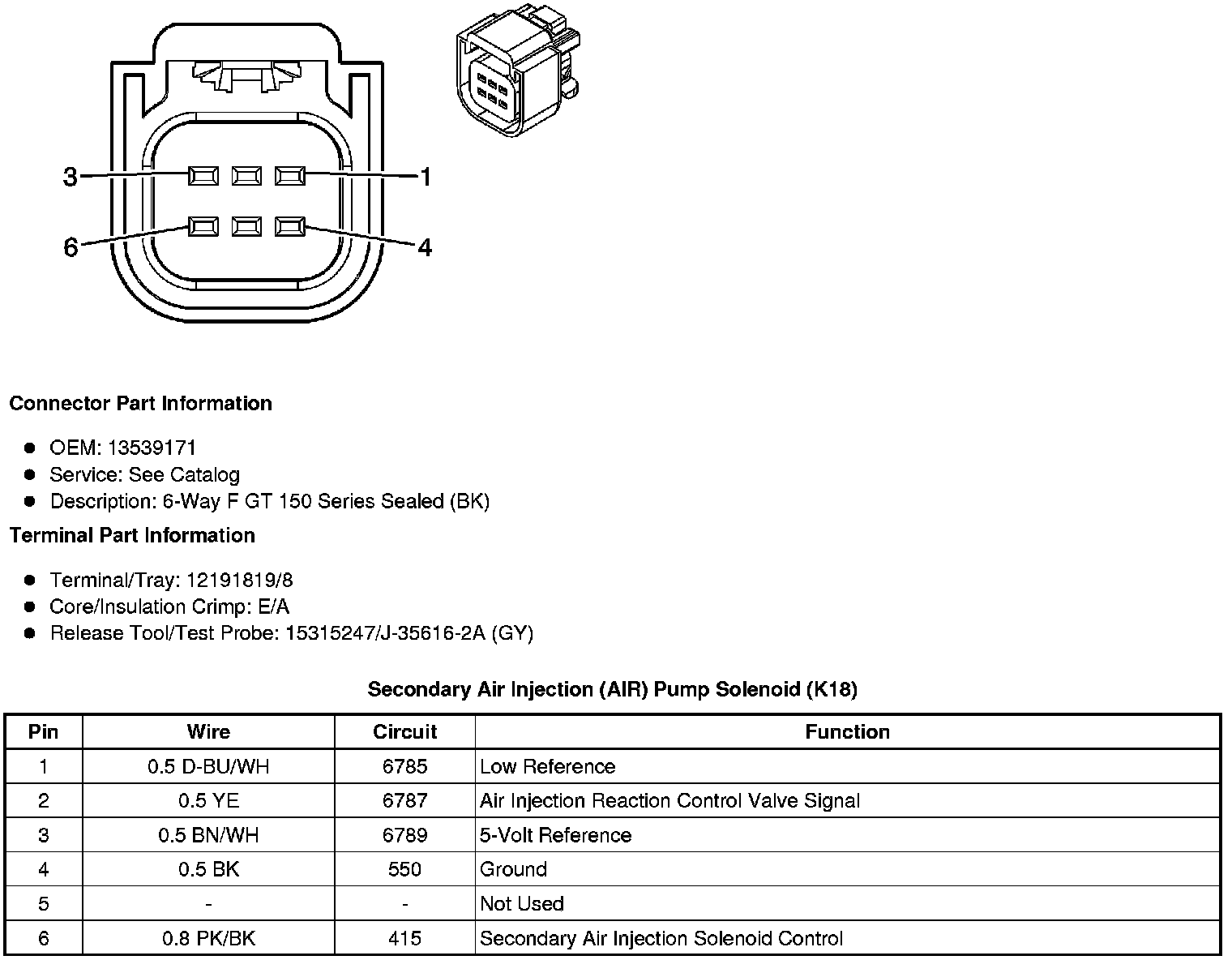

Secondary Air Injection (AIR) Pump Solenoid (K18)
