System Diagram




Component Connector End Views

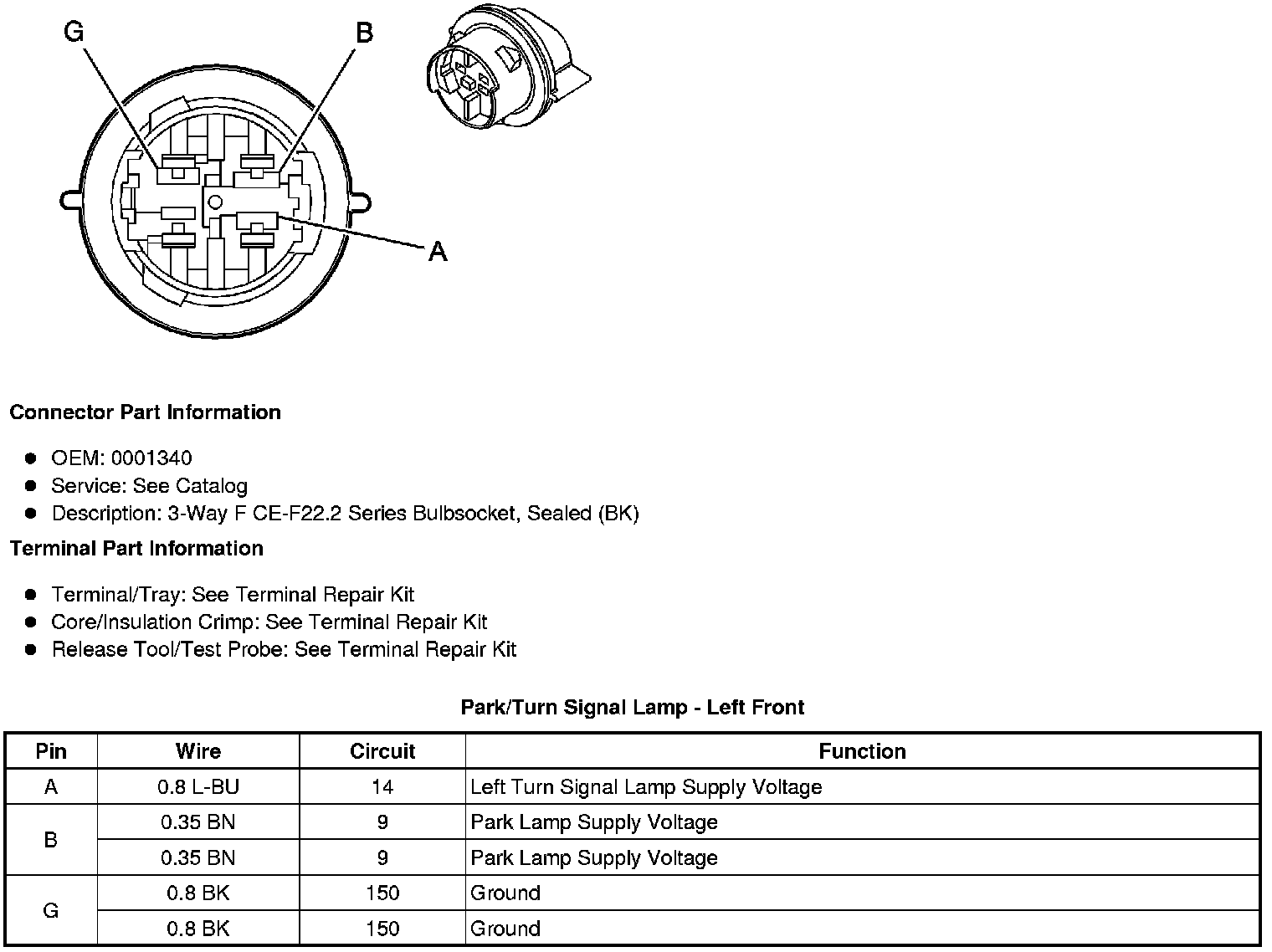

Park/Turn Signal Lamp - Left Front

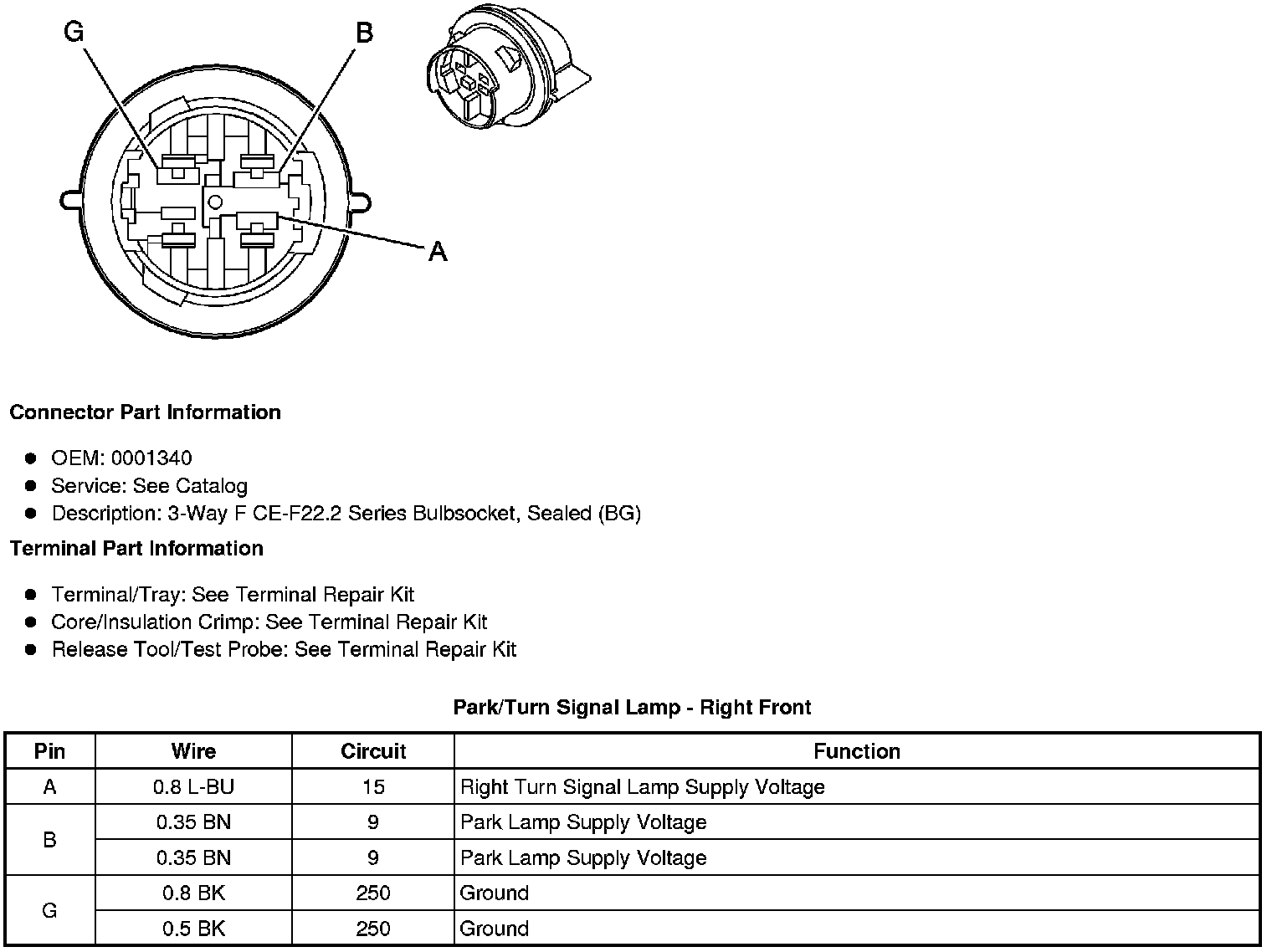

Park/Turn Signal Lamp - Right Front
