Headlamp

Component Connector End Views

Headlamp High/Low Beam/DRL - Left

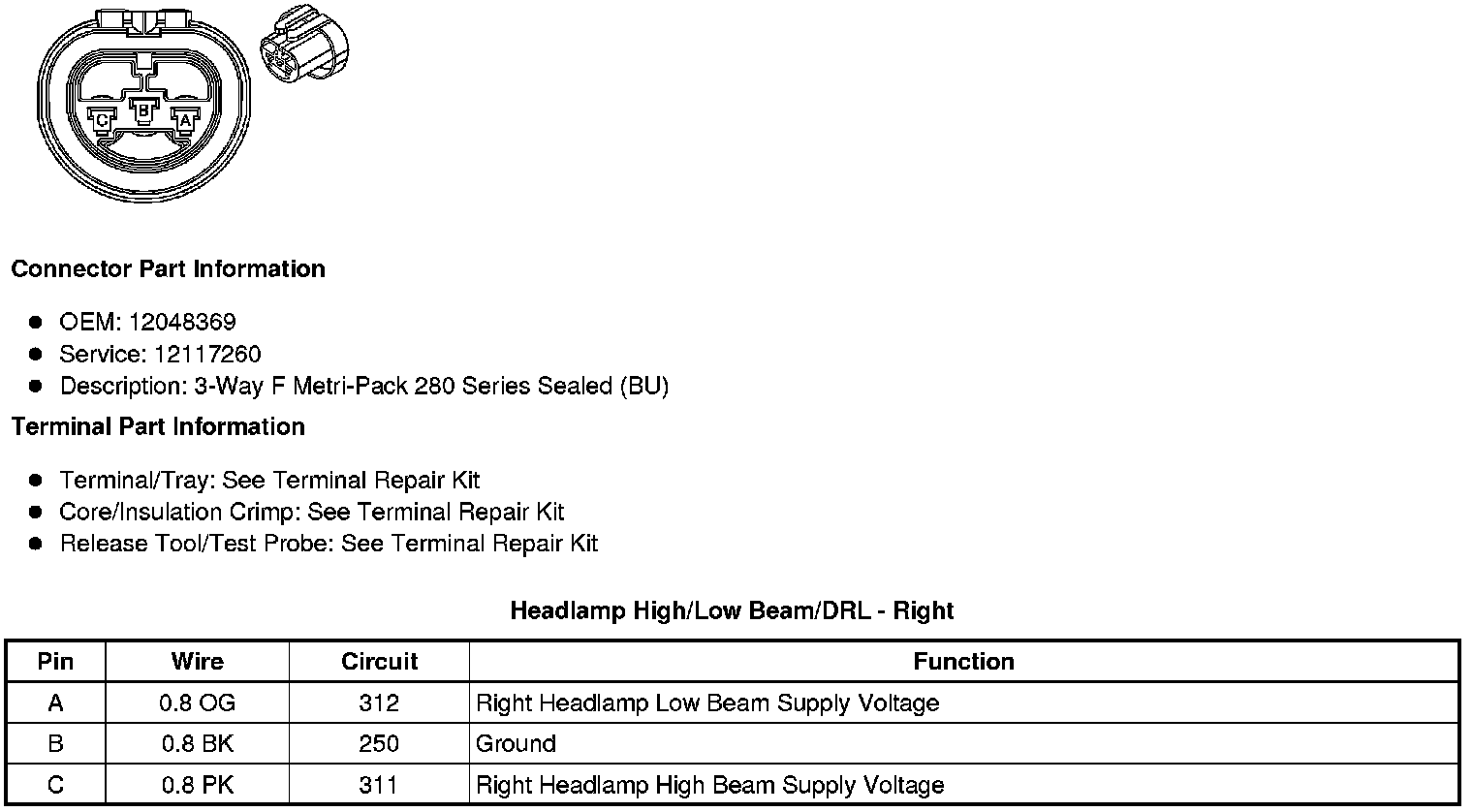

Headlamp High/Low Beam/DRL - Right
