Home >> Chevrolet >> 2009 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector




Component Connector End Views

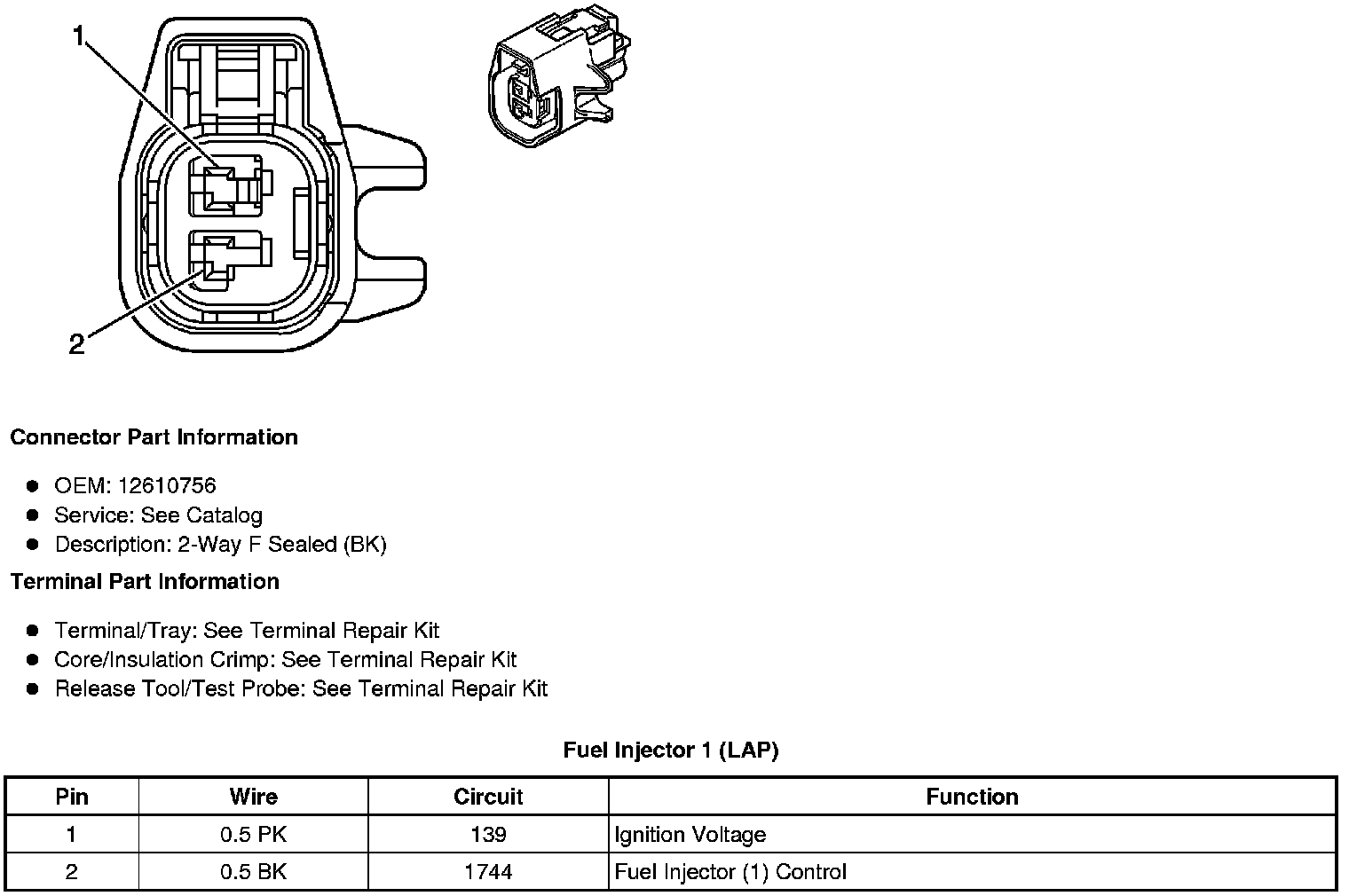

Fuel Injector 1 (LAP)

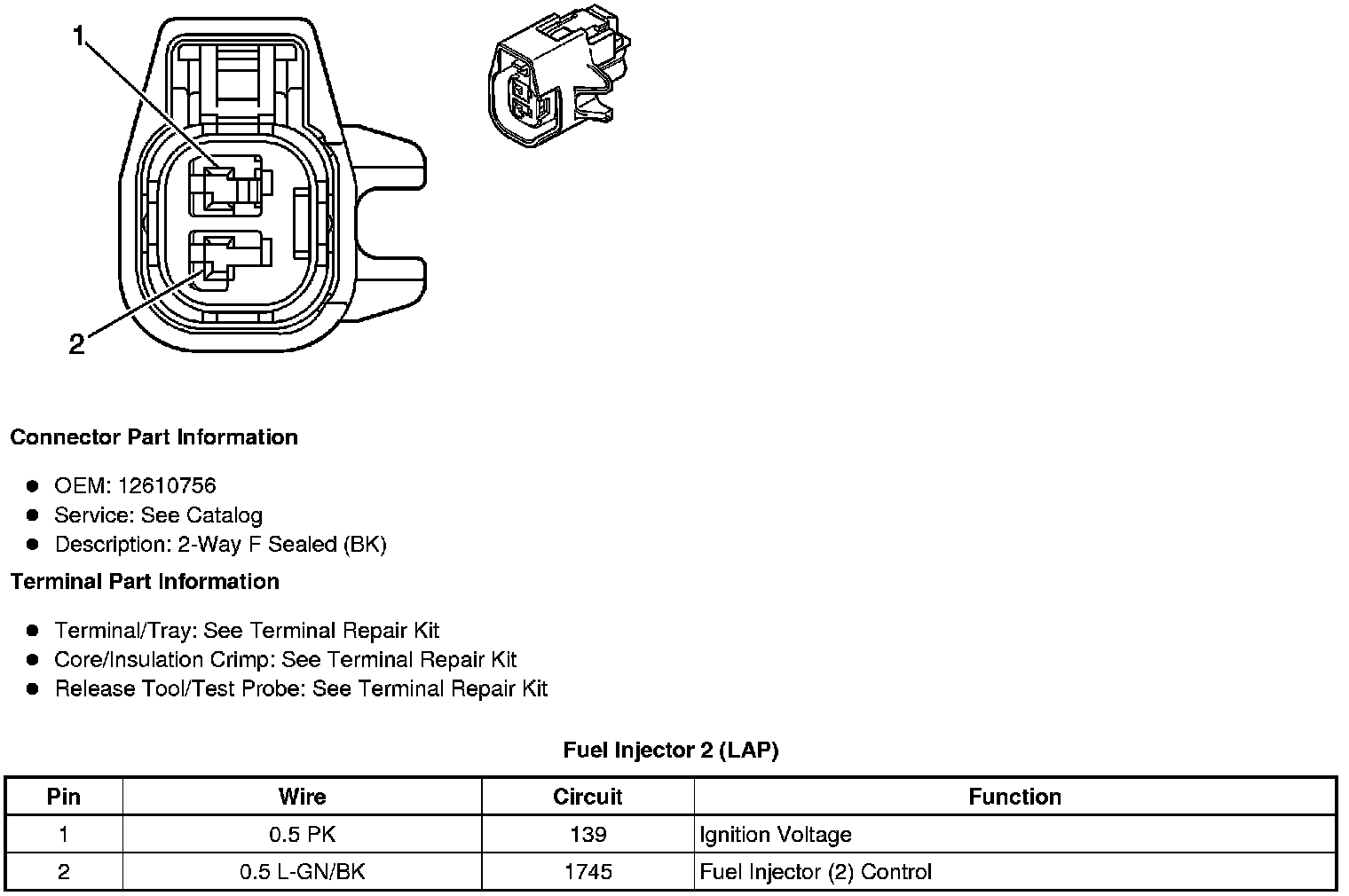

Fuel Injector 2 (LAP)






Fuel Injector 3 (LAP)

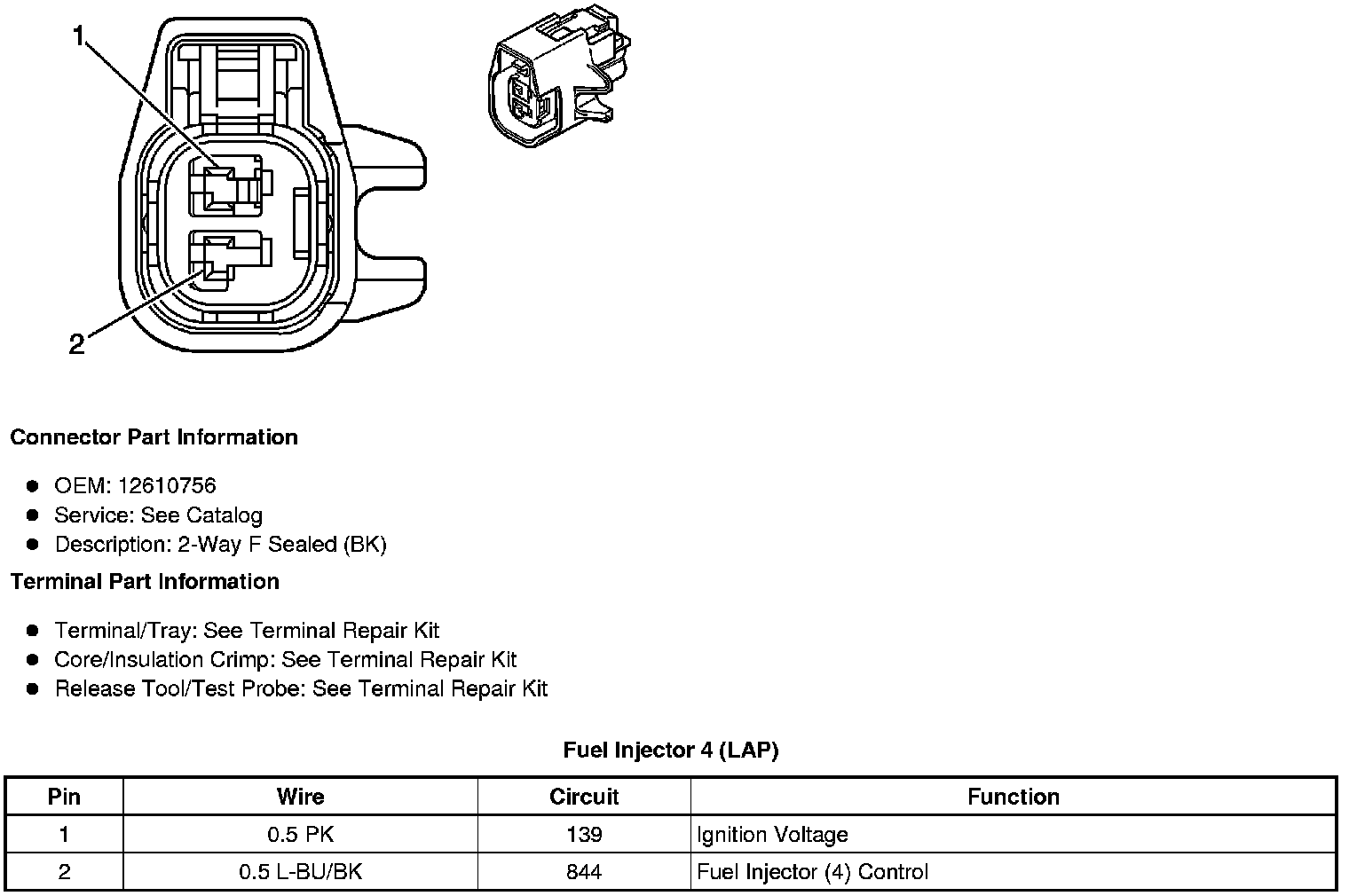

Fuel Injector 4 (LAP)
