Door Switch




Component Connector End Views

Door Ajar Switch - Driver

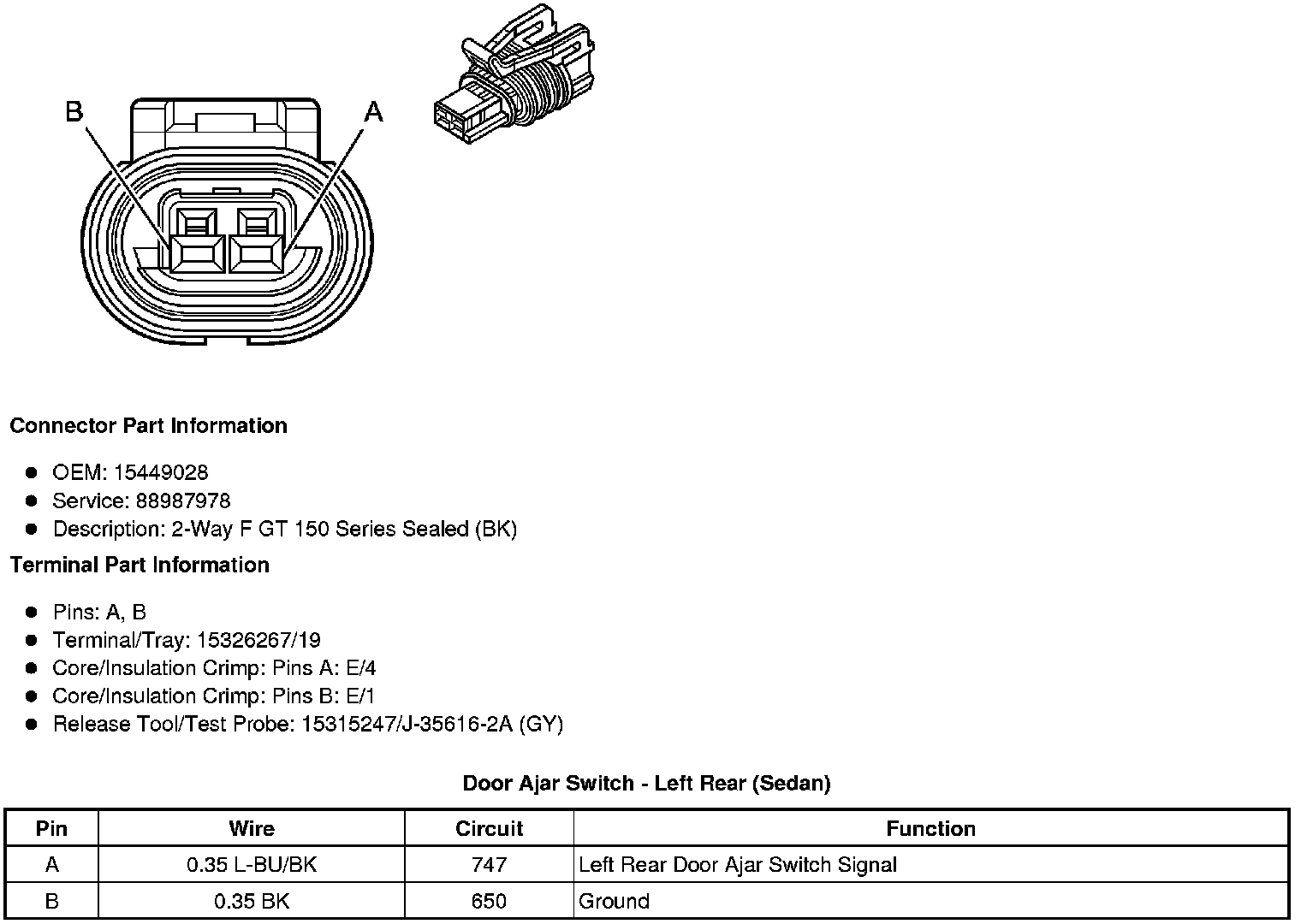

Door Ajar Switch - Left Rear (Sedan)

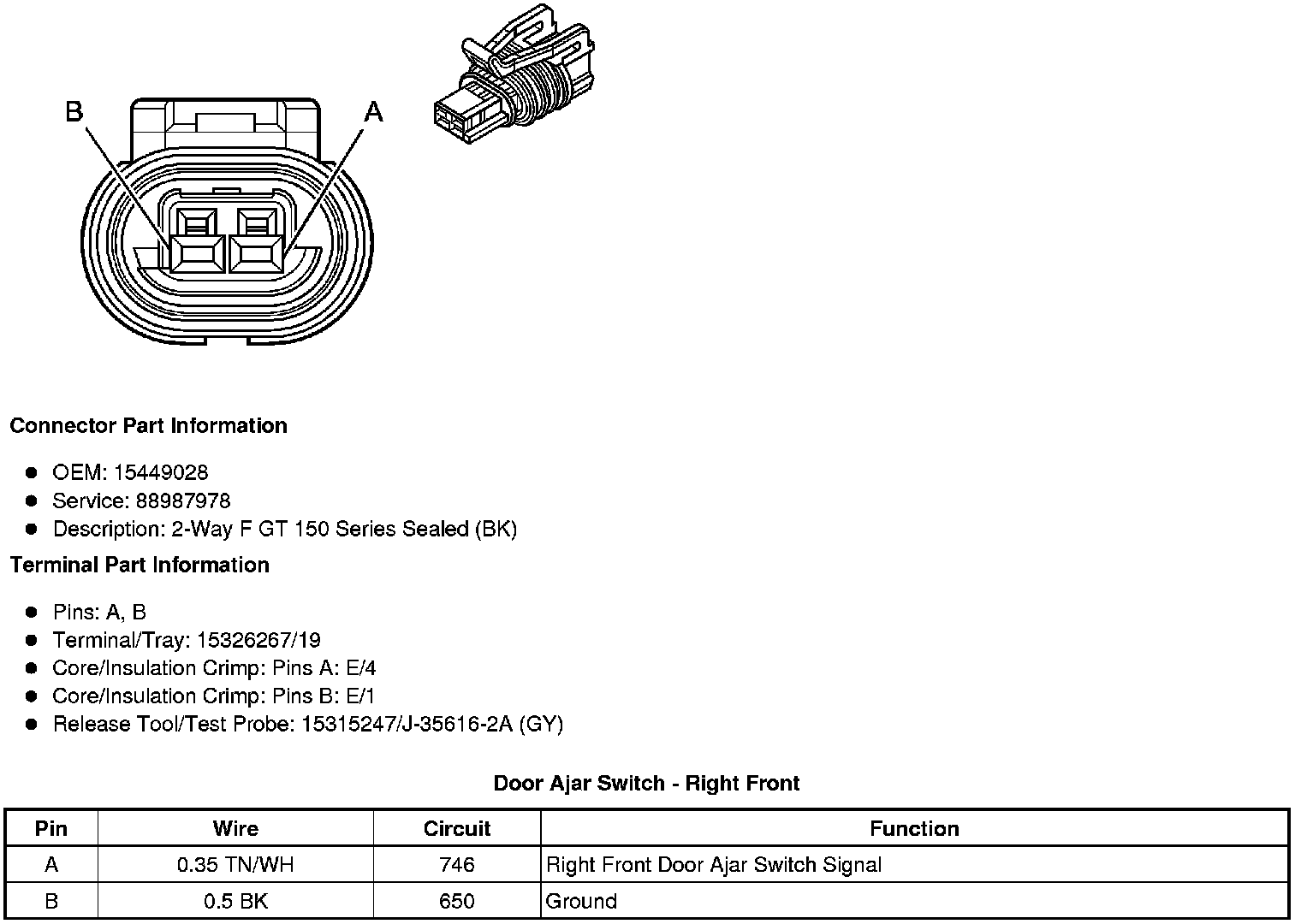

Door Ajar Switch - Right Front

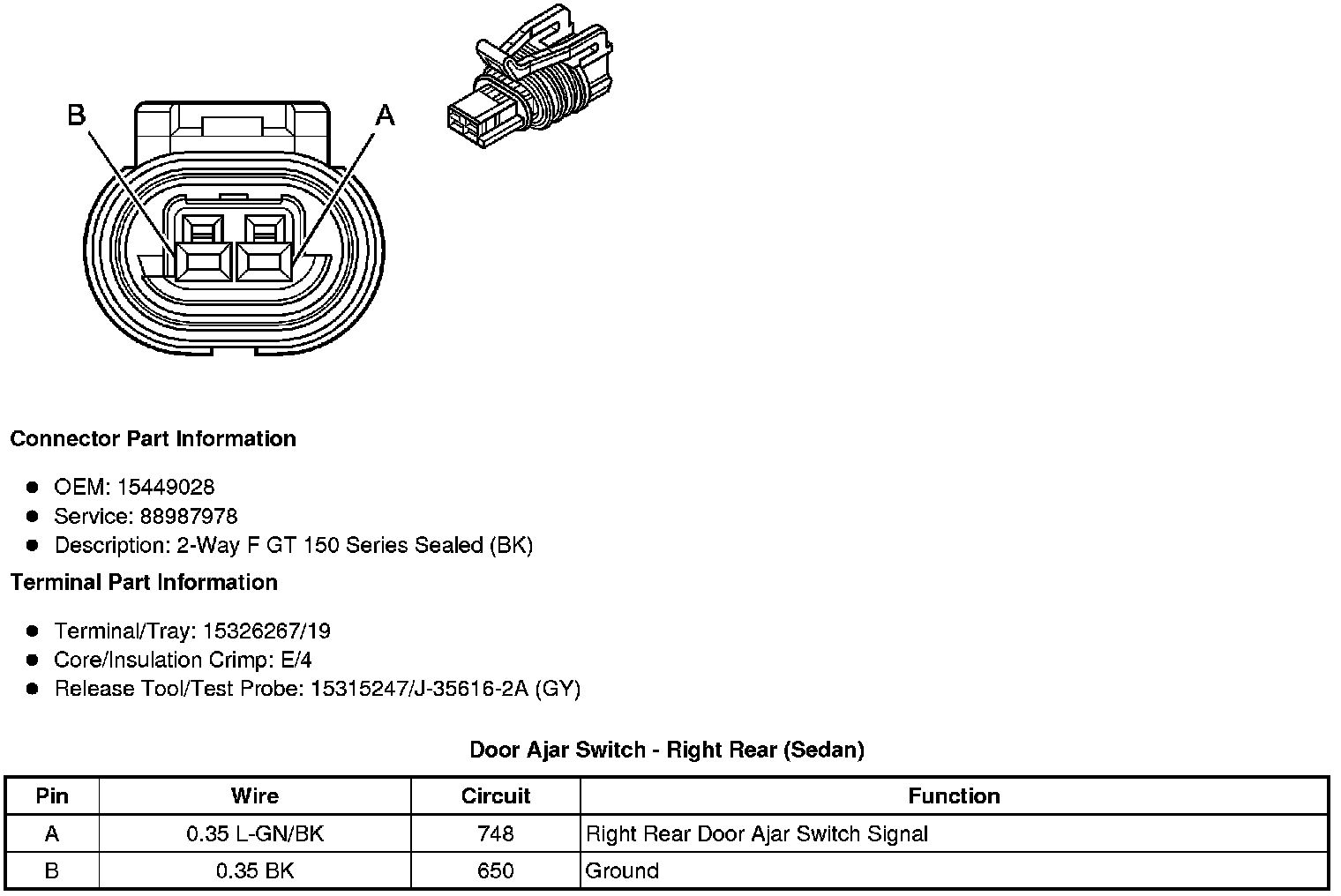

Door Ajar Switch - Right Rear (Sedan)
