Brake Lamp




Component Connector End Views

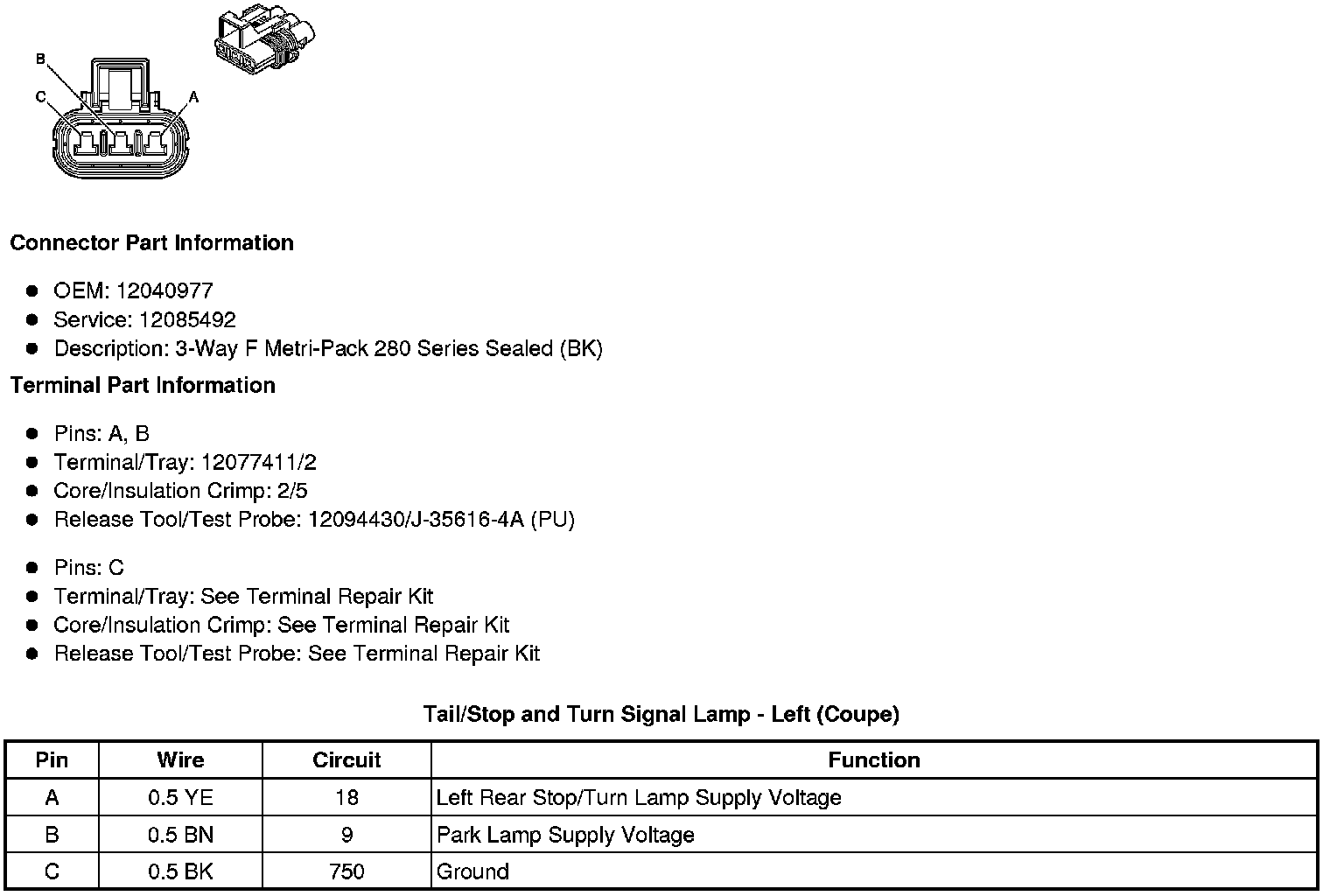

Tail/Stop and Turn Signal Lamp - Left (Coupe)





Tail/Stop and Turn Signal Lamp - Left (Sedan)

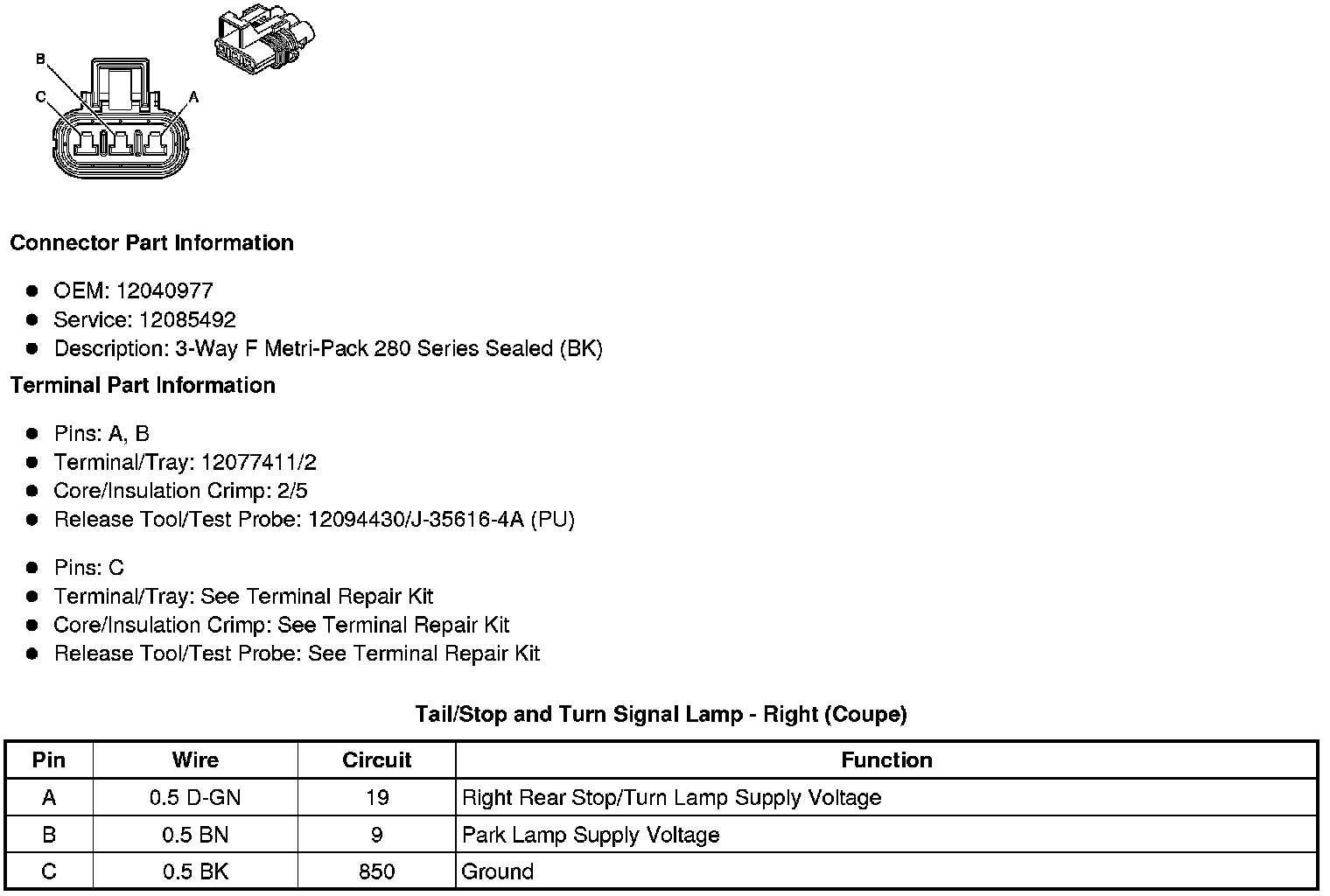

Tail/Stop and Turn Signal Lamp - Right (Coupe)

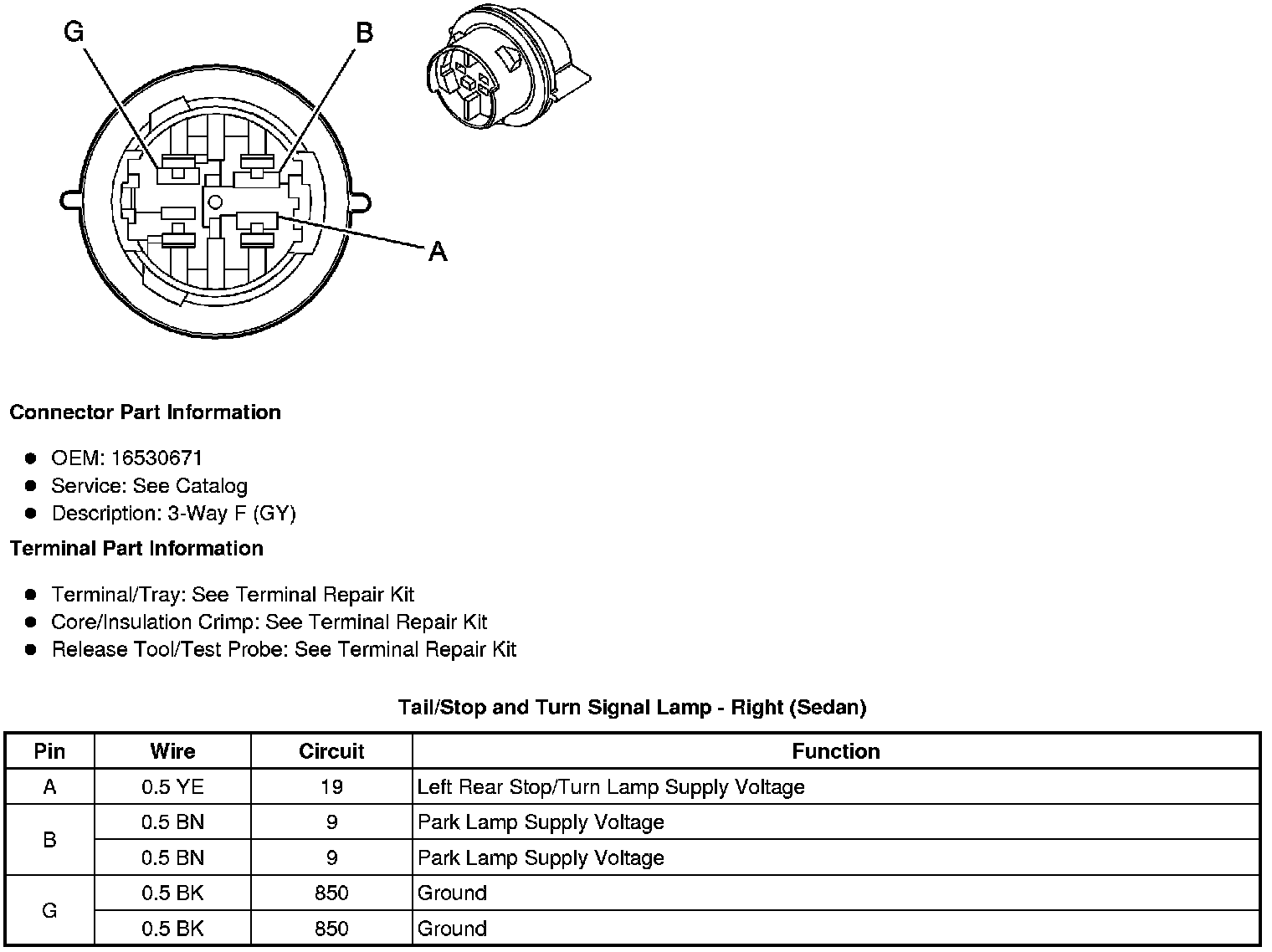

Tail/Stop and Turn Signal Lamp - Right (Sedan)
