Home >> Chevrolet >> 2009 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp >> System Diagram

System Diagram




Component Connector End Views

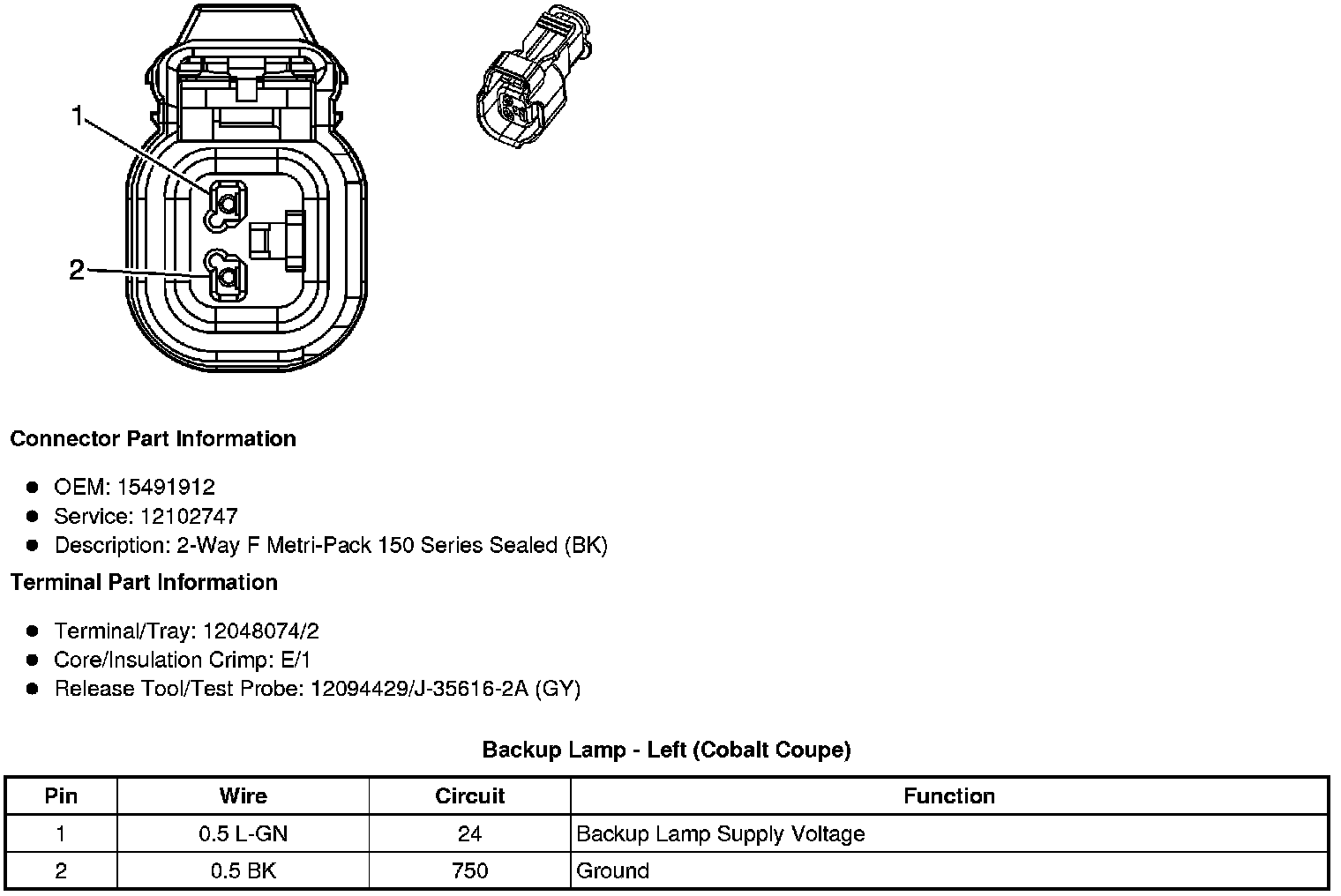

Backup Lamp - Left (Cobalt Coupe)

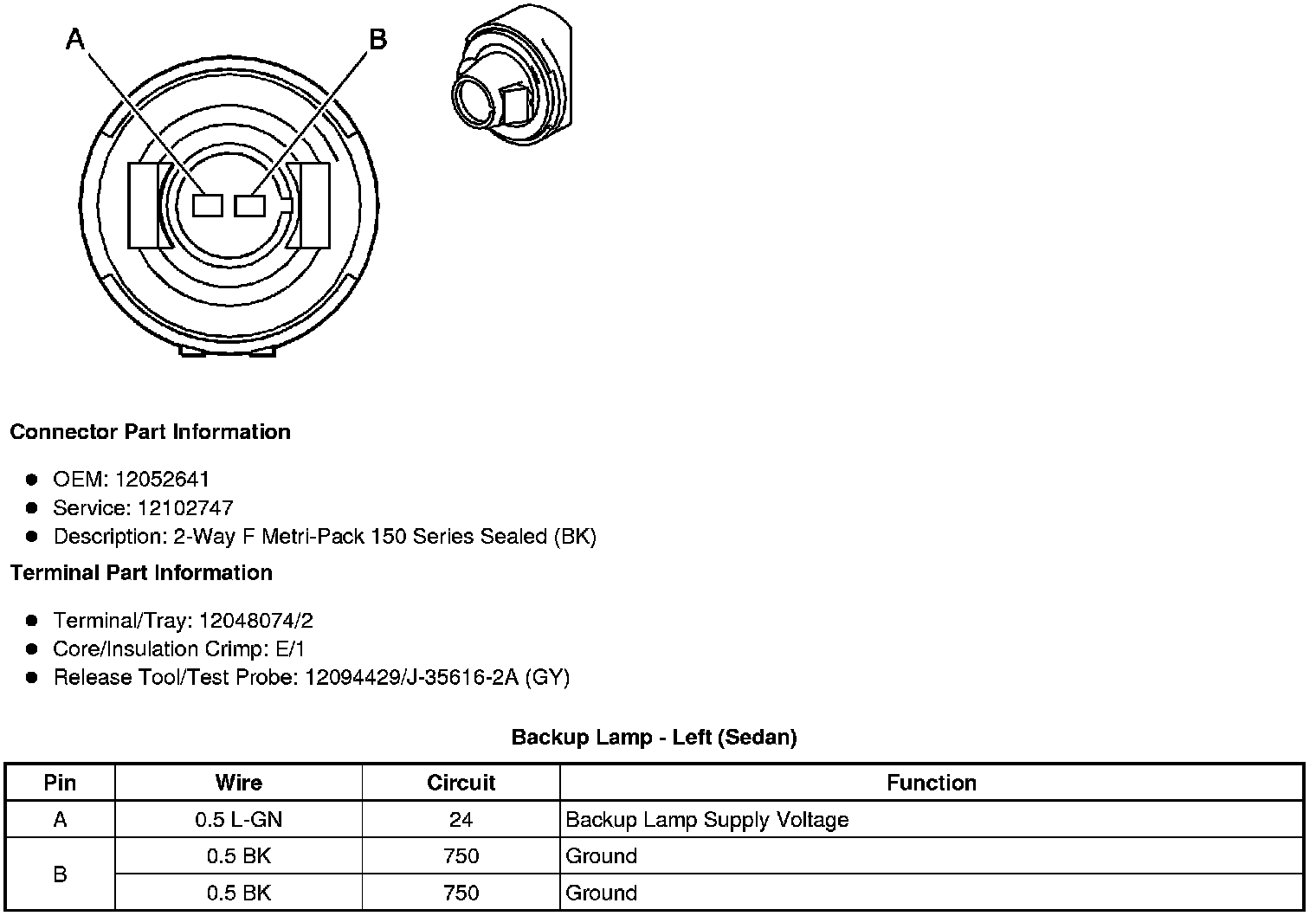

Backup Lamp - Left (Sedan)

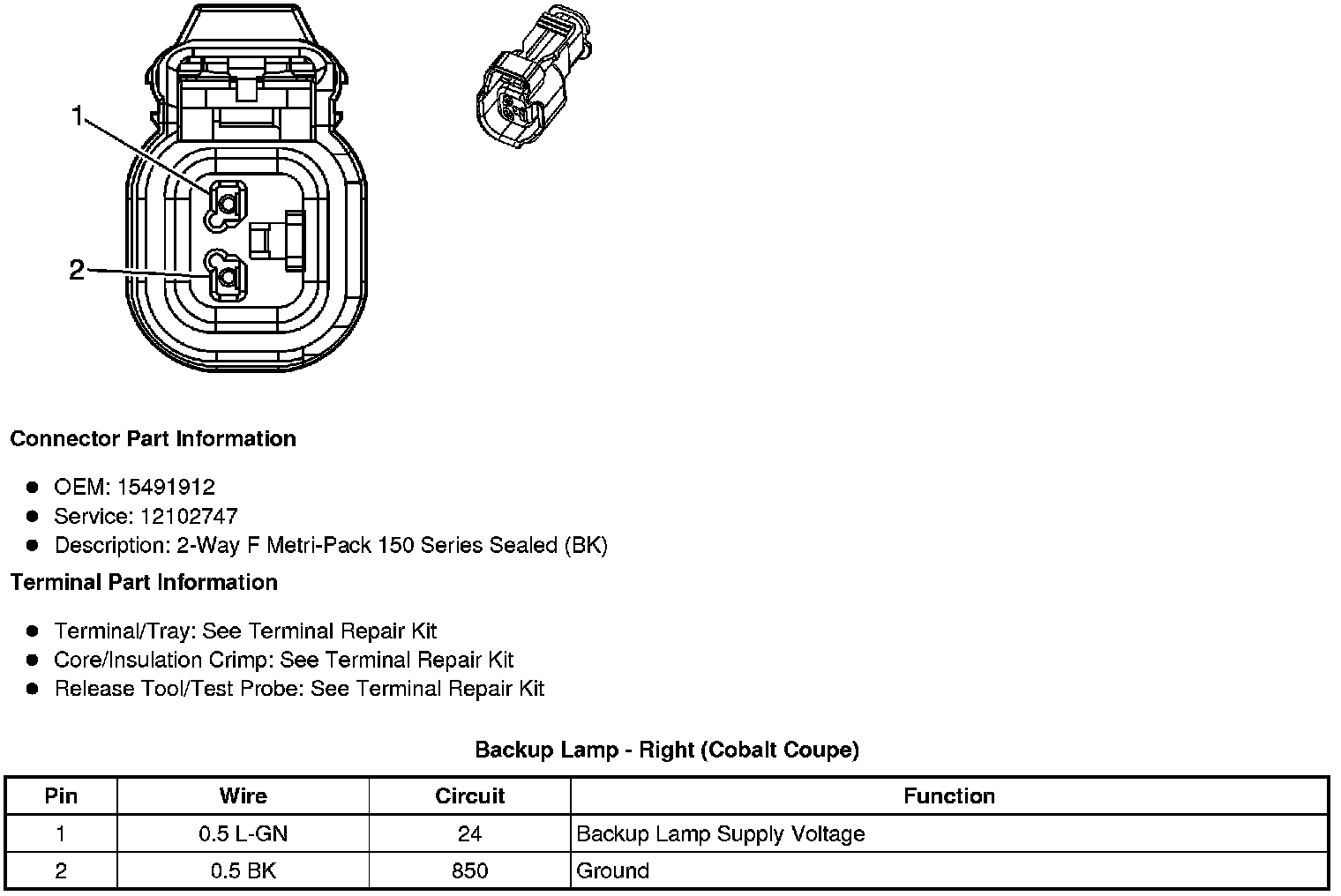

Backup Lamp - Right (Cobalt Coupe)

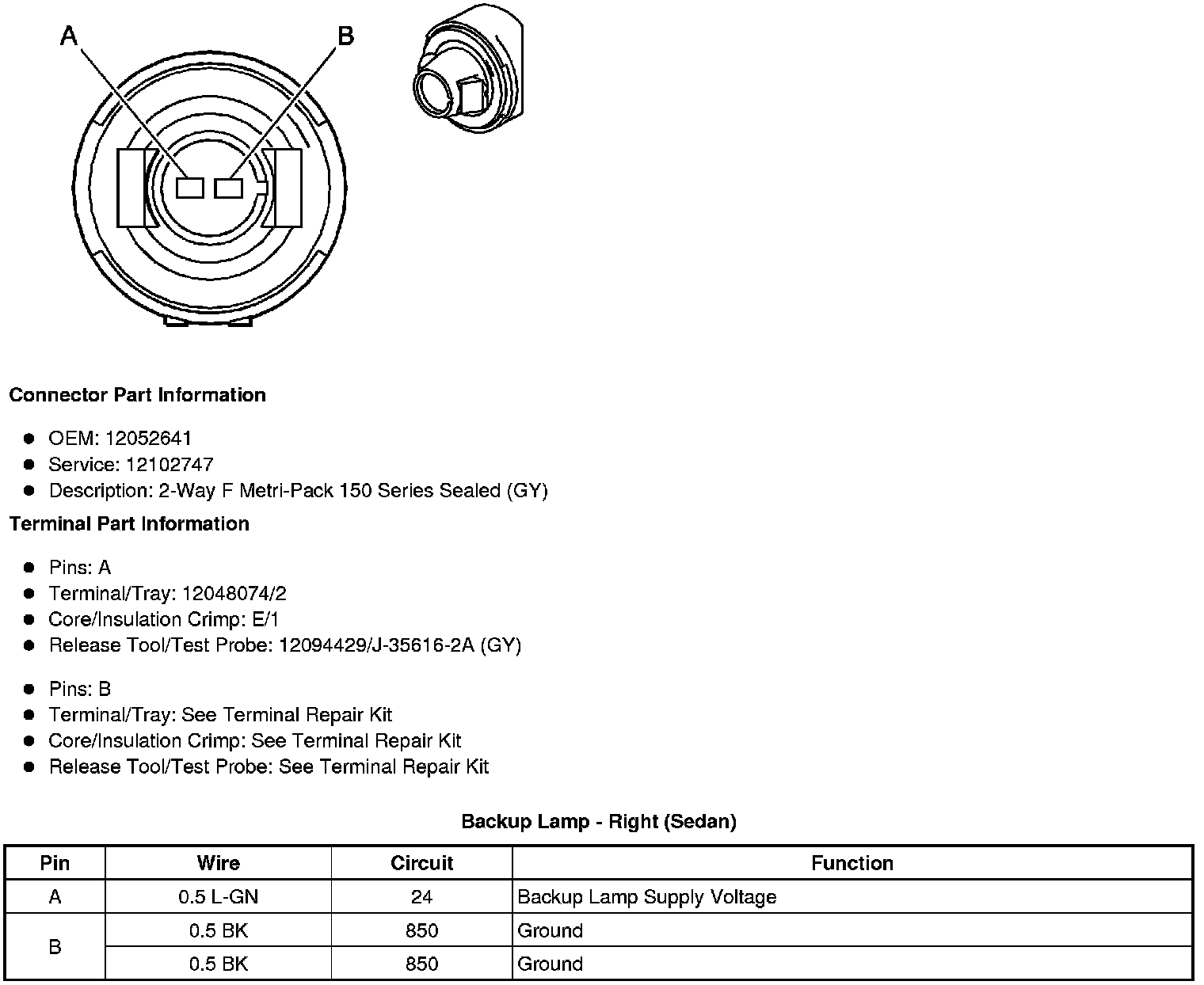

Backup Lamp - Right (Sedan)
